TPM Sensor Identi cation Codes
Each TPMS sensor has a unique identi cation code.
Any time you replace one or more of the TPMS sensors
or rotate your vehicle’s tires, the identi cation codes
will need to be matched to the new tire/wheel position.
The sensors are matched to the tire/wheel positions
in the following order: driver’s side front tire, passenger’s
side front tire, passenger’s side rear tire, and driver’s
side rear tire using a TPMS diagnostic tool. See
your GM dealer for service.
The TPMS sensors may also be matched to each
tire/wheel position by increasing or decreasing the tire’s
air pressure. If using this method to match TPMS
sensors, the complete procedure outlined below must
be performed within 15 minutes of the vehicle being
stationary.
You will have one minute to match the rst tire/wheel
position, and ve minutes overall, to match all four
tire/wheel positions. If it takes longer than one minute to
match the rst tire and wheel, or more than ve minutes
to match all four tire/wheel positions, the matching
process stops and you will need to start over.The TPM matching process is outlined below:
1. Set the parking brake.
2. Press the push-button ignition switch to ACC.
3. Using the Keyless Access transmitter, lock and
unlock the vehicle’s doors.
4. Press the lock and unlock buttons, at the same
time, on the Keyless Access transmitter. A single
horn chirp will sound, indicating that the TPMS
is ready, and the sensor matching process
can begin.
5. Start with the driver’s side front tire.
6. Remove the valve cap from the valve stem. Activate
the TPMS sensor by increasing or decreasing the
tire’s air pressure for ve seconds, or until a horn
chirp sounds. The horn chirp, which may take up to
30 seconds to sound, con rms that the sensor
identi cation code has been matched to this tire
position. To decrease the tire’s air-pressure use the
pointed end of the valve cap, a pencil-style air
pressure gauge, or a key.
7. Proceed to the passenger’s side front tire, and
repeat the procedure in Step 6.
5-68

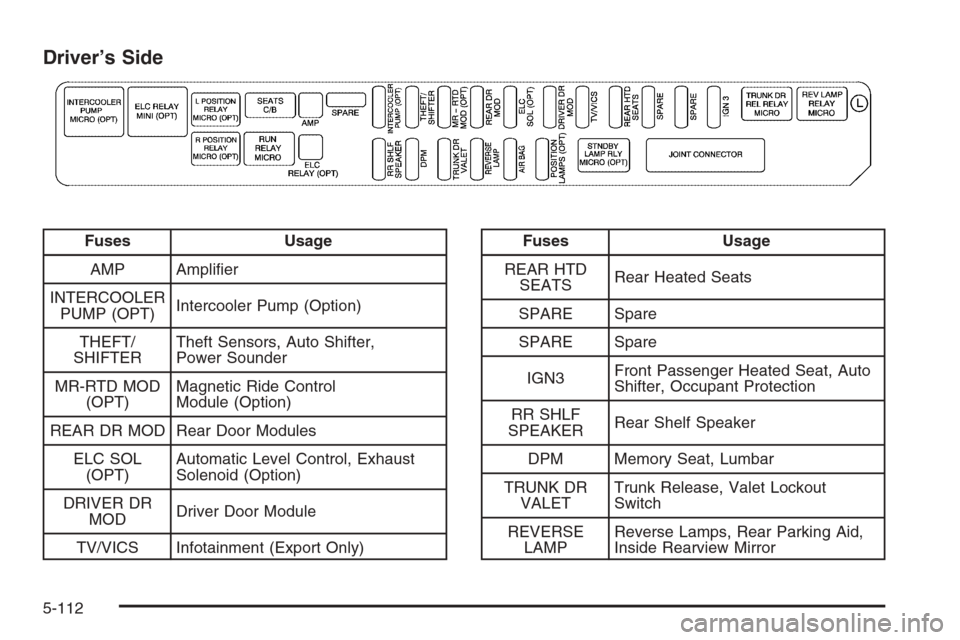

Driver’s Side
Fuses Usage
AMP Ampli er
INTERCOOLER
PUMP (OPT)Intercooler Pump (Option)
THEFT/
SHIFTERTheft Sensors, Auto Shifter,
Power Sounder
MR-RTD MOD
(OPT)Magnetic Ride Control
Module (Option)
REAR DR MOD Rear Door Modules
ELC SOL
(OPT)Automatic Level Control, Exhaust
Solenoid (Option)
DRIVER DR
MODDriver Door Module
TV/VICS Infotainment (Export Only)Fuses Usage
REAR HTD
SEATSRear Heated Seats
SPARE Spare
SPARE Spare
IGN3Front Passenger Heated Seat, Auto
Shifter, Occupant Protection
RR SHLF
SPEAKERRear Shelf Speaker
DPM Memory Seat, Lumbar
TRUNK DR
VALETTrunk Release, Valet Lockout
Switch
REVERSE
LAMPReverse Lamps, Rear Parking Aid,
Inside Rearview Mirror
5-112
