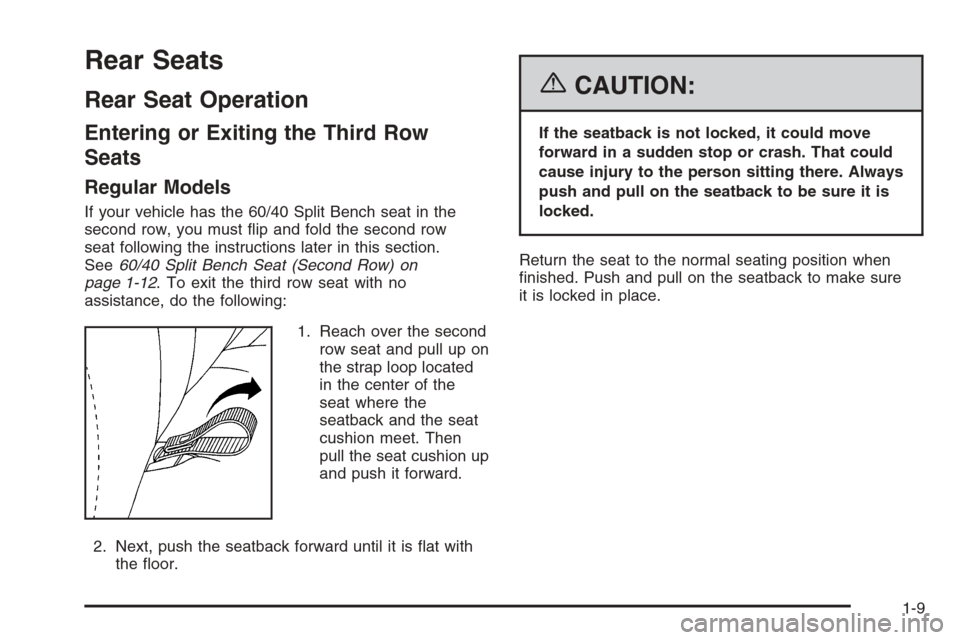

Rear Seats
Rear Seat Operation
Entering or Exiting the Third Row
Seats
Regular Models
If your vehicle has the 60/40 Split Bench seat in the
second row, you must ip and fold the second row
seat following the instructions later in this section.
See60/40 Split Bench Seat (Second Row) on
page 1-12. To exit the third row seat with no
assistance, do the following:
1. Reach over the second
row seat and pull up on
the strap loop located
in the center of the
seat where the
seatback and the seat
cushion meet. Then
pull the seat cushion up
and push it forward.
2. Next, push the seatback forward until it is at with
the oor.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
Return the seat to the normal seating position when
nished. Push and pull on the seatback to make sure
it is locked in place.
1-9

Extended Models
The passenger’s side of both the second row 60/40 split
bench seat and the second row bucket seat has an
easy entry/exit feature. This makes it easy to get in and
out of the third row seat.
To operate the easy entry seat, do the following:
1. Lift the release lever on the outboard side of the
back of the seat.
2. Tilt the seatback toward the front of the vehicle and
the seat will release.
3. Pull (push if you are exiting the third row with no
assistance) the seat forward until it stops.{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
Return the seat to the normal seating position when
nished. Push and pull on the seatback to make sure it
is locked in place.
1-10

I(Seatback Only):This can only be used for the
heat feature. Press this button to heat the seatback and
cycle through the heat settings of high, medium, low
and off. Red indicator lights will glow for each heat
setting chosen: three lights for high, two for medium and
one for low. A light in the button will also glow to
indicate the seatback heat is on.
J(Entire Seat):Press this button to heat or cool the
entire seat and cycle through the settings of high,
medium, low and off. Red (for heat) or blue (for cool)
indicator lights will glow for each setting chosen:
three lights for high, two for medium and one for low.
60/40 Split Bench Seat
(Second Row)
If your vehicle has a 60/40 split bench, the seats can be
ipped and folded for additional cargo space.
Flip and Fold Feature
To ip and fold the seat, do the following:
1. Make sure that there is nothing under or in front of
the seat.
2. Make sure that the headrests are completely
lowered or removed.On regular models, the rear seatbacks may be
equipped with rearward folding headrests. When the
seatback is being folded forward, the head rest
will automatically fold rearward.
On extended models, the headrests need to be
removed and stored. To do this, push the button at
the base of the head rest, and pull the head rest
out from the seatback. Slide the head rest pins into
the holes on the top of the seat cushion.
3. Pull up on the strap
loop located at the rear
of the seat cushion
and ip the seat
cushion forward.
1-12

5. Release the lever labeled 1, located on the rear of
the seat, and pull the seatback up to return it to the
upright position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
6. Push and pull on the seatback to make sure it is
locked.
Bucket Seats (Second Row)
If your vehicle has bucket seats, the seatbacks can be
reclined, and the seats can be ipped and folded for
additional cargo space.
Reclining the Seatbacks
To recline the seatback, do the following:
1. Pull up on the lever
located under the
outboard side of the
seat cushion.
2. Move the seatback to the desired position and
release the lever to lock the seatback in place. Regular Model Lever
shown, Extended Model
Lever similar
1-25

Lower Anchor and Top Tether Anchor
Locations
i(Top Tether Anchor):
Seating positions with top
tether anchors.
j(Lower Anchor):
Seating positions with two
lower anchors.
i(Top Tether Anchor):
Seating positions with top
tether anchors.
j(Lower Anchor):
Seating positions with two
lower anchors.
i(Top Tether Anchor):
Seating positions with top
tether anchors.
i(Top Tether Anchor):
Seating positions with top
tether anchors. Second Row — Bench
Second Row — Bucket
Third Row — Regular
Model
Third Row — Extended
Model
1-63

For Regular models, see the information following for
installing a child restraint with a top tether in the
third row, if you vehicle has one. Never install two top
tethers using the same top tether anchor.
For models with a second row bench seat, the rear right
side passenger and center seating positions have
exposed metal anchors located in the crease between
the seatback and the seat cushion.
For models with second row bucket seats, both rear
seating positions have exposed metal anchors located
in the crease between the seatback and the seat
cushion.For Regular models, the top tether anchors are located
at the bottom rear of the seat cushion for each seating
position in the second row. Be sure to use an anchor
located on the same side of the vehicle as the seating
position where the child restraint will be placed.
Second Row Seat — Regular Models
1-64

For Extended models with a bench or bucket second row
seating, the top tether anchors are located at the bottom
rear of the seat cushion for each seating position in the
second row. Be sure to use an anchor located on the
same side of the vehicle as the seating position where
the child restraint will be placed.For Regular models with third row seating, there is
one top tether anchor located at the bottom rear of the
seat cushion that can be used for either the center or
passenger side seating position in the third row,
but not for both. Never install two top tethers using
the same top tether anchor.
For Extended models with third row seating, the top
tether anchor is located at the bottom rear of the seat
cushion for the center seating position in the third row. Second Row Seat (Bucket Similar) — Extended
Models
Third Row Seat — Regular Models
1-65

Tow/Haul Mode
Your vehicle is equipped
with a tow/haul mode. The
button for this feature is
located on the end of
the column shift lever.
You can use this feature to assist when towing or
hauling a heavy load. See “Tow/Haul Mode” under
Towing a Trailer on page 4-54for more information.
The tow/haul mode also interacts with the Road Sensing
Suspension (RSS) feature to enhance the ride when
trailering or with a loaded vehicle. SeeRoad Sensing
Suspension on page 4-9.
Parking Brake
To set the parking brake, hold the regular brake pedal
down with your right foot. Push down the parking
brake pedal with your left foot.
A chime will activate and the warning light will ash
when the parking brake is applied and the vehicle
is moving at least 3 mph (5 km/h) for at least three
seconds.To release the parking brake, hold the regular brake
pedal down. Pull the bottom edge of the lever, located
above the parking brake pedal, with the parking
brake symbol, to release the parking brake.
If the ignition is on when the parking brake is released,
the brake system warning light will go off.
Notice:Driving with the parking brake on can
overheat the brake system and cause premature
wear or damage to brake system parts. Verify that
the parking brake is fully released and the brake
warning light is off before driving.
If you are towing a trailer and are parking on any hill,
seeTowing a Trailer on page 4-54.
2-23
