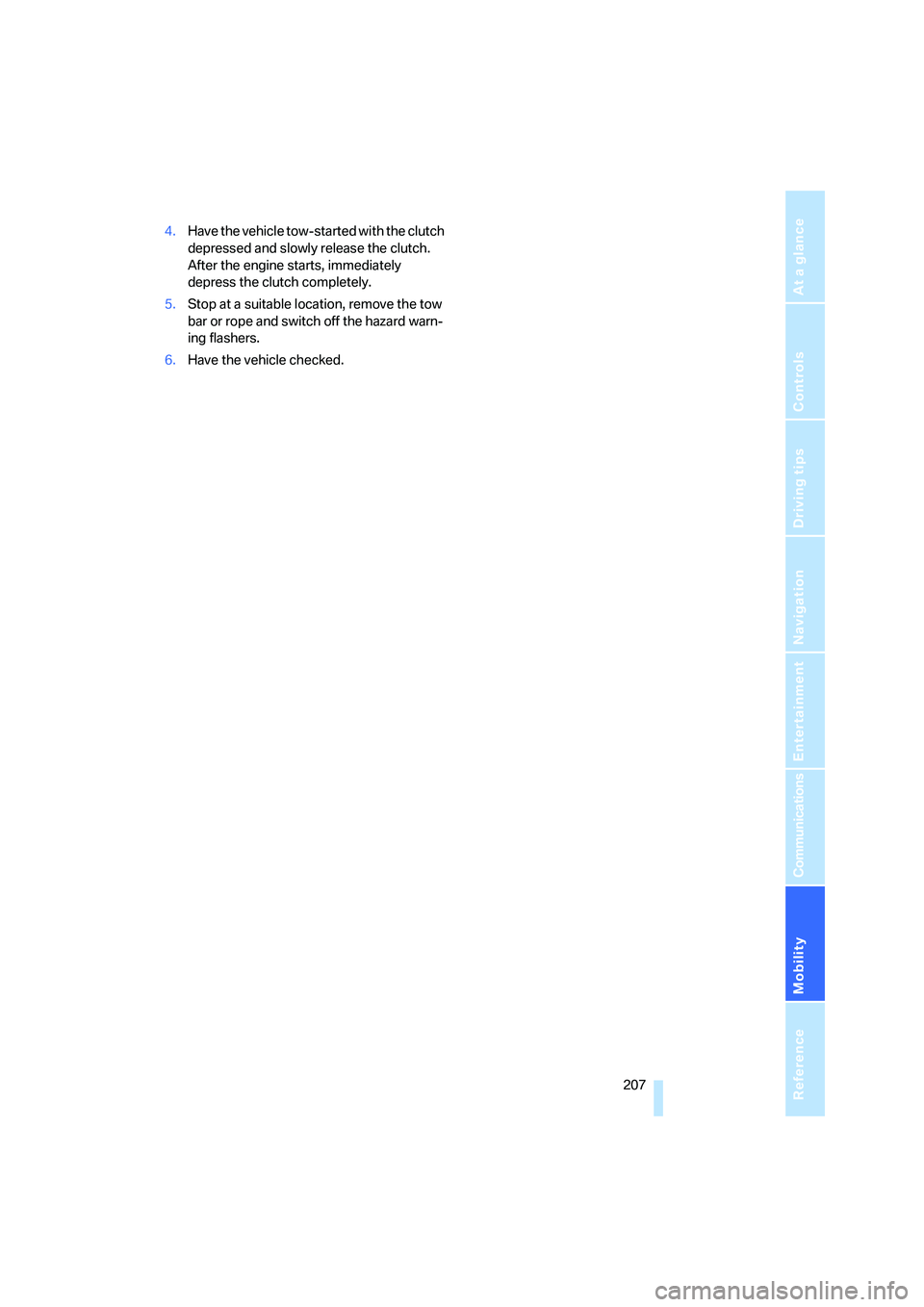

4.Have the vehicle tow-started with the clutch
depressed and slowly release the clutch.
After the engine starts, immediately
depress the clutch completely.
5.Stop at a suitable location, remove the tow
bar or rope and switch off the hazard warn-
ing flashers.
6.Have the vehicle checked.
ba8_E9293_US.book Seite 207 Freitag, 5. Mai 2006 1:02 13

ba8_E9293_US.book Seite 208 Freitag, 5. Mai 2006 1:02 13

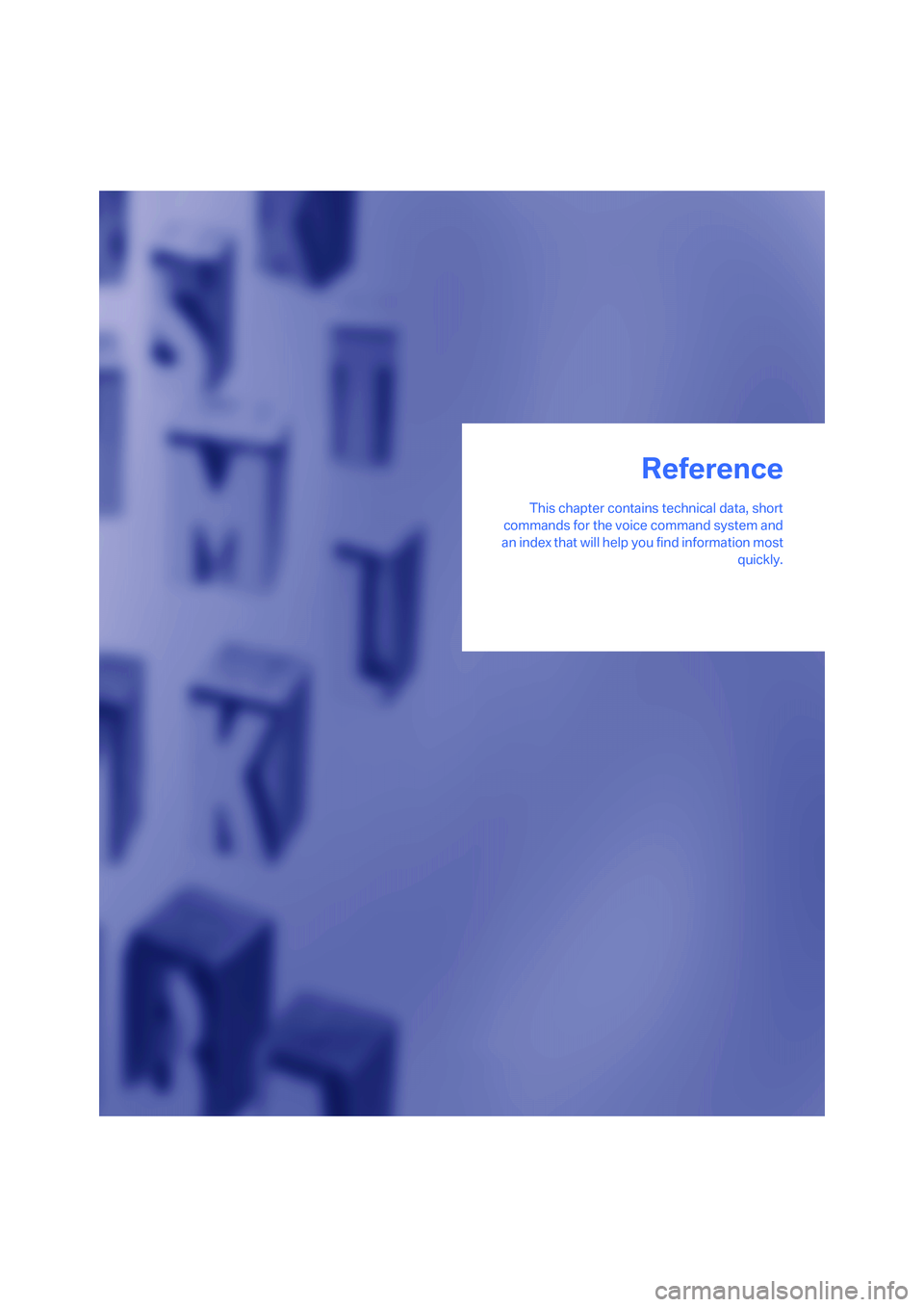

Reference
This chapter contains technical data, short
commands for the voice command system and
an index that will help you find information most
quickly.
Reference
ba8_E9293_US.book Seite 209 Freitag, 5. Mai 2006 1:02 13

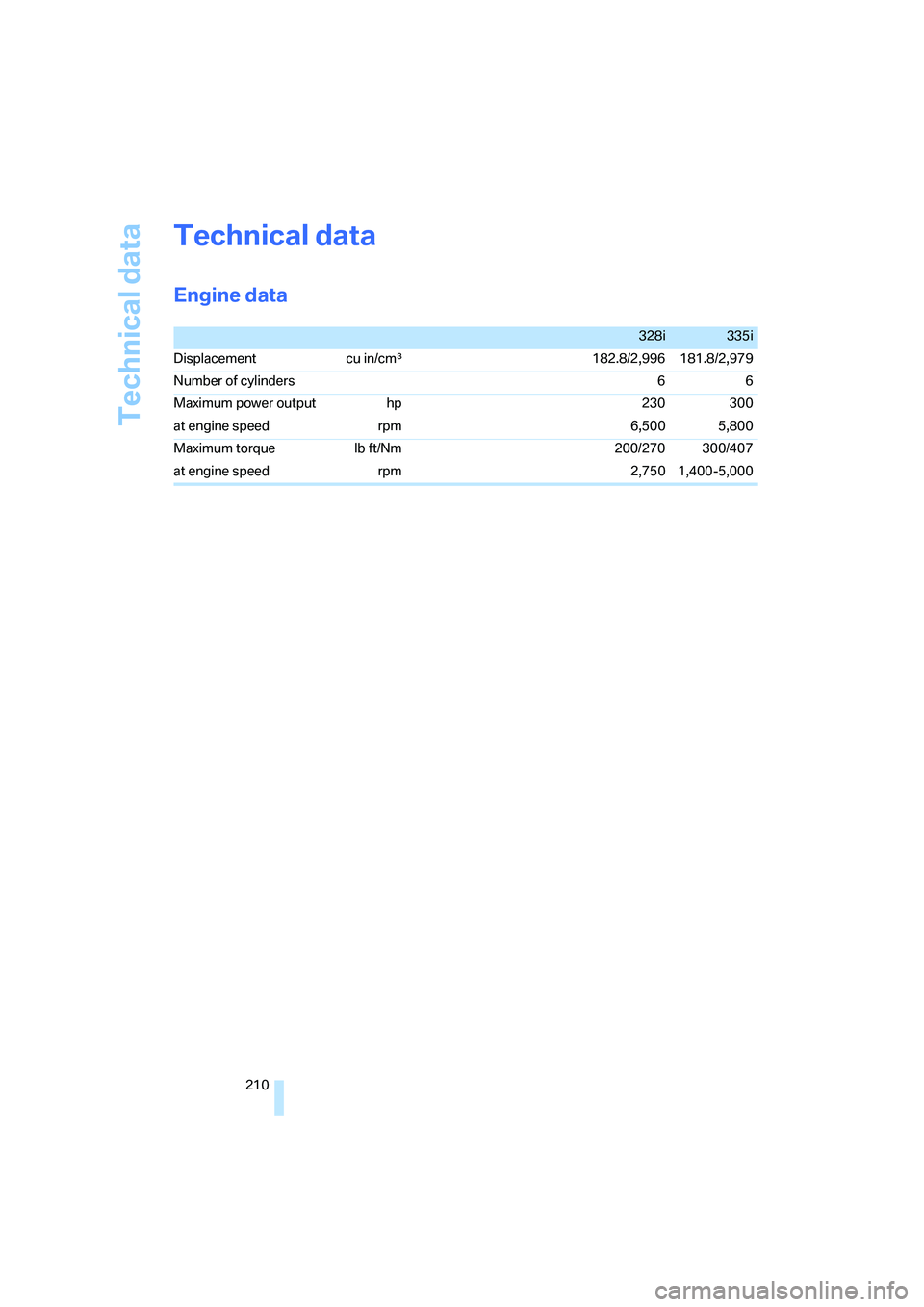

Technical data
210
Technical data
Engine data
328i335i
Displacement cu in/cmµ182.8/2,996 181.8/2,979
Number of cylinders 6 6
Maximum power output hp 230 300
at engine speed rpm 6,500 5,800
Maximum torque lb ft/Nm 200/270 300/407
at engine speed rpm 2,750 1,400-5,000
ba8_E9293_US.book Seite 210 Freitag, 5. Mai 2006 1:02 13

Reference 211
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Dimensions
All dimensions given in inches/mm. Smallest turning circle diam.: 36 ft 1 in/11.0 m
335i: height approx. 4 ft 6 in/1,375 mm
ba8_E9293_US.book Seite 211 Freitag, 5. Mai 2006 1:02 13

Technical data
212

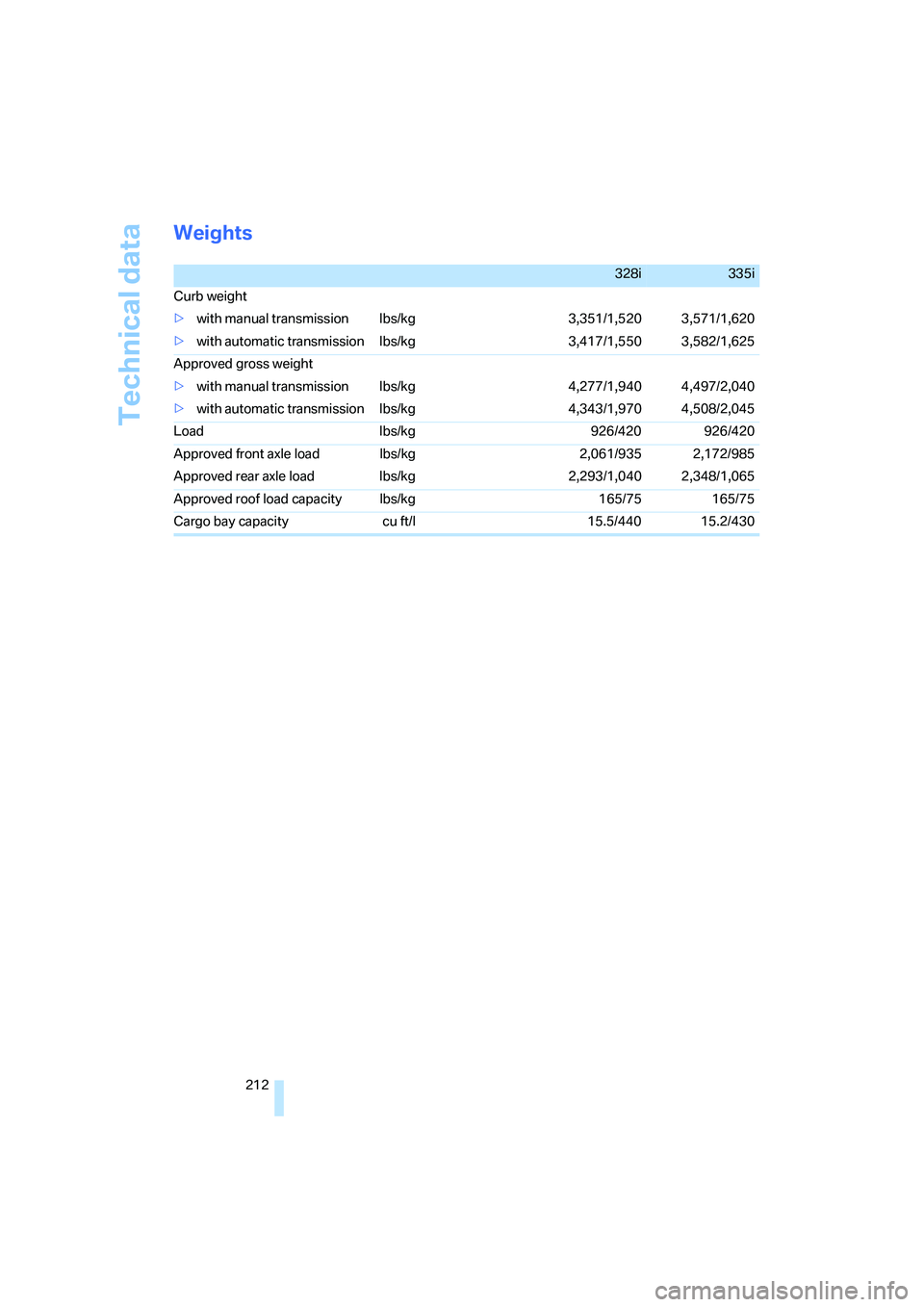

Weights
328i335i
Curb weight
>with manual transmission lbs/kg 3,351/1,520 3,571/1,620
>with automatic transmission lbs/kg 3,417/1,550 3,582/1,625
Approved gross weight
>with manual transmission lbs/kg 4,277/1,940 4,497/2,040
>with automatic transmission lbs/kg 4,343/1,970 4,508/2,045
Load lbs/kg 926/420 926/420
Approved front axle load lbs/kg 2,061/935 2,172/985
Approved rear axle load lbs/kg 2,293/1,040 2,348/1,065
Approved roof load capacity lbs/kg 165/75 165/75
Cargo bay capacity cu ft/l 15.5/440 15.2/430
ba8_E9293_US.book Seite 212 Freitag, 5. Mai 2006 1:02 13

Reference 213
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

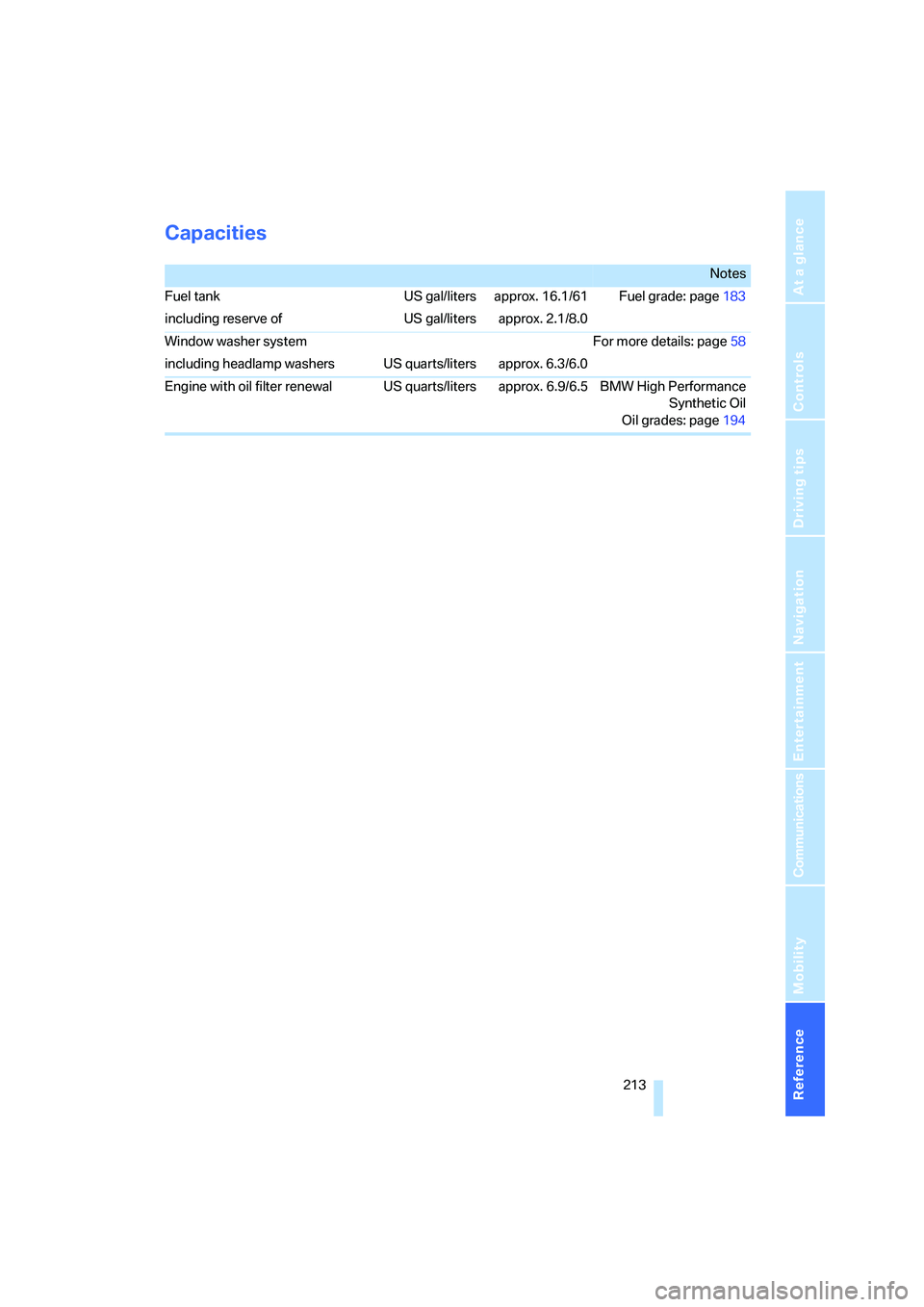

Capacities
Notes
Fuel tank US gal/liters approx. 16.1/61 Fuel grade: page183
including reserve of US gal/liters approx. 2.1/8.0
Window washer system For more details: page58
including headlamp washers US quarts/liters approx. 6.3/6.0
Engine with oil filter renewal US quarts/liters approx. 6.9/6.5 BMW High Performance
Synthetic Oil
Oil grades: page194
ba8_E9293_US.book Seite 213 Freitag, 5. Mai 2006 1:02 13

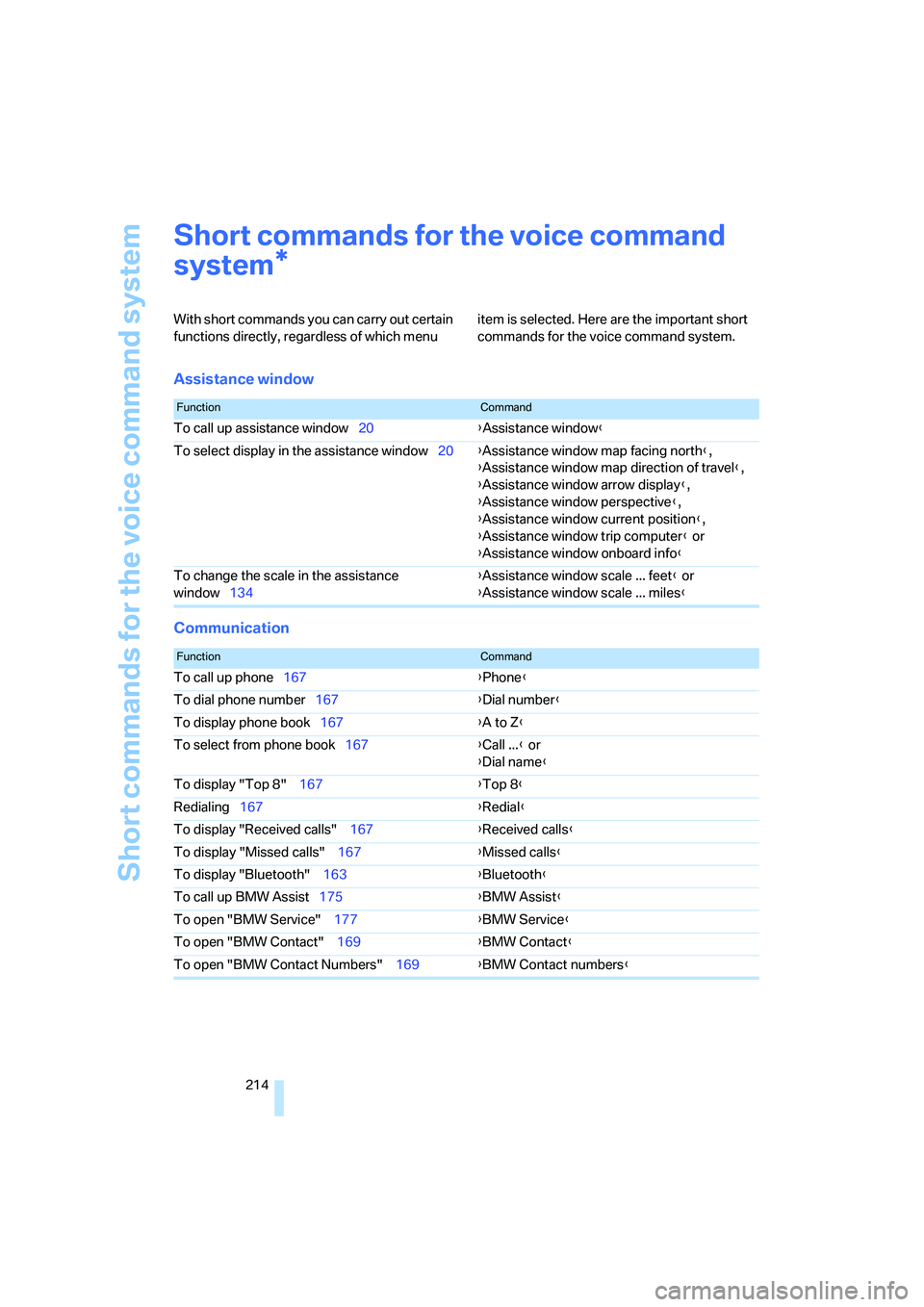

Short commands for the voice command system
214
Short commands for the voice command
system
With short commands you can carry out certain
functions directly, regardless of which menu item is selected. Here are the important short
commands for the voice command system.
Assistance window
Communication
*
FunctionCommand
To call up assistance window20{Assistance window}
To select display in the assistance window20{Assistance window map facing north},
{Assistance window map direction of travel},
{Assistance window arrow display},
{Assistance window perspective},
{Assistance window current position},
{Assistance window trip computer} or
{Assistance window onboard info}
To change the scale in the assistance
window134{Assistance window scale ... feet} or
{Assistance window scale ... miles}
FunctionCommand
To call up phone167{Phone}
To dial phone number167{Dial number}
To display phone book167{A to Z}
To select from phone book167{Call ...} or
{Dial name}
To display "Top 8" 167{Top 8}
Redialing167{Redial}
To display "Received calls" 167{Received calls}
To display "Missed calls" 167{Missed calls}
To display "Bluetooth" 163{Bluetooth}
To call up BMW Assist175{BMW Assist}
To open "BMW Service" 177{BMW Service}
To open "BMW Contact" 169{BMW Contact}
To open "BMW Contact Numbers" 169{BMW Contact numbers}
ba8_E9293_US.book Seite 214 Freitag, 5. Mai 2006 1:02 13
