2006 BMW 330CI CONVERTABLE window

Contents

Notes

About this Owner's Manual4
Additional sources of
information4
Symbols used4
Your individual vehicle5
Status at time of printing5
For your own safety5
Service and warranty6
Reporting safety defects7

Overview

Cockpit14
Instrument cluster16
Indicator and warning lamps18
Buttons in steering wheel*21
Hazard warning triangle*22
First-aid kit*22
Refueling23
Fuel specifications24

Controls and features

Opening and closing:

Keys28
Central locking system28
Opening and closing – via the
remote control29
Opening and closing – via the
door lock31
Opening and closing – from the
inside32
Luggage compartment lid33
Luggage compartment35
Alarm system*36
Electric power windows38
Manual convertible top39
Fully-automatic convertible
top*44
Wind deflector*48

To adjust:

Safe seating position50
Seats51
Adjusting electric power
seats51
Lumbar support*52
Head restraints52
Entering the rear53
Safety belts54
Seat and mirror memory*55
Seat heating*57
Mirrors57
Steering wheel58

15
1Parking lamps/Low beams95
2

>

Turn signal indicators80

>

Standing lamps97

>

High beams97

>

Headlamp flasher80

>

Computer88
3Washer/wiper system/Rain
sensor81
4Hazard warning flashers
5Central locking system28
6

>

Initiating an emergency call162

>

Mobile Service163
7Rear window defroster102, 107
8Horn: the entire surface
9Adjusting the steering wheel58
10 Fog lamps97

Cockpit

OverviewControlsMaintenanceRepairsDataIndex

30
Convenience opening modePress the button briefly and then keep it
pressed. The electric power windows
and the fully-automatic convertible top
open.To lock and securePress the button.To switch on the interior lampsWith the vehicle locked, press the but-
ton.
With this function, you can also search
for your vehicle when parked in an
underground garage, for instance.To open the luggage
compartment lidPress button briefly.
The luggage compartment lid will open
slightly, regardless of whether it was
previously locked or unlocked.
If the vehicle was previously
locked, the luggage compartment
is also locked again after it is closed.
Before and after a trip, be sure that the
luggage compartment lid has not been
opened unintentionally.<
Panic mode* – trigger alarmBy pressing the button for more than
2 seconds, the alarm system* can be
triggered in the event of danger, if the
system is armed.
To switch off the alarm:
Press the button.External systemsMalfunctions:
Local radio waves can impede the func-
tioning of the remote control.
If this occurs, open and close the vehi-
cle using a master key in the door lock.
For US owners onlyThe transmitter and receiver units com-
ply with part 15 of the FCC Federal
Communications Commission regula-
tions. Operation is governed by the fol-
lowing:
FCC ID:
>LX8EWS
>LX8FZVS
>LX8FZVE.
Compliance statement:
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
>This device may not cause harmful
interference
>This device must accept any interfer-
ence received, including interference
that may cause undesired operation.
Any unauthorized modifications to
these devices could void the
user's authority to operate the equip-
ment.<
Opening and closing – via the remote control

31

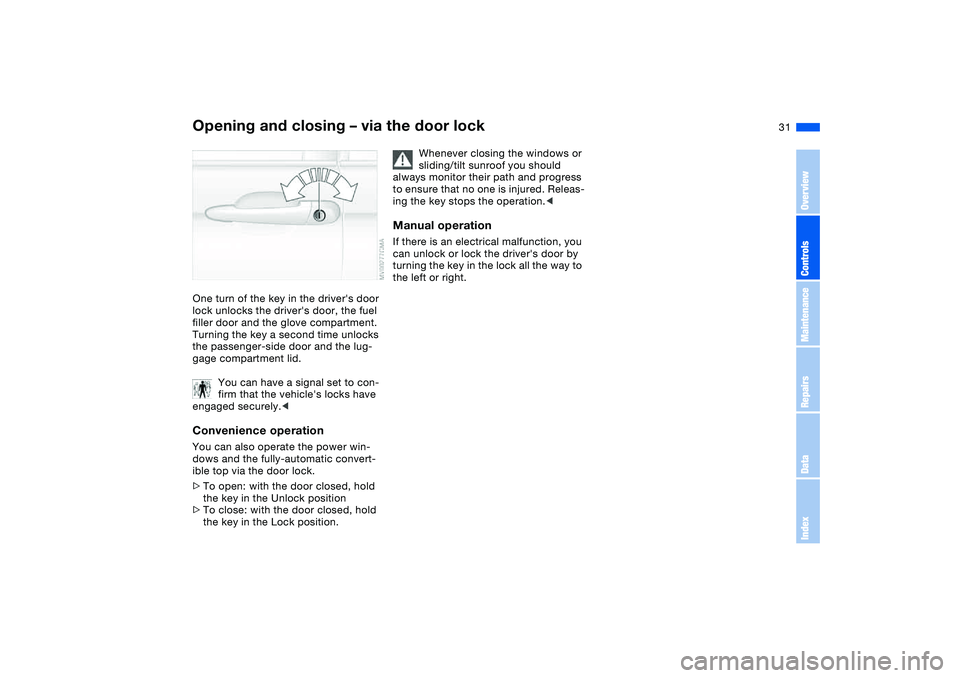

Opening and closing – via the door lockOne turn of the key in the driver's door
lock unlocks the driver's door, the fuel
filler door and the glove compartment.
Turning the key a second time unlocks
the passenger-side door and the lug-
gage compartment lid.
You can have a signal set to con-
firm that the vehicle's locks have
engaged securely. dows and the fully-automatic convert-
ible top via the door lock.
>To open: with the door closed, hold
the key in the Unlock position
>To close: with the door closed, hold
the key in the Lock position.
Whenever closing the windows or
sliding/tilt sunroof you should
always monitor their path and progress
to ensure that no one is injured. Releas-
ing the key stops the operation.<
Manual operationIf there is an electrical malfunction, you
can unlock or lock the driver's door by
turning the key in the lock all the way to
the left or right.
OverviewControlsMaintenanceRepairsDataIndex

34

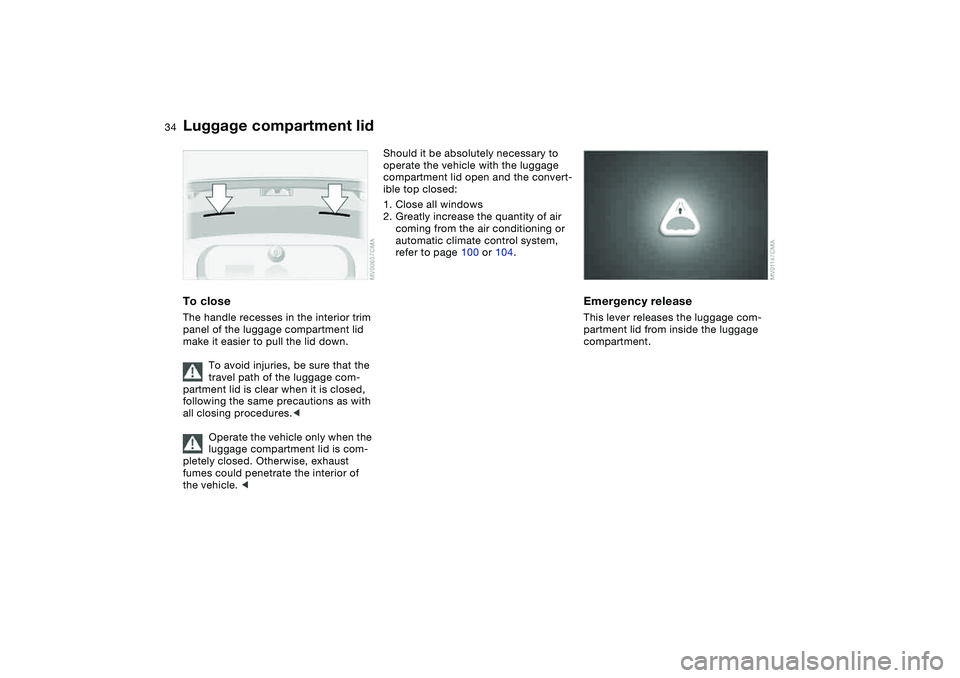

To closeThe handle recesses in the interior trim
panel of the luggage compartment lid
make it easier to pull the lid down.
To avoid injuries, be sure that the
travel path of the luggage com-
partment lid is clear when it is closed,
following the same precautions as with
all closing procedures.<
Operate the vehicle only when the
luggage compartment lid is com-
pletely closed. Otherwise, exhaust
fumes could penetrate the interior of
the vehicle. <
Should it be absolutely necessary to
operate the vehicle with the luggage
compartment lid open and the convert-
ible top closed:
1. Close all windows
2. Greatly increase the quantity of air
coming from the air conditioning or
automatic climate control system,
refer to page 100 or 104.
Emergency releaseThis lever releases the luggage com-
partment lid from inside the luggage
compartment.
Luggage compartment lid

37
Indicator lamp displays>The indicator lamp below the interior
rearview mirror flashes continuously:
The system is armed
>The indicator lamp flashes immedi-
ately after the vehicle is locked: doors
or luggage compartment lid are not
completely closed. Even if you do not
close the alerted area(s), the remain-
ing areas are secured, and the indi-
cator lamp will flash continuously
after 10 seconds. However, the inte-
rior motion sensor is not activated
>The indicator lamp goes out immedi-
ately after the vehicle is unlocked: no
manipulation or attempted intrusions
have been detected in the period
since the system was armed
>The indicator lamp flashes for
10 seconds immediately after the
vehicle is unlocked: an attempted
entry has been detected in the period
since the system was armed.
Following triggering of an alarm, the
indicator lamp will flash continuously.Tilt alarm sensor and interior
motion sensorTilt alarm sensor:
The tilt of the vehicle is monitored. The
alarm system reacts, for example, to
attempts to steal the wheels or tow the
vehicle.
Interior motion sensor:
The vehicle interior is monitored up to
the height of the seat cushions. Even
when the convertible top is open, the
alarm system including the interior
motion sensor is armed. Objects falling
into the vehicle, e.g. leaves, can trigger
unintentional alarms, refer to Avoiding
unintentional alarms.Avoiding unintentional alarmsThe tilt alarm sensor and interior motion
sensor may be switched off at the same
time. You can do this to prevent a false
alarm, e.g. in the following situations:
>In garages with elevator ramps>When the vehicle is being trans-
ported by train
>When animals are to remain in the
vehicle.
To deactivate the tilt alarm and
interior motion sensors>Press the button on the remote con-
trol twice.
The indicator lamp lights up briefly and
then flashes continuously. The tilt alarm
sensor and the interior motion sensor
are deactivated until the vehicle is
unlocked and locked again.
You can have the tilt alarm sensor
and the interior motion sensor
permanently deactivated.<
The system inadvertently deacti-
vates the tilt alarm sensor and the
interior motion sensor if the conve-
nience closing of windows and glass
sunroof is interrupted within the first
10 seconds and then restarted. The
vehicle must then be unlocked and
relocked before the sensors will resume
operation.<
Alarm system*
OverviewControlsMaintenanceRepairsDataIndex

38

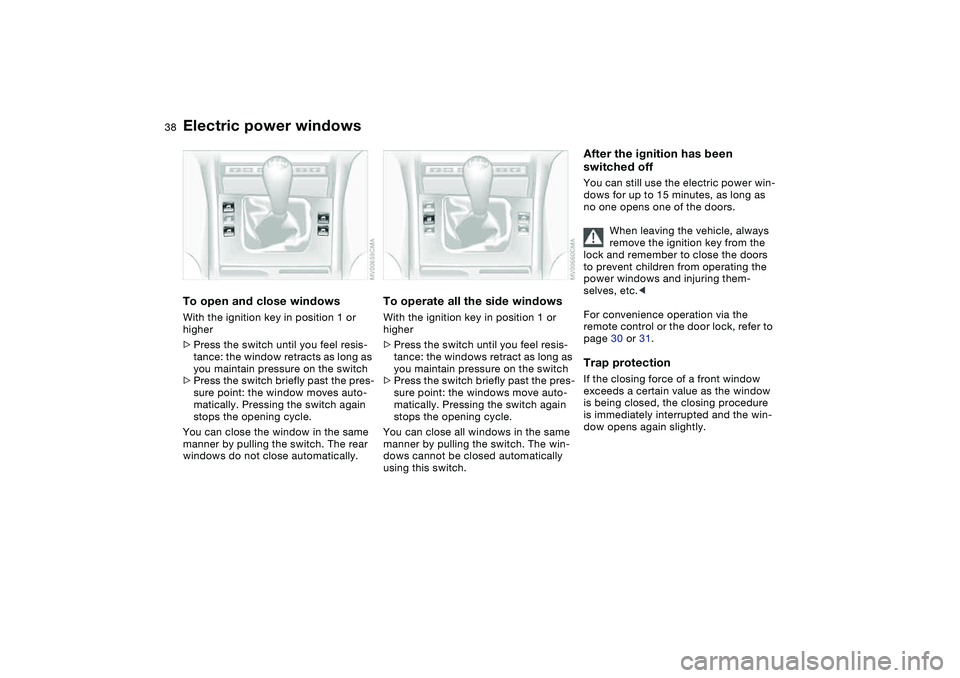

Electric power windowsTo open and close windowsWith the ignition key in position 1 or
higher
>Press the switch until you feel resis-
tance: the window retracts as long as
you maintain pressure on the switch
>Press the switch briefly past the pres-
sure point: the window moves auto-
matically. Pressing the switch again
stops the opening cycle.
You can close the window in the same
manner by pulling the switch. The rear
windows do not close automatically.
To operate all the side windowsWith the ignition key in position 1 or
higher
>Press the switch until you feel resis-
tance: the windows retract as long as
you maintain pressure on the switch
>Press the switch briefly past the pres-
sure point: the windows move auto-
matically. Pressing the switch again
stops the opening cycle.
You can close all windows in the same
manner by pulling the switch. The win-
dows cannot be closed automatically
using this switch.
After the ignition has been
switched offYou can still use the electric power win-
dows for up to 15 minutes, as long as
no one opens one of the doors.
When leaving the vehicle, always
remove the ignition key from the
lock and remember to close the doors
to prevent children from operating the
power windows and injuring them-
selves, etc.<
For convenience operation via the
remote control or the door lock, refer to
page 30 or 31.Trap protectionIf the closing force of a front window
exceeds a certain value as the window
is being closed, the closing procedure
is immediately interrupted and the win-
dow opens again slightly.

39
Despite trap protection, always
make sure that the windows can
close without obstruction, otherwise in
some cases, e.g. with thin objects, it is
not guaranteed that the closing opera-
tion will be interrupted.
Trap protection is restricted when the
switch is pulled and held beyond the
pressure point. In this instance, if the
closing force exceeds a certain value,
the window will re-open just a few milli-
meters.
If the switch is pulled and held beyond
the pressure point again within approx.
4 seconds, trap protection is overrid-
den.<
After a power lossAfter the battery has been discon-
nected, the trap protection must be
reinitialized. Perform the following pro-
cedure twice:
>Open and close the window com-
pletely
>With the window closed, keep pulling
the switch for approx. 1 second.
Manual convertible topThe fabric top offers the perfect protec-
tion against weather and one person
can open and close it easily and simply.
To gain maximum satisfaction from your
convertible, please observe the follow-
ing: we strongly recommend that you
close the convertible top before leaving
the vehicle parked. When closed, the
top not only guards the passenger
compartment from unforeseeable dam-
age from the weather, but also affords a
degree of protection against theft.
However, even when the top is closed
valuables should always be stored in
the locked luggage compartment.
Never attempt to mount any kind of roof
rack or luggage carrier on the convert-
ible top.
Closing the electric power win-
dows: to help ensure that the win-
dows seal securely, you should either
close the rear windows first or close all
four windows at the same time.<
Electric power windows
