2006 BMW 330CI CONVERTABLE Convertible

Contents

Notes

About this Owner's Manual4
Additional sources of
information4
Symbols used4
Your individual vehicle5
Status at time of printing5
For your own safety5
Service and warranty6
Reporting safety defects7

Overview

Cockpit14
Instrument cluster16
Indicator and warning lamps18
Buttons in steering wheel*21
Hazard warning triangle*22
First-aid kit*22
Refueling23
Fuel specifications24

Controls and features

Opening and closing:

Keys28
Central locking system28
Opening and closing – via the
remote control29
Opening and closing – via the
door lock31
Opening and closing – from the
inside32
Luggage compartment lid33
Luggage compartment35
Alarm system*36
Electric power windows38
Manual convertible top39
Fully-automatic convertible
top*44
Wind deflector*48

To adjust:

Safe seating position50
Seats51
Adjusting electric power
seats51
Lumbar support*52
Head restraints52
Entering the rear53
Safety belts54
Seat and mirror memory*55
Seat heating*57
Mirrors57
Steering wheel58

30
Convenience opening modePress the button briefly and then keep it
pressed. The electric power windows
and the fully-automatic convertible top
open.To lock and securePress the button.To switch on the interior lampsWith the vehicle locked, press the but-
ton.
With this function, you can also search
for your vehicle when parked in an
underground garage, for instance.To open the luggage
compartment lidPress button briefly.
The luggage compartment lid will open
slightly, regardless of whether it was
previously locked or unlocked.
If the vehicle was previously
locked, the luggage compartment
is also locked again after it is closed.
Before and after a trip, be sure that the
luggage compartment lid has not been
opened unintentionally.<
Panic mode* – trigger alarmBy pressing the button for more than
2 seconds, the alarm system* can be
triggered in the event of danger, if the
system is armed.
To switch off the alarm:
Press the button.External systemsMalfunctions:
Local radio waves can impede the func-
tioning of the remote control.
If this occurs, open and close the vehi-
cle using a master key in the door lock.
For US owners onlyThe transmitter and receiver units com-
ply with part 15 of the FCC Federal
Communications Commission regula-
tions. Operation is governed by the fol-
lowing:
FCC ID:
>LX8EWS
>LX8FZVS
>LX8FZVE.
Compliance statement:
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
>This device may not cause harmful
interference
>This device must accept any interfer-
ence received, including interference
that may cause undesired operation.
Any unauthorized modifications to
these devices could void the
user's authority to operate the equip-
ment.<
Opening and closing – via the remote control

35
Luggage compartmentTo fold up and secure the floor
panel1. Pull up at the handle and fold the
panel up
2. Press the button to release the
hanger from the handle
3. Hook the handle into the rubber seal
of the drip rail.
Carefully replace the hanger in its
holder when lowering the floor
panel back down.<
The fittings at the corners of the lug-
gage compartment provide you with a
convenient means of attaching luggage
compartment nets* and flexible straps
for securing luggage.
Refer also to Cargo loading on
page 117.
To enlarge the luggage
compartmentWith the convertible top closed, you
can enlarge the luggage compartment.
To do this, flip the handle outward and
press it down and toward the front of
the vehicle. The convertible top com-
partment panel is now raised and
secured.To fold down the convertible top
compartment panelThe convertible top compartment lid
must be folded down to open the con-
vertible top. Swing out the handle and
pull toward the back of the vehicle.
OverviewControlsMaintenanceRepairsDataIndex

36
Before lowering the convertible
top, refer to page 39 or 44, always
check to ensure that the luggage com-
partment panel is folded down. Other-
wise damage could occur.<
Alarm system*The conceptThe vehicle alarm system responds:
>When a door, the hood or the lug-
gage compartment lid is opened
>To movements inside the vehicle –
interior motion sensor
>To variations in the vehicle's tilt angle
such as those occurring during
attempts to steal the wheels or tow
the vehicle – tilt alarm sensor
>To interruption of battery voltage.
The system responds to unauthorized
vehicle entry and attempted theft by
simultaneously activating the following:
>The acoustic alarm sounds for
30 seconds
>The hazard warning flashers are acti-
vated for approx. five minutes
>The high beams flash on and off in
rhythm with the hazard warning flash-
ers.To arm and disarm the alarm
systemWhen the vehicle is locked or unlocked
via the remote control or the driver's
door lock, the alarm system is also
simultaneously armed or disarmed.You can have different acknowl-
edgment signals set to confirm
arming and disarming.<
You can open the luggage compart-
ment lid when the system is armed by
pressing the remote control button,
refer to page 30. The lid is once again
secured when it is closed.
Extended pressure on the button sets
off the alarm – Panic mode, refer to
page 30.
Luggage compartment

37
Indicator lamp displays>The indicator lamp below the interior
rearview mirror flashes continuously:
The system is armed
>The indicator lamp flashes immedi-
ately after the vehicle is locked: doors
or luggage compartment lid are not
completely closed. Even if you do not
close the alerted area(s), the remain-
ing areas are secured, and the indi-
cator lamp will flash continuously
after 10 seconds. However, the inte-
rior motion sensor is not activated
>The indicator lamp goes out immedi-
ately after the vehicle is unlocked: no
manipulation or attempted intrusions
have been detected in the period
since the system was armed
>The indicator lamp flashes for
10 seconds immediately after the
vehicle is unlocked: an attempted
entry has been detected in the period
since the system was armed.
Following triggering of an alarm, the
indicator lamp will flash continuously.Tilt alarm sensor and interior
motion sensorTilt alarm sensor:
The tilt of the vehicle is monitored. The
alarm system reacts, for example, to
attempts to steal the wheels or tow the
vehicle.
Interior motion sensor:
The vehicle interior is monitored up to
the height of the seat cushions. Even
when the convertible top is open, the
alarm system including the interior
motion sensor is armed. Objects falling
into the vehicle, e.g. leaves, can trigger
unintentional alarms, refer to Avoiding
unintentional alarms.Avoiding unintentional alarmsThe tilt alarm sensor and interior motion
sensor may be switched off at the same
time. You can do this to prevent a false
alarm, e.g. in the following situations:
>In garages with elevator ramps>When the vehicle is being trans-
ported by train
>When animals are to remain in the
vehicle.
To deactivate the tilt alarm and
interior motion sensors>Press the button on the remote con-
trol twice.
The indicator lamp lights up briefly and
then flashes continuously. The tilt alarm
sensor and the interior motion sensor
are deactivated until the vehicle is
unlocked and locked again.
You can have the tilt alarm sensor
and the interior motion sensor
permanently deactivated.<
The system inadvertently deacti-
vates the tilt alarm sensor and the
interior motion sensor if the conve-
nience closing of windows and glass
sunroof is interrupted within the first
10 seconds and then restarted. The
vehicle must then be unlocked and
relocked before the sensors will resume
operation.<
Alarm system*
OverviewControlsMaintenanceRepairsDataIndex

39
Despite trap protection, always
make sure that the windows can
close without obstruction, otherwise in
some cases, e.g. with thin objects, it is
not guaranteed that the closing opera-
tion will be interrupted.
Trap protection is restricted when the
switch is pulled and held beyond the
pressure point. In this instance, if the
closing force exceeds a certain value,
the window will re-open just a few milli-
meters.
If the switch is pulled and held beyond
the pressure point again within approx.
4 seconds, trap protection is overrid-
den.<
After a power lossAfter the battery has been discon-
nected, the trap protection must be
reinitialized. Perform the following pro-
cedure twice:
>Open and close the window com-
pletely
>With the window closed, keep pulling
the switch for approx. 1 second.
Manual convertible topThe fabric top offers the perfect protec-
tion against weather and one person
can open and close it easily and simply.
To gain maximum satisfaction from your
convertible, please observe the follow-
ing: we strongly recommend that you
close the convertible top before leaving
the vehicle parked. When closed, the
top not only guards the passenger
compartment from unforeseeable dam-
age from the weather, but also affords a
degree of protection against theft.
However, even when the top is closed
valuables should always be stored in
the locked luggage compartment.
Never attempt to mount any kind of roof
rack or luggage carrier on the convert-
ible top.
Closing the electric power win-
dows: to help ensure that the win-
dows seal securely, you should either
close the rear windows first or close all
four windows at the same time.<
Electric power windows
OverviewControlsMaintenanceRepairsDataIndex

40

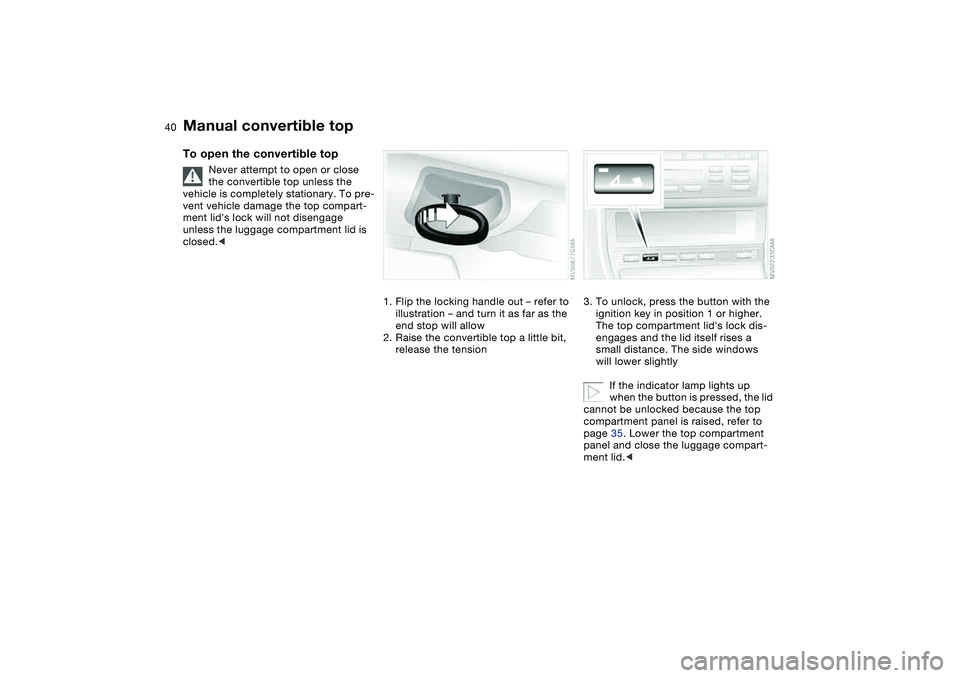

To open the convertible top
Never attempt to open or close
the convertible top unless the
vehicle is completely stationary. To pre-
vent vehicle damage the top compart-
ment lid's lock will not disengage
unless the luggage compartment lid is
closed.<
1. Flip the locking handle out – refer to
illustration – and turn it as far as the
end stop will allow
2. Raise the convertible top a little bit,
release the tension
3. To unlock, press the button with the
ignition key in position 1 or higher.
The top compartment lid's lock dis-
engages and the lid itself rises a
small distance. The side windows
will lower slightly
If the indicator lamp lights up
when the button is pressed, the lid
cannot be unlocked because the top
compartment panel is raised, refer to
page 35. Lower the top compartment
panel and close the luggage compart-
ment lid.<
Manual convertible top

41
4. Position the rear convertible top
frame vertically and grip it firmly
You can make it easier to raise the
rear convertible top frame by
pressing the area indicated by the
arrow.<
5. Reach into the recess created when
the convertible top compartment lid
is lifted and pull it all the way by
hand – see arrow 1
6. Lay the rear convertible top frame in
the convertible top compartment –
see arrow 2
Let go of the rear convertible top
frame before laying the convert-
ible top down; otherwise the side trim
panel could be damaged.<
7. Raise the front of the top and pull it
back for storage
Now finish pushing the convertible
top all the way down into the con-
vertible top compartment. This makes it
easier to close the convertible top com-
partment lid, especially at lower tem-
peratures.<
Manual convertible top
OverviewControlsMaintenanceRepairsDataIndex
