DESCRIPTION
2-1
2
EAU10410

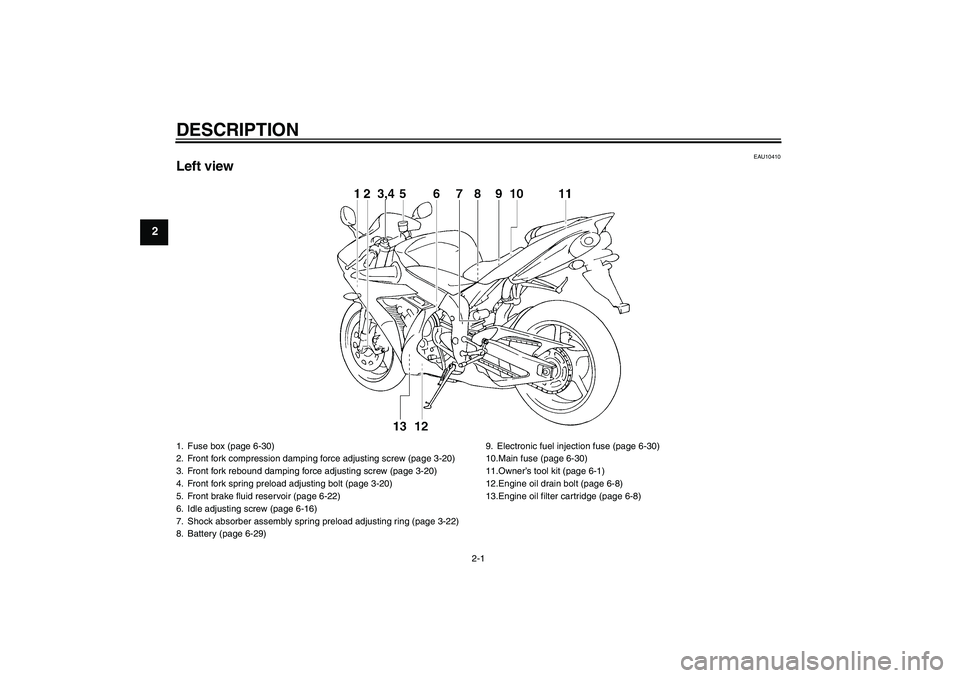

Left view1. Fuse box (page 6-30)
2. Front fork compression damping force adjusting screw (page 3-20)
3. Front fork rebound damping force adjusting screw (page 3-20)
4. Front fork spring preload adjusting bolt (page 3-20)
5. Front brake fluid reservoir (page 6-22)
6. Idle adjusting screw (page 6-16)
7. Shock absorber assembly spring preload adjusting ring (page 3-22)
8. Battery (page 6-29)9. Electronic fuel injection fuse (page 6-30)
10.Main fuse (page 6-30)
11.Owner’s tool kit (page 6-1)
12.Engine oil drain bolt (page 6-8)
13.Engine oil filter cartridge (page 6-8)U5VYE1E0.book Page 1 Tuesday, September 7, 2004 9:09 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6charger will damage the battery.
If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealer
charge your battery.
EAU34052
Replacing the fuses The main fuse and the electronic fuel
injection fuse are located under the rid-
er seat. (See page 3-19.)
The fuse box, which contains the fuses
for the individual circuits, is located be-
hind the cowling shown.If a fuse is blown, replace it as follows.
NOTE:
Include steps 2–4 and 8–9 only for thefuses in the fuse box.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the quick fasteners by
pushing the center in with a screw-
driver, then pulling the fastener
out.
1. Main fuse
2. Electronic fuel injection spare fuse
3. Electronic fuel injection fuse
1. Cowling
U5VYE1E0.book Page 30 Tuesday, September 7, 2004 9:09 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6 3. Loosen and remove the quick fas-
tener screws, and then slide the
areas of the cowling shown for-
ward.
4. Pull the cowling away from the
motorcycle as shown.5. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
1. Quick fastener
1. Quick fastener screw
2. Cowling
1. Fuse box
2. Cowling
1. Headlight fuse
2. Spare fuse
3. Left radiator fan fuse
4. Right radiator fan fuse
5. Backup fuse (for odometer, clock and immo-
bilizer system)
6. Turn signal light fuse
7. Signaling system fuse
8. Ignition fuse
U5VYE1E0.book Page 31 Tuesday, September 7, 2004 9:09 AM
