2005 YAMAHA YZ250F width

SPEC
2 - 1
EC200000
SPECIFICATIONS
EC211000
GENERAL SPECIFICATIONS
Model name: YZ250FT (USA, CDN, AUS, NZ)
YZ250F (EUROPE, ZA)
Model code number: 5XC5 (USA)
5XC6 (EUROPE)
5XC8 (CDN, AUS, NZ, ZA)
Dimensions:
USA, ZA,
AUS, NZEUROPE
(Except
for F)FCDN
Overall length 2,161 mm
(85.08 in)2,162 mm
(85.12 in)2,161 mm
(85.08 in)2,165 mm
(85.24 in)
Overall width 827 mm
(32.56 in)← ← ←
Overall height 1,293 mm
(50.91 in)1,295 mm
(50.98 in)← ←
Seat height 992 mm
(39.06 in)994 mm
(39.13 in)993 mm
(39.09 in)994 mm
(39.13 in)
Wheelbase 1,469 mm
(57.83 in)1,465 mm
(57.68 in)← 1,469 mm
(57.83 in)
Minimum ground clearance 380 mm
(14.96 in)382 mm
(15.04 in)← ←
Dry weight:
Without oil and fuel 93.5 kg (206 lb)
Engine:
Engine type Liquid cooled 4-stroke, DOHC
Cylinder arrangement Single cylinder, forward inclined
Displacement 249 cm
3 (8.76 Imp oz, 8.42 US oz)
Bore × stroke 77.0 × 53.6 mm (3.03 × 2.11 in)
Compression ratio 12.5 : 1
Starting system Kickstarter
Lubrication system: Dry sump
2
GENERAL SPECIFICATIONS

SPEC
2 - 5 Timing chain:
Timing chain type/No. of links 92RH2010-114M/114 ----
Timing chain adjustment method Automatic ----
Valve, valve seat, valve guide:
Valve clearance (cold) IN 0.10 ~ 0.15 mm
(0.0039 ~ 0.0059 in)----
EX 0.17 ~ 0.22 mm
(0.0067 ~ 0.0087 in)----
Valve dimensions:
“A” head diameter IN 22.9 ~ 23.1 mm
(0.9016 ~ 0.9094 in)----
EX 24.4 ~ 24.6 mm
(0.9606 ~ 0.9685 in)----
“B” face width IN 2.26 mm (0.089 in) ----
EX 2.26 mm (0.089 in) ----
“C” seat width IN 0.9 ~ 1.1 mm
(0.0354 ~ 0.0433 in)1.6 mm
(0.0630 in)
EX 0.9 ~ 1.1 mm
(0.0354 ~ 0.0433 in)1.6 mm
(0.0630 in)
“D” margin thickness IN 0.8 mm (0.0315 in) ----
EX 0.7 mm (0.0276 in) ----
Stem outside diameter IN 3.975 ~ 3.990 mm
(0.1565 ~ 0.1571 in)3.945 mm
(0.1553 in)
EX 4.460 ~ 4.475 mm
(0.1756 ~ 0.1762 in)4.430 mm
(0.1744 in)
Guide inside diameter IN 4.000 ~ 4.012 mm
(0.1575 ~ 0.1580 in)4.050 mm
(0.1594 in)
EX 4.500 ~ 4.512 mm
(0.1772 ~ 0.1776 in)4.550 mm
(0.1791 in)
Stem-to-guide clearance IN 0.010 ~ 0.037 mm
(0.0004 ~ 0.0015 in)0.08 mm
(0.003 in)
EX 0.025 ~ 0.052 mm
(0.0010 ~ 0.0020 in)0.10 mm
(0.004 in) Item Standard Limit
BC
DA
Head diameter Face width Seat width Margin thickness
MAINTENANCE SPECIFICATIONS

SPEC
2 - 6 Stem runout limit ---- 0.01 mm
(0.0004 in)
Valve seat width IN 0.9 ~ 1.1 mm
(0.0354 ~ 0.0433 in)1.6 mm
(0.0630 in)
EX 0.9 ~ 1.1 mm
(0.0354 ~ 0.0433 in)1.6 mm
(0.0630 in)
Valve spring:
Free length IN 37.81 mm (1.49 in) 36.81 mm
(1.45 in)
EX 37.54 mm (1.48 in) 36.54 mm
(1.44 in)
Set length (valve closed) IN 29.13 mm (1.15 in) ----
EX 29.30 mm (1.15 in) ----
Compressed force (installed) IN 99 ~ 114 N at 29.13 mm
(9.9 ~ 11.4 kg at 29.13 mm,
22.27 ~ 25.57 lb at 1.15 in)----
EX 126 ~ 144 N at 29.30 mm
(12.6 ~ 14.4 kg at 29.30 mm,
28.44 ~ 32.41 lb at 1.15 in)----
Tilt limit IN ---- 2.5°/1.7 mm
(2.5°/0.067 in)
EX ---- 2.5°/1.6 mm
(2.5°/0.063 in)
Direction of winding (top view) IN Clockwise ----
EX Clockwise ----
Piston:
Piston to cylinder clearance 0.040 ~ 0.065 mm
(0.0016 ~ 0.0026 in)0.1 mm
(0.004 in)
Piston size “D”76.955 ~ 76.970 mm
(3.0297 ~ 3.0303 in)----
Measuring point “H”8 mm (0.31 in) ----
Piston off-set 0.5 mm (0.020 in)/IN-side ----Item Standard Limit
H
D
MAINTENANCE SPECIFICATIONS

SPEC
2 - 7 Piston pin bore inside diameter 16.002 ~ 16.013 mm
(0.6300 ~ 0.6304 in)16.043 mm
(0.6316 in)
Piston pin outside diameter 15.991 ~ 16.000 mm
(0.6296 ~ 0.6299 in)15.971 mm
(0.6288 in)
Piston rings:
Top ring:
Type Barrel ----
Dimensions (B × T) 0.90 × 2.75 mm (0.04 × 0.11 in) ----
End gap (installed) 0.15 ~ 0.25 mm
(0.006 ~ 0.010 in)0.50 mm
(0.020 in)
Side clearance (installed) 0.030 ~ 0.065 mm
(0.0012 ~ 0.0026 in)0.12 mm
(0.005 in)
2nd ring:
Type Taper ----
Dimensions (B × T) 0.80 × 2.75 mm (0.03 × 0.11 in) ----
End gap (installed) 0.30 ~ 0.45 mm
(0.012 ~ 0.018 in)0.80 mm
(0.031 in)
Side clearance 0.020 ~ 0.055 mm
(0.0008 ~ 0.0022 in)0.12 mm
(0.005 in)
Oil ring:
Dimensions (B × T) 1.50 × 2.25 mm (0.06 × 0.09 in) ----
End gap (installed) 0.10 ~ 0.40 mm
(0.004 ~ 0.016 in)----
Crankshaft:
Crank width “A”55.95 ~ 56.00 mm
(2.203 ~ 2.205 in)----
Runout limit “C”0.03 mm (0.0012 in) 0.05 mm
(0.002 in)
Big end side clearance “D”0.15 ~ 0.45 mm
(0.0059 ~ 0.0177 in)0.50 mm
(0.02 in)
Small end free play “F”0.4 ~ 1.0 mm
(0.02 ~ 0.04 in)2.0 mm
(0.08 in)
Clutch:
Friction plate thickness 2.9 ~ 3.1 mm
(0.114 ~ 0.122 in)2.7 mm
(0.106 in)
Quantity 9 ----Item Standard Limit
T
B
B
T
B
T
MAINTENANCE SPECIFICATIONS

SPEC
2 - 9 Lubrication system:
Oil filter type Paper type ----
Oil pump type Trochoid type ----
Tip clearance 0.12 mm or less
(0.0047 in or less)0.20 mm
(0.008 in)
Side clearance 0.09 ~ 0.17 mm
(0.0035 ~ 0.0067 in)0.24 mm
(0.009 in)
Housing and rotor clearance 0.03 ~ 0.10 mm
(0.0012 ~ 0.0039 in)0.17 mm
(0.0067 in)
Cooling:
Radiator core size
Width 107.8 mm (4.2 in) ----
Height 220 mm (8.7 in) ----
Thickness 32 mm (1.26 in) ----
Radiator cap opening pressure 110 kPa (1.1 kg/cm
2, 15.6 psi) ----
Radiator capacity (total) 0.56 L (0.49 Imp qt, 0.59 US qt) ----
Water pump
Type Single-suction centrifugal pump ----Item Standard Limit
MAINTENANCE SPECIFICATIONS

4 - 25
ENGCAMSHAFTS
4. Measure:
Camshaft-to-cap clearance
Out of specification → Measure camshaft
outside diameter.
Camshaft-to-cap clearance:
0.028 ~ 0.062 mm
(0.0011 ~ 0.0024 in)
: 0.08 mm (0.003 in)
Measurement steps:
Install the camshaft onto the cylinder
head.
Position a strip of Plastigauge
® 1 onto the
camshaft.
Install the clip, dowel pins and camshaft
caps.
T R..
Bolt (camshaft cap):
10 Nm (1.0 m  kg, 7.2 ft  lb)
NOTE:
Tighten the bolts (camshaft cap) in a criss-
cross pattern from innermost to outer
caps.
Do not turn the camshaft when measuring
clearance with the Plastigauge®.
Remove the camshaft caps and measure
the width of the Plastigauge
® 1.
5. Measure:
Camshaft outside diameter a
Out of specification → Replace the cam-
shaft.
Within specification → Replace camshaft
case and camshaft caps as a set.
Camshaft sprocket
1. Inspect:
Camshaft sprocket 1
Wear/damage → Replace the camshaft
assembly and timing chain as a set.
Camshaft outside diameter:
21.959 ~ 21.972 mm
(0.8645 ~ 0.8650 in)

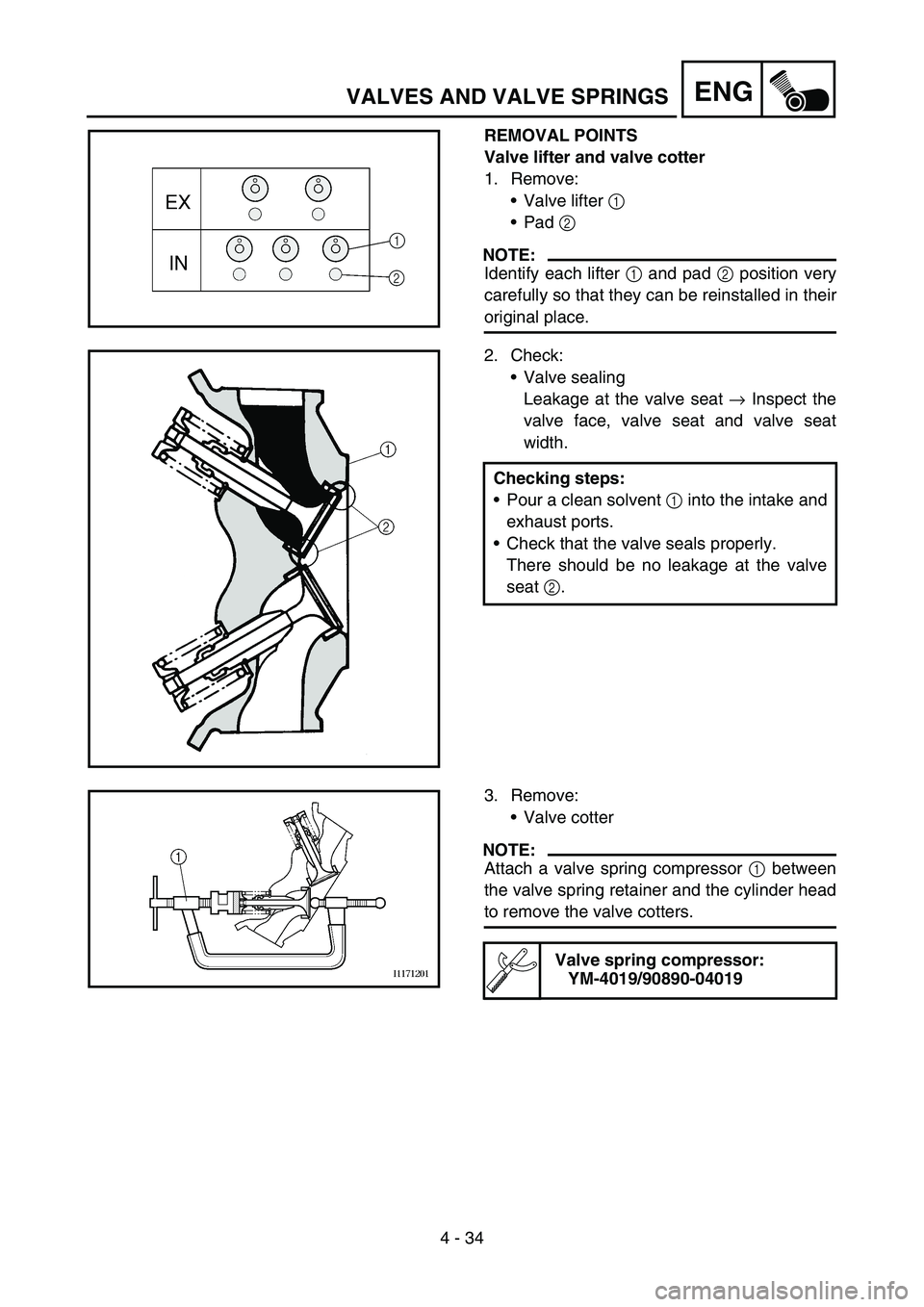

4 - 34
ENGVALVES AND VALVE SPRINGS
REMOVAL POINTS
Valve lifter and valve cotter
1. Remove:
Valve lifter 1
Pad 2
NOTE:
Identify each lifter 1 and pad 2 position very
carefully so that they can be reinstalled in their
original place.
2. Check:
Valve sealing
Leakage at the valve seat → Inspect the
valve face, valve seat and valve seat
width.
Checking steps:
Pour a clean solvent 1 into the intake and
exhaust ports.
Check that the valve seals properly.
There should be no leakage at the valve
seat 2.
3. Remove:
Valve cotter
NOTE:
Attach a valve spring compressor 1 between
the valve spring retainer and the cylinder head
to remove the valve cotters.
Valve spring compressor:
YM-4019/90890-04019

4 - 37
ENGVALVES AND VALVE SPRINGS
5. Measure:
Runout (valve stem)
Out of specification → Replace.
NOTE:
When installing a new valve always replace
the guide.
If the valve is removed or replaced always
replace the oil seal.
6. Eliminate:
Carbon deposits
(from the valve face and valve seat)
7. Inspect:
Valve seat
Pitting/wear → Reface the valve seat.
Runout limit:
0.01 mm (0.0004 in)
8. Measure:
Valve seat width a
Out of specification → Reface the valve
seat.
Valve seat width:
Intake:
0.9 ~ 1.1 mm
(0.0354 ~ 0.0433 in)
: 1.6 mm (0.0630 in)
Exhaust:
0.9 ~ 1.1 mm
(0.0354 ~ 0.0433 in)
: 1.6 mm (0.0630 in)
Measurement steps:
Apply Mechanic’s blueing dye (Dykem) b
to the valve face.
Install the valve into the cylinder head.
Press the valve through the valve guide
and onto the valve seat to make a clear
pattern.
Measure the valve seat width. Where the
valve seat and valve face made contact,
blueing will have been removed.
If the valve seat is too wide, too narrow, or
the seat is not centered, the valve seat
must be refaced.
