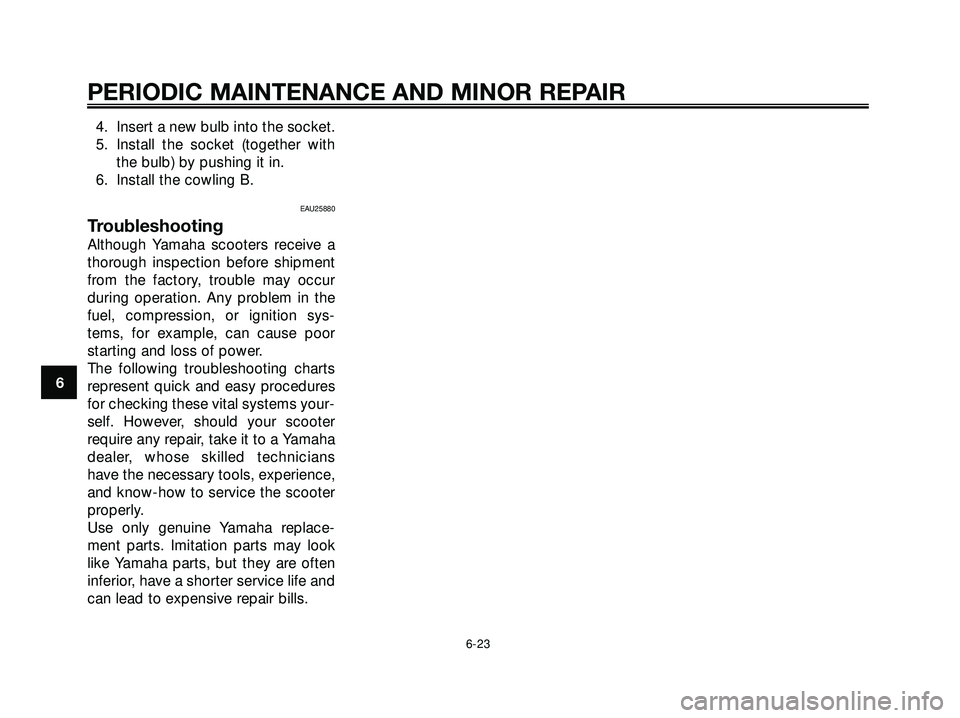

4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by pushing it in.
6. Install the cowling B.
EAU25880
Troubleshooting
Although Yamaha scooters receive a
thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition sys-
tems, for example, can cause poor
starting and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your scooter
require any repair, take it to a Yamaha
dealer, whose skilled technicians
have the necessary tools, experience,
and know-how to service the scooter
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 56
DimensionsOverall length
2210 mm
Overall width
790 mm
Overall height
1380 mm
Seat height
775 mm
Wheelbase
1545 mm
Ground clearance
113 mm
WeightDry (without oil and fuel)
164.0 kg
With oil and fuel
174.0 kg
Maximum load
235 kg
EngineEngine type
Liquid cooled 4-stroke, SOHC
Cylinder arrangement
Forward-inclined single cylinder
Displacement
249.7 cm
3
Bore x stroke
69.0 x 66.8 mm
Compression ratio
10.00 :1
Starting system
Electric starterLubrication system
Wet sump
Oil type or gradeEngine oil
SAE10W30SE
Recommended engine oil grade
API service SE, SF, SG type or higher
Engine oil quantityQuantity
1.4 L
Periodic oil change
1.20 L
Final gear oilQuantity
0.25 L
Cooling systemRadiator capacity
0.34 L
Coolant reservoir capacity (up to the maxi-
mum level mark)
0.46 L
Air filterAir filter element
Oil-coated paper element
Recommended fuelRecommended fuel
Unleaded fuel
Fuel tank capacity
12.0 L
Fuel reserve amount
2.0 L
CarburetorType x quantity
1C0 x 1
Manufacturer
KEIHIN
Spark plug (s)Manufacturer/model
NGK DR8EA
Spark plug gap
0.6-0.7 mm
Clutch type
Transmission
Primary reduction system
Helical gear
Primary reduction ratio
40 x 15 (2.666)
Secondary reduction system
Helical gear
Secondary reduction ratio
40 x 14 (2.857)
Transmission type
V-belt automatic8
SPECIFICATIONS
8-1
