2005 YAMAHA XMAX 250 lock

ECA11400
CAUTION
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.
Your Yamaha engine has been desig-
ned to use regular unleaded gasoline
with a research octane number of 91
or higher. If knocking (or pinging)
occurs, use a gasoline of a different
brand or premium unleaded fuel. Use
of unleaded fuel will extend spark plug
life and reduce maintenance costs.
EAU13431
Catalytic converter
This model is equipped with a cataly-
tic converter in the exhaust system.
EWA10860
s s
WARNING
The exhaust system is hot after
operation. Make sure that the
exhaust system has cooled down
before doing any maintenance
work.
ECA10700
CAUTION
The following precautions must be
observed to prevent a fire hazard or
other damages.
Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.
Never park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
Do not allow the engine to idle
too long.
EAU13931
Seat
To open the seat
1. Place the scooter on the centers-
tand.
2. Insert the key into the main
switch, and then turn it counter-
clockwise.
NOTE:
Do not push inward when turning the
key.
3. Fold the seat up.
To close the seat
1. Fold the seat down, and then
push it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left
unattended.
NOTE:
Make sure that the seat is properly
secured before riding.
3
INSTRUMENT AND CONTROL FUNCTIONS
3-10
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 3-10

EAU14540
Storage compartment
1. Lock
To open the storage compartment
Insert the key into the lock, turn it
clockwise, and then pull on it to open
the storage compartment lid.
1.Storage compartment
To close the storage compartment
Push the storage compartment lid
into the original position, and then
remove the key.
EWA10960
s s
WARNING
Do not exceed the load limit of
1kg (2,205 lb) for the storage
compartment.
Do not exceed the maximum
load of 235kg (518,17lb) for the
vehicle.
EAU14451
Storage compartment
1.Storage compartment
The storage compartment is located
under the seat. (See page 3-10.)
EWA10961
s s
WARNING
Do not exceed the load limit of
5kg (11,02 lb) for the storage
compartment.
Do not exceed the maximum
load of 235kg (518,17lb) for the
vehicle.
When storing the owner’s manual or
other documents in the storage com-
partment, be sure to wrap them in a
plastic bag so that they will not get
wet. When washing the vehicle, be
careful not to let any water enter the
storage compartment.
EAU14880
Adjusting the shock
absorber assemblies
Each shock absorber assembly is
equipped with a spring preload adjus-
ting ring.
ECA10100
CAUTION
Never attempt to turn an adjusting
mechanism beyond the maximum
or minimum settings.
1
1
1
3
INSTRUMENT AND CONTROL FUNCTIONS
3-11
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 3-11

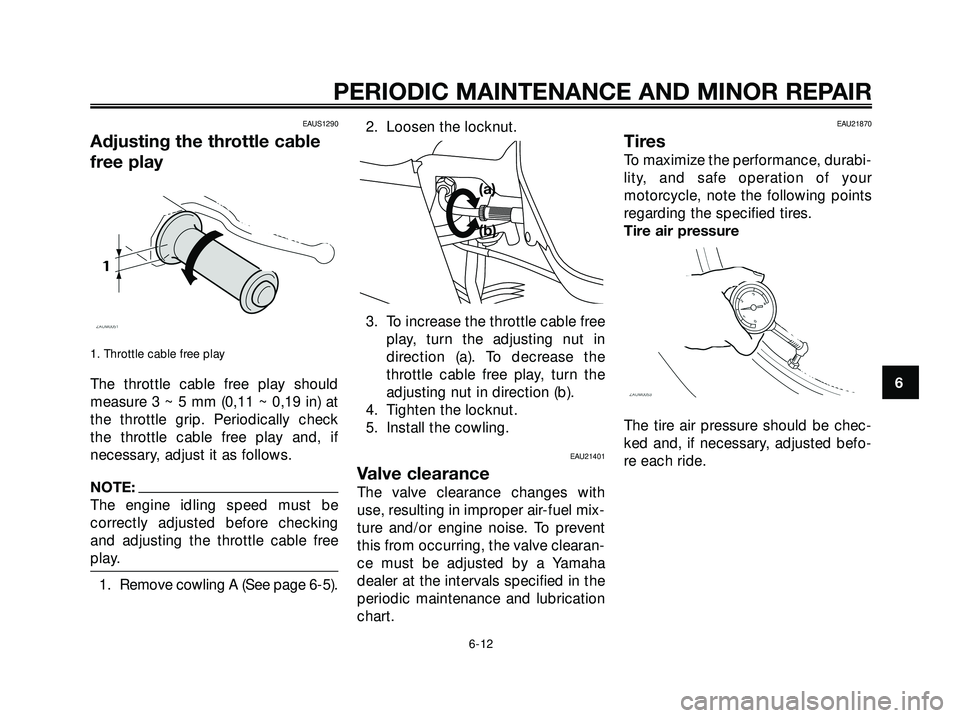

EAUS1290
Adjusting the throttle cable
free play
1. Throttle cable free play
The throttle cable free play should
measure 3 ~ 5 mm (0,11 ~ 0,19 in) at
the throttle grip. Periodically check
the throttle cable free play and, if
necessary, adjust it as follows.
NOTE:
The engine idling speed must be
correctly adjusted before checking
and adjusting the throttle cable free
play.
1. Remove cowling A (See page 6-5).2. Loosen the locknut.
3. To increase the throttle cable free
play, turn the adjusting nut in
direction (a). To decrease the
throttle cable free play, turn the
adjusting nut in direction (b).
4. Tighten the locknut.
5. Install the cowling.
EAU21401
Valve clearance
The valve clearance changes with
use, resulting in improper air-fuel mix-
ture and/or engine noise. To prevent
this from occurring, the valve clearan-
ce must be adjusted by a Yamaha
dealer at the intervals specified in the
periodic maintenance and lubrication
chart.
EAU21870
Tires
To maximize the performance, durabi-
lity, and safe operation of your
motorcycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be chec-
ked and, if necessary, adjusted befo-
re each ride.
(a)
(b)
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 45

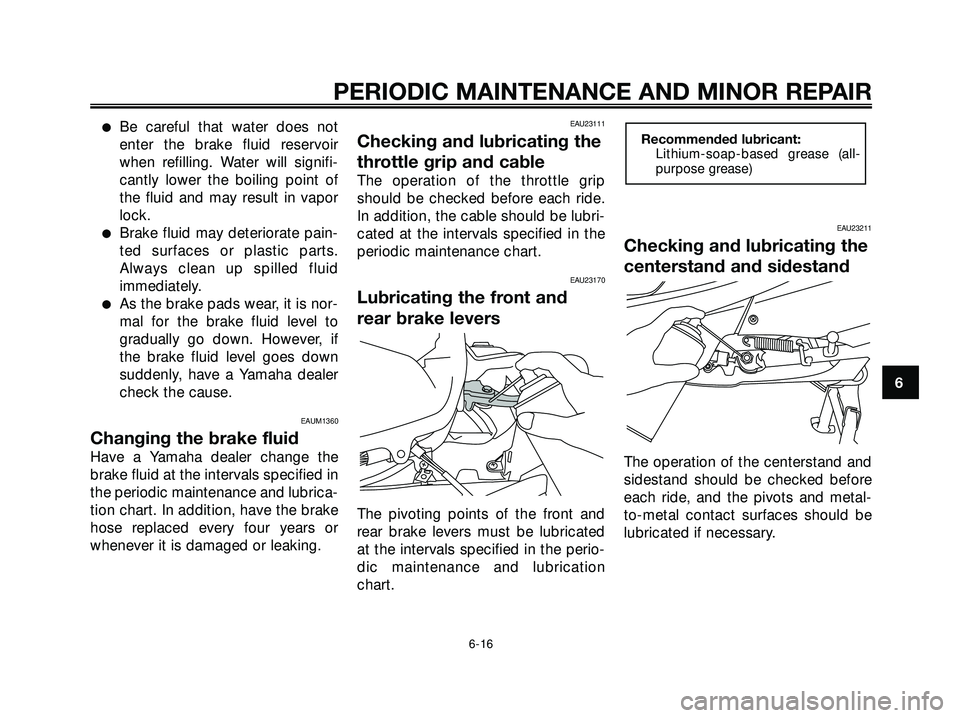

Be careful that water does not
enter the brake fluid reservoir
when refilling. Water will signifi-
cantly lower the boiling point of
the fluid and may result in vapor
lock.
Brake fluid may deteriorate pain-
ted surfaces or plastic parts.
Always clean up spilled fluid
immediately.
As the brake pads wear, it is nor-
mal for the brake fluid level to
gradually go down. However, if
the brake fluid level goes down
suddenly, have a Yamaha dealer
check the cause.
EAUM1360
Changing the brake fluid
Have a Yamaha dealer change the
brake fluid at the intervals specified in
the periodic maintenance and lubrica-
tion chart. In addition, have the brake
hose replaced every four years or
whenever it is damaged or leaking.
EAU23111
Checking and lubricating the
throttle grip and cable
The operation of the throttle grip
should be checked before each ride.
In addition, the cable should be lubri-
cated at the intervals specified in the
periodic maintenance chart.
EAU23170
Lubricating the front and
rear brake levers
The pivoting points of the front and
rear brake levers must be lubricated
at the intervals specified in the perio-
dic maintenance and lubrication
chart.
EAU23211
Checking and lubricating the
centerstand and sidestand
The operation of the centerstand and
sidestand should be checked before
each ride, and the pivots and metal-
to-metal contact surfaces should be
lubricated if necessary.
Recommended lubricant:
Lithium-soap-based grease (all-
purpose grease)
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 49

any dirt and fingerprints on the
headlight bulb using a cloth mois-
tened with alcohol or thinner.
5. Install the bulb cover, and then
connect the coupler.
6. Install the cowling.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAUT1260
Replacing a front turn signal
light bulb
ECA10670
CAUTION
It is advisable to have a Yamaha
dealer perform this job.
1. Place the scooter on the centers-
tand.
2. Remove cowling A. (See page
6-5.)
3. Remove the socket (together
with the bulb) by turning it coun-
terclockwise.4. Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.
5. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
6. Install the socket (together with
the bulb) by turning it clockwise.
7. Install the cowling.
EAUS1250
Replacing the tail/brake light
bulb or a rear turn signal
light bulb
Tail/brake light bulb
1. Remove the tail/brake light bulb
lens by removing the screws.
2. Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 54

Rear turn signal light bulb
1. Remove the tail/brake light lens
by removing the screw.
2. Remove the turn signal light bulb
lens by removing the screw.
3. Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.
4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the turn signal light bulb
lens by installing the screw.
6. Install the tail/brake light bulb
lens by installing the screw.
ECA10680
CAUTION
Do not overtighten the screws,
otherwise the lens may break.
EAUS1150
Replacing the license plate
light bulb
1. Remove the lens by removing the
screw.
2. Remove the defective bulb by
pulling it out.
3. Insert a new bulb into the socket.
4. Install the lens by installing the
screw.
ECA11190
CAUTION
Do not overtighten the screw,
otherwise the lens may break.
EAUS1260
Replacing the auxiliary light
bulb
If the auxiliary light bulb burns out,
replace it as follows.
1. Remove cowling B . (See page
6-5.).
2. Remove the socket (together
with the bulb) by pulling it out.
3. Remove the defective bulb by
pulling it out.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 55

Engine overheatingEWA10400
s s
WARNING
Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.
After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the his-
sing sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
NOTE:
If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended
coolant as soon as possible.
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 58

AAcceleration and deceleration ...................5-2
Adjusting the carburetor ..........................6-11
Adjusting the shock absorber
assemblies .............................................3-11
Adjusting the throttle cable free play .......6-12
Air filter V-Belt case air filter elements.....6-10
Anti-theft alarm (optional) ..........................3-7
BBattery......................................................6-18
Braking .......................................................5-2
CCare............................................................7-1
Cast wheels .............................................6-14
Catalytic converter ...................................3-10
Changing the brake fluid..........................6-16
Checking and lubricating the
centerstand and sidestand ....................6-16
Checking and lubricating the
throttle grip cable ..................................6-16
Checking the brake fluid level .................6-15
Checking the front and rear brake pads.....6-14
Checking the front fork ............................6-17
Checking the spark plug ............................6-5
Checking the wheel bearings ..................6-18
Cheking the steering ................................6-17
Controls and instruments ..........................2-3
Coolant.......................................................6-9
Coolant temperature gauge .......................3-4
EEngine break-in ..........................................5-3
Engine oil ...................................................6-7
FFinal transmission oil .................................6-8Front and rear brake lever free play.........6-14
Front brake lever ........................................3-8
Front storage compartment .....................3-11
Fuel ............................................................3-9
Fuel gauge .................................................3-3
Fuel tank cap .............................................3-8
HHandlebar switches ...................................3-7
IImmobilizer system ....................................3-1
Indicators, indicator lights and warning
light ..........................................................3-2
KKey identification number ..........................9-1
LLeft view .....................................................2-1
Lubricating the front and rear brake
levers .....................................................6-16
MMain switch/steering lock ..........................3-1
Model label ................................................9-1
Multi-function display ................................3-4
OOwner’s tool kit ..........................................6-1
PParking .......................................................5-3
Periodic maintenance and lubrication
chart .........................................................6-2
Pre-operation check list .............................4-2
RRear brake lever .........................................3-8
Removing and installing cowlings and
panels ......................................................6-5
Replacing a front turn signal light bulb....6-21Replacing a headlight bulb ......................6-20
Replacing the auxiliary light bulb .............6-22
Replacing the fuses .................................6-19
Replacing the license plate light bulb......6-22
Replacing the tail/brake light bulb or a
rear turn signal light bulb.......................6-21
Right view ..................................................2-2
SSeat ..........................................................3-10
Sidestand .................................................3-12
Speedometer .............................................3-3
Starting a cold engine ................................5-1
Starting off .................................................5-1
Storage compartment ..............................3-11
Storage compartment ................................7-3
TTips for reducing fuel consumption ...........5-2
Tires .........................................................6-12
Troubleshooting .......................................6-22
Troubleshooting charts ............................6-24
VValve clearance ........................................6-12
Vehicle identification number .....................9-1
INDEX
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 67
