2005 YAMAHA XMAX 250 brake light

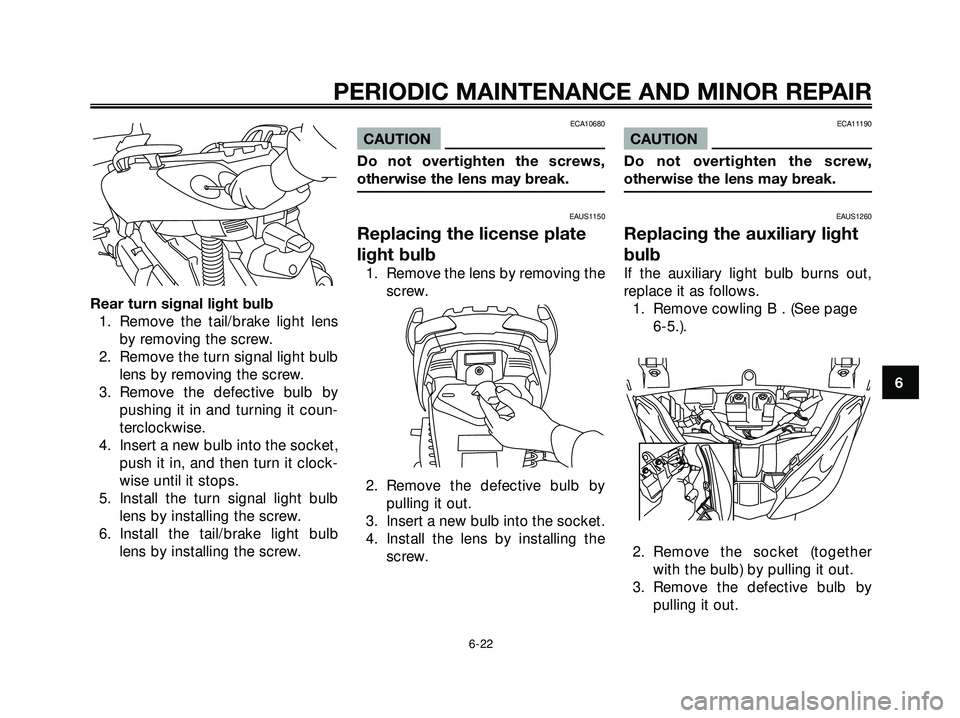

Rear turn signal light bulb
1. Remove the tail/brake light lens
by removing the screw.
2. Remove the turn signal light bulb
lens by removing the screw.
3. Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.
4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the turn signal light bulb
lens by installing the screw.
6. Install the tail/brake light bulb
lens by installing the screw.
ECA10680
CAUTION
Do not overtighten the screws,
otherwise the lens may break.
EAUS1150
Replacing the license plate
light bulb
1. Remove the lens by removing the
screw.
2. Remove the defective bulb by
pulling it out.
3. Insert a new bulb into the socket.
4. Install the lens by installing the
screw.
ECA11190
CAUTION
Do not overtighten the screw,
otherwise the lens may break.
EAUS1260
Replacing the auxiliary light
bulb
If the auxiliary light bulb burns out,
replace it as follows.
1. Remove cowling B . (See page
6-5.).
2. Remove the socket (together
with the bulb) by pulling it out.
3. Remove the defective bulb by
pulling it out.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 55

EAU26090
Care
While the open design of a scooter
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go
unnoticed on a car, however, it
detracts from the overall appearance
of a scooter. Frequent and proper
care does not only comply with the
terms of the warranty, but it will also
keep your scooter looking good,
extend its life and optimize its perfor-
mance.
Before cleaning
1. Cover the muffler outlet with a
plastic bag after the engine has
cooled down.
2. Make sure that all caps and
covers as well as all electrical
couplers and connectors, inclu-
ding the spark plug cap, are
tightly installed.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such pro-ducts onto seals, gaskets and
wheel axles. Always rinse the dirt
and degreaser off with water.
Cleaning
ECA10780
CAUTION
Avoid using strong acidic whe-
el cleaners, especially on spo-
ked wheels. If such products
are used on hard-to-remove
dirt, do not leave the cleaner on
the affected area any longer
than instructed. Also, tho-
roughly rinse the area off with
water, immediately dry it, and
then apply a corrosion protec-
tion spray.
Improper cleaning can damage
windshields, cowlings, panels
and other plastic parts. Use
only a soft, clean cloth or spon-
ge with mild detergent and
water to clean plastic.
Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive
cleaning products, solvent orthinner, fuel (gasoline), rust
removers or inhibitors, brake
fluid, antifreeze or electrolyte.
Do not use high-pressure was-
hers or steam-jet cleaners sin-
ce they cause water seepage
and deterioration in the follo-
wing areas: seals (of wheel and
swingarm bearings, fork and
brakes), electric components
(couplers, connectors, instru-
ments, switches and lights),
breather hoses and vents.
For scooters equipped with a
windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or scrat-
ching. Some cleaning com-
pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid-
den part of the windshield to
make sure that it does not lea-
ve any marks. If the windshield
is scratched, use a quality
plastic polishing compound
after washing.
7
SCOOTER CARE AND STORAGE
7-1
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 7-1

OperationCentrifugal automatic type
ChassisFrame typeSteel tube underbone
Caster angle 28.00 degree
Trail 100.0 mm
Front tireTypeTubeless
Size 120/70-15 56S
Wear limit (front) 1.6 mm
Manufacturer/model Michelin/Gold Standard
Rear tireTypeTubeless
Size 140/70-14 68S
Wear limit (rear) 1.6 mm
Manufacturer/model Michelin/Gold Standard
Tire air pressure (measured on cold tires)
Loading condition 0-90 kg
Front 190kPa (27,02 psi) (1,9kgf/cm2) Rear
220kPa (31,29 psi) (2,2kgf/cm2)
Loading condition 90-max.
Front 210kPa (29,86 psi) (2,1 kgf/cm2)
Rear 250kPa (35,55 psi) (2,5 kgf/cm2)
Front wheelWheel typeCast wheel
Rim size 15xMT3.50
Rim material Aluminum
Rear wheelWheel typeCast wheel
Rim size 14xMT3.75
Rim material Aluminum
Front disc brakeDisc brake typeSingle
Recommended fluid DOT 4
Rear disc brakeDisc brake typeSingle
Recommended fluid DOT 4
Front suspensionFront fork travel110.0 mm
Rear suspensionRear shock absorber assembly travel95.0 mm
ElectricalSystem voltage12 V
Battery
Type/model YTX9-BS
Voltage 12.0 V
Capacity 12.0 V8.0 Ah
Bulb type
Bulb voltage, wattage x quantity
Headlight12 V35/35 W
Auxiliary light 12 V5.0 W x 2 pcs
Tail/brake light 12 V21/5 W
Front flasher light 12 V10 W/2 pcs
Rear flasher light 12 V10.0 W x 2 pcs
License plate light 12 V5.0 W x 1 pcs
FusesMain fuse30.0 A
8
SPECIFICATIONS
8-2
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 8-2

AAcceleration and deceleration ...................5-2
Adjusting the carburetor ..........................6-11
Adjusting the shock absorber
assemblies .............................................3-11
Adjusting the throttle cable free play .......6-12
Air filter V-Belt case air filter elements.....6-10
Anti-theft alarm (optional) ..........................3-7
BBattery......................................................6-18
Braking .......................................................5-2
CCare............................................................7-1
Cast wheels .............................................6-14
Catalytic converter ...................................3-10
Changing the brake fluid..........................6-16
Checking and lubricating the
centerstand and sidestand ....................6-16
Checking and lubricating the
throttle grip cable ..................................6-16
Checking the brake fluid level .................6-15
Checking the front and rear brake pads.....6-14
Checking the front fork ............................6-17
Checking the spark plug ............................6-5
Checking the wheel bearings ..................6-18
Cheking the steering ................................6-17
Controls and instruments ..........................2-3
Coolant.......................................................6-9
Coolant temperature gauge .......................3-4
EEngine break-in ..........................................5-3
Engine oil ...................................................6-7
FFinal transmission oil .................................6-8Front and rear brake lever free play.........6-14
Front brake lever ........................................3-8
Front storage compartment .....................3-11
Fuel ............................................................3-9
Fuel gauge .................................................3-3
Fuel tank cap .............................................3-8
HHandlebar switches ...................................3-7
IImmobilizer system ....................................3-1
Indicators, indicator lights and warning
light ..........................................................3-2
KKey identification number ..........................9-1
LLeft view .....................................................2-1
Lubricating the front and rear brake
levers .....................................................6-16
MMain switch/steering lock ..........................3-1
Model label ................................................9-1
Multi-function display ................................3-4
OOwner’s tool kit ..........................................6-1
PParking .......................................................5-3
Periodic maintenance and lubrication
chart .........................................................6-2
Pre-operation check list .............................4-2
RRear brake lever .........................................3-8
Removing and installing cowlings and
panels ......................................................6-5
Replacing a front turn signal light bulb....6-21Replacing a headlight bulb ......................6-20
Replacing the auxiliary light bulb .............6-22
Replacing the fuses .................................6-19
Replacing the license plate light bulb......6-22
Replacing the tail/brake light bulb or a
rear turn signal light bulb.......................6-21
Right view ..................................................2-2
SSeat ..........................................................3-10
Sidestand .................................................3-12
Speedometer .............................................3-3
Starting a cold engine ................................5-1
Starting off .................................................5-1
Storage compartment ..............................3-11
Storage compartment ................................7-3
TTips for reducing fuel consumption ...........5-2
Tires .........................................................6-12
Troubleshooting .......................................6-22
Troubleshooting charts ............................6-24
VValve clearance ........................................6-12
Vehicle identification number .....................9-1
INDEX
