2005 YAMAHA TDM 900 ECO mode

INSTRUMENT AND CONTROL FUNCTIONS
3-4
1
2
3
4
5
6
7
8
9

EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11120
Oil level warning light “”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
NOTE:

Even if the oil level is sufficient, the
warning light may flicker when riding on
a slope or during sudden acceleration
or deceleration, but this is not a mal-
function.
EAU11371
Fuel level warning indicator “”
This fuel level warning indicator starts
flashing when the fuel level drops be-
low approximately 3.5 L (0.92 US gal)
(0.77 Imp.gal).
EAU11500
Engine trouble warning light “”
This warning light comes on or flashes
when an electrical circuit monitoring the
engine is defective. When this occurs,
have a Yamaha dealer check the
self-diagnosis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU11543
ABS warning light “” (for ABS
models)
If this warning light comes on or flashes
while riding, the ABS may be defective.
If this occurs, have a Yamaha dealer
check the system as soon as possible.
(See page 3-11.)
WARNING

EWA10081
If the ABS warning light comes on or
flashes while riding, the brake sys-
tem reverts to conventional braking.
Therefore, be careful not to cause
the wheels to lock during emergen-
cy braking. If the warning light
comes on or flashes while riding,
have a Yamaha dealer check the
brake system as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on or
remains on, have a Yamaha dealer
check the electrical circuit.
EAU32990
Immobilizer system indicator light
“”
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
ABS

INSTRUMENT AND CONTROL FUNCTIONS
3-5
2
34
5
6
7
8
9
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
NOTE:

This model is also equipped with a
self-diagnosis device for the immobiliz-
er system. If the immobilizer system is
defective, the indicator light will start
flashing a pattern and the odometer/
tripmeter will display a 2-digit code
when the key is turned to “ON”. When
this occurs, have a Yamaha dealer
check the self-diagnosis system. How-
ever, if the indicator light slowly flashes
five times, and then quickly flashes two
times repeatedly, error code 52 will be
displayed. This error could be caused
by signal interference. If this occurs, try
the following.
1. Use the code re-registering key to
start the engine.
NOTE:

Make sure there are no other immobi-lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
from starting.
2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
EAU11911
Tachometer unit
The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.
CAUTION:

ECA10031
Do not operate the engine in the ta-
chometer red zone.
Red zone: 8000 r/min and above
1. Tachometer
2. Tachometer red zone
3. Clock
2
3
1

INSTRUMENT AND CONTROL FUNCTIONS
3-7
2
34
5
6
7
8
9

EAU36610
Multi-function display
WARNING

EWA12311
Be sure to stop the vehicle before
making any setting changes to the
multi-function display.
The multi-function display is equipped
with the following:

a digital speedometer (which
shows riding speed)

an odometer (which shows the to-
tal distance traveled)

two tripmeters (which show the
distance traveled since they were
last set to zero)

a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)

a fuel gauge

a self-diagnosis device
NOTE:


Be sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons.

For the U.K. only: To switch the
speedometer and odometer/trip-
meter displays between kilometers
and miles, press the “SELECT”
button for at least one second.
Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1” and “TRIP 2” in the following
order:
ODO
→
TRIP 1
→
TRIP 2
→
ODO
If the fuel level warning indicator flash-
es (see page 3-3), the odometer dis-
play will automatically change to the
fuel reserve tripmeter mode “TRIP F”and start counting the distance traveled
from that point. In that case, pushing
the “SELECT” button switches the dis-
play between the various tripmeter and
odometer modes in the following order:
TRIP F
→
TRIP 1
→
TRIP 2
→
ODO
→
TRIP F
To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “RESET” button for at least
one second. If you do not reset the fuel
reserve tripmeter manually, it will reset
itself automatically and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).
NOTE:

The display cannot be changed back to
“TRIP F” after pushing the “RESET”
button.
Fuel gauge
The fuel gauge indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel gauge disappear to-
wards “E” (Empty) as the fuel level
decreases. When only one segment is
left near “E”, the fuel level warning indi-
cator and the last fuel gauge segment
will flash. Refuel as soon as possible.
1. Speedometer
2. Odometer/tripmeter
3. “SELECT” button
4. “RESET” button
5. Fuel gauge
1
2
3
4
5

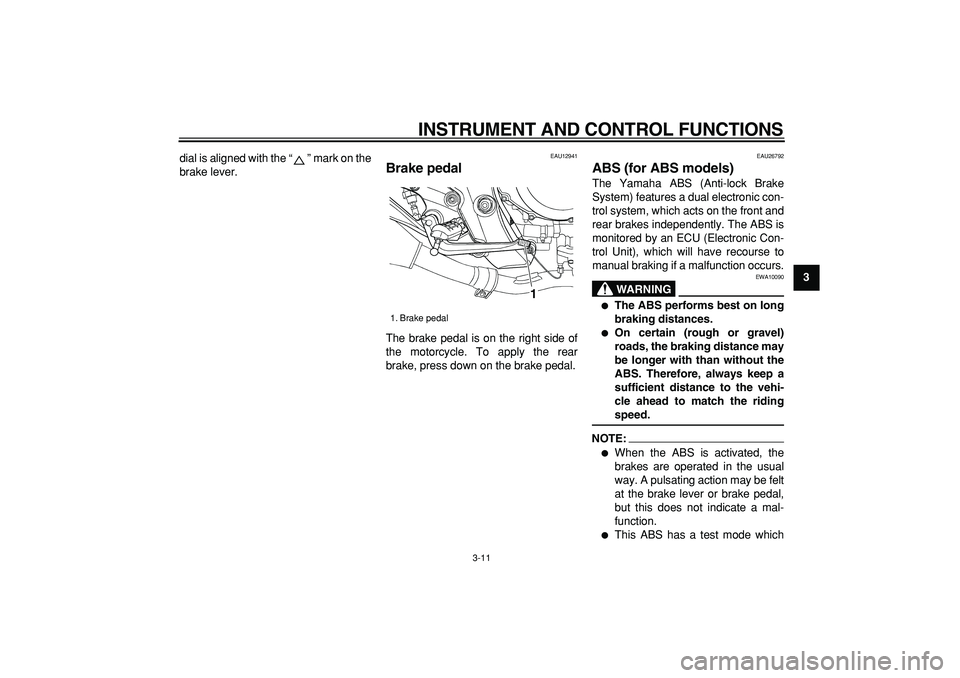

INSTRUMENT AND CONTROL FUNCTIONS
3-11
2
34
5
6
7
8
9
dial is aligned with the “” mark on the
brake lever.

EAU12941
Brake pedal
The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU26792
ABS (for ABS models)
The Yamaha ABS (Anti-lock Brake
System) features a dual electronic con-
trol system, which acts on the front and
rear brakes independently. The ABS is
monitored by an ECU (Electronic Con-
trol Unit), which will have recourse to
manual braking if a malfunction occurs.
WARNING

EWA10090

The ABS performs best on long
braking distances.

On certain (rough or gravel)
roads, the braking distance may
be longer with than without the
ABS. Therefore, always keep a
sufficient distance to the vehi-
cle ahead to match the riding
speed.
NOTE:


When the ABS is activated, the
brakes are operated in the usual
way. A pulsating action may be felt
at the brake lever or brake pedal,
but this does not indicate a mal-
function.

This ABS has a test mode which
1. Brake pedal
1

5-1
1
2
3
4
5
6
7
8
9

OPERATION AND IMPORTANT RIDING POINTS
EAU15950
WARNING

EWA10270

Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.

Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.

Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible loss
of control.
EAU26801
Starting the engine
In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.

The transmission is in gear with
the clutch lever pulled and the sid-
estand up.
WARNING

EWA10290

Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-19.

Never ride with the sidestand
down.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
CAUTION:

ECA11781
The following warning lights and in-
dicator light should come on for a
few seconds, then go off.

Oil level warning light

Engine trouble warning light

Immobilizer system indicator
light

ABS warning light (for ABS
models)
If a warning or indicator light does
not go off, see page 3-3 for the corre-
sponding warning and indicator
light circuit check.
2. Shift the transmission into the neu-
tral position.
NOTE:

When the transmission is in the neutral
position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical cir-
cuit.
3. Start the engine by pushing the
start switch.
NOTE:

If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the en-
gine more than 10 seconds on any one

PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
1
2
3
4
5
6
7
8
9
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:

ECA10640
Do not use a fuse of a higher amper-
age rating than recommended toavoid causing extensive damage to
the electrical system and possibly a
fire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU23750
Replacing a headlight bulb
This model is equipped with two quartz
bulb headlights. If a headlight bulb
burns out, replace it as follows.
1. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.
2. Unhook the headlight bulb holder,
and then remove the defective
bulb.
Specified fuses:
Main fuse:
40.0 A
Headlight fuse:
20.0 A
Radiator fan fuse:
20.0 A
Ignition fuse:
10.0 A
Signaling system fuse:
10.0 A
Backup fuse:
10.0 A
Fuel injection system fuse:
10.0 A
Turn signal light and hazard fuse:
10.0 A
ABS motor fuse:
30.0 A
ABS control unit fuse:
10.0 A
1. Headlight bulb holder
2. Headlight coupler
1
2

8-1
1
2
3
4
5
6
7
8
9

SPECIFICATIONS
EAU26339
Dimensions:
Overall length:
2180 mm (85.8 in)
Overall width:
800 mm (31.5 in)
Overall height:
1290 mm (50.8 in)
Seat height:
825 mm (32.5 in)
Wheelbase:
1485 mm (58.5 in)
Ground clearance:
160 mm (6.30 in)
Minimum turning radius:
2900 mm (114.2 in)
Weight:
With oil and fuel:
224.0 kg (494 lb)
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Forward-inclined parallel 2-cylinder
Displacement:
897.0 cm
3

(54.73 cu.in)
Bore
×
stroke:
92.0
×
67.5 mm (3.62
×
2.66 in)
Compression ratio:
10.40 :1
Starting system:
Electric starter
Lubrication system:
Dry sump

Engine oil:
Type:
SAE10W30 or SAE10W40 or SAE15W40
or SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SE, SF, SG type or higher
Engine oil quantity:
Without oil filter element replacement:
3.80 L (4.02 US qt) (3.34 Imp.qt)
With oil filter element replacement:
3.90 L (4.12 US qt) (3.43 Imp.qt)
Cooling system:
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
Radiator capacity (including all routes):
1.70 L (1.80 US qt) (1.50 Imp.qt)
Air filter:
Air filter element:
Oil-coated paper element
Fuel:
Recommended fuel:
Regular unleaded gasoline onlyFuel tank capacity:
20.0 L (5.28 US gal) (4.40 Imp.gal)
Fuel reserve amount:
3.5 L (0.92 US gal) (0.77 Imp.gal)
Electronic fuel injection:
Manufacturer:
DENSO
Model:
195500-3830/2
Spark plug (s):
Manufacturer/model:
NGK/DPR8EA-9
Manufacturer/model:
DENSO/X24EPR-U9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Clutch:
Clutch type:
Wet, multiple-disc
Transmission:
Primary reduction system:
Spur gear
Primary reduction ratio:
67/39 (1.718)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
42/16 (2.625)
Transmission type:
Constant mesh 6-speed
Operation:
Left foot operation
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40

SPECIFICATIONS
8-2
2
3
4
5
6
7

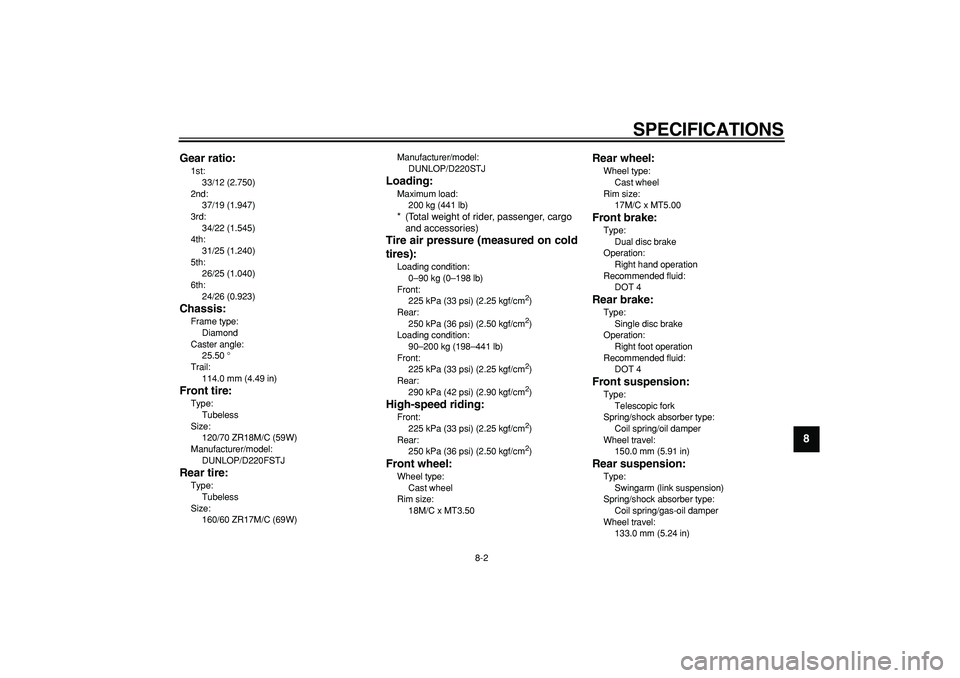

89 Gear ratio:

1st:
33/12 (2.750)
2nd:
37/19 (1.947)
3rd:
34/22 (1.545)
4th:
31/25 (1.240)
5th:
26/25 (1.040)
6th:
24/26 (0.923)
Chassis:
Frame type:
Diamond
Caster angle:
25.50 °
Trail:
114.0 mm (4.49 in)
Front tire:
Type:
Tubeless
Size:
120/70 ZR18M/C (59W)
Manufacturer/model:
DUNLOP/D220FSTJ
Rear tire:
Type:
Tubeless
Size:
160/60 ZR17M/C (69W)Manufacturer/model:
DUNLOP/D220STJ
Loading:
Maximum load:
200 kg (441 lb)
* (Total weight of rider, passenger, cargo
and accessories)

Tire air pressure (measured on cold
tires):
Loading condition:
0–90 kg (0–198 lb)
Front:
225 kPa (33 psi) (2.25 kgf/cm
2

)
Rear:
250 kPa (36 psi) (2.50 kgf/cm
2

)
Loading condition:
90–200 kg (198–441 lb)
Front:
225 kPa (33 psi) (2.25 kgf/cm
2

)
Rear:
290 kPa (42 psi) (2.90 kgf/cm
2

)
High-speed riding:
Front:
225 kPa (33 psi) (2.25 kgf/cm
2

)
Rear:
250 kPa (36 psi) (2.50 kgf/cm
2

)
Front wheel:
Wheel type:
Cast wheel
Rim size:
18M/C x MT3.50
Rear wheel:
Wheel type:
Cast wheel
Rim size:
17M/C x MT5.00
Front brake:
Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:
Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4
Front suspension:
Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
150.0 mm (5.91 in)
Rear suspension:
Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
133.0 mm (5.24 in)
