MOTORCYCLE CARE AND STORAGE
7-2
2
3
4
5
6
78
9

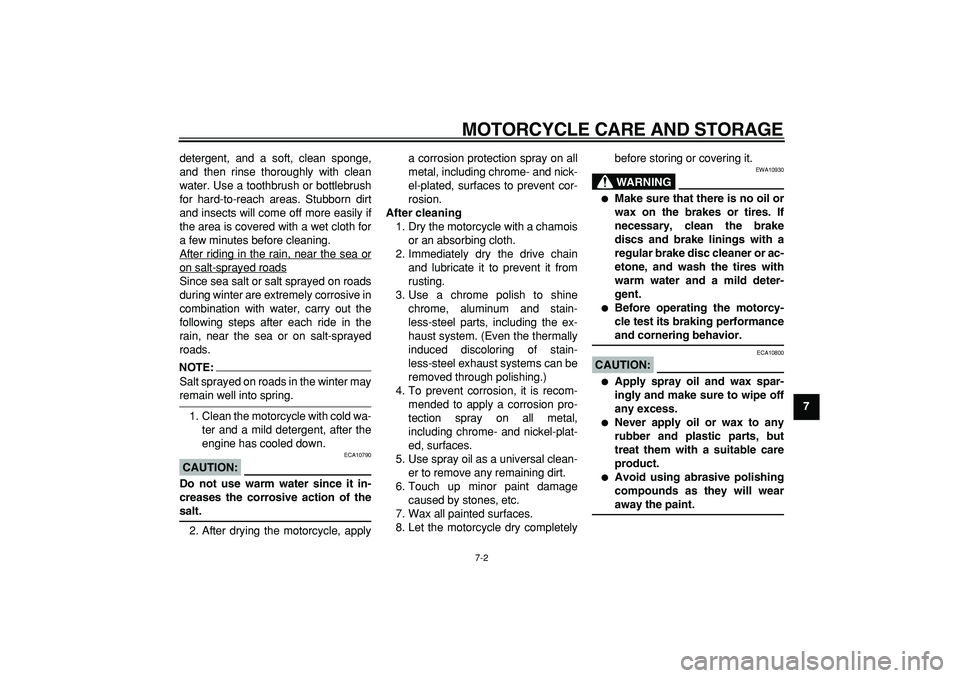

detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea or
on salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.NOTE:

Salt sprayed on roads in the winter may
remain well into spring.
1. Clean the motorcycle with cold wa-
ter and a mild detergent, after the
engine has cooled down.
CAUTION:

ECA10790
Do not use warm water since it in-
creases the corrosive action of the
salt.
2. After drying the motorcycle, applya corrosion protection spray on all
metal, including chrome- and nick-
el-plated, surfaces to prevent cor-
rosion.
After cleaning
1. Dry the motorcycle with a chamois
or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stain-
less-steel parts, including the ex-
haust system. (Even the thermally
induced discoloring of stain-
less-steel exhaust systems can be
removed through polishing.)
4. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
5. Use spray oil as a universal clean-
er to remove any remaining dirt.
6. Touch up minor paint damage
caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completelybefore storing or covering it.
WARNING

EWA10930

Make sure that there is no oil or
wax on the brakes or tires. If
necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent.

Before operating the motorcy-
cle test its braking performance
and cornering behavior.
CAUTION:

ECA10800

Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.

Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.

Avoid using abrasive polishing
compounds as they will wear
away the paint.

MOTORCYCLE CARE AND STORAGE
7-3
1
2
3
4
5
6
7
8
9
NOTE:

Consult a Yamaha dealer for advice on
what products to use.
EAU26201
Storage
Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.
CAUTION:

ECA10810

Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.

To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to pro-tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps
and spark plugs.
b. Pour a teaspoonful of engine oil
into each spark plug bore.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
WARNING

EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turning
the engine over.
4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the sidestand/

8-1
1
2
3
4
5
6
7
8
9

SPECIFICATIONS
EAU26339
Dimensions:
Overall length:
2180 mm (85.8 in)
Overall width:
800 mm (31.5 in)
Overall height:
1290 mm (50.8 in)
Seat height:
825 mm (32.5 in)
Wheelbase:
1485 mm (58.5 in)
Ground clearance:
160 mm (6.30 in)
Minimum turning radius:
2900 mm (114.2 in)
Weight:
With oil and fuel:
224.0 kg (494 lb)
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Forward-inclined parallel 2-cylinder
Displacement:
897.0 cm
3

(54.73 cu.in)
Bore
×
stroke:
92.0
×
67.5 mm (3.62
×
2.66 in)
Compression ratio:
10.40 :1
Starting system:
Electric starter
Lubrication system:
Dry sump

Engine oil:
Type:
SAE10W30 or SAE10W40 or SAE15W40
or SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SE, SF, SG type or higher
Engine oil quantity:
Without oil filter element replacement:
3.80 L (4.02 US qt) (3.34 Imp.qt)
With oil filter element replacement:
3.90 L (4.12 US qt) (3.43 Imp.qt)
Cooling system:
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
Radiator capacity (including all routes):
1.70 L (1.80 US qt) (1.50 Imp.qt)
Air filter:
Air filter element:
Oil-coated paper element
Fuel:
Recommended fuel:
Regular unleaded gasoline onlyFuel tank capacity:
20.0 L (5.28 US gal) (4.40 Imp.gal)
Fuel reserve amount:
3.5 L (0.92 US gal) (0.77 Imp.gal)
Electronic fuel injection:
Manufacturer:
DENSO
Model:
195500-3830/2
Spark plug (s):
Manufacturer/model:
NGK/DPR8EA-9
Manufacturer/model:
DENSO/X24EPR-U9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Clutch:
Clutch type:
Wet, multiple-disc
Transmission:
Primary reduction system:
Spur gear
Primary reduction ratio:
67/39 (1.718)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
42/16 (2.625)
Transmission type:
Constant mesh 6-speed
Operation:
Left foot operation
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40

SPECIFICATIONS
8-3
1
2
3
4
5
6
7
8
9Electrical system:

Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magneto
Battery:
Model:
GT12B-4
Voltage, capacity:
12 V, 10.0 Ah
Headlight:
Bulb type:
Halogen bulb
Bulb voltage, wattage x quantity:
Headlight:
12 V, 55.0 W
×
2
Tail/brake light:
12 V, 5.0 W/21.0 W
×
1
Front turn signal light:
12 V, 10.0 W
×
2
Rear turn signal light:
12 V, 10.0 W
×
2
Auxiliary light:
12 V, 5.0 W
×
1
Meter lighting:
14 V, 2.0 W
×
2
Neutral indicator light:
14 V, 1.2 W
×
1
High beam indicator light:
14 V, 1.4 W
×
1
Oil level warning light:
LEDTurn signal indicator light:
14 V, 1.2 W
×
1
Engine trouble warning light:
14 V, 1.4 W
×
1
ABS warning light:
14 V, 1.4 W
×
1
Immobilizer system indicator light:
LED

Fuses:
Main fuse:
40.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
20.0 A
Turn signal light and hazard fuse:
10.0 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse:
10.0 A
ABS motor fuse:
30.0 A
Backup fuse:
10.0 A

INDEX
A
ABS (for ABS models) .............................3-11
ABS warning light (for ABS models) ..........3-4
Air filter element, replacing ......................6-12
Anti-theft alarm (optional) ..........................3-8
Auxiliary light bulb, replacing ...................6-31
B
Battery .....................................................6-27
Brake and clutch levers, checking and
lubricating ..............................................6-24
Brake and shift pedals, checking and
lubricating ..............................................6-24
Brake fluid, changing ...............................6-21
Brake fluid level, checking .......................6-20
Brake lever ..............................................3-10
Brake pedal .............................................3-11
C
Cables, checking and lubricating .............6-23
Care ...........................................................7-1
Catalytic converter ...................................3-14
Clutch lever ..............................................3-10
Clutch lever free play, adjusting ..............6-18
Coolant ....................................................6-10
Coolant temperature gauge .......................3-6
Cowlings and panels, removing and
installing ..................................................6-5
D
Dimmer switch ...........................................3-9
Drive chain, cleaning and lubricating .......6-23
Drive chain slack .....................................6-21
E
Engine break-in .........................................5-3
Engine idling speed .................................6-13
Engine oil and oil filter element ..................6-7Engine stop switch .................................... 3-9
Engine trouble warning light ...................... 3-4
F
Front and rear brake pads, checking....... 6-19
Front fork, adjusting................................. 3-15
Front fork, checking ................................. 6-25
Fuel ......................................................... 3-13
Fuel consumption, tips for reducing .......... 5-3
Fuel level warning indicator ....................... 3-4
Fuel tank breather hose .......................... 3-13
Fuel tank cap ........................................... 3-12
Fuses, replacing ...................................... 6-28
H
Handlebar switches ................................... 3-8
Hazard switch ............................................ 3-9
Headlight bulb, replacing ......................... 6-29
High beam indicator light ........................... 3-4
Horn switch................................................ 3-9
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-19
Immobilizer system.................................... 3-1
Immobilizer system indicator light ............. 3-4
Indicator and warning lights....................... 3-3
K
Key identification number .......................... 9-1
L
Luggage strap holders............................. 3-18
M
Main switch/steering lock .......................... 3-2
Model label ................................................ 9-2
Multi-function display ................................. 3-7
N
Neutral indicator light................................. 3-4
O
Oil level warning light ................................ 3-4
P
Parking ...................................................... 5-4
Part locations ............................................ 2-1
Pass switch ............................................... 3-9
Periodic maintenance and lubrication
chart ........................................................ 6-2
Pre-operation check list............................. 4-2
R
Rear brake light switch, adjusting ........... 6-19
Rear suspension, lubricating ................... 6-25
S
Safety information ..................................... 1-1
Seat ......................................................... 3-14
Shifting ...................................................... 5-2
Shift pedal ............................................... 3-10
Shock absorber assembly, adjusting ...... 3-17
Sidestand ................................................ 3-19
Sidestand, checking and lubricating........ 6-25
Spark plugs, checking ............................... 6-6
Specifications ............................................ 8-1
Starting the engine .................................... 5-1
Start switch................................................ 3-9
Steering, checking................................... 6-26
Storage...................................................... 7-3
Storage compartment.............................. 3-15
Supporting the motorcycle ...................... 6-32
T
Tachometer unit ........................................ 3-5
Tail/brake light bulb, replacing ................ 6-30
Throttle cable free play, checking ........... 6-14
Throttle grip and cable, checking and
lubricating ............................................. 6-24
