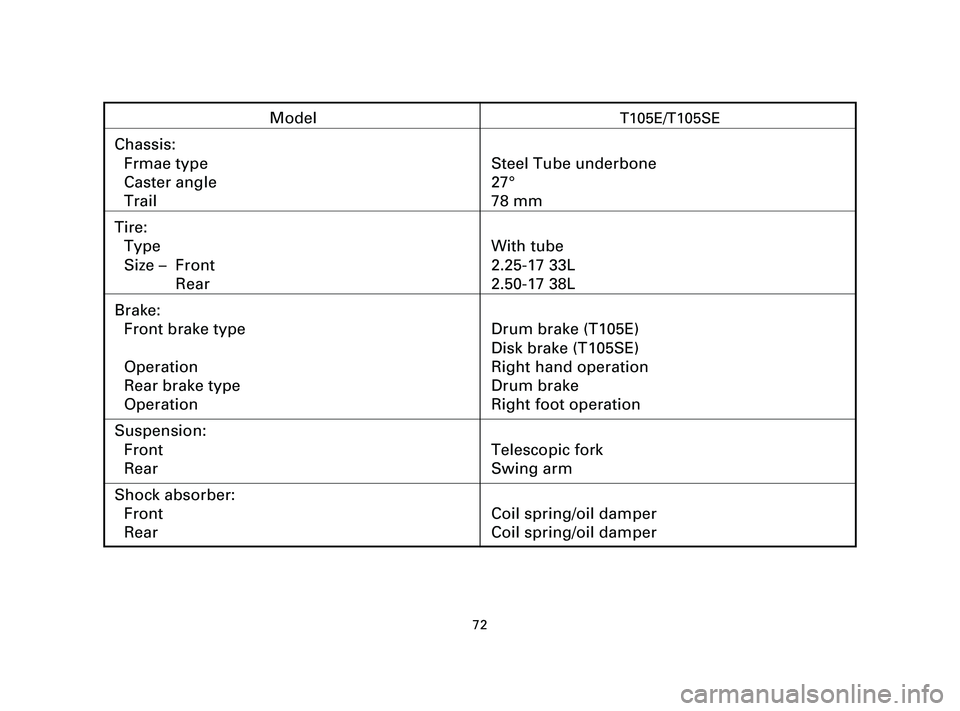

2005 YAMAHA T105 Owners Manual

72
ModelT105E/T105SE
Chassis:
Frmae type Steel Tube underbone
Caster angle 27°
Trail 78 mm
Tire:
Type With tube
Size – Front 2.25-17 33L
Rear 2.50-17 38L
Brake:
Front brake type Drum brake (T105E)
Disk brake (T105SE)
Operation Right hand operation
Rear brake type Drum brake
Operation Right foot operation
Suspension:
Front Telescopic fork
Rear Swing arm
Shock absorber:
Front Coil spring/oil damper
Rear Coil spring/oil damper
5AV-F8199-E1-3 8/1/03 1:48 PM Page 72

73
ModelT105E/T105SE
Wheel travel:
Front 90 mm
Rear 65 mm
Electrical:
Ignition system C.D.I
Generator system Flywheel magneto
Battery type/capacity 12V5AH
Headlight type: Krypton bulb
Bulb wattage/quantity:
Headlight 12V30W/30W ×1
Tail/brake light 12V/5W/21W ×1
Flasher light 12V10W ×4
Meter light 12V1.7W ×1
Indicator light wattage/quantity:
“NEUTRAL” 12V3.4W ×1
“HIGH BEAM” 12V3.4W ×1
“TURN” 12V3.4W ×1
“TOP” 12V3.4W ×1
5AV-F8199-E1-3 8/1/03 1:48 PM Page 73
