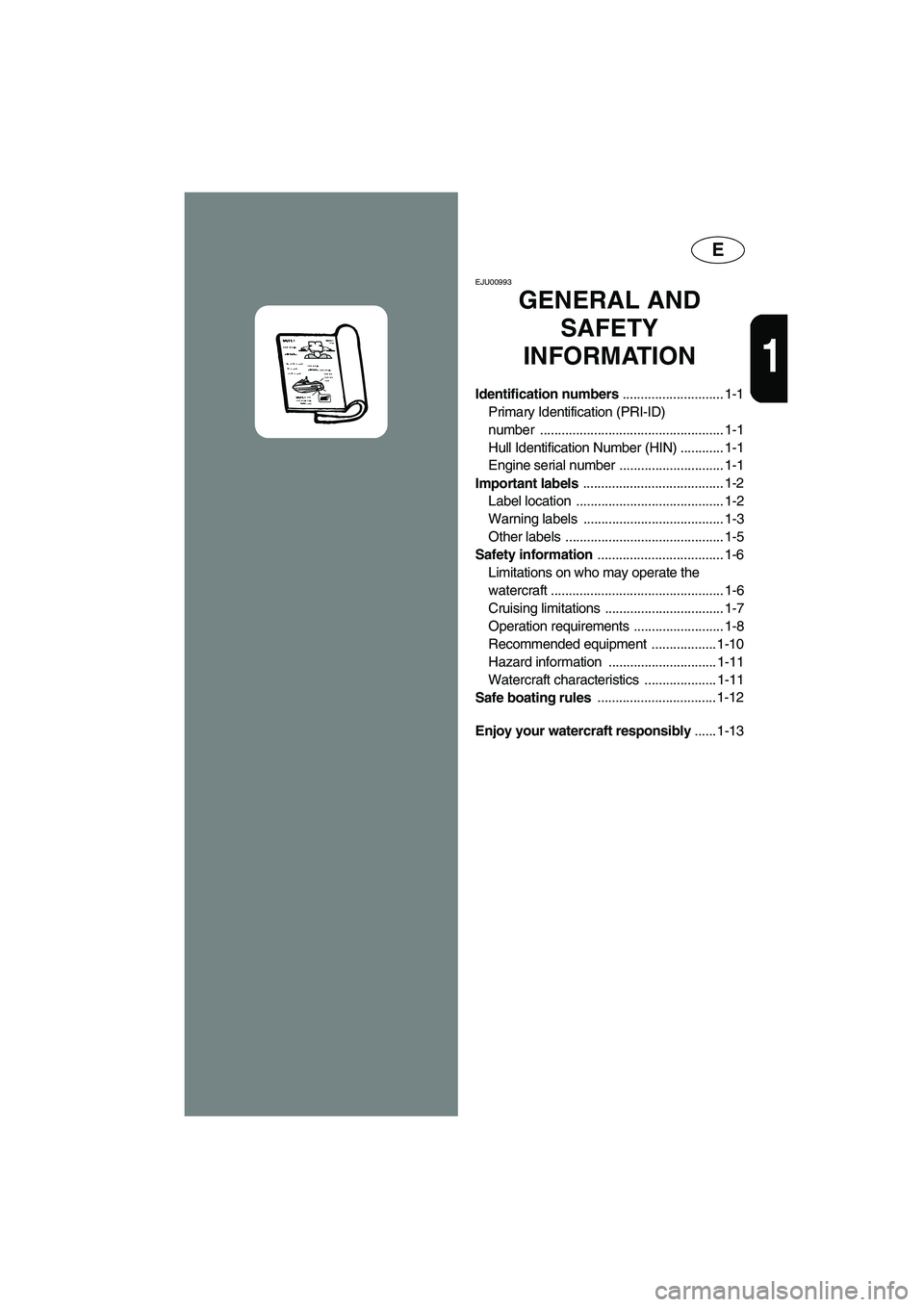

GENERAL AND
SAFETY
INFORMATION
Identification numbers ............................ 1-1
Primary Identification (PRI-ID)
number ................................................... 1-1
Hull Identification Number (HIN) ............ 1-1
Engine serial number ............................. 1-1
Important labels ....................................... 1-2
Label location ......................................... 1-2
Warning labels ....................................... 1-3
Other labels ............................................ 1-5
Safety information ................................... 1-6
Limitations on who may operate the
watercraft ................................................ 1-6
Cruising limitations ................................. 1-7
Operation requirements ......................... 1-8
Recommended equipment .................. 1-10
Hazard information .............................. 1-11
Watercraft characteristics .................... 1-11
Safe boating rules ................................. 1-12
Enjoy your watercraft responsibly ...... 1-13
UF1N73.book Page 1 Monday, May 10, 2004 10:37 AM

1-1
E
EJU01830

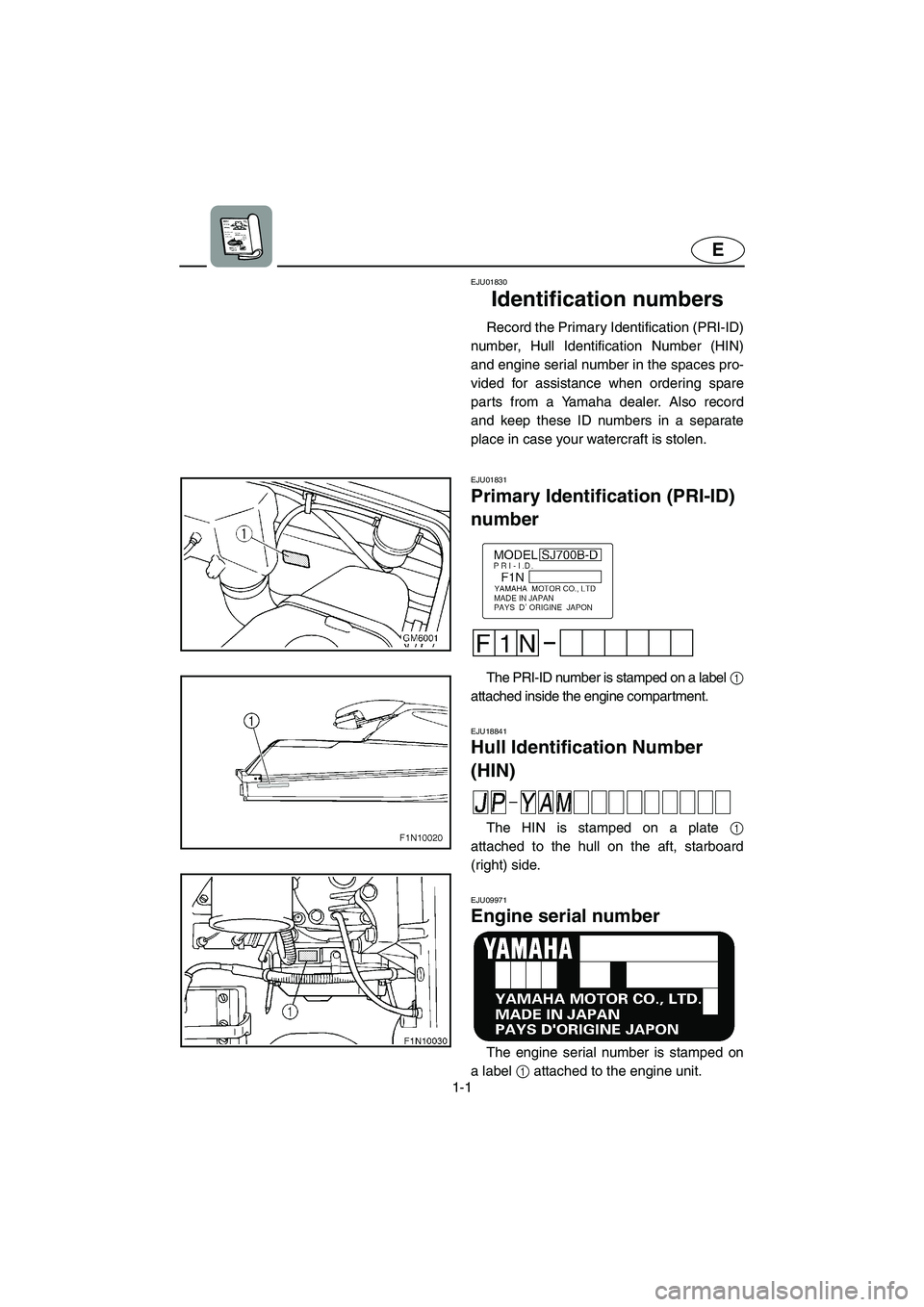

Identification numbers
Record the Primary Identification (PRI-ID)
number, Hull Identification Number (HIN)
and engine serial number in the spaces pro-
vided for assistance when ordering spare
parts from a Yamaha dealer. Also record
and keep these ID numbers in a separate
place in case your watercraft is stolen.
EJU01831
Primary Identification (PRI-ID)
number
The PRI-ID number is stamped on a label1
attached inside the engine compartment.
EJU18841
Hull Identification Number
(HIN)
The HIN is stamped on a plate 1
attached to the hull on the aft, starboard
(right) side.
EJU09971
Engine serial number
The engine serial number is stamped on
a label 1 attached to the engine unit.
UF1N73.book Page 1 Monday, May 10, 2004 10:37 AM

1-10
E

Attach the engine shut-off cord (lanyard)
to wrist and keep it free from the handle-
bars so that the engine stops if the opera-
tor falls off. After riding, remove the
engine shut-off cord from the watercraft to
avoid accidental starting or unauthorized
use by children or others.

Scan carefully for swimmers, and stay
away from swimming areas. Swimmers
are hard to see and you could acciden-
tally hit someone in the water.

Avoid being hit by another boat! You
should always take the responsibility to
watch for traffic; other boaters may not be
watching for you. If they do not see you,
or you maneuver more quickly than other
boaters expect, you risk a collision.

Maintain a safe distance from other boats
or watercraft, and also watch for boats’ ski
ropes or fishing lines. Obey the “Safe
boating rules” and be sure to check
behind you before making a turn. (See
Safe boating rules on page 1-12.)
EJU01382
Recommended equipment
The following items should be carried on
board your watercraft:

Sound-signaling device
You should carry a whistle or other sound-
signaling device that can be used to sig-
nal other boats.

Visual distress signals
It is recommended that an authority-
approved pyrotechnic device be stored in
a waterproof container on your watercraft.
A mirror can also be used as an emer-
gency signal. Contact your Yamaha
dealer for more information.

Watch
A watch is helpful so you will know how
long you have been operating.

Towline
A towline can be used to tow a disabled
watercraft in an emergency.
UF1N73.book Page 10 Monday, May 10, 2004 10:37 AM

1-11
E
EJU01003
Hazard information

When transporting or storing your water-
craft, always place the fuel cock knob in
the “OFF” position, otherwise gasoline
may overflow from the carburetor.

Never start the engine or let it run for any
length of time in an enclosed area.
Exhaust fumes contain carbon monoxide,
a colorless, odorless gas that may cause
loss of consciousness and death within a
short time. Always operate the watercraft
in an open area.
EJU01271
Watercraft characteristics

Jet thrust turns the watercraft. Releasing
the throttle lever completely produces
only minimum thrust. If you are traveling
at speeds above trolling, you will have
rapidly decreasing ability to steer without
throttle. You may still have some turning
ability immediately after releasing the
throttle, but once the engine slows down,
the watercraft will no longer respond to
handlebar input until you apply throttle
again or you reach a trolling speed. Prac-
tice turning in an open area without
obstructions until you have a good feel for
this maneuver.

This watercraft are water-jet propelled.
The jet pump is directly connected to the
engine. This means that jet thrust will pro-
duce some movement whenever the
engine is running. There is no “neutral”
position.
UF1N73.book Page 11 Monday, May 10, 2004 10:37 AM

1-12
E

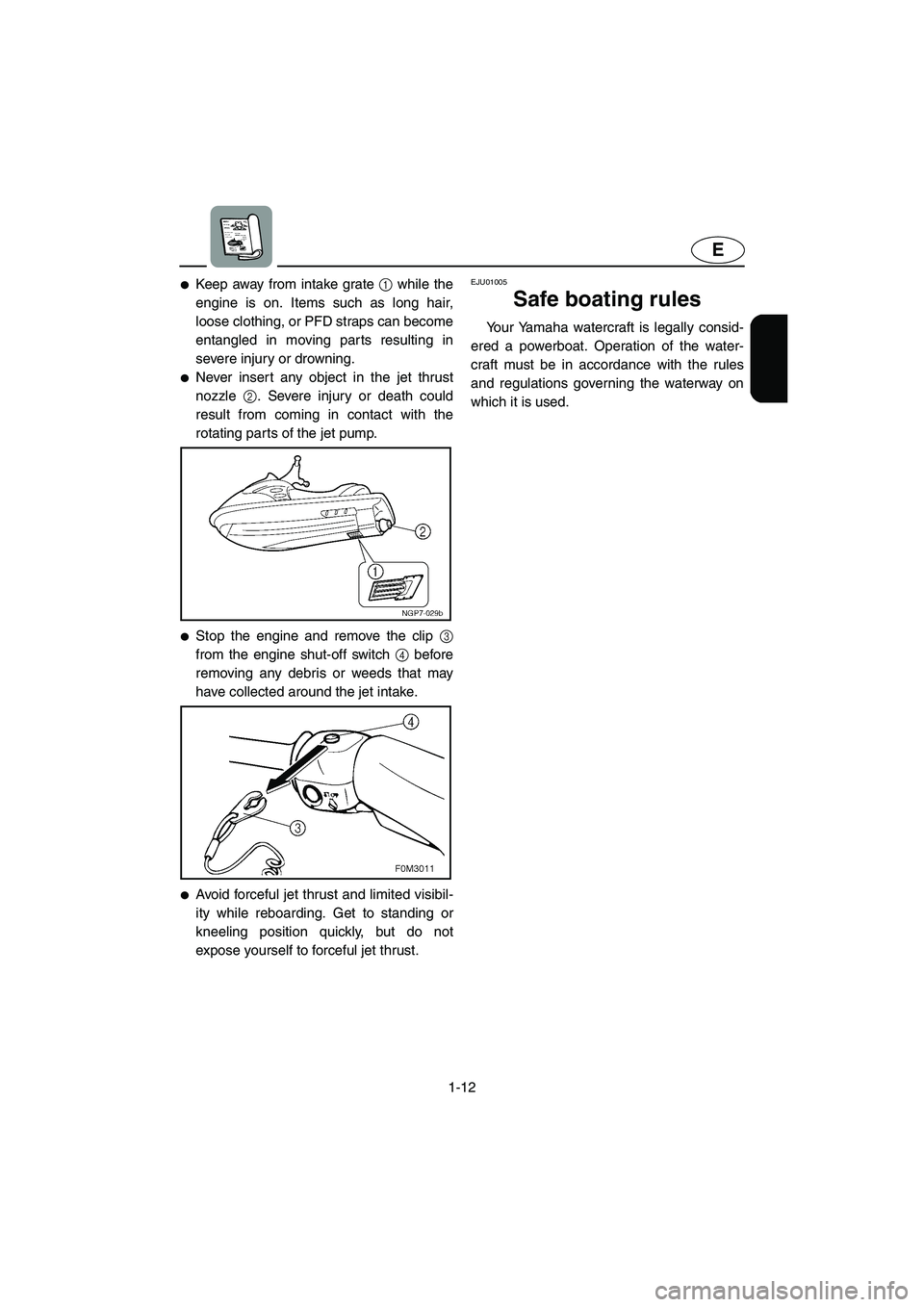

Keep away from intake grate 1 while the
engine is on. Items such as long hair,
loose clothing, or PFD straps can become
entangled in moving parts resulting in
severe injury or drowning.

Never insert any object in the jet thrust
nozzle 2. Severe injury or death could
result from coming in contact with the
rotating parts of the jet pump.

Stop the engine and remove the clip 3
from the engine shut-off switch 4 before
removing any debris or weeds that may
have collected around the jet intake.

Avoid forceful jet thrust and limited visibil-
ity while reboarding. Get to standing or
kneeling position quickly, but do not
expose yourself to forceful jet thrust.
EJU01005
Safe boating rules
Your Yamaha watercraft is legally consid-
ered a powerboat. Operation of the water-
craft must be in accordance with the rules
and regulations governing the waterway on
which it is used.
UF1N73.book Page 12 Monday, May 10, 2004 10:37 AM

E
2
EJU01007
FEATURES AND
FUNCTIONS
Location of main components .............. 2-1
Operation of controls and other
functions ................................................... 2-3
Hood ....................................................... 2-3
Fuel tank filler cap .................................. 2-4
Fuel cock knob ....................................... 2-4
Engine stop switch ................................. 2-5
Engine shut-off switch ............................ 2-5
Choke knob ............................................ 2-6
Throttle lever .......................................... 2-6
Start switch ............................................. 2-6
Cooling water pilot outlet ....................... 2-7
Steering system ..................................... 2-7
Steering pole .......................................... 2-8
Engine overheat warning system .......... 2-9
Storage pouch ...................................... 2-10
UF1N73.book Page 1 Monday, May 10, 2004 10:37 AM

2-1
E
EJU01008
Location of main components
1Rope hole
Use to attach rope for transporting, mooring or
towing the watercraft in an emergency.
2Storage pouch
3Steering pole
Adjusts to suit operator’s riding posture.
4Handlebars
Use to control direction.
5Riding tray
Stand or kneel here for balance.
6Fuel tank filler cap
7Hood
8Steering cover9Hood latch
Locks the hood.
0Jet thrust nozzle
Changes the direction of jet thrust according
to handlebar position.
ACooling water pilot outlet
Use to verify cooling water flow.
BIntake grate
Prevents debris from getting into the jet pump.
CJet intake
DRide plate
EDrive shaft
Transmits power from the engine to the jet
pump.
UF1N73.book Page 1 Monday, May 10, 2004 10:37 AM

2-2
E
1Fire extinguisher container
Use to store the fire extinguisher.
2Fuel cock knob
Use to select either normal or reserve fuel flow
from the fuel tank to the carburetors, or to shut
off fuel flow.
3Choke knob
Use to start a cold engine.
4Clip
Insert into the engine shut-off switch to enable
starting of the engine.
Remove to stop the engine or prevent acci-
dental star ting of the engine or unauthorized
use of the watercraft.
5Start switch
Push to start the engine.
6Throttle lever
Use to accelerate and decelerate.
7Engine shut-off switch
Remove the clip to stop the engine and dis-
able it from starting.8Engine stop switch
Push to stop the engine normally.
9Engine shut-off cord (lanyard)
Attach to wrist so that the engine stops if the
operator falls off the watercraft.
0Bow
AFuel tank
BBattery
CSilencer
Prevents water from getting into the engine
and reduces air intake noise.
DSpark plugs/Spark plug caps
EMuffler
FWater separator
Traps water from the breather hose to the fuel
tank.
GFuel filter
HFlush hose connector
Use to flush the engine cooling water pas-
sages.
IElectrical box
Protects electrical components from water.
