2005 YAMAHA KODIAK 450 engine

8-87 1. Throttle stop screw
1. Vis d’arrêt de l’accélérateur
1. Tornillo de tope del acelerador
EBU12580
Idle speed adjustmentNOTE:_ A diagnostic tachometer must be used for this pro-
cedure. _1. Start the engine and warm it up for a few min-
utes at approximately 1,000 to 2,000 r/min.
Occasionally rev the engine to 4,000 to
5,000 r/min. The engine is warm when it
quickly responds to the throttle.
2. Remove panel D. (See pages 8-19–8-21 for
removal and installation procedures.)
3. Connect the tachometer to the spark plug
lead, and then set the idle to the specified
idling speed by adjusting the throttle stop
screw. Turn the screw in direction
a to in-
crease the engine speed, and in direction
b
to decrease the engine speed.
4. Install the panel. Specified idle speed:
1,450–1,550 r/min
U1D960.book Page 87 Wednesday, June 23, 2004 3:59 PM

8-89
EBU00303

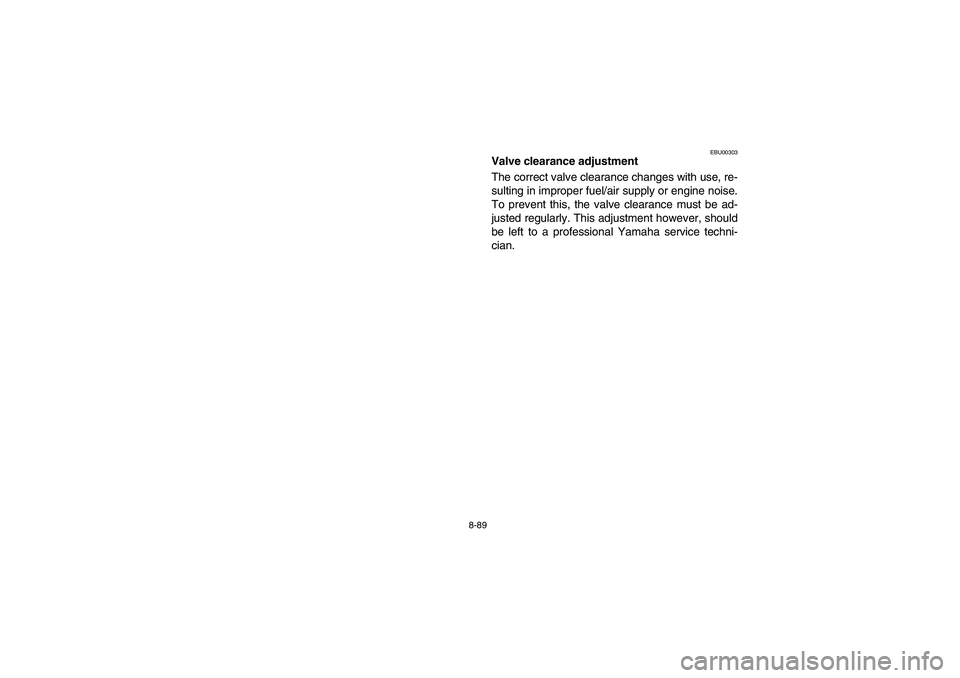

Valve clearance adjustment
The correct valve clearance changes with use, re-
sulting in improper fuel/air supply or engine noise.
To prevent this, the valve clearance must be ad-
justed regularly. This adjustment however, should
be left to a professional Yamaha service techni-
cian.
U1D960.book Page 89 Wednesday, June 23, 2004 3:59 PM

8-91 1. Locknut 2. Adjusting bolt
1. Contre-écrou 2. Bolhon de réglage
1. Contratuerca 2. Perno de ajuste
a. Throttle lever free play
a. Jeu au levier d’accélération
a. Juego libre de la palanca del acelerador
EBU00307
Throttle lever adjustmentNOTE:Adjust the engine idling speed before adjusting the
throttle lever free play.1. Loosen the locknut.
2. Turn the adjusting bolt until the throttle lever
free play is 3.0–5.0 mm.
3. Tighten the locknut.
U1D960.book Page 91 Wednesday, June 23, 2004 3:59 PM

8-111
EBU00570
Cable inspection and lubrication
WARNING
Inspect cables frequently and replace if dam-
aged. Corrosion can result when the outer cov-
ering of control cables becomes damaged.
Cables can also become frayed or kinked. Op-
eration of controls could be restricted, which
could cause an accident or injury.Lubricate the inner cables and the cable ends. If
the cables do not operate smoothly, ask a Yamaha
dealer to replace them.
Recommended lubricant:
Engine oil
U1D960.book Page 111 Wednesday, June 23, 2004 3:59 PM

8-139
EBU00724Troubleshooting chart
Starting problems or poor engine performance1. Fuel
Check if there is fuel
in the fuel tank.There is fuel.Turn the fuel cock
lever to “OFF”.No fuel.Fuel cock is
clogged.
Clean the
fuel cock. Some fuel.Turn the fuel cock
lever to “RES”.Restart the engine.
No fuel.Supply fuel.
2. Compression
Use the electric
starter to see if
there is compression.There is compression.
Compression normal.
No compression.Ask a Yamaha dealer to
inspect.
3. Ignition
Remove the
spark plug and
check the electrodes.WetWipe clean with dry cloth.
DryAttach spark plug cap and
ground to chassis.Use the
electric starter.Spark is good.Ignition system is
normal.
Spark is weak.
Adjust the spark plug gap
or replace the spark plug. No spark.
Ask a Yamaha dealer to
inspect. 4. Battery
Use the electric starter.Engine turns over
quickly.Battery is good.
Engine turns over
slowly.Check the battery lead connections,
and charge the battery if necessary.Check the
fuel flow.
Turn the fuel cock
lever to “ON”.
Remove the fuel hose
from the fuel cock.
U1D960.book Page 139 Wednesday, June 23, 2004 3:59 PM

8-140
Engine overheatingNOTE:If it is difficult to get the recommended coolant, tap water can be temporarily used, provided that it is
changed to the recommended coolant as soon as possible.
WARNING
Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap. Wait until the
engine has cooled.
Check the coolant level in the
coolant reservoir and/or radiator.
Level is OK.Level is low, check the
cooling system for leakage.
No
leakage.Leakage.
Ask a Yamaha dealer to inspect
and repair the cooling system.Add coolant. (See NOTE.)
Restart the engine. If the engine overheats again, ask a
Yamaha dealer to inspect and/or repair the cooling system.
U1D960.book Page 140 Wednesday, June 23, 2004 3:59 PM

9-1
EBU00420

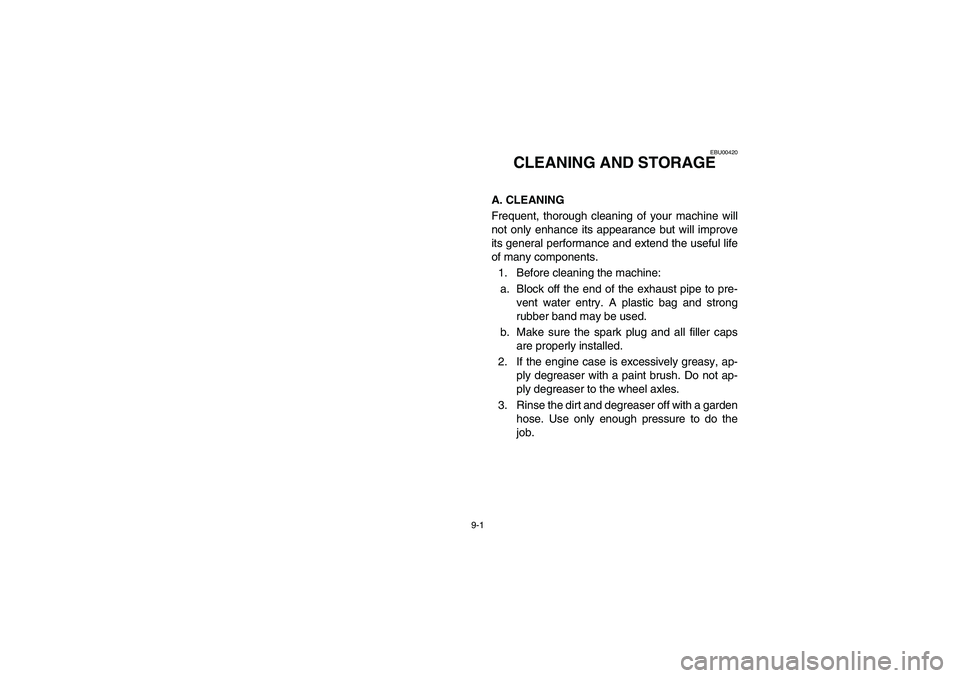

CLEANING AND STORAGE
A. CLEANING
Frequent, thorough cleaning of your machine will
not only enhance its appearance but will improve
its general performance and extend the useful life
of many components.
1. Before cleaning the machine:
a. Block off the end of the exhaust pipe to pre-
vent water entry. A plastic bag and strong
rubber band may be used.
b. Make sure the spark plug and all filler caps
are properly installed.
2. If the engine case is excessively greasy, ap-
ply degreaser with a paint brush. Do not ap-
ply degreaser to the wheel axles.
3. Rinse the dirt and degreaser off with a garden
hose. Use only enough pressure to do the
job.
U1D960.book Page 1 Wednesday, June 23, 2004 3:59 PM

9-5
7. Automotive type wax may be applied to all
painted and chrome plated surfaces. Avoid
combination cleaner-waxes. Many contain
abrasives which may mar the paint or protec-
tive finish.
When finished, start the engine and let it idle
for several minutes.
WARNING
Wet brakes may have reduced stopping ability,
increasing the chance of an accident. Test the
brakes after washing. Apply the brakes several
times at slow speeds to let friction dry out the
linings.
U1D960.book Page 5 Wednesday, June 23, 2004 3:59 PM
