2005 YAMAHA KODIAK 450 stop start

7-75
WHAT TO DO IF ...
This section is designed to be a reference guide
only. Be sure to read each section on riding tech-
niques completely.
WHAT TO DO ...

If your ATV doesn’t turn when you want it to:
Bring the ATV to a stop and practice the turning
maneuvers again. Be sure you are putting your
weight on the footboard to the outside of the
turn. Position your weight over the front wheels
for better control. (See pages 7-39–7-43.)


If your ATV begins to tip while turning:
Lean more into the turn to regain balance. If
necessary, gradually let off the throttle and/or
steer to the outside of the turn. (See pages
7-39–7-43.)


If your ATV starts to slide sideways:
Steer in the direction of the slide if you have the
room. Applying the brakes or accelerating is
not recommended until you have corrected the
slide. (See pages 7-71–7-73.)
U1D960.book Page 75 Wednesday, June 23, 2004 3:59 PM

7-77

If your ATV can’t make it up a hill you are trying
to climb:
Turn the ATV around if you still have forward
speed. If not, stop, dismount on the uphill side
of the ATV and physically turn the ATV around.
If the ATV starts to slip backwards DO NOT
USE THE REAR BRAKE - the ATV may tip
over on top of you. Dismount the ATV on the
uphill side. (See pages 7-45–7-53.)


If your ATV is traversing a sloping surface:
Be sure to ride with your weight positioned to-
wards the uphill side of the ATV to maintain
proper balance. If the ATV starts to tip, steer
down the hill (if there are no obstacles in your
way) to regain balance. If you discover that the
ATV is going to tip over, dismount on the uphill
side. (See pages 7-59–7-61.)
U1D960.book Page 77 Wednesday, June 23, 2004 3:59 PM

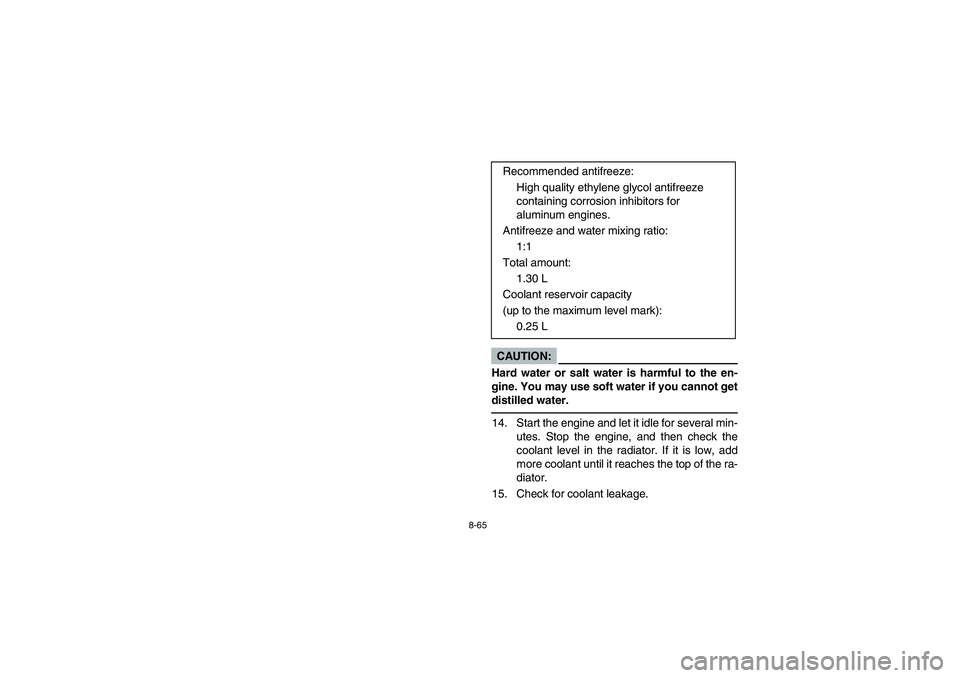

8-65
CAUTION:_ Hard water or salt water is harmful to the en-
gine. You may use soft water if you cannot get
distilled water. _14. Start the engine and let it idle for several min-
utes. Stop the engine, and then check the
coolant level in the radiator. If it is low, add
more coolant until it reaches the top of the ra-
diator.
15. Check for coolant leakage.Recommended antifreeze:
High quality ethylene glycol antifreeze
containing corrosion inhibitors for
aluminum engines.
Antifreeze and water mixing ratio:
1:1
Total amount:
1.30 L
Coolant reservoir capacity
(up to the maximum level mark):
0.25 L
U1D960.book Page 65 Wednesday, June 23, 2004 3:59 PM

8-87 1. Throttle stop screw
1. Vis d’arrêt de l’accélérateur
1. Tornillo de tope del acelerador
EBU12580
Idle speed adjustmentNOTE:_ A diagnostic tachometer must be used for this pro-
cedure. _1. Start the engine and warm it up for a few min-
utes at approximately 1,000 to 2,000 r/min.
Occasionally rev the engine to 4,000 to
5,000 r/min. The engine is warm when it
quickly responds to the throttle.
2. Remove panel D. (See pages 8-19–8-21 for
removal and installation procedures.)
3. Connect the tachometer to the spark plug
lead, and then set the idle to the specified
idling speed by adjusting the throttle stop
screw. Turn the screw in direction
a to in-
crease the engine speed, and in direction
b
to decrease the engine speed.
4. Install the panel. Specified idle speed:
1,450–1,550 r/min
U1D960.book Page 87 Wednesday, June 23, 2004 3:59 PM

9-5
7. Automotive type wax may be applied to all
painted and chrome plated surfaces. Avoid
combination cleaner-waxes. Many contain
abrasives which may mar the paint or protec-
tive finish.
When finished, start the engine and let it idle
for several minutes.
WARNING
Wet brakes may have reduced stopping ability,
increasing the chance of an accident. Test the
brakes after washing. Apply the brakes several
times at slow speeds to let friction dry out the
linings.
U1D960.book Page 5 Wednesday, June 23, 2004 3:59 PM
