2005 YAMAHA BRUIN 350 2WD stop start

3-2
3
FBU00032
DESCRIPTION ET
IDENTIFICATION DU VÉHICULE
1. Anneau de réglage de la
précontrainte de ressort
d’amortisseur arrière
2. Compartiment de rangement et
trousse à outils
3. Bougie
4. Anneau de réglage de la
précontrainte de ressort
d’amortisseur avant
5. Pédale de frein
6. Carter de courroie trapézoïdale
7. Robinet de carburant
8. Boîtier de filtre à air
9. Fusibles
10. Feu arrière/stop
11. Anneau de réglage de la
précontrainte de ressort
d’amortisseur avant
12. Flexible de contrôle du conduit
de refroidissement de la
courroie trapézoïdale
13. Cartouche de filtre à huile14. Jauge d’huile
15. Levier de frein arrière
16. Combiné de contacteurs à la
poignée gauche
17. Starter (enrichisseur)
18. Contacteur de l’avertisseur
19. Levier de présélection
20. Compteur de vitesse
21. Contacteur à clé
22. Bouchon de réservoir de
carburant
23. Levier d’accélération
24. Levier de frein avantN.B.:Les illustrations de ce manuel peuvent légèrement diffé-
rer du modèle réel. _
SBU00032
DESCRIPCION E IDENTIFICACION
DE LA MAQUINA1. Anillo de ajuste de la carga
previa del resorte del conjunto
del amortiguador trasero
2. Caja para objetos y juego de
herramientas
3. Bujía
4. Anillo de ajuste de la carga
previa del resorte del conjunto
del amortiguador delantero
5. Pedal del freno
6. Caja de la correa trapezoidal
7. Grifo de combustible
8. Caja del filtro de aire
9. Fusibles
10. Luz de freno/piloto traseiro
11. Anillo de ajuste de la carga
previa del resorte del conjunto
del amortiguador delantero
12. Manguera de comprobación
del conducto de enfriamiento
de la correa trapezoidal
13. Cartucho del filtro de aceite14. Varilla de medición del aceite
de motor
15. Palanca del freno trasero
16. Interruptores izquierdos del
manillar
17. Starter (choke)
18. Interruptor de la bocina
19. Palanca de selección de
marcha
20. Velocímetro
21. Interruptor principal
22. Tapón del depósito de
combustible
23. Palanca de aceleración
24. Palanca del freno delanteroNOTA:_ La máquina que ha adquirido puede diferir ligera-
mente de la representada en las figuras de este ma-
nual. _
EE.book Page 2 Wednesday, April 21, 2004 8:59 AM

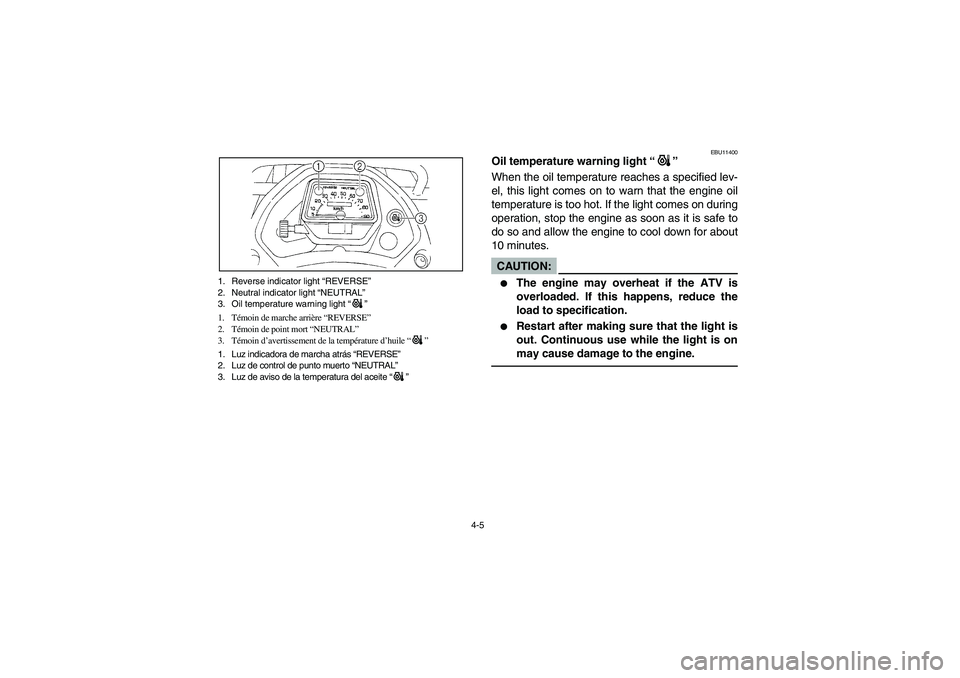

4-5 1. Reverse indicator light “REVERSE”
2. Neutral indicator light “NEUTRAL”
3. Oil temperature warning light “”
1. Témoin de marche arrière “REVERSE”
2. Témoin de point mort “NEUTRAL”
3. Témoin d’avertissement de la température d’huile “”
1. Luz indicadora de marcha atrás “REVERSE”
2. Luz de control de punto muerto “NEUTRAL”
3. Luz de aviso de la temperatura del aceite “”
EBU11400
Oil temperature warning light “”
When the oil temperature reaches a specified lev-
el, this light comes on to warn that the engine oil
temperature is too hot. If the light comes on during
operation, stop the engine as soon as it is safe to
do so and allow the engine to cool down for about
10 minutes.CAUTION:_

The engine may overheat if the ATV is
overloaded. If this happens, reduce the
load to specification.


Restart after making sure that the light is
out. Continuous use while the light is on
may cause damage to the engine.
_
EE.book Page 5 Wednesday, April 21, 2004 8:59 AM

4-7
EBU07330Oil temperature warning light checking method ACB-10E
Turn the main switch to “ON” and the
engine stop switch to “”.
Oil temperature warning
light does not come on.
Oil temperature warning
light comes on.
Check engine oil temperature.
Oil temperature warning
light does not come on.
Engine oil temperature and
electrical circuit are OK. Go
ahead with riding.
Push start switch with the
transmission in neutral.
Ask a Yamaha dealer to
inspect the electrical circuit.
Oil tempera-
ture is low.
Allow to cool.
Oil tempera-
ture is high.
Oil temperature
warning light comes
on momentarily.
EE.book Page 7 Wednesday, April 21, 2004 8:59 AM

4-13 1. Light switch “//OFF”
2. Engine stop switch “/”
3. Start switch “”
4. Horn switch “”
1. Contacteur d’éclairage “//OFF”
2. Coupe-circuit du moteur “/”
3. Contacteur du démarreur “”
4. Contacteur de l’avertisseur “”
1. Interruptor de las luces “//OFF”
2. Interruptor de paro del motor “/”
3. Interruptor de arranque “”
4. Interruptor de la bocina “”
EBU00053
Handlebar switches
EBU12510
Light switch “/ /OFF”
Set the switch to “” to turn on the low beams,
the taillight and the meter lighting.
Set the switch to “” to turn on the high beams,
the taillight and the meter lighting.
Set the switch to “OFF” to turn off all the lights.CAUTION:_ Do not use the headlights with the engine
turned off for more than thirty minutes. The
battery may discharge to the point that the
starter motor will not operate properly. If this
should happen, remove the battery and re-
charge it. _
EE.book Page 13 Wednesday, April 21, 2004 8:59 AM

4-15 1. Light switch “//OFF”
2. Engine stop switch “/”
3. Start switch “”
4. Horn switch “”
1. Contacteur d’éclairage “//OFF”
2. Coupe-circuit du moteur “/”
3. Contacteur du démarreur “”
4. Contacteur de l’avertisseur “”
1. Interruptor de las luces “//OFF”
2. Interruptor de paro del motor “/”
3. Interruptor de arranque “”
4. Interruptor de la bocina “”
EBU01205
Engine stop switch “/”
Make sure that the engine stop switch is set to
“” before starting the engine. The engine stop
switch controls ignition and can be used at all
times to stop the engine, especially in an emer-
gency. The engine will not start or run when the
engine stop switch is set to “”.
EBU00607
Start switch “”
The starter motor cranks the engine when this
switch is pushed.CAUTION:
See starting instructions prior to starting the
engine. (See page 6-3 for details.)
EBU00059
Horn switch “”
Press the switch to sound the horn.
EE.book Page 15 Wednesday, April 21, 2004 8:59 AM

6-3
EBU14651
Starting a cold engine
WARNING
_ Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-
dent or collision. _1. Apply the rear brake lever.
2. Turn the fuel cock to “ON”.
3. Turn the main switch to “ON”, and then set
the engine stop switch to “ ”.
4. Shift the drive select lever into the neutral po-
sition.
E-6.fm Page 3 Wednesday, July 7, 2004 9:42 AM

7-37
With the engine idling, return the starter (choke) to
the closed position and shift the drive select lever
into the forward position, then release the parking
brake. Apply the throttle slowly and smoothly. The
centrifugal clutch will engage and you will start to
accelerate. If the throttle is applied too abruptly,
the front wheels may lift off the ground resulting in
a loss of directional control. Avoid higher speeds
until you are thoroughly familiar with the operation
of your ATV.
When slowing down or stopping, release the throt-
tle and apply the brakes smoothly and evenly. Im-
proper use of the brakes can cause the tires to
lose traction, reducing control and increasing the
possibility of an accident.
EE.book Page 37 Wednesday, April 21, 2004 8:59 AM

7-51
If your ATV has stalled or stopped and you believe
you can continue up the hill, restart carefully to
make sure you do not lift the front wheels which
could cause you to lose control. If you are unable
to continue up the hill, dismount the ATV on the
uphill side. Physically turn the ATV around and
then descend the hill.
If you start to roll backwards, DO NOT apply the
rear brake to stop. The ATV could easily tip over
backwards. Instead, apply the front brake gradual-
ly, or dismount the ATV immediately on the uphill
side.
