2005 VOLVO XC90 dimensions

2005 VOLVO XC90

6-cylinder turbo models
pg. 96 Starting and driving
All Wheel Drive
All Wheel Drive (AWD) - general information
Your Volvo can be equipped with permanent All Wheel Drive (option), wh\
ich means that power is
distributed automatically between the front and rear wheels. Under norma\
l driving conditions, most of
the engine's power is directed to the front wheels. However, if there is\
any tendency for the front wheels
to spin, an electronically controlled coupling distributes power to the \
wheels that have the best traction.
Tire dimensions
Volvo recommends that you always drive on tires of the same brand, size,\
construction (radial), tread
pattern, load-, speed-, traction-, temperature-, and treadwear rating. N\
ever drive on mixed tires, except
for brief periods when the temporary spare tire is in use.
Always use properly inflated tires of correct dimensions. Tire size and \
inflation pressures are shown on
the tire inflation pressure placards, located on the driver's side B-pil\
lar (the structural member at the side
of the vehicle, at the rear of the driver's door opening), or on the in\
side of the fuel filler door on
Canadian models.
Temporary Spare
The temporary spare tire is for temporary, lowspeed, short-distance use \
only. Replace it with a full-sized
tire as soon as possible. Do not drive on the temporary spare at speeds \
above 50 m.p.h. (80km/h) or for
distances greater than 50 miles (80 km).
Never install snow chains on a temporary spare.

file:///K|/ownersdocs/2005/2005_XC90/05xc90_06a.htm (15 of 16)12/30/20\
06 4:42:33 PM

2005 VOLVO XC90
and accelerating. Failure to do so could reduce traction to an unsafe le\
vel or adversely affect handling.
- Do not mix tires of different design as this could also negatively aff\
ect overall tire road grip.
- Winter tires wear more quickly on dry roads in warm weather. They shou\
ld be removed when the
winter driving season has ended.
- Studded tires should be run-in 300-600 miles (500-1000 km) during wh\
ich the car should be driven as
smoothly as possible to give the studs the opportunity to seat properly \
in the tires. The tires should have
the same rotational direction throughout their entire lifetime.
NOTE: Please consult state or provincial regulations restricting the use of st\
udded winter tires before
installing such tires.
1 Where permitted
pg. 123 Wheels and tires
Temporary Spare
The spare tire in your car is called a "Temporary Spare".
Recommended tire pressure (see the placard on the B-pillar or on the fu\
el filler door) should be
maintained irrespective of which position on the car the temporary spare\
tire is used on. In the event of
damage to this tire, a new one can be purchased from your Volvo retailer\
.
WARNING!
! Current legislation prohibits the use of the "Temporary Spare" tire ot\
her than as a temporary
replacement for a punctured tire. It must be replaced as soon as possibl\
e by a standard tire. Road
holding and handling may be affected with the "Temporary Spare" in use. \
Do not exceed 50 mph (80
km/h). Do not drive farther than 50 miles (80 km) on a temporary spar\
e tire.
CAUTION:
The car must not be driven with wheels of different dimensions or with a\
spare tire other than the one
that came with the car. The use of different size wheels can seriously d\
amage your car's transmission.
pg. 124 Wheels and tires
file:///K|/ownersdocs/2005/2005_XC90/05xc90_08.htm (14 of 17)12/30/200\
6 4:42:37 PM

2005 VOLVO XC90
2 0 0 5
VOLVO XC90

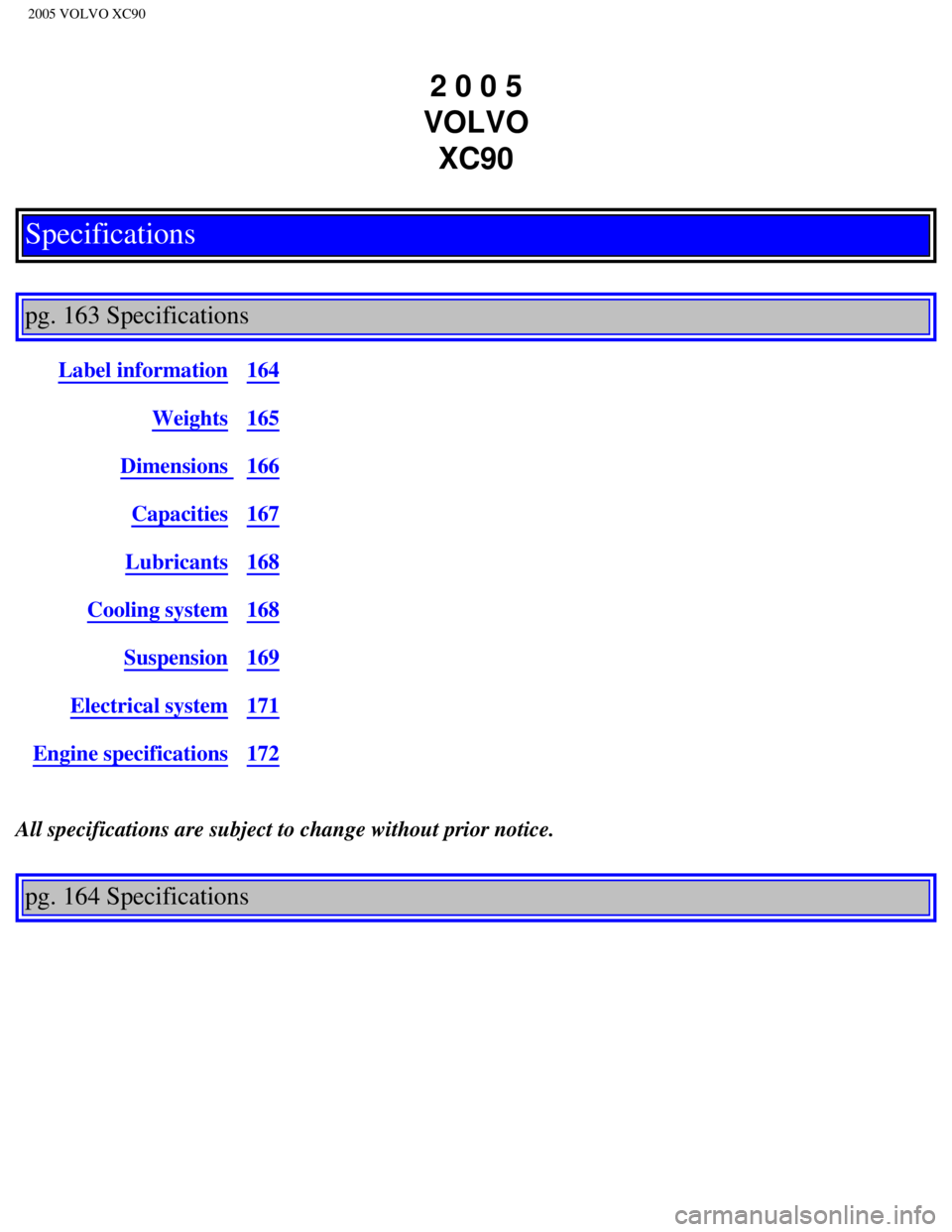

Specifications

pg. 163 Specifications
Label information164
Weights165
Dimensions 166
Capacities167
Lubricants168
Cooling system168
Suspension169
Electrical system171
Engine specifications172
All specifications are subject to change without prior notice.
pg. 164 Specifications
file:///K|/ownersdocs/2005/2005_XC90/05xc90_10.htm (1 of 10)12/30/2006\
4:42:41 PM

2005 VOLVO XC90
Max. roof load 220 lbs 100 kg
Trailer weight, w/o brakes 1700 lbs 750 kg
Trailer weight, with brakes See the table on
page 105
Max. tongue weight See the table on
page 105
pg. 166 Specifications
Dimensions
Dimensions
Length 188.9 in (479.8 cm)
Width 74.7 in (189.8 cm)
Height 70.2 in (178.4 cm)
Wheelbase 112.5 in (285.7 cm)
Front track 64.3 in (163.4 cm)
Rear track 63.9 (162.4 cm)
Turning
circle 39-40 ft. (11.9-12.3 m)
Cargo capacity
With optional 3rd row of seats folded down:
5-seat: 41.6 cu ft (1178 litres)
7-seat: 43.3 cu ft (1225 litres)
Behind 1st row of seats, with 2nd (and optional 3rd) row of seats fold\
ed down:
5-seat: 84.9 cu ft (2403 litres)
7-seat: 85.1 cu ft (2410 litres)
Behind 1st row of seats, with front passenger seat, 2nd row (and option\
al 3rd row) of seats folded
down:
5-seat: 92.0 cu ft (2606 litres)
7-seat: 93.2 cu ft (2640 litres)
pg. 167 Specifications
file:///K|/ownersdocs/2005/2005_XC90/05xc90_10.htm (5 of 10)12/30/2006\
4:42:41 PM

2005 VOLVO XC90
Child booster cushion 20
Child restraint anchorages
21
Child safety
19
Child safety locks
81
Child seat anchors
20
Cleaning the upholstery
132
Climate control systems - general information
50
Clock
26
Coat hanger
70
Coin compartment
68
Cold tires, definition
113
Cold weather precautions
109
Coolant - changing
139, 143
Coolant - checking level of
139
Cooling system
168
Courtesy light
65
Cruise control
40
Cup holder
68, 69
Cup holder in rear seat
68
Curb weight
120
Current fuel consumption
39
D
Defroster
53
Dimensions
166
Dolby Pro Logic II (DPL II)
181
Door mirror defroster
38
Driving economically
91
DSTC
31, 99
Dual-threshold air bags
5
E
ECC
52
Economical driving
91
