2005 VOLVO XC90
1. Headlights/Parking lights 33
2. Instrument lighting 33
3. Panel vents 51
4. Text window 30
5. Temperature gauge 26
6. Odometer/Trip odometer/Cruise control indicator 26, 40
7. Speedometer iv
8. Turn signal indicator lights 26
9. Tachometer 26
10. Ambient temperature gauge, clock, gear indicator 26
11. Fuel gauge 26
12. Indicator and warning symbols 27
13. Panel vents 51
14. Glove compartment 69
15. Hazard warning flashers 38
16. Audio system 175
17. Switches in the center console 31
18. Climate system controls 52
19. Windshield wiper/washer lever 36
20. Audio control buttons in steering wheel 177
21. Instrument panel 26
22. Horn iv
23. Cruise control buttons in steering wheel 40
24. Turn signals, High/low beams 35
25. Front fog lights, Rear fog light 33
26. Parking brake pedal 42
27. Parking brake release handle 42
28. Button for unlocking fuel filler door 33
29. Hood open lever 42
30. Reading lights 65
31. Courtesy light 65
32. Moonroof control (option) 47
33. Seat belt reminder 29
34. Rearview mirror 46
35. Central locking button 79
36. Lockout switch for rear seat power windows 45
37. Power window controls 44
38. Sideview mirror controls 46
file:///K|/ownersdocs/2005/2005_XC90/05xc90_00.htm (6 of 7)12/30/2006 \
4:42:22 PM
2005 VOLVO XC90
12-volt socket in the cargo compartment
l If the ignition is switched off and a device drawing more than 0.1A is c\
onnected to a socket, a battery
warning will be displayed in the text window.
l The covers should be kept on when the auxiliary sockets are not in use. \
l Maximum current from the sockets is 15A.
Ashtrays/cigarette lighter
The auxiliary sockets can also be used for cigarette lighters.
Ashtrays and lighters are available as accessories. Please contact your \
Volvo retailer.
pg. 44 Instruments and controls
Electrically operated windows
The electrically operated windows are controlled by buttons in the arm r\
ests.
l The ignition switch must be ON* (ignition key in position I, II or the \
engine running) for the
electrically operated windows to function.
l To lower: Press down the front edge of the button to the first detent (\
"stop").
l To raise: Lightly pull up the front edge of the button to the first dete\
nt ("stop").
* The electrically operated windows will also function after the ignitio\
n has been switched off as long as
neither of the front doors has been opened.
Auto up/down function (front doors only):
Either front door window can be opened or closed automatically.
Auto down: Press the front part of the button as far down as possible and release i\
t immediately. To
stop the window at any time, pull the button up.
Auto up: Pull the front part of the button up as far as possible and release it i\
mmediately. To stop the
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02b.htm (10 of 17)12/30/20\
06 4:42:28 PM
2005 VOLVO XC90
Lockout switch for rear windows
The electrically operated rear door windows can be disabled by a switch \
located on the driver's door (see
illustration).
If the light in the switch is OFF: The rear door windows can be raised or lowered with the buttons on
the rear door armrests or with the buttons on the driver's door armrest.\
If the light in the switch is ON: The rear door windows can only be raised or lowered with the buttons
on the driver's door armrest.
Electrically operated window in the front passenger's seat
The control for the electrically operated window in the front passenger'\
s seat operates that window only.
Electrically operated windows in the rear doors.
The rear door windows can be operated with the control on each door and \
the switch on the driver's
door. If the light in the switch for blocking electrically operated wind\
ows in the rear doors (located in
the driver's door control panel) is on, the rear door windows can only \
be operated from the driver's door.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02b.htm (12 of 17)12/30/20\
06 4:42:28 PM
2005 VOLVO XC90
l Within 40 seconds, if the driver's door has not been opened after the ig\
nition has been switched off.
Passenger seat: The seat can only be adjusted if the ignition key is in position I, II \
or if the engine is
running.
Seat adjustment
Adjust the power seat(s) with the two controls at the side of the seat\
as follows:
1 - Front edge of seat (raise/lower)
2 - Forward - rearward
3 - Rear edge of seat (raise/lower)
4 - Backrest tilt
Power seat adjustment controls
The power seats have an overload protector that activates if a seat is b\
locked by any object. If this
occurs, switch off the ignition (key in position 0) and wait about 20 \
seconds before operating the seat
again.
Emergency stop
If the seat accidentally begins to move, press any of the buttons to sto\
p the seat.
NOTE: Please refer to the following page for information on programming the me\
mory function in the
driver's seat.
Power seat adjustment controls
Remote keyless entry system and driver's seat
The remote control transmitter also controls the electrically operated d\
river's seat in the following way:
l Adjust the seat to your preferences.
l When you leave your vehicle, lock it using the remote control.
The position of the seat is now stored in the remote control.
Automatic seat adjustment
To move the seat to the position in which you left it:
1. Unlock the driver's door with the same remote control (the one used \
to lock the doors)
2. Open the driver's door within 2 minutes. The driver's seat will autom\
atically move to the position in
which you left it.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_04a.htm (4 of 11)12/30/200\
6 4:42:30 PM
2005 VOLVO XC90
NOTE:
l The seat will move to this position even if someone else has moved it to\
a different seating position
and locked the car with a different remote control.
l This feature will work in the same way with all of the remote control tr\
ansmitters (up to 3) that you
use with your vehicle.
l This feature will not function if your lock your vehicle with the key.
pg. 61 Interior
WARNING!
- Because the driver's seat can be adjusted with the ignition off, child\
ren should never be left
unattended in the vehicle.
- Movement of the seat can be STOPPED at any time by pressing any button\
on the power seat
control panel.
- Do not adjust the seat while driving.
- The seat should be adjusted so that the brake pedal can be depressed f\
ully. In addition, position the
seat as far rearward as comfort and control allow.
- The seat rails on the floor must not be obstructed in any way when the\
seat is in motion.
Programming the memory
Three different seating and door mirror positions can be stored in the d\
river seat's memory.
The following example explains how button 1 can be programmed.
Buttons 2 and 3 can be programmed in the same way.
To program (store) a seat position in button 1:
1. Move the seat to the desired position using the seat adjustment contr\
ols (see the previous page).
2. Press and hold down the MEM (memory) button.
3. With the MEM button depressed, press button 1 briefly to store the se\
at's current position.
To move the seat to the position that it was in when button 1 was progra\
mmed:
Press and hold down button 1 until the seat stops moving.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_04a.htm (5 of 11)12/30/200\
6 4:42:30 PM
2005 VOLVO XC90
Folding the backrests - third row of seats (option)
Folding down the backrest
If necessary, fold in the load anchorage eyelets before folding down the\
backrests.
1. Move the seats in the second row forward, see
page 62.
2. Pull up the handle in illustration 1 above.
3. Push the seat cushion firmly rearward, under the backrest.
4. Fold down the backrests* (the head restraints fold down automaticall\
y) to the horizontal position.
Returning the backrest to the upright position
l Fold up the backrest to the upright position.
l Grasp the strap (see illustration 3 above) and pull the seat cushion o\
ut until it locks in place. This also
locks the backrest in the upright position.
* Please note that the head restraints in this row cannot be vertically \
adjusted.
pg. 65 Interior
Interior lighting
Courtesy light/front reading lights
The courtesy/reading lights can be turned on or off by pressing the resp\
ective buttons.
The courtesy light has a timer function which turns the light
1 on for 30 seconds if:
l You unlock the vehicle from the outside with the key or remote control. \
l You switch off the ignition (turn the key to position 0).
The courtesy light stays on for 10 minutes if one of the doors is left o\
pen after the vehicle is unlocked.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_04a.htm (9 of 11)12/30/200\
6 4:42:30 PM
2005 VOLVO XC90
The courtesy light switches off if:
l The engine is started.
l The vehicle is locked from the outside with the key or remote control.
The courtesy light can be switched off or on in all situations by briefl\
y pressing the button.
When you switch the light on, it remains lit for 10 minutes.
You can disconnect the automatic function by pressing the courtesy light\
button for more than 3
seconds. Briefly pressing the courtesy light button again automatically \
reconnects the function.
The courtesy light timer periods can be changed. Contact your Volvo reta\
iler.
Rear reading lights
l The reading lights can be switched on or off by pressing the respective \
buttons.
l Seven-seat models: Both reading lights for the third row of seats will switch on if one of \
the buttons
is pressed.
l The reading lights switch off automatically after 10 minutes if the engi\
ne is not running.
l The lights can be switched off at any time by pressing the button.
1. In dark conditions
pg. 66 Interior
file:///K|/ownersdocs/2005/2005_XC90/05xc90_04a.htm (10 of 11)12/30/20\
06 4:42:30 PM
2005 VOLVO XC90

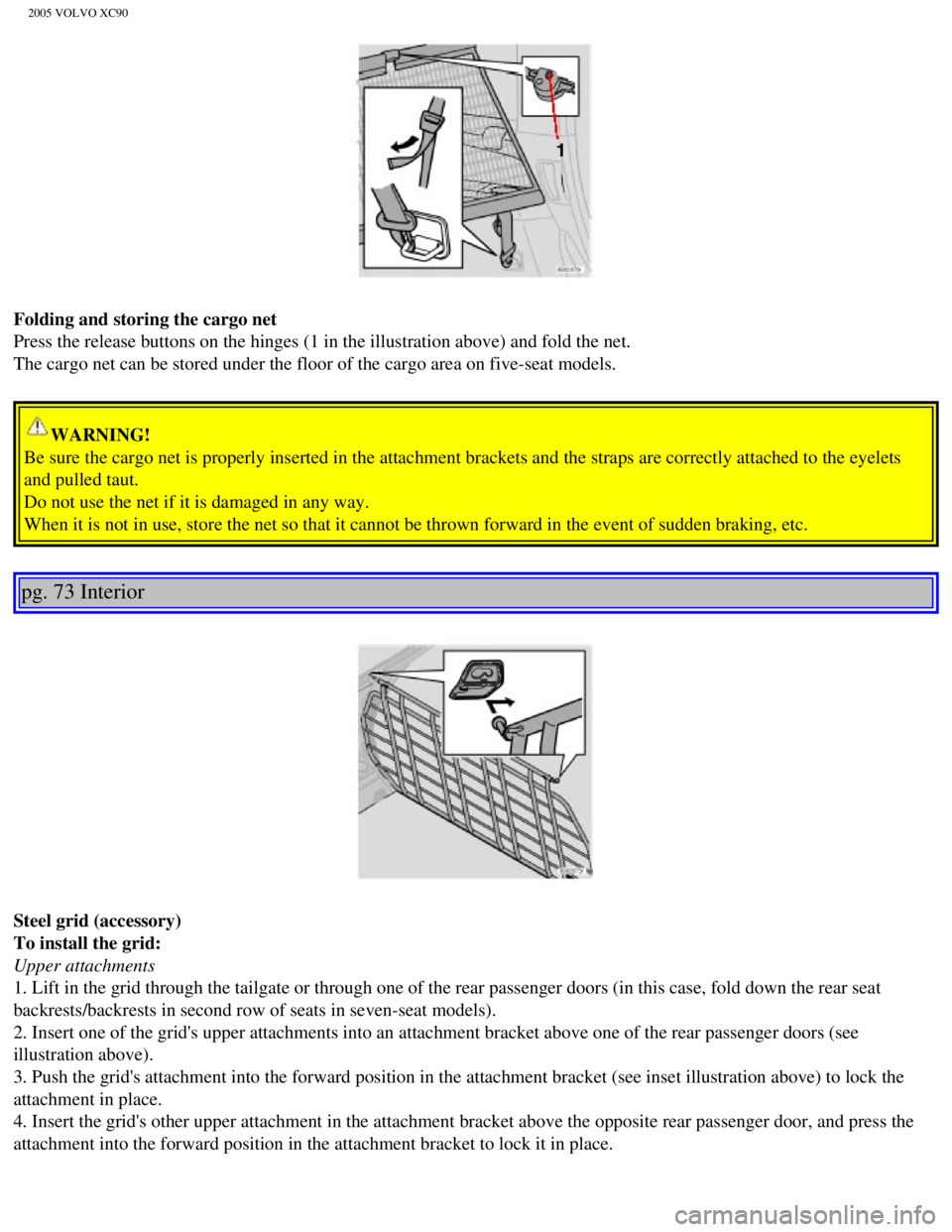

Folding and storing the cargo net
Press the release buttons on the hinges (1 in the illustration above) \
and fold the net.
The cargo net can be stored under the floor of the cargo area on five-se\
at models.
WARNING!
Be sure the cargo net is properly inserted in the attachment brackets an\
d the straps are correctly attached to the eyelets
and pulled taut.
Do not use the net if it is damaged in any way.
When it is not in use, store the net so that it cannot be thrown forward\
in the event of sudden braking, etc.
pg. 73 Interior
Steel grid (accessory)
To install the grid:
Upper attachments
1. Lift in the grid through the tailgate or through one of the rear pass\
enger doors (in this case, fold down the rear seat
backrests/backrests in second row of seats in seven-seat models).
2. Insert one of the grid's upper attachments into an attachment bracket\
above one of the rear passenger doors (see
illustration above).
3. Push the grid's attachment into the forward position in the attachmen\
t bracket (see inset illustration above) to lock the
attachment in place.
4. Insert the grid's other upper attachment in the attachment bracket ab\
ove the opposite rear passenger door, and press the
attachment into the forward position in the attachment bracket to lock i\
t in place.
