2005 TOYOTA SOLARA Owners Manual (in English)

’05 Solara_U (L/O 0409)
25
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
OPERATING THE PASSENGER’S
WINDOW
Use the switch on the passenger ’s
door. The driver ’s door also has a
switch that controls the passenger ’s
window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s window
cannot be operated.
OPERATING THE ALL WINDOW
CONTROL SWITCH (convertible)
Both side windows and quarter win-
dows can be operated simultaneously
with the all window control switch.
The windows move as long as you hold
the switch.
To open: Push on the lower side of the
switch
To close: Push on the upper side of the
switch. The side windows will open slightly
before closing if they are not fully opened.
If the side windows stop partway, release
the switch and push it again after a mo-
ment, or operate the side power window
switches on the doors.NORMALIZATION OF THE DRIVER’S
POWER WINDOW (coupe)
If the battery is disconnected or run down,
the driver ’s power window may not oper-
ate automatically and the jam protection
function will not function correctly after
you reconnect, replace or recharge the
battery. At this time, the “AUTO” indicator
light on the switch will flash. In any of
these cases, you should normalize the
power window.
To normalize the power window
1. Push down the power window switch and lower the window halfway.
2. Pull up the switch until the window closes and hold the switch for at least
one second.
Make sure that the window opens and
closes automatically. If the power window
cannot be operated properly, have it
checked by your Toyota dealer.

’05 Solara_U (L/O 0409)
26
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
To open the trunk lid, pull up on the
lock release lever.
See “—Stowage precautions” on page 245
in Section 2 for precautions when loading
luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
To deactivate this lock release lever from
opening the trunk lid, see “—Luggage se-
curity system” described below.
The trunk lid can be opened with the wire-
less remote control transmitter, see
“—Opening trunk lid” on page 17 in this
Section.
Trunk lid—

’05 Solara_U (L/O 0409)
27
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
This system prevents someone (with
the sub key) from gaining access to the
trunk by folding down a rear seat or
using the trunk lid lock release lever.
To protect valuables stored in the
trunk, do the following procedure.1. Coupe—Open the trunk lid and push down the security lock levers to lock
the rear seatbacks.
After locking the rear seatbacks, try fold-
ing them down to make sure they are
securely locked, otherwise someone could
get into the trunk by folding down a rear
seat.2. Close the trunk lid. Insert the master key into the keyhole and turn it to
the “LOCK” direction to deactivate
the trunk lid lock release lever.
After the operation, try pulling up the
trunk lid lock release lever to make sure
it is locked.
NOTICE
Implement the above steps to maxi-
mize security of the luggage in the
trunk whenever the vehicle is unat-
tended.
—Luggage security system

’05 Solara_U (L/O 0409)
28
2005 SOLARA from Sep. ’04 Prod. (OM33690U)

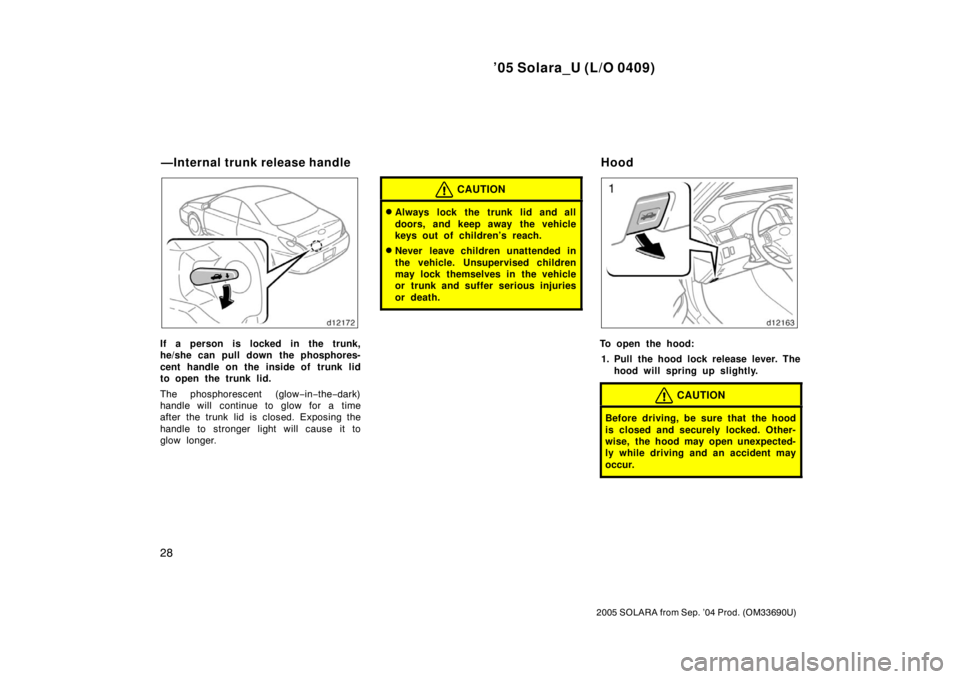

If a person is locked in the trunk,
he/she can pull down the phosphores-
cent handle on the inside of trunk lid
to open the trunk lid.
The phosphorescent (glow−in −the −dark)
handle will continue to glow for a time
after the trunk lid is closed. Exposing the
handle to stronger light will cause it to
glow longer.
CAUTION
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reach.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.
To open the hood:
1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
—Internal trunk release handle Hood

’05 Solara_U (L/O 0409)
29
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.To deter vehicle theft, the system is
designed to sound an alarm if any of
the doors, trunk or hood is forcibly un-
locked or the battery terminal is discon-
nected and then reconnected when the
vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
turn signal lights, and turns on the interior
light.SETTING THE SYSTEM 1. Turn the ignition key to the “LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobilizer system”
on page 14 for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock both doors, trunk and hood.
The indicator light will remain on when
both doors, trunk and hood are closed and
locked.
Theft deterrent system

’05 Solara_U (L/O 0409)
30
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
CANCELLING THE SYSTEM
The system will be cancelled by the fol-
lowing ways.
Any of the doors are unlocked with the
key or wireless remote control.
The trunk is opened with the wireless
remote control transmitter.
Turn the ignition key to the “ON” posi-
tion.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality with your vehicle. WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the doors are forcibly un-
locked or opened, or if the trunk or
hood is forcibly opened without the key
or wireless remote control transmitter
If the battery terminal is disconnected
and then reconnected
If the ignition is hotwired
The indicator light will come on when the
system is activated.
If any of the door is unlocked without the
key or wireless remote control transmitter
and the key is not in the ignition switch,
all the doors will be automatically locked
again.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”. Stopping the alarm
The alarm will be stopped by the following
three ways:
Turn the ignition key from the “LOCK”
to “ON” position.
Unlock any of the doors with the key
or wireless remote control transmitter.
Open the trunk with the wireless re-
mote control transmitter.
These ways cancel the system at the
same time.
If the battery becomes discharged due
to the vehicle being unused for a long
time, etc., when the battery is recharged
or replaced, the system will give the
alarm. If this happens, immediately unlock
any of the doors with the key or the wire-
less remote control transmitter, and the
alarm will stop.

’05 Solara_U (L/O 0409)
31
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
TESTING THE SYSTEM1. Open both windows.
2. Set the system as described above. The doors should be locked with the
key or wireless remote control transmit-
ter. Be sure to wait until the indicator
light goes off or starts flashing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other doors, trunk and hood. When testing
the hood, also check that the system
is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
This indicates that the fuel filler door
is on the left side of your vehicle.1. To open the fuel filler door, pull the lever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
Fuel tank cap

’05 Solara_U (L/O 0409)
32
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
2. To remove the fuel tank cap, turnthe cap counterclockwise by 90 de-
grees (to the pressure point 1), and
then turn it an additional 30 degrees
(to point 2). Pause slightly before
removing it.
It is not unusual to hear a slight swoosh
when the cap is opened.3. The removed cap can be stored on the back side of the fuel filler door.
Position the cap so that the hooks point
to the left and right, and set it in the
receptacle on the back side of the door. When installing the cap, turn the cap
clockwise until you hear a click. When
you hear the click, the cap is fully
closed.
If the cap is not installed securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel sp
illage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
NOTICE
To prevent damage to the cap, apply
force only in the turning direction to
the cap. Do not pull or pry it.
