2005 TOYOTA MATRIX Owners Manual

’05 MATRIX_U (L/O 0409)
295
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
2. Turn the bulb base counterclockwiseto the front of the vehicle.3. Unplug the connector.
If the connector is tight, wiggle it.4. Install a new bulb and connector into the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

’05 MATRIX_U (L/O 0409)
296
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
If either the left or right front fog light
bulbs burns out, contact your Toyota
dealer.
NOTICE
Do not try to replace the front fog
light bulbs by yourself. You may dam-
age the vehicle.
—Front fog lights—Parking, front side marker
and front turn signal lights—Stop/tail, rear side marker,
rear turn signal and backup
lights

’05 MATRIX_U (L/O 0409)
297
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
a: Stop/tail and rear side marker light
b: Rear turn signal light
c: Backup lightRemove the clips and the cover.Removing the clips
Installing the clips
—High mounted stoplight

’05 MATRIX_U (L/O 0409)
298
2005 MATRIX from Sep. ’04 Prod. (OM12892U)

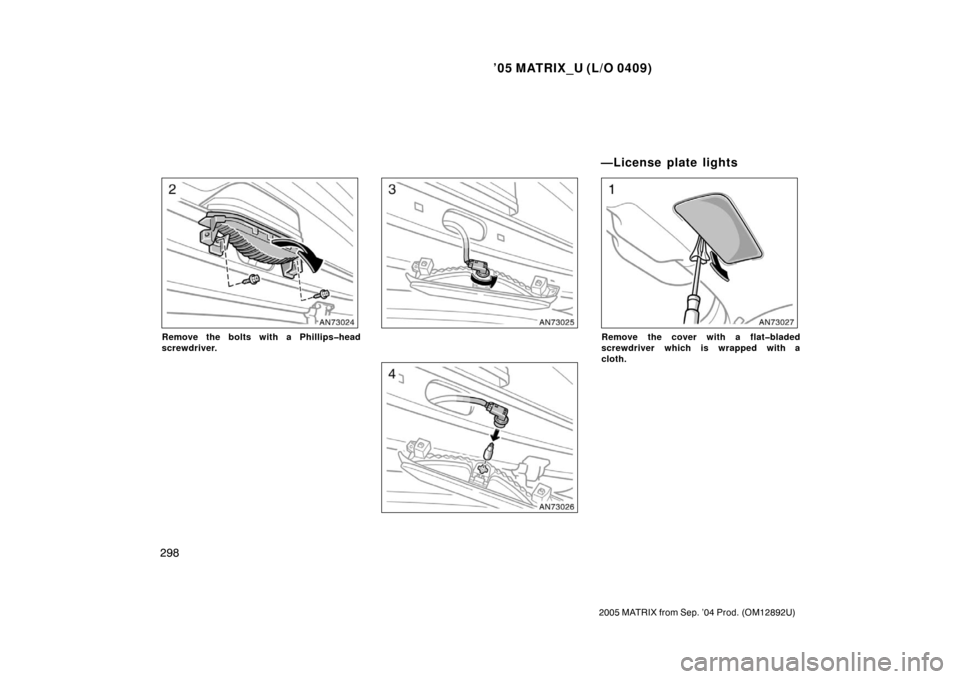

Remove the bolts with a Phillipshead
screwdriver.Remove the cover with a flatbladed
screwdriver which is wrapped with a
cloth.
—License plate lights

’05 MATRIX_U (L/O 0409)
299
2005 MATRIX from Sep. ’04 Prod. (OM12892U)

’05 MATRIX_U (L/O 0409)
300
2005 MATRIX from Sep. ’04 Prod. (OM12892U)

’05 MATRIX_U (L/O 0409)
301
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
SPECIFICATIONS
Specifications
Dimensions and weights302
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Engine 302
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 303
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 303
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 306
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 307
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’05 MATRIX_U (L/O 0409)
302
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
Model: 1ZZ −FE and 2ZZ −GE
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 1ZZ −FE engine
79.0  91.5 (3.11  3.60)
2ZZ −GE engine
82.0  85.0 (3.23  3.35)
Displacement, cm
3 (cu. in.):
1ZZ −FE engine 1794 (109.5)
2ZZ −GE engine 1796 (109.6)
Dimensions and weights
Overall length mm (in.)
Overall width mm (in.)
Overall height
∗ 1mm (in.)
Wheelbase mm (in.)
Front tread mm (in.)
Rear tread mm (in.)
Vehicle capacity
weight (occupants
+ luggage) kg (lb.) P205/55R16 89H tires
P215/50ZR17
P215/50R17 90H tires
4350 (171.3)
4350 (171.3)
1775 (69.9) 1775 (69.9)
1550 (61.0)
2600 (102.4) 2600 (102.4)
1515 (59.6) 1505 (59.3)
1495 (58.9)
∗ 2
1500 (59.1)∗31485 (58.5)
385 (850) 385 (850)
∗ 1: Unladen vehicle∗2:Two −wheel drive models∗
3: Four −wheel drive models 1540 (60.6)
∗
2
1550 (61.0)∗3
Towing capacity
(trailer weight +
cargo weight) kg (lb.) 680 (1500) 680 (1500)
Engine
