2005 TOYOTA COROLLA engine coolant

’05 Corolla_U (L/O 0409)
5
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
1. Service reminder indicators andindicator lights
2. Tachometer
3. Speedometer 4. Engine coolant temperature gauge
5. Fuel gauge
6. Trip meter reset knob
7. Odometer, two trip meters and outside
temperature display
Instrument cluster overview
Ty p e A

’05 Corolla_U (L/O 0409)
6
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
1. Service reminder indicators andindicator lights
2. Tachometer
3. Speedometer 4. Engine coolant temperature gauge
5. Fuel gauge
6. Trip meter reset knob
7. Odometer, two trip meters and outside
temperature display

Ty p e B

’05 Corolla_U (L/O 0409)
7
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
1. Service reminder indicators andindicator lights
2. Tachometer
3. Speedometer 4. Engine coolant temperature gauge
5. Fuel gauge
6. Trip meter reset knob
7. Odometer, two trip meters and outside
temperature display

Ty p e C

’05 Corolla_U (L/O 0409)
101
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge102
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Engine coolant temperature gauge 103
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 104
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Odometer and two trip meters 104
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside temperature display 105
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 106
. . . . . . . . . . . . . .
SECTION 1 6

’05 Corolla_U (L/O 0409)
103
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
Ty p e A
Ty p e B
Ty p e C
The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop
−and− go traffic.
Towing a trailer.
It is not a malfunction even if the needle
of the engine coolant temperature gauge
returns to “C” when the ignition switch is
turned to the “START” position.
NOTICE
 Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your ve-
hicle overheats” on page 218 in
Section 4.
Engine coolant temperature
gauge

’05 Corolla_U (L/O 0409)
11 6
2005 COROLLA from Sep. ’04 Prod. (OM12891U)

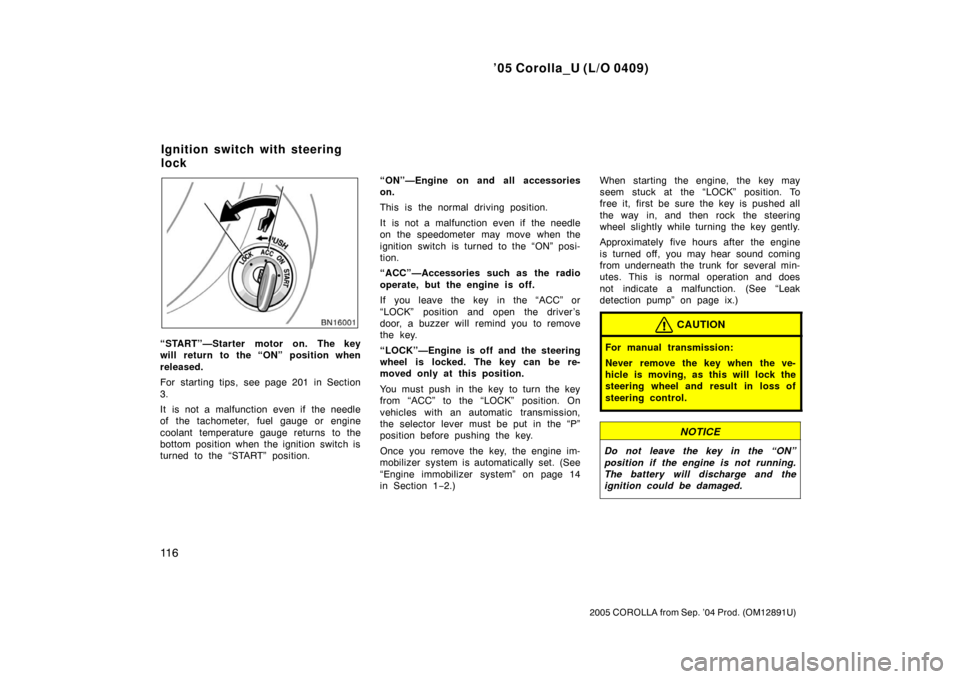

“START”—Starter motor on. The key
will return to the “ON” position when
released.
For starting tips, see page 201 in Section
3.
It is not a malfunction even if the needle
of the tachometer, fuel gauge or engine
coolant temperature gauge returns to the
bottom position when the ignition switch is
turned to the “START” position.“ON”—Engine on and all accessories
on.
This is the normal driving position.
It is not a malfunction even if the needle
on the speedometer may move when the
ignition switch is turned to the “ON” posi-
tion.
“ACC”—Accessories such as the radio
operate, but the engine is off.
If you leave the key in the “ACC” or
“LOCK” position and open the driver’s
door, a buzzer will remind you to remove
the key.
“LOCK”—Engine is off and the steering
wheel is locked. The key can be re-
moved only at this position.
You must push in the key to turn the key
from “ACC” to the “LOCK” position. On
vehicles with an automatic transmission,
the selector lever must be put in the “P”
position before pushing the key.
Once you remove the key, the engine im-
mobilizer system is automatically set. (See
“Engine immobilizer system” on page 14
in Section 1−
2.) When starting the engine, the key may
seem stuck at the “LOCK” position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
Approximately five hours after the engine
is turned off, you may hear sound coming
from underneath the trunk for several min-
utes. This is normal operation and does
not indicate a malfunction. (See “Leak
detection pump” on page ix.)
CAUTION
For manual transmission:
Never remove the key when the ve-
hicle is moving, as this will lock the
steering wheel and result in loss of
steering control.
NOTICE
Do not leave the key in the “ON”
position if the engine is not running.
The battery will discharge and the
ignition could be damaged.
Ignition switch with steering
lock

’05 Corolla_U (L/O 0409)
11 8
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
(b) Overdrive switch
You can select either a third gear (with
overdrive off) or fourth gear (with over-
drive on) by pushing this switch.
To turn the overdrive off, push the switch.
The “O/D OFF” indicator light should come
on. To turn the overdrive on again, push
the switch again. The “O/D OFF” indicator
light should go off.
Always drive your vehicle with the over-
drive on for better fuel economy and
quieter driving.
If the engine is turned off when the over-
drive is off and restarted, the overdrive
will be on automatically.Vehicles with cruise control—When the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking will not be enabled because the
cruise control is not cancelled.
For ways to decrease the vehicle speed,
see “Cruise control” on page 130 in this
Section.
(c) Normal driving
1. Start the engine as instructed in “How to start the engine” on page 202 in
Section 3. The transmission must be in
“P” or “N”.
2. With your foot holding down the brake pedal, shift the selector lever to “D”.
When the lever is in the “D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always turn the overdrive on for better
fuel economy and quieter driving. If the
engine coolant temperature is low, the
transmission will not shift into overdrive
gear even with the overdrive on.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake pedal. Depress the accelerator pedal
slowly for smooth starting.
(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Push the overdrive switch. The “O/D
OFF” indicator light will come on and
the transmission will downshift to third
gear.
Shift into the “2” position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than 105 km/h (65 mph), and
stronger engine braking will be en-
abled.
Shift into the “L” position. The trans-
mission will downshift to first gear
when the vehicle speed drops down to
or lower than 49 km/h (30 mph), and
maximum engine braking will be en-
abled.

’05 Corolla_U (L/O 0409)
194
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
Ti r e relat ed ter mMeaning
Accessory weight
the combined weight (in excess of those standard items which may be
replaced) of automatic transmission, power steering, power brakes, power
windows, power seats, radio, and heater, to the extent that these items
are available as factory−installed equipment (whether installed or not)
Cold tire inflation pressure
tire inflation pressure when the vehicle has been parked for at least 3
hours or more, or it has not been driven more than 1.5 km or 1 mile
under that condition
Curb weight
the weight of a motor vehicle wi th standard equipment including the
maximum capacity of fuel, oil, and coolant, and, if so equipped, air
conditioning and additional weight optional engine
Intended outboard sidewall
(A) the sidewall that contains a whitewall, bears white lettering or bears manufacturer, brand, and/or model name molding that is higher or
deeper than the same molding on th e other sidewall of the tire, or
(B) the outward facing sidewall of an asymmetrical tire that has a particular side that must always face outward when mounted on a vehicle
Maximum inflation pressurethe maximum cold inflation pressure to which a tire may be inflated and it
is shown on the sidewall of the tire
Maximum loaded vehicle weight
t he sum of —
(a) curb weight;
(b) accessory weight;
(c) vehicle capacity weight; and
(d) production options weight
—Glossary of tire terminology
