2005 SUBARU IMPREZA load capacity

13-10
Consumer information and Reporting safety defects
Vehicle capacity weight of the vehicle is 900 lbs
(408 kg), which is indicated on the vehicle plac-
ard with the statement “The combined weight of
occupants and cargo should never exceed 900
lbs or 408 kg”.
For example, if the vehicle has one occupant
weighing 154 lbs (70 kg) plus cargo weighing
662 lbs (300 kg).
1. Calculate the total weight.
2. Calculate the available load capacity by sub-
tracting the total weight from the vehicle capacity
weight of 900 lbs (408 kg).
3. The result of step 2 shows that a further 84 lbs
(38 kg) of cargo can be carried.
Example 1B
For example, if a person weighing 176 lbs (80
kg) now enters the same vehicle (bringing the

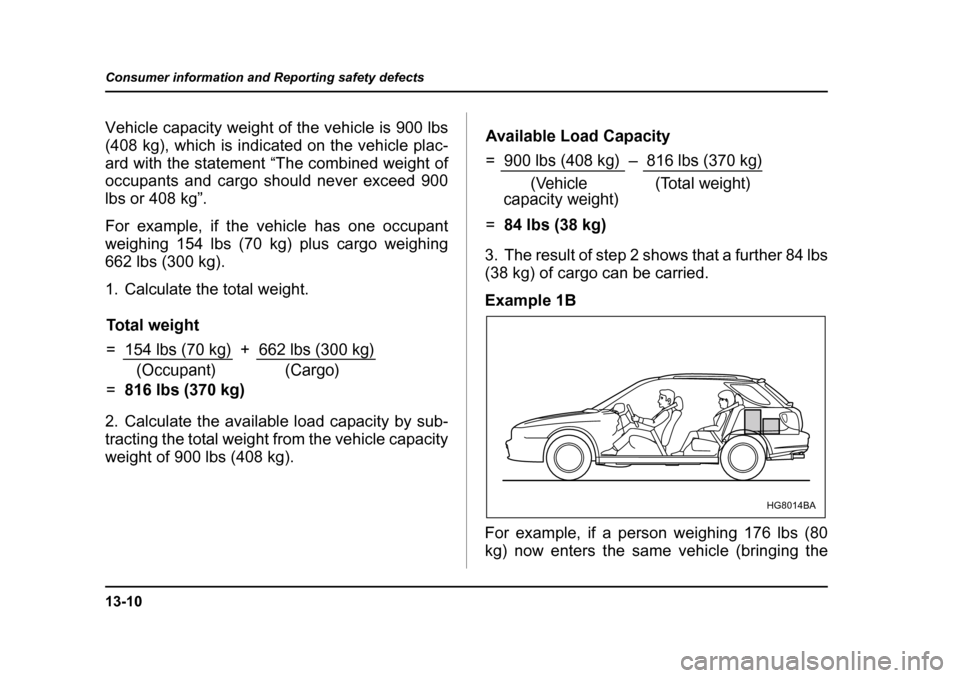

Total weight = 154 lbs (70 kg) + 662 lbs (300 kg) =
816 lbs (370 kg)(Occupant) (Cargo)
Available Load Capacity = 900 lbs (408 kg) – 816 lbs (370 kg) =
84 lbs (38 kg) (Vehicle
capacity weight) (Total weight)
HG8014BA

13-11
Consumer information and Reporting safety defects
– CONTINUED –
number of occupants to two), the calculations
are as follows:
1. Calculate the total weight.
2. Calculate the available load capacity.
3. The total weight now exceeds the capacity
weight by 92 lbs (42 kg), so the cargo weight
must be reduced by 92 lbs (42 kg) or more. Example 2A
Vehicle capacity weight of the vehicle is 900 lbs
(408 kg), which is indicated on the vehicle plac-
ard with the statement “The combined weight of
occupants and cargo should never exceed 408
kg or 900 lbs”.
For example, the vehicle has one occupant
weighing 165 lbs (75 kg) plus cargo weighing
375 lbs (170 kg). In addition, the vehicle is fitted
with a trailer hitch weighing 22 lbs (10 kg), to
which is attached a trailer weighing 1,764 lbs
(800 kg). 10% of the trailer weight is applied to

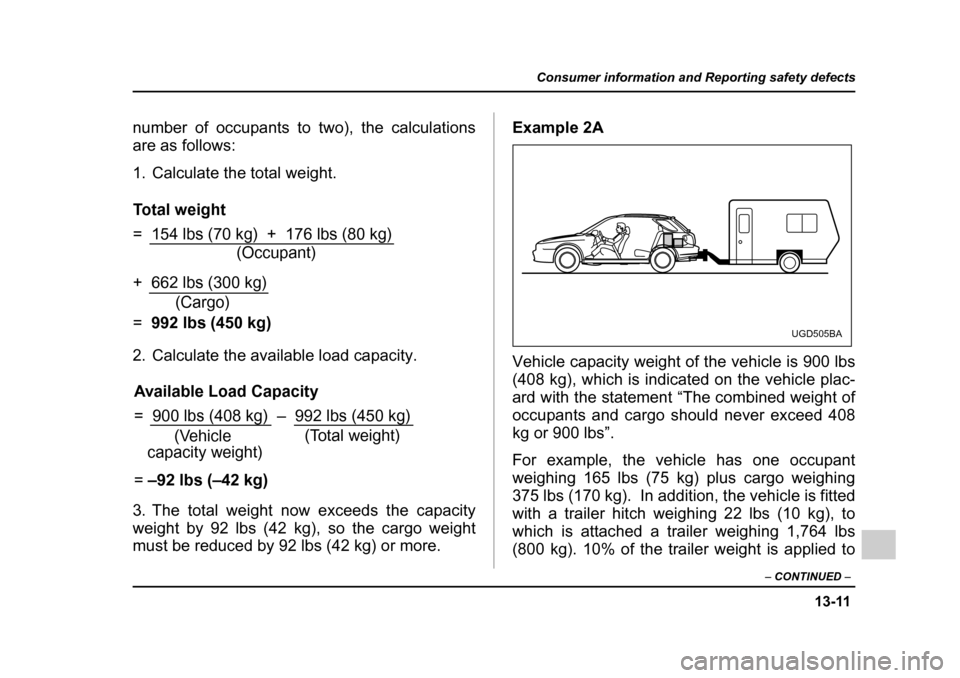

Total weight = 154 lbs (70 kg) + 176 lbs (80 kg) + 662 lbs (300 kg) =
992 lbs (450 kg) (Occupant)
(Cargo)
Available Load Capacity
= 900 lbs (408 kg) – 992 lbs (450 kg) = –92 lbs (–42 kg) (Vehicle
capacity weight) (Total weight)
UGD505BA

13-12
Consumer information and Reporting safety defects
the trailer tongue (i.e. Tongue load = 176 lbs (80 kg)).
1. Calculate the total weight.
2. Calculate the available load capacity.
3. The result of step 2 shows that a further 162
lbs (73 kg) of cargo can be carried.
Example 2B
For example, if a person weighing 143 lbs (65
kg) and a child weighing 40 lbs (18 kg) now enter
the same vehicle (bringing the number of occu-
pants to three), and a child restraint system
weighing 11 lbs (5 kg) is installed in the vehicle
for the child to use, the calculations are as fol-
lows:
1. Calculate the total weight.

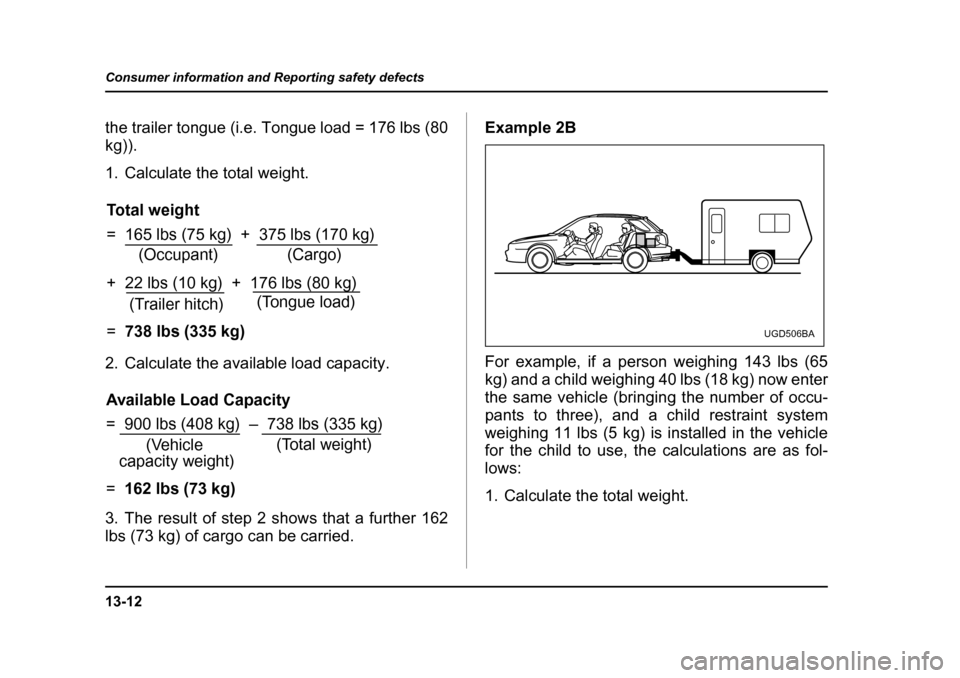

Total weight
= 165 lbs (75 kg) + 375 lbs (170 kg)
+ 22 lbs (10 kg) + 176 lbs (80 kg) =
738 lbs (335 kg)(Occupant) (Cargo)
(Trailer hitch) (Tongue load)
Available Load Capacity
= 900 lbs (408 kg) – 738 lbs (335 kg) =
162 lbs (73 kg) (Vehicle
capacity weight) (Total weight)
UGD506BA

13-13
Consumer information and Reporting safety defects
– CONTINUED –
2. Calculate the available load capacity.
3. The total weight now exceeds the capacity
weight by 32 lbs (15 kg), so the cargo weight
must be reduced by 32 lbs (15 kg) or more. „
Determining compatibility of tire and
vehicle load capacities
The sum of four tires’ maximum load ratings
must exceed the maximum loaded vehicle
weight (“GVWR”). In addition, sum of the maxi-
mum load ratings of two front tires and of two
rear tires must exceed each axle’s maximum
loaded capacity (“GAWR”). Original equipment
tires are designed to fulfill those conditions.
The maximum loaded vehicle weight is referred
to Gross Vehicle Weight Rating (GVWR). And
each axle’s maximum loaded capacity is referred
to Gross Axle Weight Rating (GAWR). The
GVWR and each axle’s GAWR are shown on the
vehicle certification label affixed to the driver’s
door.
The GVWR and front and rear GAWRs are de-
termined by not only the maximum load rating of
tires but also loaded capacities of the vehicle’s
suspension, axles and other body parts.
Therefore, this means that the vehicle cannot
necessarily be loaded up to the tire’s maximum
load rating on the tire sidewall.

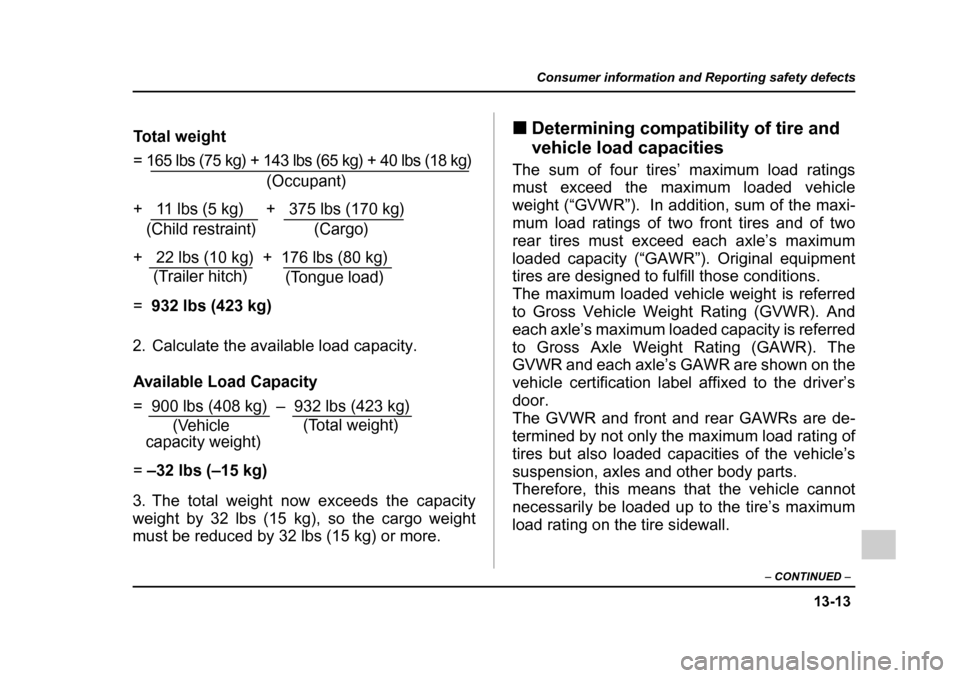

Total weight = 165 lbs (75 kg) + 143 lbs (65 kg) + 40 lbs (18 kg)
+ 11 lbs (5 kg) + 375 lbs (170 kg) + 22 lbs (10 kg) + 176 lbs (80 kg) = 932 lbs (423 kg) (Occupant)
(Cargo)
(Trailer hitch)
(Child restraint)
(Tongue load)
Available Load Capacity
= 900 lbs (408 kg) – 932 lbs (423 kg) = –32 lbs (–15 kg) (Vehicle
capacity weight) (Total weight)

13-14
Consumer information and Reporting safety defects
„
Adverse safety consequences of over-
loading on handling and stopping and on tires
Overloading could affect vehicle handling, stop-
ping distance, vehicle and tire as shown below.
This could lead to an accident and possibly result
in severe personal injury. y Vehicle stability will deteriorate.
y Heavy and/or high-mounted loads could in-
crease the risk of rollover.y Stopping distance will increase.
y Brakes could overheat and fail.
y Suspension, bearings, axles and other body
parts could break or experience accelerated
wear that will shorten vehicle life. y Tires could fail.
y Tread separation could occur.
y Tire could separate from its rim.
„ Steps for Determining Correct Load
Limit
1. Locate the statement “The combined weight
of occupants and cargo should never exceed
XXX pounds” on your vehicle’s placard. 2. Determine the combined weight of the driver
and passengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver
and passengers from XXX kilograms or XXX
pounds.
4. The resulting figure equals the available
amount of cargo and luggage load capacity. For
example, if the “XXX” amount equals 1,400 lbs
(635 kg) and there will be five- 150 lbs (68 kg)
passengers in your vehicle, the amount of avail-
able cargo and luggage load capacity is 650 lbs.
(1,400 – 750 (5 x 150) = 650 lbs.)
5. Determine the combined weight of luggage
and cargo being loaded on the vehicle. That
weight may not safely exceed the available car-
go and luggage load capacity calculated in Step 4.
6. If your vehicle will be towing a trailer, load
from your trailer will be transferred to your vehi-
cle. Consult this manual to determine how this
reduces the available cargo and luggage load
capacity of your vehicle.
