4
ual. This symbol means “Do not”, “Do not do this”, or
“Do not let this happen”, depending upon the context.Vehicle symbols

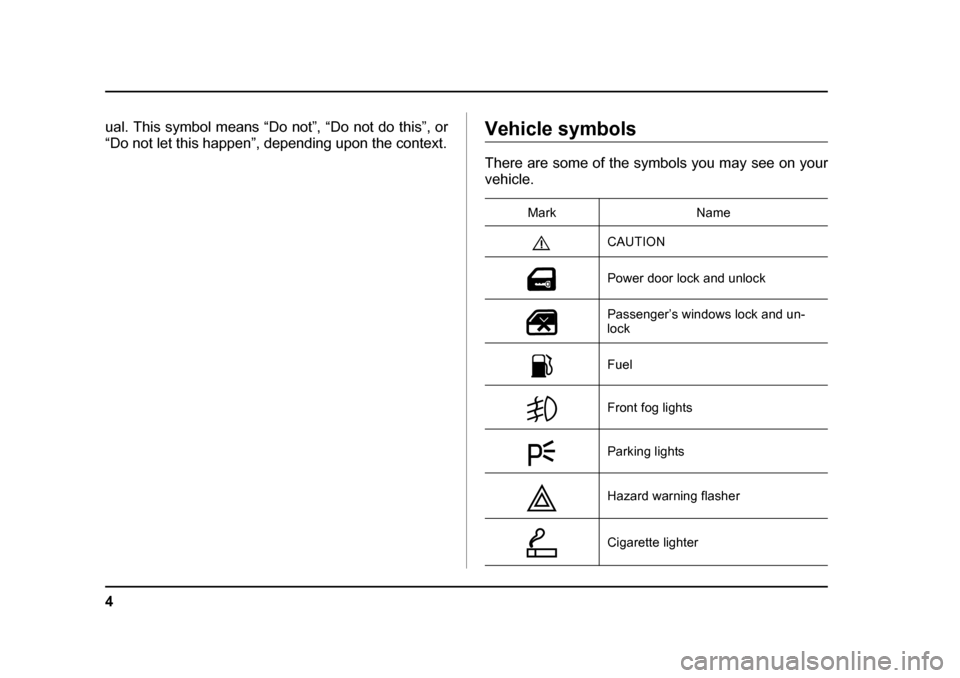

There are some of the symbols you may see on your vehicle.Mark Name CAUTION
Power door lock and unlock
Passenger’s windows lock and un-
lock Fuel
Front fog lights
Parking lights
Hazard warning flasher
Cigarette lighter

18
„
Instrument panel
12 3 4 5 67
8
9
10
11
12
14
15
16 13
UGF059BB
1) Door locks (page 2-6)
2) Outside mirror switch (page 3-
49)
3) Light control lever (page 3-30)
4) Combination meter (page 3-15)
5) Wiper control lever (page 3-36)
6) Hazard warning flasher switch
(page 3-7)
7) Audio (page 5-1)
8) Gear shift lever (MT) (page 7-
15)/Selector lever (AT) (page 7-
22)
9) Climate control (page 4-1)
10) Cruise control (page 7-38)
11) Horn (page 3-51)
12) SRS airbag (page 1-53)
13) Tilt steering (page 3-50)
14) Fuse box (page 11-65)
15) Hood lock release knob (page
11-5)
16) Power window (page 2-24)

20
„
Combination meter
T WRX
1
86 7
23 5
4
UGF066BB
1) Fuel gauge (page 3-17)
2) Selector lever position indicator
(page 3-27)
3) Temperature gauge (page 3-18)
4) Tachometer (page 3-16)
5) Speedometer (page 3-15)
6) Odometer and trip meter (page
3-15)
7) Trip meter A/B selection and trip meter reset knob (page 3-16)
8) Low fuel warning light (page 3- 17)

21
–
CONTINUED –
TWRX-STi
12 4 35 6
10 9 8 7
UGF051BB
1) Fuel gauge (page 3-10)
2) DCCD indicator (page 3-28)
3) Temperature gauge (page 3-11)
4) Tachometer (page 3-9)
5) REV indicator (page 3-13)
6) Speedometer (page 3-8)
7) Odometer and trip meter (page
3-8)
8) Trip meter A/B selection and trip meter reset knob (page 3-9)
9) Outside temperature indicator (page 3-12)
10) Low fuel warning light (page 3-
10)

22
T
Except turbo models
A
1
98 7 6 3
24 5
UGF065BB
1) Fuel gauge (page 3-17)
2) Selector lever position indicator
(page 3-27)
3) Temperature gauge (page 3-18)
4) Speedometer (page 3-15)
5) Tachometer (page 3-16)
6) Trip meter A/B selection and trip
meter reset knob (page 3-16)
7) Odometer and trip meter (page 3-15)
8) Outside temperature indicator (page 3-19)
9) Low fuel warning light (page 3-
17)

23
–
CONTINUED –
TWarning and indicator light
Mark Name Page
Seatbelt warning light 3-20
SRS airbag system warning light 3-20
CHECK ENGINE warning light/
Malfunction indicator lamp 3-21
Charge warning light 3-22
Oil pressure warning light 3-22
AT OIL temperature warning light (if equipped) 3-22
or ABS warning light 3-23
or Brake system warning light 3-24
Door open warning light 3-26
All-wheel drive warning light (if
equipped) 3-26
Turn signal indicator lights 3-27
High beam indicator light 3-27
Security indicator light (if equipped) 2-5,
2-17
Intercooler water spray warn-
ing light (if equipped) 3-26
Light indicator light (if equipped) 3-28
Cruise control indicator light (if equipped) 3-27
Cruise control set indicator light 3-27
REV indicator light (if equipped) 3-28
Rear differential oil tempera-
ture warning light (if equipped) 3-23
Electronic driver’s control cen-
ter differential auto indicator (if equipped) 3-28
Mark Name Page

1-1
1
Seat, seatbelt and SRS airbags
Front seats .................................................... 1-2 Fore and aft adjustment ................................... 1-3
Reclining the seatback ..................................... 1-4
Seat cushion height adjustment (driver’s seat) .................................................. 1-5
Head restraint adjustment (if equipped) ......... 1-5
Active head restraint (if equipped) .................. 1-6
Seat heater (if equipped) .............................. 1-7
Rear seats ..................................................... 1-8 Armrest (if equipped) ........................................ 1-9
Headrest adjustment – Wagon ........................ 1-11
Folding down the rear seat – Wagon .............. 1-12
Seatbelts ....................................................... 1-13 Seatbelt safety tips ........................................... 1-13
Emergency Locking Retractor (ELR) .............. 1-14
Automatic/Emergency Locking Retractor (A/ELR) ............................................................ 1-15
Seatbelt warning light and chime .................... 1-15
Fastening the seatbelt ...................................... 1-15
Seatbelt maintenance ....................................... 1-27
Front seatbelt pretensioners ....................... 1-28 System monitors ............................................... 1-29
System servicing .............................................. 1-30
Precautions against vehicle modification ...... 1-31
Child restraint systems ................................ 1-32 Where to place a child restraint system ......... 1-34
Choosing a child restraint system .................. 1-35
Installing child restraint systems with A/ELR seatbelt ............................................................ 1-36
Installing a booster seat ................................... 1-41 Installation of child restraint systems by use
of lower and tether anchorages (LATCH) .... 1-43
Top tether anchorages ..................................... 1-47
*SRS airbag (Supplemental Restraint System airbag) ........................................... 1-53Vehicle with driver’s and front passenger’s SRS airbags and lap/shoulder restraints ..... 1-53
SRS frontal airbag ............................................ 1-57
SRS side airbag (if equipped) .......................... 1-65
SRS airbag system monitors ........................... 1-73
SRS airbag system servicing .......................... 1-74
Precautions against vehicle modification ...... 1-75

1-15
Seat, seatbelt and SRS airbags
– CONTINUED –
„Automatic/Emergency Locking Retrac- tor (A/ELR)
Each passenger’s seatbelt has an Automatic/Emer-
gency Locking Retractor (A/ELR). The Automatic/
Emergency Locking Retractor normally functions as
an Emergency Locking Retractor (ELR). The A/ELR
has an additional locking mode “Automatic Locking
Retractor (ALR) mode” intended to secure a child re-
straint system. When the seatbelt is once drawn out
completely and is then retracted even slightly, the re-
tractor locks the seatbelt in that position and the seat-
belt cannot be extended. As the belt is rewinding,
clicks will be heard which indicate the retractor func-
tions as an ALR. When the seatbelt is retracted fully,
the ALR mode is released.
When securing a child restraint system on the rear
seats by the use of the seatbelt, the seatbelt must be
changed over to the Automatic Locking Retractor (ALR) mode.
When the child restraint system is removed, make
sure that the seatbelt retracts fully and the retractor re-
turned to the Emergency Locking Retractor (ELR)
mode.
For instructions on how to convert the retractor to the
ALR mode and restore it to the ELR mode, see the
“Child restraint systems” section in this chapter. „
Seatbelt warning light and chime
Your vehicle is equipped with a seatbelt warning de-
vice at the driver’s seat, as required by current safety
standards.
This device causes the seatbelt warning light on the
instrument panel to light up when the ignition switch is
turned to “ON” to remind the driver to wear the seat-
belt. If the driver’s seatbelt is not fastened, the warning
light remains on and a warning chime sounds at the
same time. The warning light stays illuminated until
the driver fastens the seatbelt but the chime stops
sounding after about six seconds. „ Fastening the seatbelt
yNever use a belt that is twisted or reversed. In
an accident, this can increase the risk or sever-
ity of injury. y Keep the lap belt as low as possible on your
hips. In a collision, this spreads the force of the
lap belt over stronger hip bones instead of
across the weaker abdomen.y Seatbelts provide maximum restraint when
the occupant sits well back and upright in the
seat. To reduce the risk of sliding under the
