How to use this owner’s manual „Using your Owner’s manual
Before you operate your vehicle, carefully read this
manual. To protect yourself and extend the service life
of your vehicle, follow the instructions in this manual.
Failure to observe these instructions may result in se-
rious injury and damage to your vehicle.
This manual is composed of fourteen chapters. Each
chapter begins with a brief table of contents, so you
can usually tell at a glance if that chapter contains the
information you want.
Chapter 1: Seat, seatbelt and SRS airbags
This chapter informs you how to use the seat and seat-
belt and contains precautions for the SRS airbags.
Chapter 2: Keys and doors
This chapter informs you how to operate the keys,
locks and windows.
Chapter 3: Instruments and controls
This chapter informs you about the operation of instru-
ment panel indicators and how to use the instruments
and other switches.
Chapter 4: Climate control
This chapter informs you how to operate the climate
control.
Chapter 5: Audio This chapter informs you how to operate your audiosystem.
Chapter 6: Interior and exterior equipments
This chapter informs you how to operate interior and
exterior equipments.
Chapter 7: Starting and operating
This chapter informs you how to start and operate your SUBARU.
Chapter 8: Driving tips
This chapter informs you how to drive your SUBARU
in various conditions and explains some safety tips on
driving.
Chapter 9: In case of emergency
This chapter informs you what to do if you have a prob-
lem while driving, such as a flat tire or engine over-
heating.
Chapter 10: Appearance care
This chapter informs you how to keep your SUBARU
looking good.
Chapter 11: Maintenance and service
This chapter informs you when you need to take your
SUBARU to the dealer for scheduled maintenance
and informs you how to keep your SUBARU running
properly.
Chapter 12: Specifications
This chapter informs you about dimension and capac-
ities of your SUBARU.

1-61
Seat, seatbelt and SRS airbags
– CONTINUED –
yFront sub sensor (Left hand side)
y Airbag control module (including impact sensors)
y Frontal airbag module (Driver’s side)
y Frontal airbag module (Front passenger’s side)
y Seatbelt pretensioner (Driver’s side)
y Seatbelt pretensioner (Front passenger’s side)
y All related wiring
If the warning light exhibits any of the following
conditions, there may be a malfunction in the
seatbelt pretensioners and/or SRS airbag sys-
tem. Immediately take your vehicle to your
nearest SUBARU dealer to have the system
checked. Unless checked and properly re-
paired, the seatbelt pretensioners and/or SRS
airbag will not operate properly in the event of
a collision, which may increase the risk of inju-
ry.yFlashing or flickering of the indicator light.
y No illumination of the warning light when the
ignition switch is first turned to the “ON” posi-tion. y Continuous illumination of the warning light.
y Illumination of the warning light while driv-
ing.
„ SRS airbag system servicing
yWhen discarding an airbag module or scrap-
ping the entire vehicle damaged by a collision,
consult your SUBARU dealer. y The SRS airbag has no user-serviceable
parts. Do not use electrical test equipment on
any circuit related to the SRS airbag system.
For required servicing of the SRS airbag, see
your nearest SUBARU dealer. Tampering with
or disconnecting the system’s wiring could re-
sult in accidental inflation of the SRS airbag or
could make the system inoperative, which may
result in serious injury. The wiring harnesses of
the SRS airbag system are covered with yellow
insulation and system connectors are yellow
for easy identification.
If you need service or repair in areas listed be-

7-3
Starting and operating
– CONTINUED –
California is permitted to have higher sulfur levels,
which may affect the performance of your vehicle’s
catalytic converter and may produce a sulfur exhaust
odor or smell. SUBARU recommends that you try a
different brand of unleaded gasoline having lower sul-
fur to determine if the problem is fuel related before re-
turning your vehicle to an authorized dealer for ser-
vice. TMMT
Some gasoline contains an octane-enhancing additive
called MMT (Methylcyclopentadienyl Manganese Tri-
carbonyl). If you use such fuels, your emission control
system performance may deteriorate and the CHECK
ENGINE warning light/Malfunction indicator lamp may
turn on. If this happens, return to your authorized
SUBARU Dealer for service. If it is determined that the
condition is caused by the type of fuel used, repairs
may not be covered by your warranty. T Gasoline for cleaner air
Your use of gasoline with detergent additives will help
prevent deposits from forming in your engine and fuel
system. This helps keep your engine in tune and your
emission control system working properly, and is a
way of doing your part for cleaner air. If you continu-
ously use a high quality fuel with the proper detergent
and other additives, you should never need to add any fuel system cleaning agents to your fuel tank.
Many gasolines are now blended with materials called
oxygenates. Use of these fuels can also help keep the
air cleaner. Oxygenated blend fuels, such as MTBE
(Methyl Tertiary Butyl ether) or ethanol (ethyl or grain
alcohol) may be used in your vehicle, but should con-
tain no more than 15% MTBE or 10% ethanol for the
proper operation of your SUBARU.
In addition, some gasoline suppliers are now produc-
ing reformulated gasoline, which is designed to reduce
vehicle emissions. SUBARU approves the use of re-
formulated gasoline.
If you are not sure what the fuel contains, you should
ask your service station operators if their gasoline con-
tains detergents and oxygenates and if they have
been reformulated to reduce vehicle emissions.
As additional guidance, only use fuels suited for your
vehicle as explained below. y
Fuel should be unleaded and have an octane rating
no lower than that specified in this manual. y Methanol (methyl or wood alcohol) is sometimes
mixed with unleaded gasoline. Methanol can be used
in your vehicle ONLY if it does not exceed 5% of the
fuel mixture AND if it is accompanied by sufficient
quantities of the proper cosolvent and corrosion inhib-

7-8
Starting and operating
jacked off the ground, nor should the driveshaft be dis-
connected for state emission testing.
The EPA has issued regulations for inspecting the On-
Board Diagnostic (OBD) system as part of the state
emissions inspection. The OBD system is designed to
detect engine and transmission problems that might
cause vehicle emissions to exceed allowable limits.
These inspections apply to all 1996 model year and
newer passenger cars and light trucks. y
The inspection of the OBD system consists of a vi-
sual operational check of the “CHECK ENGINE”
warning light/malfunction indicator lamp (MIL) and an
examination of the OBD system with an electronic
scan tool while the engine is running.y A vehicle passes the OBD system inspection if
proper the “CHECK ENGINE” warning light/MIL illu-
mination is observed, there is no stored diagnostic
trouble codes, and the OBD system readiness moni-
tors are complete. y A vehicle fails the OBD inspection if the “CHECK
ENGINE” warning light/MIL is not properly operating
or there is one or more diagnostic trouble codes stored
in vehicle’s computer with the “CHECK ENGINE”
warning light/MIL illuminated. y A state emission inspection may reject (not pass or
fail) a vehicle if the number of OBD system readiness monitors
“Not Ready” is greater than three. Under
this condition, the vehicle operator should be instruct- ed to drive his/her vehicle for a few days to set the
monitors and return for an emission re-inspection. y Owners of rejected or failing vehicles should contact
their SUBARU Dealer for service.

11 - 2
Maintenance and service
Types of tires .................................................... 11-45
Tire inspection .................................................. 11-46
Tire pressures and wear .................................. 11-46
Wheel balance ................................................... 11-49
Wear indicators ................................................. 11-49
Tire rotation ....................................................... 11-50
Tire replacement ............................................... 11-50
Wheel replacement ........................................... 11-51
Aluminum wheels ......................................... 11-52
Windshield washer fluid .............................. 11-52
Replacement of windshield wiper blades .. 11-53
Battery ........................................................... 11-56
Fuses ............................................................. 11-57
Main fuse ....................................................... 11-60
Installation of accessories .......................... 11-60
Replacing bulbs ............................................ 11-61 Headlight ........................................................... 11-64
Front fog light ................................................... 11-68
Front turn signal light, parking light and side marker light .................................................... 11-69
Rear combination lights ................................... 11-70
Tail light (on the tailgate) ................................. 11-72
License plate light ............................................ 11-74
Map light, dome light and door step light ...... 11-76
High mount stop and cargo light assembly ... 11-77
Sport activity lights (if equipped) .................... 11-79

11 -4 3
Maintenance and service
– CONTINUED –
„Checking the clutch pedal free play
1) 0.16 – 0.51 in (4.0 – 13.0 mm)
Lightly press the clutch pedal down with your finger
until you feel resistance, and check the free play.
If the free play is not within proper specification, con-
tact your SUBARU dealer.Replacement of brake pad and lining
If you continue to drive despite the scraping
noise from the audible brake pad wear indica-
tor, it will result in the need for costly brake ro-
tor repair or replacement.
The right front disc brake and the right rear disc brake
have an audible wear indicators on the brake pads. If
the brake pads wear close to their service limit, the
wear indicator makes a very audible scraping noise
1
HSB049BB
HS7012BA

11 -4 9
Maintenance and service
– CONTINUED –
of vehicle control could lead to an accident.
„ Wheel balance
Each wheel was correctly balanced when your vehicle
was new, but the wheels will become unbalanced as
the tires become worn during use. Wheel imbalance
causes the steering wheel to vibrate slightly at certain
vehicle speeds and detracts from the vehicle’s
straight-line stability. It can also cause steering and
suspension system problems and abnormal tire wear.
If you suspect that the wheels are not correctly bal-
anced, have them checked and adjusted by your
SUBARU dealer. Also have them adjusted after tire re-
pairs and after tire rotation.
NOTE
Loss of correct wheel alignment* causes the tires
to wear on one side and reduces the vehicle’s run-
ning stability. Contact your SUBARU dealer if you
notice abnormal tire wear.
*: The suspension system is designed to hold each wheel at
a certain alignment (relative to the other wheels and to the
road) for optimum straight-line stability and cornering perfor-
mance. „

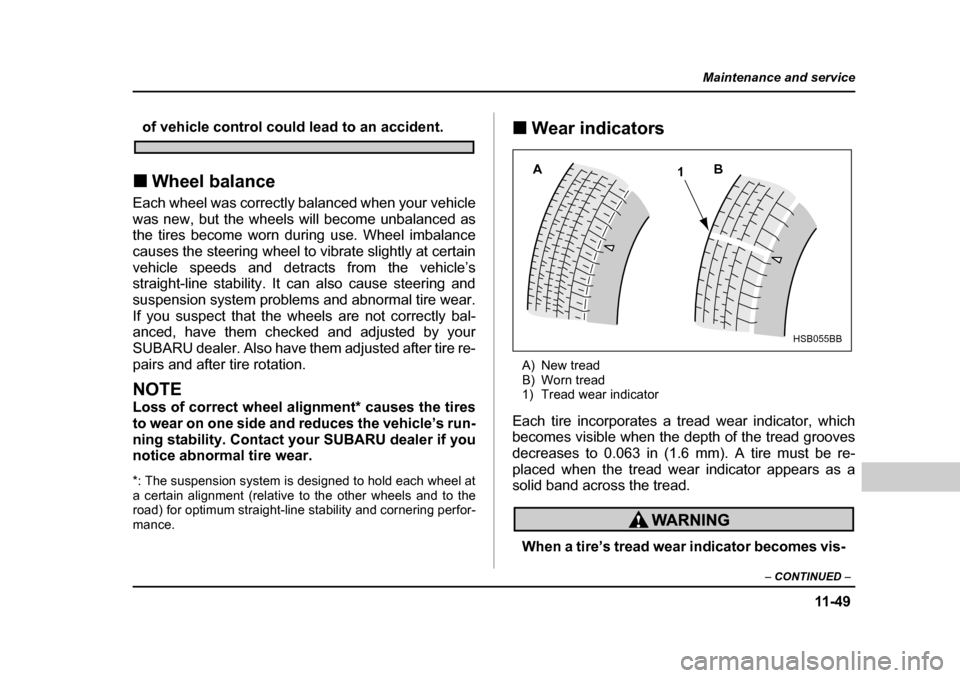

Wear indicators
A) New tread
B) Worn tread
1) Tread wear indicator
Each tire incorporates a tread wear indicator, which
becomes visible when the depth of the tread grooves
decreases to 0.063 in (1.6 mm). A tire must be re-
placed when the tread wear indicator appears as a
solid band across the tread.
When a tire’s tread wear indicator becomes vis-
A 1B
HSB055BB

11 - 5 0
Maintenance and service
ible, the tire is worn beyond the acceptable limit
and must be replaced immediately. With a tire
in this condition, driving at high speeds in wet
weather can cause the vehicle to hydroplane.
The resulting loss of vehicle control can lead to
an accident.
NOTE
For safety, inspect the tire tread regularly and re-
place the tires before their tread wear indicators
become visible. „

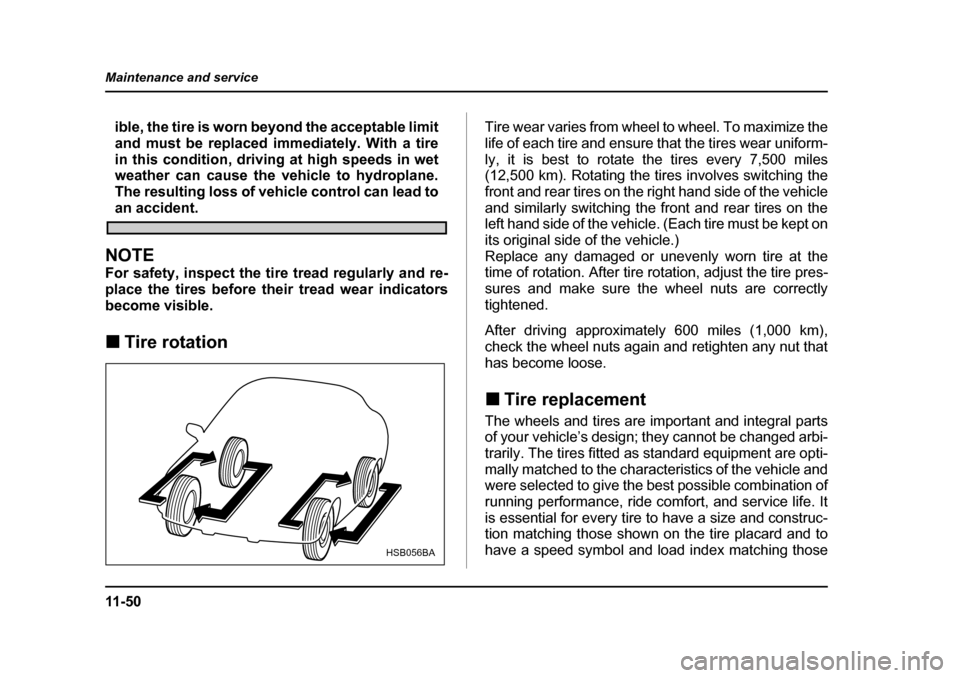

Tire rotation Tire wear varies from wheel to wheel. To maximize the
life of each tire and ensure that the tires wear uniform-
ly, it is best to rotate the tires every 7,500 miles
(12,500 km). Rotating the tires involves switching the
front and rear tires on the right hand side of the vehicle
and similarly switching the front and rear tires on the
left hand side of the vehicle. (Each tire must be kept on
its original side of the vehicle.)
Replace any damaged or unevenly worn tire at the
time of rotation. After tire rotation, adjust the tire pres-
sures and make sure the wheel nuts are correctly
tightened.
After driving approximately 600 miles (1,000 km),
check the wheel nuts again and retighten any nut that
has become loose. „
Tire replacement
The wheels and tires are important and integral parts
of your vehicle’s design; they cannot be changed arbi-
trarily. The tires fitted as standard equipment are opti-
mally matched to the characteristics of the vehicle and
were selected to give the best possible combination of
running performance, ride comfort, and service life. It
is essential for every tire to have a size and construc-
tion matching those shown on the tire placard and to
have a speed symbol and load index matching those
HSB056BA
