2005 SUBARU BAJA warning light

18
„
Instrument panel
12 3 4 5 67
8
9
10
11
12
13
14
15
16
17
UBF021BB
1) Door locks (page 2-3)
2) Outside mirror (page 3-30)
3) Light control lever (page 3-18)
4) Combination meter (page 3-6)
5) Wiper control lever (page 3-23)
6) Hazard warning flasher switch
(page 3-5)
7) Climate c o ntr ol ( pa ge 4-1)
8) Gear shift lever (MT) (page 7- 12)/Selector lever (AT) (page 7-
15)
9) Au dio ( page 5- 1)
10) Cruise control (page 7-38)
11) Horn (page 3-34)
12) SRS airbag (page 1-47)
13) Tilt steering (page 3-33)
14) Fuse box (page 11-57)
15) Hood lock release knob (page 11-5)
16) Power door locking switch (page 2-5)
17) Power window (page 2-22)

22
TWarning and indicator light
Mark Name Page
Seatbelt warning light 3-9
SRS airbag system warning light 3-10
CHECK ENGINE warning
light/Malfunction indicator lamp 3-10
Charge warning light 3-11
Oil pressure warning light 3-12
AT OIL temperature warning light (if equipped) 3-12
or ABS warning light 3-12
or Brake system warning light 3-13
Door ajar warning light 3-14
Low fuel warning light 3-14
All-Wheel Drive warning
light (if equipped) 3-14
Switchback door indicator 3-14 Security system indicator
light (if equipped) 3-15
Cargo lamp indicator 3-16
Turn signal indicator lights 3-16
High beam indicator light 3-16
Cruise control set indicator light 7-38
Mark Name Page

1-1
1
Seat, seatbelt and SRS airbags
Front seats .................................................... 1-2 Fore and aft adjustment ................................... 1-3
Seat cushion angle and height adjustment (Power seat only) ........................................... 1-4
Reclining the seatback ..................................... 1-5
Head restraint adjustment ................................ 1-6
Lumbar support (if equipped) .......................... 1-7
Seat heater (if equipped) .............................. 1-7
Rear seats ..................................................... 1-9 Rear headrest .................................................... 1-9
Folding down the rear seat .............................. 1-10
Seatbelts ....................................................... 1-14 Seatbelt safety tips ........................................... 1-14
Emergency Locking Retractor (ELR) .............. 1-16
Automatic/Emergency Locking Retractor (A/ELR) ............................................................ 1-16
Seatbelt warning light and chime .................... 1-17
Fastening the seatbelt ...................................... 1-17
Seatbelt maintenance ....................................... 1-21
Seatbelt extender ......................................... 1-22
Front seatbelt pretensioners ....................... 1-24 System monitors ............................................... 1-25
System servicing .............................................. 1-26
Precautions against vehicle modification ...... 1-27
Child restraint systems ................................ 1-28 Where to place a child restraint system ......... 1-29
Choosing a child restraint system .................. 1-31
Installing child restraint systems with A/ELR seatbelt ............................................................ 1-32 Installation of child restraint systems by use
of lower and tether anchorages (LATCH) .... 1-40
Installing a booster seat ................................... 1-45
*SRS airbag (Supplemental Restraint System airbag) ........................................... 1-47Vehicle with driver’s and front passenger’s SRS airbags and lap/shoulder restraints ..... 1-47
SRS frontal airbag ............................................ 1-52
SRS airbag system monitors ........................... 1-60
SRS airbag system servicing .......................... 1-61
Precautions against vehicle modification ...... 1-62

1-17
Seat, seatbelt and SRS airbags
– CONTINUED –
„Seatbelt warning light and chime
Your vehicle is equipped with a seatbelt warning de-
vice at the driver’s seat.
This device causes the seatbelt warning light on the
instrument panel to light up for about six seconds
when the ignition switch is turned to the “ON” position
to remind the driver to wear the seatbelt. If the driver’s
seatbelt is not fastened, a warning chime sounds at the same time. „ Fastening the seatbelt

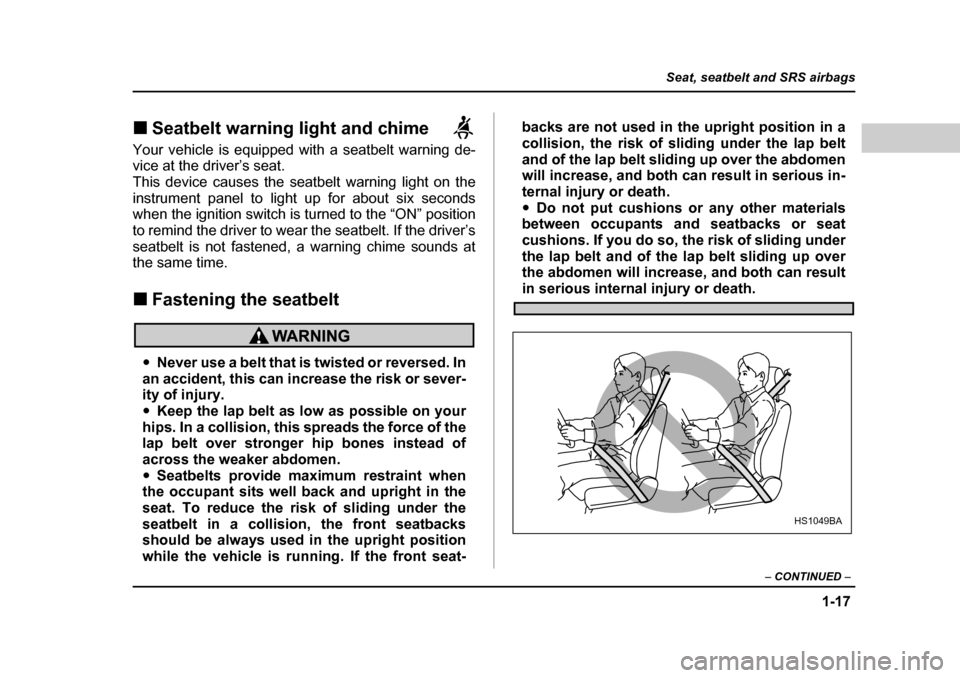

yNever use a belt that is twisted or reversed. In
an accident, this can increase the risk or sever-
ity of injury.y Keep the lap belt as low as possible on your
hips. In a collision, this spreads the force of the
lap belt over stronger hip bones instead of
across the weaker abdomen.y Seatbelts provide maximum restraint when
the occupant sits well back and upright in the
seat. To reduce the risk of sliding under the
seatbelt in a collision, the front seatbacks
should be always used in the upright position
while the vehicle is running. If the front seat- backs are not used in the upright position in a
collision, the risk of sliding under the lap belt
and of the lap belt sliding up over the abdomen
will increase, and both can result in serious in-
ternal injury or death.y
Do not put cushions or any other materials
between occupants and seatbacks or seat
cushions. If you do so, the risk of sliding under
the lap belt and of the lap belt sliding up over
the abdomen will increase, and both can result
in serious internal injury or death.
HS1049BA

1-25
Seat, seatbelt and SRS airbags
– CONTINUED –
yIf the front seatbelt retractor assembly or sur-
rounding area has been damaged, contact your
SUBARU dealer as soon as possible. y When you sell your vehicle, we urge you to ex-
plain to the buyer that it has seatbelt pretension-
ers by alerting the buyer to the contents of this
section.
y To obtain maximum protection, occupants
should sit in an upright position with their seat-
belts properly fastened. Refer to “Seatbelts”
section in this chapter. y Do not modify, remove or strike the front
seatbelt retractor assemblies or surrounding
area. This could result in accidental activation
of the seatbelt pretensioners or could make the
system inoperative, possibly resulting in seri-
ous injury. Seatbelt pretensioners have no
user-serviceable parts. For required servicing
of front seatbelt retractors equipped with seat-
belt pretensioners, see your nearest SUBARU
dealer. y When discarding front seatbelt retractor as-
semblies or scrapping the entire vehicle due to
collision damage or for other reasons, consult
your SUBARU dealer.

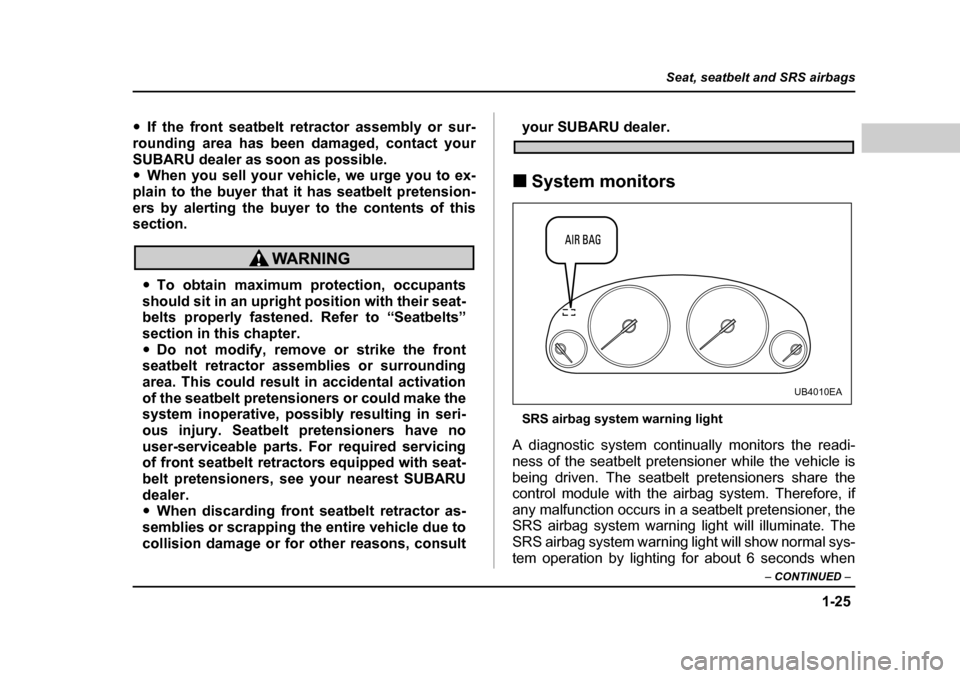

„ System monitors
SRS airbag system warning light
A diagnostic system continually monitors the readi-
ness of the seatbelt pretensioner while the vehicle is
being driven. The seatbelt pretensioners share the
control module with the airbag system. Therefore, if
any malfunction occurs in a seatbelt pretensioner, the
SRS airbag system warning light will illuminate. The
SRS airbag system warning light will show normal sys-
tem operation by lighting for about 6 seconds when
UB4010EA

1-26
Seat, seatbelt and SRS airbags
the ignition key is turned to the “ON” position.
The following components are monitored by the indi- cator: y
Front sub sensor (Right hand side)
y Front sub sensor (Left hand side)
y Airbag control module (including impact sensors)
y Seatbelt pretensioner (Driver’s side)
y Seatbelt pretensioner (Passenger’s side)
y All related wiring
If the warning light exhibits any of the following
conditions, there may be a malfunction in the
seatbelt pretensioners and/or SRS airbag sys-
tem. Immediately take your vehicle to your
nearest SUBARU dealer to have the system
checked. Unless checked and properly re-
paired, the seatbelt pretensioners and/or SRS
airbag will not operate properly in the event of
a collision, which may increase the risk of inju-
ry. yFlashing or flickering of the indicator light.
y No illumination of the warning light when the
ignition switch is first turned to the “ON” posi-
tion.y Continuous illumination of the warning light. y
Illumination of the warning light while driv-
ing.
„ System servicing
yWhen discarding a seatbelt retractor assem-
bly or scrapping the entire vehicle damaged by
a collision, consult your SUBARU dealer.y Tampering with or disconnecting the sys-
tem’s wiring could result in accidental activa-
tion of the seatbelt pretensioner and/or airbag
or could make the system inoperative, which
may result in serious injury. The wiring har-
nesses of the seatbelt pretensioner and SRS
airbag systems are covered with yellow insula-
tion and the connectors of the system are yel-
low for easy identification. Do not use electrical
test equipment on any circuit related to the
seatbelt pretensioner and airbag systems. For
required servicing of the seatbelt pretensioner,
see your nearest SUBARU dealer.

1-60
Seat, seatbelt and SRS airbags
speed frontal collision.
1) First impact!
2) Second impact!!
In an accident where the vehicle is impacted more
than once, the SRS frontal airbag deploys only once.
Example: In the case of a double collision, first with an-
other vehicle, then against a concrete wall in immedi-
ate succession, once the SRS frontal airbag is activat-
ed on the first impact, it will not be activated on the second. „
SRS airbag system monitors
SRS airbag system warning light
A diagnostic system continually monitors the readi-
ness of the SRS airbag system (including front seat-
belt pretensioners) while the vehicle is being driven.
The SRS airbag system warning light “AIRBAG” will
show normal system operation by lighting for about 6
seconds when the ignition key is turned to the “ON”position.
The following components are monitored by the indi- cator:y Front sub sensor (Right hand side)
1
2
UB1143BBUB4010EA

1-61
Seat, seatbelt and SRS airbags
– CONTINUED –
yFront sub sensor (Left hand side)
y Airbag control module (including impact sensors)
y Frontal airbag module (Driver’s side)
y Frontal airbag module (Front passenger’s side)
y Seatbelt pretensioner (Driver’s side)
y Seatbelt pretensioner (Front passenger’s side)
y All related wiring
If the warning light exhibits any of the following
conditions, there may be a malfunction in the
seatbelt pretensioners and/or SRS airbag sys-
tem. Immediately take your vehicle to your
nearest SUBARU dealer to have the system
checked. Unless checked and properly re-
paired, the seatbelt pretensioners and/or SRS
airbag will not operate properly in the event of
a collision, which may increase the risk of inju-
ry.yFlashing or flickering of the indicator light.
y No illumination of the warning light when the
ignition switch is first turned to the “ON” posi-tion. y Continuous illumination of the warning light.
y Illumination of the warning light while driv-
ing.
„ SRS airbag system servicing
yWhen discarding an airbag module or scrap-
ping the entire vehicle damaged by a collision,
consult your SUBARU dealer. y The SRS airbag has no user-serviceable
parts. Do not use electrical test equipment on
any circuit related to the SRS airbag system.
For required servicing of the SRS airbag, see
your nearest SUBARU dealer. Tampering with
or disconnecting the system’s wiring could re-
sult in accidental inflation of the SRS airbag or
could make the system inoperative, which may
result in serious injury. The wiring harnesses of
the SRS airbag system are covered with yellow
insulation and system connectors are yellow
for easy identification.
If you need service or repair in areas listed be-
