2005 SUBARU BAJA lights

11 -5 9
Maintenance and service
– CONTINUED –
A) Good
B) Blown
If any lights, accessories or other electrical controls do
not operate, inspect the corresponding fuse. If a fuse
has blown, replace it.
1. Turn the ignition switch to the “LOCK” position and
turn off all electrical accessories.
2. Remove the cover.
(For behind the coin tray: open the coin tray and pull it
horizontally to remove it.)
3. Determine which fuse may be blown. The back side
of each fuse box cover and the “Fuses and circuits”
section in chapter 12 in this manual show the circuit for each fuse.
1) Fuse puller
4. Pull out the fuse with the fuse puller.
5. Inspect the fuse. If it has blown, replace it with a
spare fuse of the same rating.
6. If the same fuse blows again, this indicates that its
system has a problem. Contact your SUBARU dealer for repairs.
AB
HSB067BB
1
HSB068BB

11 - 6 0
Maintenance and service
Main fuse
Main fuse box
The main fuses are designed to melt during an over-
load to prevent damage to the wiring harness and
electrical equipment. Check the main fuses if any elec-
trical component fails to operate (except the starter
motor) and other fuses are good. A melted main fuse
must be replaced. Use only replacements with the
same specified rating as the melted main fuse. If a
main fuse blows after it is replaced, have the electrical
system checked by your nearest SUBARU dealer.Installation of accessories
Always consult your SUBARU dealer before installing
fog lights or any other electrical equipment in your ve-
hicle. Such accessories may cause the electronic sys-
tem to malfunction if they are incorrectly installed or if
they are not suited for the vehicle.
UB8003CA

11 - 6 4
Maintenance and service
„
Headlight
Halogen headlight bulbs become very hot while
in use. If you touch the bulb surface with bare
hands or greasy gloves, finger prints or grease
on the bulb surface will develop into hot spots
and cause the bulb to break. If there are finger
prints or grease on the bulb surface, wipe them
away with a soft cloth moistened with alcohol.
NOTE
If headlight aiming is required, consult your
SUBARU dealer for proper adjustment of the head-
light aim.
Wattage Bulb No.
8) License plate light 12V-5W 168
9) Cargo light 12V-13W 912
10) High mount stop light 12V-13W 912
11) Backup light 12V-21W 7440
12) Brake rear turn signal/ tail light 12V-21/ 5W7443
13) Tail light 12V-5W 168
14) Sports activity lights 12V-55W H3

11 - 7 0
Maintenance and service
4. Remove the bulb from the socket by pushing it and
turning counterclockwise. Install a new bulb in the socket.
5. Set the bulb socket into the headlight assembly and
turn it clockwise until it locks.
6. Set the headlight assembly into the vehicle body.
Tighten the mounting screws. „
Rear combination lights
Rear combination lights are composed of the rear turn
signal/brake/tail light and back up lights. T Rear turn signal/Brake/Tail and Back up lights
The rear turn signal/brake/tail light is one bulb with two filament types.
If any one of them malfunctions, replace the bulb with
a new one.
1. Open the tailgate.
2. Pry the cover from the side of the rear combination
light.
UBB020BA
UBB083BA

11 - 7 8
Maintenance and service
1) Cargo lights
2) High mount stop lights
2. Remove the bulb socket from the light assembly by
turning it counterclockwise. 3. Remove the bulb from the socket by pulling it.
4. Install a new bulb in the socket by pushing it.
5. Set the socket into the light assembly and turn it
clockwise until it clicks.
6. Mount the light assembly with the mounting screws.
1
2
UBB090BBUBB048BA

11 -7 9
Maintenance and service
– CONTINUED –

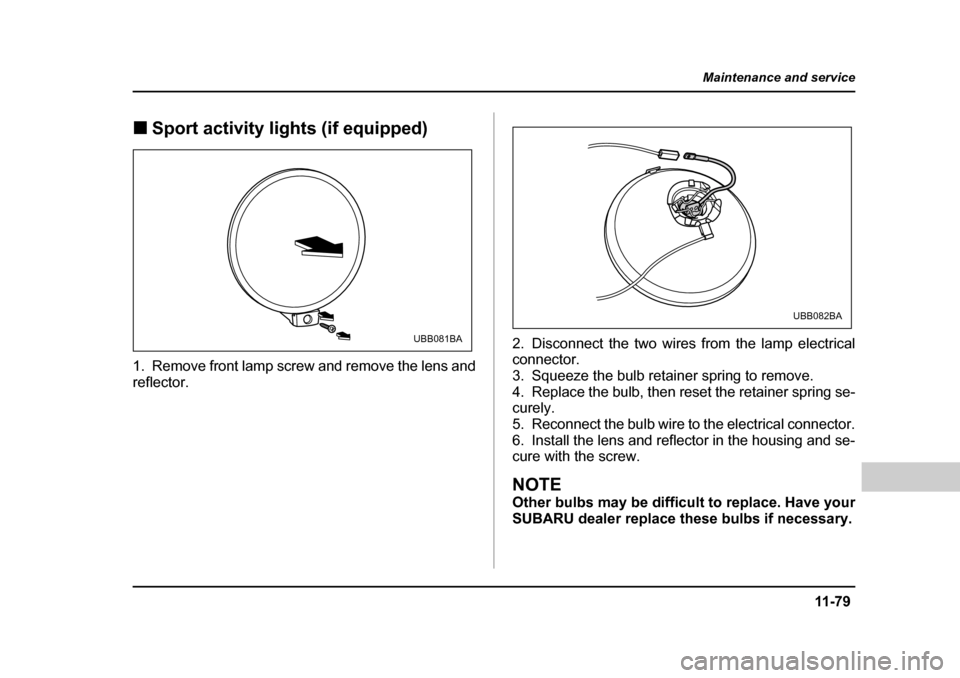

„Sport activity lights (if equipped)
1. Remove front lamp screw and remove the lens and
reflector. 2. Disconnect the two wires from the lamp electrical
connector.
3. Squeeze the bulb retainer spring to remove.
4. Replace the bulb, then reset the retainer spring se- curely.
5. Reconnect the bulb wire to the electrical connector.
6. Install the lens and reflector in the housing and se-
cure with the screw.
NOTE
Other bulbs may be difficult to replace. Have your
SUBARU dealer replace these bulbs if necessary.
UBB081BA
UBB082BA

14-4
