2005 SUBARU BAJA window

8-11
Driving tips
– CONTINUED –
yFrequent driving of an AWD vehicle under hard-driv-
ing conditions such as rough roads or off roads will ne-
cessitate more frequent replacement of engine oil,
brake fluid and transmission oil than that specified in
the maintenance schedule described in the “Warranty
and Maintenance Booklet”.
Remember that damage done to your SUBARU while
operating it off-road and not using common sense pre-
cautions such as those listed above is not eligible for
warranty coverage.Winter driving „ Operation during cold weather
Carry some emergency equipment, such as tire
chains, a window scraper, a bag of sand, flares, a
small shovel, and jumper cables.
Check the battery and cables. Cold temperatures re-
duce battery capacity. The battery must be in good
condition to provide enough power for cold winterstarts.
Use an engine oil of proper grade and viscosity for
cold weather. Heavy summer oil will cause harder
UB8046AA

8-13
Driving tips
– CONTINUED –
If there is caked snow or ice, remove it, being careful
not to damage the disc brakes and brake hoses andABS harness. TRefueling in cold weather
To help prevent moisture from forming in the fuel sys-
tem and the risk of its freezing, use of an antifreeze ad-
ditive in the fuel tank is recommended during cold
weather.
Use only additives that are specifically designed for
this purpose. When an antifreeze additive is used, its
effect lasts longer if the tank is refilled whenever the
fuel level reaches half empty.
If your SUBARU is not going to be used for an extend-
ed period, it is best to have the fuel tank filled to capac-
ity. „ Driving on snowy and icy roads
Do not use the cruise control on slippery roads
such as snowy or icy roads. This may cause
loss of vehicle control.
To prevent skidding and slipping, avoid sudden brak- ing, abrupt acceleration, high-speed driving, and
sharp turning when driving on snowy or icy roads.
Always maintain ample distance between your vehicle
and the vehicle ahead of you to avoid the need for sud-
den braking.
To supplement the foot brake, use the engine brake
effectively to control the vehicle speed. (Shift into a
lower gear when necessary.)
Avoid shifting down abruptly. Such behavior can
cause the wheels to lock, possibly leading to loss of
vehicle control.
An anti-lock brake system (ABS) enhances your vehi-
cle’s braking performance on snowy and icy roads.
Refer to the “ABS (Anti-lock Brake System)” section in
chapter 7 for information on braking on slippery sur- faces. T
Wiper operation when snowing
Before driving in cold weather, make sure the wiper
blades are not frozen to the windshield or rear window.
If the wiper blades are frozen to the windshield or rear
window, use the defroster with the airflow control dial
in the “ ” position and the temperature control dial
set for maximum warmth until the wiper blades are
completely thawed out. If your vehicle is equipped with
a wiper deicer, it is helpful to thaw the windshield wiper
blades.

10-7
Appearance care
– CONTINUED –
maturely. Regular cleaning with a soft, moist, natural
fiber cloth should be performed monthly, taking care
not to soak the leather or allow water to penetrate the
stitched seams.
A mild detergent suitable for cleaning woolen fabrics
may be used to remove difficult dirt spots, rubbing with
a soft, dry cloth afterwards to restore the luster. If your
SUBARU is to be parked for a long time in bright sun-
light, it is recommended that the seats and headrests
be covered, or the windows shaded, to prevent fading
or shrinkage.
Minor surface blemishes or bald patches may be treat-
ed with a commercial leather spray lacquer. You will
discover that each leather seat section will develop
soft folds or wrinkles, which is characteristic of genu-
ine leather. „Synthetic leather upholstery
The synthetic leather material used on the SUBARU
may be cleaned using mild soap or detergent and wa-
ter, after first vacuuming or brushing away loose dirt.
Allow the soap to soak in for a few minutes and wipe
off with a clean, damp cloth. Commercial foam-type
cleaners suitable for synthetic leather materials may
be used when necessary.NOTE
Strong cleaning agents such as solvents, paint
thinners, window cleaner or gasoline must never
be used on leather or synthetic interior materials. „ Climate control panel, audio panel, in-
strument panel, console panel, switch-
es, combination meter, and other plas-tic surfaces
Gently wipe away contamination using a clean, soft
cloth moistened with cold or lukewarm water.
NOTE
Do not use organic solvents such as paint thin-
ners or gasoline, or strong cleaning agents that
contain those solvents.

11 -5 3
Maintenance and service
– CONTINUED –
freeze type windshield washer fluid. SUBARU Wind-
shield Washer Fluid contains 58.5% methyl alcohol
and 41.5% surfactant, by volume. Its freezing temper-
ature varies according to how much it is diluted, as in-
dicated in the following table. Replacement of windshield wiper
blades
Grease, wax, insects, or other materials on the wind-
shield or the wiper blade results in jerky wiper opera-
tion and streaking on the glass. If you cannot remove
the streaks after operating the windshield washer or if
the wiper operation is jerky, clean the outer surface of
the windshield (or rear window) and the wiper blades
using a sponge or soft cloth with a neutral detergent or
mild-abrasive cleaner. After cleaning, rinse the wind-
shield and wiper blades with clean water. The wind-
shield is clean if beads do not form when you rinse the
windshield with water.
Do not clean the wiper blades with gasoline or
a solvent, such as paint thinner or benzene.
This will cause deterioration of the wiper
blades.
If you cannot eliminate the streaking even after follow-
ing this method, replace the wiper blades using the fol-
lowing procedures:
1. Raise the wiper arm off the windshield.
Washer Fluid Concentration Freezing Temperature
30% 10.4 °F (–12 °C)
50% –4 °F (–20 °C)
100% –49 °F (–45 °C)

12-6
Specifications
„

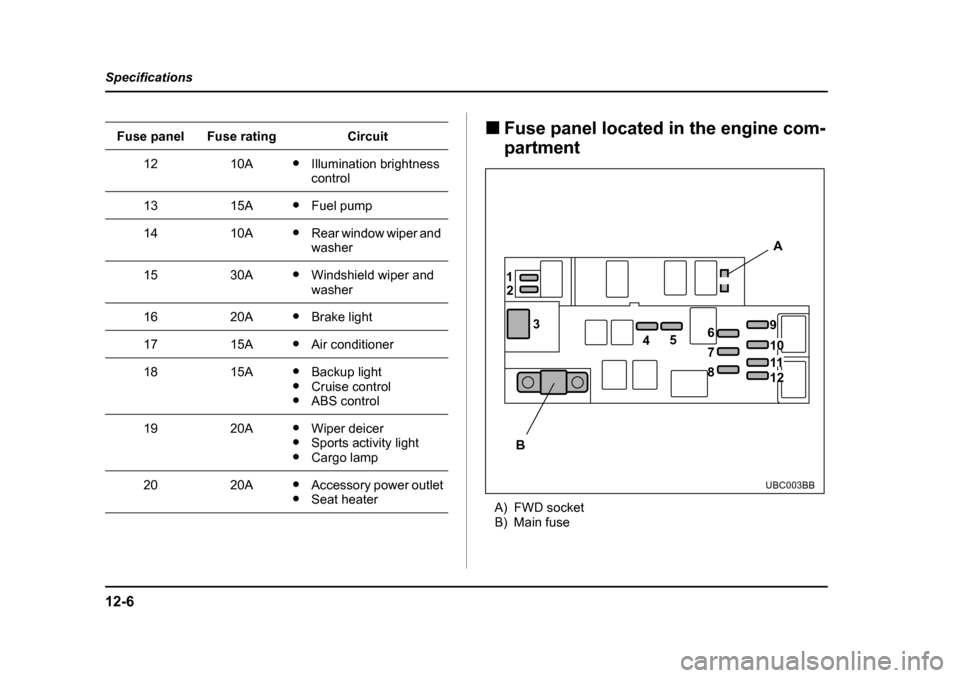

Fuse panel located in the engine com- partment
A) FWD socket
B) Main fuse
1210Ay Illumination brightness control
1315AyFuel pump
1410AyRear window wiper and washer
1530AyWindshield wiper and washer
1620AyBrake light
1715AyAir conditioner
1815AyBackup light
y Cruise control
y ABS control
1920AyWiper deicer
y Sports activity light
y Cargo lamp
2020AyAccessory power outlet
y Seat heater
Fuse panelFuse ratingCircuit
A
B
1
2
3 45 6 7 8 9 10 11 12
UBC003BB

12-7
Specifications
– CONTINUED –
Fuse panelFuse ratingCircuit
120AyRadiator cooling fan (Main)
220AyRadiator cooling fan (Sub)
330AyABS motor
420AyRear window defogger
515AyHazard warning flasher
y Horn
615AyMeter
y SRS airbag system warning light
710AyAutomatic transmis- sion control unit
y ABS UNIT
810AyAlternator
915AyHeadlight (right side)
1015AyHeadlight (left side)
1120AyLighting switch
1215AyClock
y Interior light
Fuse panelFuse ratingCircuit

14-6
Index
LSD (Limited slip differential) ............................ 7-31 M
Main fuse ......................................................... 11-60
Maintenance
Precautions .................................................. 11-3
Schedule ...................................................... 11-3
Seatbelt ........................................................ 1-21
Malfunction indicator lamp
(Check Engine light) ...................................... 3-10
Manual transmission ......................................... 7-12
Manual transmission oil ................................... 11-27
Map light .............................................................. 6-3
Maximum load limits .......................................... 8-25
Meters and gauges ............................................. 3-6
Mirrors ............................................................... 3-28
Moonroof .................................................. 2-31, 9-28 N
New vehicle break-in driving – the first 1,000 miles (1,600 km) ....................... 8-2
O
Odometer/Trip meter ........................................... 3-6
Off road driving .................................................... 8-9 Oil level
Engine ........................................................ 11-10
Front differential (AT vehicles) ................... 11-32
Manual transmission .................................. 11-27
Rear differential .......................................... 11-33
Oil pressure warning light .................................. 3-12
Outside mirrors .................................................. 3-30
Overheating engine ........................................... 9-21 P
Parking Brake ............................................................ 7-36
Brake stroke ............................................... 11-45
Light switch ................................................... 3-22
Periodic inspections ............................................ 8-6Power
Door locking switches ..................................... 2-5
Steering ........................................................ 7-31
Steering fluid .............................................. 11-36
Windows ....................................................... 2-22
R
Rear Center console ............................................... 6-6
Combination lights ...................................... 11-70
Differential gear oil ..................................... 11-33
Seats .............................................................. 1-9

14-7
Index
Rear seat
Folding down ................................................ 1-10
Rear window Defogger button ............................................ 3-26
Recommended
Automatic transmission fluid ....................... 11-31
Brake fluid ................................................... 11-39
Clutch fluid .................................................. 11-40
Oil grade and viscosity ....... 11-15, 11-16, 11-28, 11-32, 11-35
Power steering fluid .................................... 11-37
Spark plugs ................................................. 11-26
Remote keyless entry system .............................. 2-7
Replacement
Brake pad and lining ................................... 11-43
Windshield wiper blades ............................. 11-53
Replacing
Air cleaner element ..................................... 11-23
Battery (remote keyless entry system) ......... 2-10
Lost transmitters (keyless entry system) ...... 2-11
Replacing bulbs ............................................... 11-61 Cargo light assembly .................................. 11-77
Dome light .................................................. 11-76
Front fog light .............................................. 11-68
Front turn signal light .................................. 11-69
Headlight .................................................... 11-64
High mount stop light assembly .................. 11-77 License plate light ....................................... 11-74
Map light ..................................................... 11-76
Parking light ................................................ 11-69
Rear combination lights .............................. 11-70
Tail light ...................................................... 11-72
Rocking the vehicle ........................................... 8-16
Roof rail and crossbar ....................................... 6-24 S Seat Fabric ............................................................ 10-6
Heater ............................................................. 1-7
Seatbelt .................................................................. 4 Maintenance ................................................. 1-21
Pretensioners ............................................... 1-24
Safety tips ..................................................... 1-14
Warning light and chime ............................... 1-17
Seatbelts ........................................................... 1-14
Security system ................................................. 2-15
Selector lever ........................................... 7-16, 7-22 Position indicator .......................................... 3-15
Shift lock release ...................................... 7-20, 7-30
Side ventilators .................................................... 4-2
Snow tires .......................................................... 8-14
Soft bed cover ................................................... 6-21
Sounding a panic alarm .............................. 2-9, 2-18
Spark plugs ..................................................... 11-25
