2005 SKODA SUPERB tow

Seats and Stowage
86
Folding down the backr est of the rear seats*
The luggage compartment can be enlarged if necessary by
folding one or both seat backrests forward. Folding the seat
backrest forwards
– Before folding the seat backrest forwards, the front seats must be adjusted so that the front seats are not damaged when
folding the seat backrest forwards.
– Pull the unlocking knob ⇒fig. 71and fold the rear seat
backrest forwards completely.
Fold the seat backrest back into position
– Place the rear lateral seat belt behind the edge of the side trim panel.
– Then push the seat backrest back into the upright position until the locking button clicks into place - check by pulling on
the rear seat backrest.
– Ensure that the red surface on the front side of the knob is not visible.
Blocking the unlock knobs
– Fold the seat backrest back into position and ensure that it is correctly interlocked.
– The unlock knobs are blocked by turning the slit in the lock to the right ⇒fig. 72 with the master key.
Unblock the unlock knobs
– The unlock knobs are unblocked by turning the slit in the lock to the left with the master key.The rear seat is equipped with an audible signaling of the rear seat back-
rest securing system. When the seat backrest is unlocked, the red surface
Fig. 71 Unlock the seat
backrest
Fig. 72 Blocking the
unlock knob
AA
AB
AA
s3ec.book Seite 86 Montag, 2. Mai 2005 3:42 15

Seats and Stowage87
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
on the knob is visible. If the seat backrest is correctly locked, the knob is
pushed back and the red surface is not visible.
WARNING
•The belt locks and the pelvic belt must be in their original posi-
tion after folding back the seat backrest - they must be ready to use.
•The seat backrests must be securely interlocked in position so
that no objects in the luggage compartment can slide forward if
there is sudden braking - risk of injury!
•Pay attention that the rear seat backrest is correctly interlocked.
It is only then that the three-point seat belt for the middle seat can
reliably fulfil its function.
•Before folding the seat backrest back into the secure position,
place the rear lateral seat belt behind the edge of the side trim
panel. Take suitable measures to prevent that the seat belt is
jammed between the seat backrest and the side trim panel is thus
damaged.
The luggage compartment cover
You can use the luggage compartment cover behind the head restraints
of the rear seats for storing light and soft items.
WARNING
No objects should be placed on the luggage compartment cover,
the vehicle occupants could be endangered if there is sudden
braking or the vehicle co llides with something.
Caution
Please ensure that the heating elements of the rear window heater are not
damaged as a result of objects placed in this area.
s3ec.book Seite 87 Montag, 2. Mai 2005 3:42 15

Seats and Stowage
88
Through-loading bag*
The through-loading bag enables you to conveniently
transport long objects (such as skis) without damaging the
interior of the car.Loading
– Fold down the armrest of the rear seats to the front.
– Press the unlock button for the cover of the through-loading
bag in the interior of the car and swivel it down.
– Pull the bag out and unfold it.
– Open the boot lid/luggage compartment door.
– Press the unlock button for the cover of the through-loading bag ⇒fig. 73 and swivel it down.
– Push the objects into the through-loading bag from the boot ⇒ .
Securing
– Insert the belt ⇒fig. 74 into the middle seat belt buckle .
– Pull the seat belt tight in direction of arrow ⇒fig. 74.
Stowing
– Close the cover for the through-loading bag in the boot.
– Carefully fold the through-loading bag together in segments of approx 11 cm in length.
– Close the cover in the interior of the car.
– Move the armrest back into its original position.
Fig. 73 Luggage
compartment: cover for
through-loading bag
Fig. 74 Attaching
through-loading bag to
middle seat belt buckle
of rear seats
AAAB
AC
s3ec.book Seite 88 Montag, 2. Mai 2005 3:42 15

Seats and Stowage89
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
WARNING
•After placing items into the through-loading bag, you must
secure the bag with the securing belt .
•The securing belt must hold the items tight.
•Ensure that the securing belt on ski sport articles lies in the
middle between the bindings (see imprint on the through-loading
bag).
Note
•Place the skis with the tips facing the front, snowboards and ski sticks
with the tips facing the rear into the through-loading bag.
•If there are several pairs of skis in the through-loading bag, ensure that
the bindings are positioned at the same height.
•The through-loading bag must never be folded together or stowed
when moist.
The cool box in the a rmrest of rear seats*
Using the system
The contents of the cool box is cooled to a temperature of about
20 °C below the ambient temperature, but to a maximum of
approx.+ 5 °C.
Opening and Closing
– Pull the handle ⇒fig. 75 and pull the lid downwards.
– Open up the lid of the cool box upwards until it is heard to lock.
Switching on and off
– The cooling action of the cool box is switched on and off using switch ⇒fig. 75. It is signalised by the lighting up of the
indicator light on the switch.
AA
Fig. 75 Cool box
AA
s3ec.book Seite 89 Montag, 2. Mai 2005 3:42 15

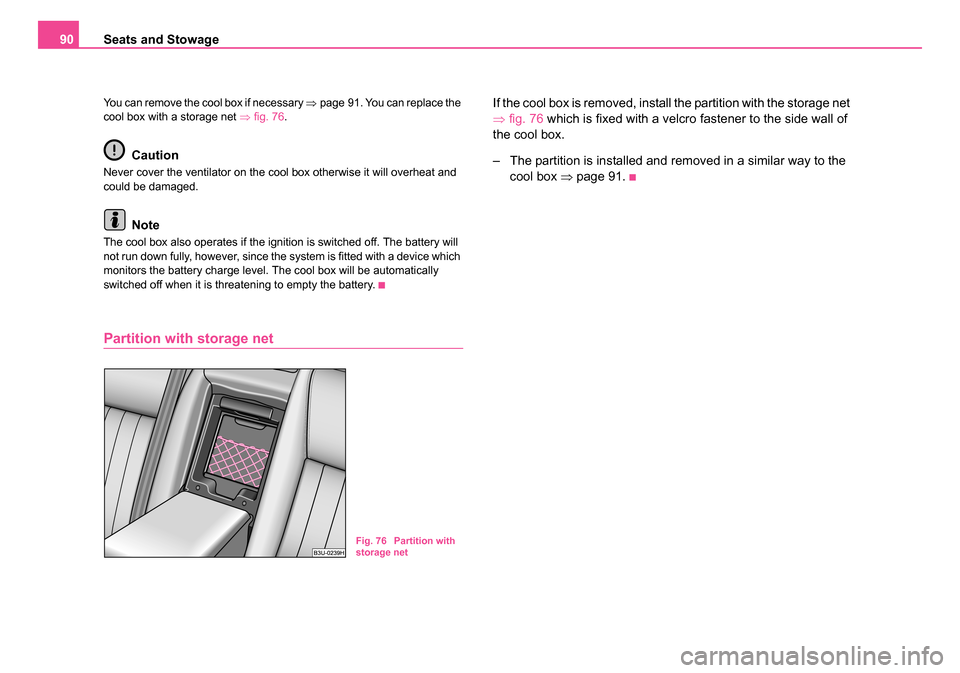

Seats and Stowage
90
You can remove the cool box if necessary ⇒page 91. You can replace the
cool box with a storage net ⇒fig. 76 .
Caution
Never cover the ventilator on the cool box otherwise it will overheat and
could be damaged.
Note
The cool box also operates if the ignition is switched off. The battery will
not run down fully, however, since the system is fitted with a device which
monitors the battery charge level. The cool box will be automatically
switched off when it is threatening to empty the battery.
Partition with storage net
If the cool box is removed, install the partition with the storage net
⇒fig. 76 which is fixed with a velcro fastener to the side wall of
the cool box.
– The partition is installed and removed in a similar way to the cool box ⇒ page 91.
Fig. 76 Partition with
storage net
s3ec.book Seite 90 Montag, 2. Mai 2005 3:42 15

Seats and Stowage91
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Removing and installing the cool box
Removing
– Switch the cooling mode of the cool box off ⇒page 89. – Remove the locking mechanism
⇒fig. 77.
– Open the lid of the cool box.
– Press open the upper side of the cool box from the inside in the direction of arrow and put away the cool box in the
luggage compartment (see arrow ).
– Unplug the plug connector (the plug connector is located in the luggage compartment in the lower part of the fixing frame
for the cool box).
Fitting
– Place the cool box on the luggage compartment partition and plug in the plug.
– Remove the locking mechanism ⇒fig. 77.
– Fold the lid of the cool box onto the fixing frame ⇒fig. 78.
– Lift the cool box with the palm of the hand on the inside of the upper wall of the cool box.
– Insert the cool box with the lower edge into the lower holding bracket on the luggage compartment partition.
– Pull the cool box forwards to the upper edge until the stop (see arrow ), press with the palm of the hand onto the upper wall
(see arrow ), pull the box again forwards and press down-
wards (see arrow ).
– Push the locking mechanism ⇒fig. 77 up to the stop into
the fixing frame.
– Close the lid of the cool box.
Fig. 77 Removing the
cool box
Fig. 78 Installing the
cool box
AA
A1
A2
AA
A1
A2
A3
AA
s3ec.book Seite 91 Montag, 2. Mai 2005 3:42 15

Seats and Stowage
92
CargoFlex folding box*
Lowering and securing folding box
You can transport the folding box in two different positions - in the
transport position against the partition ⇒fig. 79 of the luggage
compartment, or in the ready position lowered onto the floor of
the luggage compartment ⇒fig. 80 .
Lowering folding box in to the ready position
– Pull the snap handle in direction of arrow 1 ⇒ fig. 79. The
folding box is lowered to just above the floor of the luggage
compartment.
– Press the folding box at the arrow positions 2 ⇒ fig. 80 onto
the floor of the luggage compartment until it locks in place. If
correctly locked, the snap handle moves back into its initial
position (the top red surface of the handle is not visible).
Securing folding box in the transport position against
partition of luggage compartment
– Lower the folding box into the ready position ⇒page 94.
– Pull the snap handle in direction of arrow 1 ⇒ fig. 79. The
folding box is raised up from the luggage compartment floor.
– Raise and press the folding box against the partition of the luggage compartment, it is secured audibly in this way in the
transport position. If correctly locked, the snap handle moves
back into its initial position (the top red surface of the handle
is not visible).
Opening folding box ⇒page 93.
Fig. 79 Folding box:
Transport position
Fig. 80 Folding box:
ready position
s3ec.book Seite 92 Montag, 2. Mai 2005 3:42 15

Seats and Stowage93
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Caution
•The parts of the folding box can be damaged if handled roughly or in
an unprofessional way.
•Before you lower the folding box B into the ready position ⇒page 92,
fig. 80 , it is necessary to remove the net*, in order to avoid net damage.
Opening folding box
You can transport the opened folding box in the secured end or
middle position against the partition of the luggage compartment.
Opening folding box
– Lower the folding box into the ready position ⇒page 92.
– Press the button marked “PUSH” ⇒fig. 81.
– Grasp the folding box at the handle and push it in direction of arrow 1 against the partition of the luggage compartment
into the secured position. The lock below the button must be
heard to engage. If correctly locked, the button marked
“PUSH” moves back into its initial position.
– Raise the lid in direction of arrow 2 ⇒ fig. 82.
Fig. 81 Luggage
compartment: folding
box
Fig. 82 Opening
folding box
AB
AA
AB
s3ec.book Seite 93 Montag, 2. Mai 2005 3:42 15
