Instruments and Indicator/Warning Lights
30
Warning lights
An overview
The warning lights indicate certain functions or faults.
Fig. 19 Instrument cluster with warning lights
Turn signal lights (to the left)⇒ page 32
Turn signal lights (to the right)⇒page 32
Main beam⇒page 32
Low beam⇒page 32
Rear fog light⇒page 32
Electronic immobiliser⇒page 32
Diesel particle filter (diesel engine)⇒page 33
Bulbs⇒page 33
s24s.book Page 30 Thursday, November 24, 2005 12:27 PM

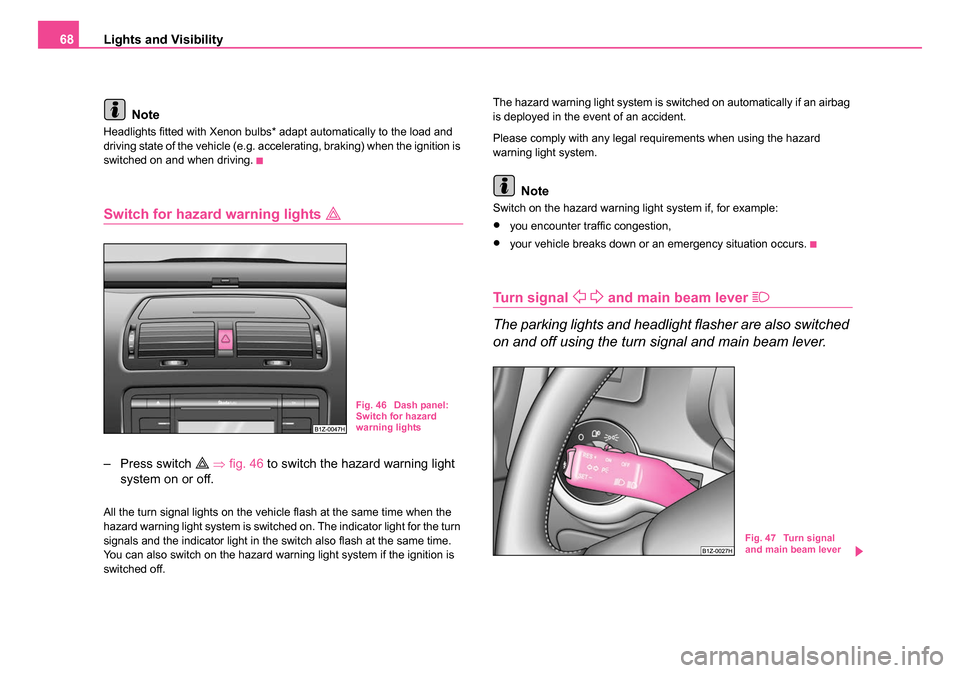

Page 69 of 315
Lights and Visibility
68
Note
Headlights fitted with Xenon bulbs* adapt automatically to the load and
driving state of the vehicle (e.g. accelerating, braking) when the ignition is
switched on and when driving.
Switch for hazard warning lights
– Press switch ⇒ fig. 46 to switch the hazard warning light
system on or off.
All the turn signal lights on the vehicle flash at the same time when the
hazard warning light system is switched on. The indicator light for the turn
signals and the indicator light in the switch also flash at the same time.
You can also switch on the hazard warning light system if the ignition is
switched off. The hazard warning light system is switched on automatically if an airbag
is deployed in the event of an accident.
Please comply with any legal requirements when using the hazard
warning light system.
Note
Switch on the hazard warning light system if, for example:
•you encounter traffic congestion,
•your vehicle breaks down or an emergency situation occurs.
Turn signal and main beam lever
The parking lights and headlight flasher are also switched
on and off using the turn signal and main beam lever.
Fig. 46 Dash panel:
Switch for hazard
warning lights
Fig. 47 Turn signal
and main beam lever
s24s.book Page 68 Thursday, November 24, 2005 12:27 PM
Page 70 of 315
Lights and Visibility69
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
The turn signal and main beam lever perform the following func-
tions:
Right
and left turn signal light
– Push the lever upwards or downwards ⇒page 68, fig. 47 .
– If you only wish to flash three times* (the so-called conven- ience turn signal), push the lever briefly up to the upper or
lower pressure point and release it.
– Turn signal for changing lanes, in order to only flash briefly - move the lever up or down to the pressure point and hold it in
this position.
Main beam
– Switch on the low beam.
– Push the lever forwards.
– Pull the lever back into the initial position in order to switch the main beam off again.
Headlight flasher
– Pull on the lever of the steering wheel (sprung position) - the main beam and warning light in the instrument cluster come
on.
Parking light
– Switch off the ignition.
– Push the lever up or down - the right-hand or left-hand parking light is switched on.
Information concerning the function of the lights.
•The turn signal system only operates when the ignition is switched
on. The corresponding indicator light or in the instrument cluster also
flashes.
•The turn signal is automatically cancelled after negotiating a curve.
•The indicator light flashes at twice its normal rate if a bulb of the turn
signal light fails.
•The side light and rear light on the appropriate side of the vehicle are
switched on when the parking light is selected. The parking light function
only operates if the ignition is switched off.
•An acoustic warning signal will sound when the driver's door is opened
if the lever is not in the middle position after removing the ignition key. The
acoustic warning signal will stop just as soon as the driver's door is closed.
Caution
Use main beam or the headlight flasher only if this does not risk dazzling
other road users.
Note
•Use only in accordance with the legal requirements the described
lighting and signal systems.
s24s.book Page 69 Thursday, November 24, 2005 12:27 PM
Page 291 of 315
Fuses and light bulbs
290
Caution
•When unlocking and locking the fuse cover, it must be pressed on the
sides to the box, otherwise damage can occur to the locking mechanism.
•Carefully position the fuse cover in the engine compartment. If the
cover was not correctly positioned, water can get into the fuses and this
results in a damage to the vehicle!
Fuse assignment in engine compartment - version 1
Certain electrical components are only standard on certain vehicle model
versions or only suppliable as optional equipment for certain models.
Fig. 219 Schematic
representation of fuse
box in engine compart-
ment - version 1
No.Power consumerAmperes
F1Pump for ABS30
F2Valves for ABS30
F3Control unit for convenience functions20
F4Measuring circuit5
F5Horn15
F6Valve for fuel dosing15
F7Not assigned
F8Not assigned
F9Activated charcoal filter, exhaust gas recirculation
valve10
F10Leakage diagnosis pump10
F11Lambda probe upstream of catalytic converter,
engine control unit10
F12Lambda probe downstream of catalytic converter10
F13Control unit for automatic gearbox15
F14Not assigned
F15Coolant pump10
F16Windshield wiper lever and turn signal light lever5
F17Instrument cluster5
F18Audio amplifier (sound system)30
F19Radio15
F20Phone5
F21Not assigned
F22Not assigned
s24s.book Page 290 Thursday, November 24, 2005 12:27 PM
Page 293 of 315
Fuses and light bulbs
292
Certain electrical components are only standard on certain vehicle model
versions or only suppliable as optional equipment for certain models.
No.Power consumerAmperes
F1Control unit for convenience functions20
F2Windshield wiper lever and turn signal light lever5
F3Measuring circuit5
F4Valves for ABS30
F5Control unit for automatic gearbox15
F6Instrument cluster5
F7Not assigned
F8Radio15
F9Phone5
F10Engine control unit, Main relay5
F11Control unit for auxiliary heating20
F12Control unit for CAN databus5
F13Engine control unit25/30
F14Ignition20
F15Lambda probe, NOx-sensor, Fuel pump relay15
F16Pump for ABS30
F17Horn15
F18Amplifier for digital sound processor30
F19Front window wiper30
F20Not assigned5
F21Lambda probe15
F22Clutch pedal switch, brake pedal switch5
F23Secondary air pump
Air mass meter
Fuel high pressure pump5
10
15
F24Activated charcoal filter, exhaust gas recirculation
valve10
F25Right lighting system40
F26Left lighting system40
F27Secondary air pump
Preglowing40
50
F28Power suppy terminal 15, Starter40
F29Power supply terminal 3050
F30Te r m i n a l Xa)40
a)In order not to drain the battery unnecessarily when starting the engine, the elec-
trical components of this terminal are automatically switched off.
No.Power consumerAmperes
s24s.book Page 292 Thursday, November 24, 2005 12:27 PM
Page 296 of 315
Fuses and light bulbs295
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
WARNING
•Bulbs H7 and H1 are pressurised and may burst when changing
the bulb - risk of injury!
•It is recommended to wear gloves and eye protection when
changing a light bulb.
•Gas discharge bulbs* (xenon bulbs) operate with a high voltage,
professional knowledge is required - danger to life!
Caution
Do not take hold of the glass bulb with naked fingers (even the smallest
amount of dirt reduces the working life of the light bulb). Use a clean cloth,
serviette or something similar.
Note
This Owner's Manual only describes the replacement of bulbs where it is
assumed that no major complications will arise. Other light bulbs should
be changed by your specialist garage.
Front headlightHalogen headlightXenon headlight
Low beamH7D1S
Main beamH1
Parking lightsW5W
Turn signalsPY21W
Fog lightsH8
Light unit (Octavia)Bulb
Reversing lightP21W
Turn signalsPY21W
Twin filament light bulb for the brake lights and
tail lightsP21/4W
Twin filament light bulb for the rear fog lights
and tail lightsP21/4W
Parking lightsW3W
Rear light unit (estate car)Bulb
Reversing light, brake lights, tail lights and rear
fog lightP21W
Turn signalsPY21W
Parking lightsW3W
OthersBulb
Side turn signal lightsLED
Licence plate lightC5W
3. Brake lightLED
Entry lightW5W
front interior lightingC10W
Reading lightsW5W
Rear interior lightingC10W
Luggage compartment lightW5W
Door warning lightC5W
Storage compartment light - front passenger
sideC3W
OthersBulb
s24s.book Page 295 Thursday, November 24, 2005 12:27 PM
Page 297 of 315
Fuses and light bulbs
296
Removing the headlight
The headlight must be removed in order to change the light bulb
of the parking lights, low beam lights and main beam lights as
well as the turn signal lights.
Removing the headlight
– Switch the ignition and all lights off.
– Open the bonnet ⇒ page 247.
– Unscrew the plastic nut ⇒fig. 222
– Pull the locking lever of the headlight as far as the stop in the direction of arrow .
– Unplug the plug connector and carefully take out the headlight in the direction of arrow .
Installation takes place in the reverse order.
Note
We recommend that you have the headlight setting checked by a
specialist garage after installing the headlight.
Fig. 222 Removing the
headlight
AA
A1
A2
s24s.book Page 296 Thursday, November 24, 2005 12:27 PM
Page 301 of 315
Fuses and light bulbs
300
Turn signal light (at the front)
Changing light bulb for turn signal light (at the front)
– Switch the ignition and all lights off.
– Remove the headlight ⇒page 296.
– Turn the socket in the direction of arrow OPEN (open) and
take it out together with the light bulb for the turn signal light
⇒ fig. 229.
– Press the defective light bulb into the socket, turn to the left and remove.
– Press a new light bulb into the socket and turn the light bulb to the right as far as the stop. – Insert the socket with the changed light bulb into the headlight
and secure it by turning in the direction of arrow CLOSE
(close) to the right.
Note
We recommend that you have the headlight setting checked by a
specialist garage after installing the headlight.
Fig. 229 Removing the
light bulb for the turn
signal light
