Checking and refilling levels221
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
easier to choose the correct tyres. Radial tyres have the tyre designations
marked on the sidewall, for example:
195/65 R15 91T
This contains the following information:
195 Tyre width in mm
65 The percentage relation between width and height
R Identifi c
ation mark Radial
15

Wheel diameter in inches
91 load indication
T Speed indication
The tyres could also have the following information:
•
A direction of rotation symbol
•
“Reinforced” denotes heavy-duty tyres.
The manufacturing date is also indicated on the tyre sidewall (possibly only
on the inner side of the wheel).
“DOT ... 1103 ...” means, for example, th at the tyre was produced in the 11th
week of 2003.
We recommend that work on tyres and wheels is carried out by an Authorised
Service Centre. They are familiar with the procedure and have the necessary
special tools and spare parts as well as the proper facilities for disposing of
the old tyres.
Any Authorised Service Centre has full information on the technical require-
ments when installing or changing tyres, wheels or wheel trims.
WARNING
•
We recommend that you use only use wheels and tyres which have been
approved by SEAT for your model. Fa ilure to do so could impair vehicle
handling. Risk of accident.
•
Avoid running the vehicle on tyres th at are more than six years old. If
you have no alternative, you should dr ive slowly and with extra care at all
times.
•
Never use old tyres or those with an unknown “history of use”.
•
If wheel trims are retrofitted, you must ensure that the flow of air to the
brakes is not restricted. This could cause them to overheat.
•
All four wheels must be fitted with radial tyres of the same type, size
(rolling circumference) and the same tread pattern.For the sake of the environment
Old tyres must be disposed of accordi ng to the laws in the country concerned.
Note
•
For technical reasons, it is not generally possible to use the wheels from
other vehicles. This can also apply to wheels of the same model. The use of
wheels or tyres which have not been approved by SEAT for use with your
model may invalidate the vehicle's type approval for use on public roads.
•
If the spare tyre is not the same as the tyres that are mounted on the
vehicle - for example with winter tyres - you should only use the spare tyre for
a short period of time and drive with extra care. Refit the normal road wheel
as soon as possible.
Wheel bolts
Wheel bolts must be tightened to the correct torque.The design of wheel bolts is matched to the rims. If different wheel rims are
fitted, the correct wheel bolts with the right length and correctly shaped bolt
WARNING (continued)
altea_ingles Seite 221 Donnerstag, 19. Mai 2005 3:02 15

Checking and refilling levels
222heads must be used. This ensures that wheels are fitted securely and that the
brake system functions correctly.
In certain circumstances, you may not use wheel bolts from a different car -
even if it is the same model ⇒page 194.
WARNING
If the wheel bolts are not tightened correctly, the wheel could become
loose while driving. Risk of accident.•
The wheel bolts must be clean and turn easily. Never apply grease or oil
to them.
•
Use only wheel bolts which belong to the wheel.
•
If the prescribed torque of the wheel bolts is too low, they could loosen
whilst the vehicle is in motion. Risk of accident! If the tightening torque is
too high, the wheel bolts and threads could be damaged.Caution
The prescribed torque for wheel bolts for steel and alloy wheels is 120 Nm.Winter tyres
Winter tyres will improve the vehicles handling on snow and
ice.In winter conditions winter tyres will considerably improve the vehicles
handling. The design of summer tyres (width, rubber compound, tread
pattern) gives less grip on ice and snow.
Winter tyres must be inflated to a pressure 0.2 bar higher than the pressures
specified for summer tyres (see sticker on tank flap).
Winter tyres must be fitted on all four wheels. Information on permitted
winter tyre sizes can be found in the vehicle's regis-
tration documents. Use only radial winter tyres. All tyre sizes listed in the
vehicle documentation also apply to winter tyres.
Winter tyres lose their effectiveness when the tread is worn down to a depth
of 4 mm.
The speed rating code ⇒page 220, “New tyres and wheels” determines the
following speed limits : ⇒
Q max. 160 km/h
S max. 180 km/h
T max. 190 km/h
H max. 210 km/h
In some countries, vehicles which can exceed the speed rating of the fitted
tyre must have an appropriate sticker in the driver's field of view. These
stickers are available from your Authorised Service Centre. The legal require-
ments of each country must be followed.
Do not have winter tyres fitted for unnecessarily long periods. Vehicles with
summer tyres handle better when the roads are free of snow and ice.
If you have a flat tyre, please refer to the notes on the spare wheel
⇒ page 220, “New tyres and wheels”.
WARNING
The maximum speed for the winter tyres must not be exceeded. Otherwise,
this could lead to tyre damage and thus, an accident risk.
For the sake of the environment
Fit your summer tyres in good time. They are quieter, do not wear so quickly
and reduce fuel consumption.
altea_ingles Seite 222 Donnerstag, 19. Mai 2005 3:02 15

If and when231
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Theft inhibiting wheel bolts*
A special adapter is required to turn the theft inhibiting wheel
bolts.– Insert the adapter onto the wheel bolt and push it on as far as it
will go ⇒fig. 170 .
– Fit the box spanner as far as it will go over the adapter.
– Loosen or tighten the wheel bolt as appropriate.Code number
The code number of the anti-theft wheel bolt is stamped on the front of the
adaptor.
The code number should be noted and kept in a safe place, as it is only by
using the code number that a duplicat e adaptor can be obtained from an
Authorised Service Centre.
Tyres with directional tread pattern
Tyres with directional tread pattern must be fitted so that they
rotate in the correct direction.A directional tread pattern can be ident ified by arrows on the sidewall that
point in the direction of rotation. Always note the direction of rotation indi-
cated when fitting the wheel. This is important so that these tyres can give
maximum grip and avoid excessive noise, tread wear and aquaplaning.
If, in an emergency, you have to fit the spare wheel so it rotates in the wrong
direction, you must drive extremely care fully. The tyre will not give optimum
performance. This is particularly important when driving on wet roads.
To benefit from the advantages of tyres with this type of tread pattern, the
defective tyre should be replaced as soon as possible so that all tyres again
rotate in the correct direction.Tyre repair kit (Tyre-Mobility-System)General information and safety notesYour vehicle is equipped with a tyre repair kit: the Tyre Mobility System.
In the event of a tyre puncture, sealing compound and an air compressor are
located in the luggage compartment under the floor panel.
The Tyre Mobility System will reliably seal punctures caused by the penetra-
tion of a foreign body of up to about 4 mm in diameter.
It is not necessary to remove the foreign body from the tyre.
Instructions for the sealing compound are located on the sealing compound
container.
Fig. 170 Theft inhibiting
wheel bolts
altea_ingles Seite 231 Donnerstag, 19. Mai 2005 3:02 15

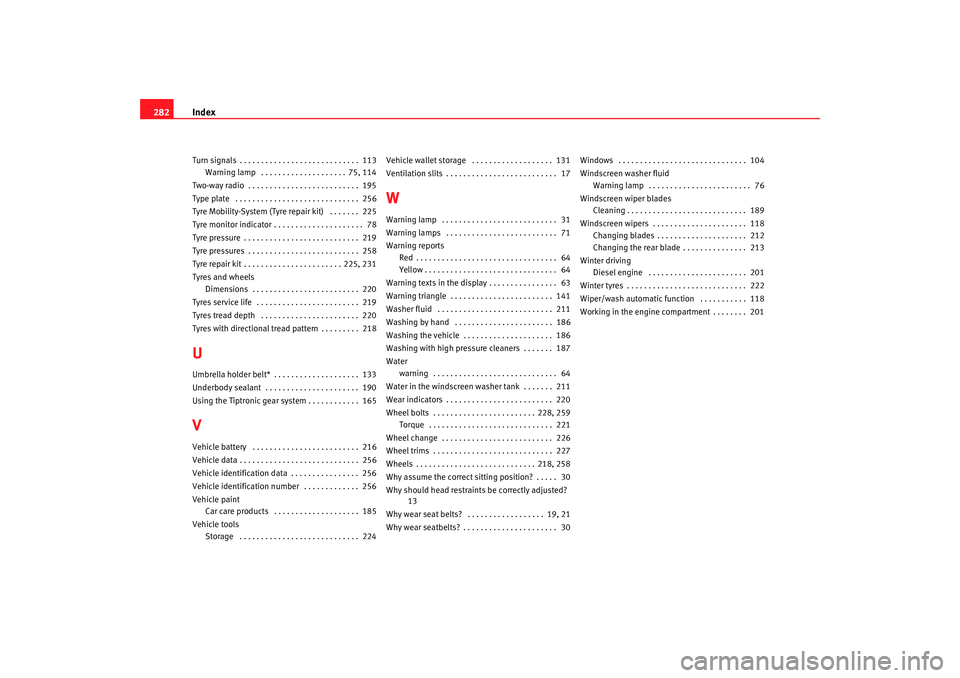

Index
282Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Warning lamp . . . . . . . . . . . . . . . . . . . . 75, 114
Two-way radio . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Type plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Tyre Mobility-System (Tyre repair kit) . . . . . . . 225
Tyre monitor indicator . . . . . . . . . . . . . . . . . . . . . 78
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . . 225, 231
Tyres and wheels Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 220
Tyres service life . . . . . . . . . . . . . . . . . . . . . . . . 219
Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . 220
Tyres with directional tread pattern . . . . . . . . . 218UUmbrella holder belt* . . . . . . . . . . . . . . . . . . . . 133
Underbody sealant . . . . . . . . . . . . . . . . . . . . . . 190
Using the Tiptronic gear system . . . . . . . . . . . . 165VVehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . 216
Vehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Vehicle identification data . . . . . . . . . . . . . . . . 256
Vehicle identification number . . . . . . . . . . . . . 256
Vehicle paint Car care products . . . . . . . . . . . . . . . . . . . . 185
Vehicle tools Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224 Vehicle wallet storage . . . . . . . . . . . . . . . . . . . 131
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . . 17
WWarning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Warning reports
Red . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Yellow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Warning texts in the display . . . . . . . . . . . . . . . . 63
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . 141
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Washing by hand . . . . . . . . . . . . . . . . . . . . . . . 186
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . 186
Washing with high pressure cleaners . . . . . . . 187
Water warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Water in the windscreen washer tank . . . . . . . 211
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . 220
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . 228, 259 Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Wheel change . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Wheel trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218, 258
Why assume the correct sitting position? . . . . . 30
Why should head restraints be correctly adjusted? 13
Why wear seat belts? . . . . . . . . . . . . . . . . . . 19, 21
Why wear seatbelts? . . . . . . . . . . . . . . . . . . . . . . 30 Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Windscreen washer fluid
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 76
Windscreen wiper blades Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Windscreen wipers . . . . . . . . . . . . . . . . . . . . . . 118 Changing blades . . . . . . . . . . . . . . . . . . . . . 212
Changing the rear blade . . . . . . . . . . . . . . . 213
Winter driving Diesel engine . . . . . . . . . . . . . . . . . . . . . . . 201
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Wiper/wash automatic function . . . . . . . . . . . 118
Working in the engine compartment . . . . . . . . 201
