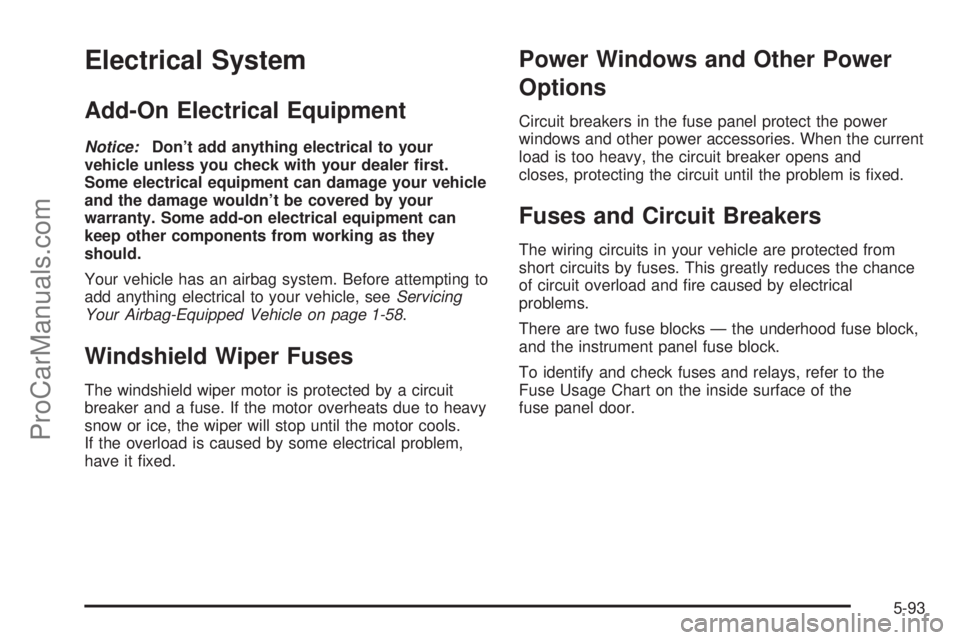

Electrical System
Add-On Electrical Equipment
Notice:Don’t add anything electrical to your
vehicle unless you check with your dealer rst.
Some electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment can
keep other components from working as they
should.
Your vehicle has an airbag system. Before attempting to
add anything electrical to your vehicle, seeServicing
Your Airbag-Equipped Vehicle on page 1-58.
Windshield Wiper Fuses
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow or ice, the wiper will stop until the motor cools.
If the overload is caused by some electrical problem,
have it xed.
Power Windows and Other Power
Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and
closes, protecting the circuit until the problem is xed.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by fuses. This greatly reduces the chance
of circuit overload and re caused by electrical
problems.
There are two fuse blocks — the underhood fuse block,
and the instrument panel fuse block.
To identify and check fuses and relays, refer to the
Fuse Usage Chart on the inside surface of the
fuse panel door.
5-93
ProCarManuals.com

Fuses Usage
HVAC HVAC Control Head
HAZARD Hazard Lamps
HTD SEATS Heated Seats
RADIO Radio, Data Link Connector
PARKPark Lamps, Taillamps, Side Marker
Lamps, License Lamps
BCM/CLUSTERBody Control Module, Instrument
Cluster
INT LTS Body Control Module, OnStar
®
DR LKS Door Locks
Relays Usage
AFTER BLOW Afterblow
HVAC
BLOWERHVAC Control Head
PK LP Parking Lamps
DR LCK All Door Lock Switch
PSG DR
UNLCKPassenger Door Unlock Switch
DRV DR
UNLCKDriver Door Unlock Switch
HDLP Headlamps
5-95
ProCarManuals.com

Underhood Fuse Block
The underhood fuse block is located in the forward part
of the engine compartment near the battery.
Fuses Usage
ECM/TCMBattery Voltage to ECM, TCM,
PCM (3.5L V6 (L66))
BATT FEED I/P Fuse Box
HORN Horn
ABS PWR ABS Battery
REAR DEFOG Rear Defogger
COOL HI (L4)/
COOL 1 (V6)Cooling Fans High (L4)/Cooling
Fan 1 (V6)
FOG LP Fog Lamps
LH HDLP Left Headlamp
RR WIPER Rear Wiper
ABS ABS Module
PWR WDW Power Window Relay and Sunroof
CIGAR/AUX2 Cigarette Lighter
5-96
ProCarManuals.com

Fuses Usage
HVAC
BLOWERHVAC Blower Motor
RH HDLP Right Headlamp
FRT WIPER Front Wiper
ETC (2.2L)Engine Control Module (ECM),
Electronic Throttle Control
SUNROOF Sunroof Module
BRAKE Stop Lamps
IGN Ignition switch
IGN/INJ (L4),
ECM/
CAM (V6)Engine Ignition Module, Fuel
Injectors (2.2L L4 (L61))
Camshaft Sensor, Main Relay
Voltage To PCM, Ignition Coils 1-6
INJECTORS
(3.5L V6 (L66))Fuel InjectionFuses Usage
PWR TRAINEngine Control Module (ECM),
Transmission Control Module
(TCM), Transmission
BACKUPLow Coolant Switch, Backup Lamps
(2.2L L4 (L61)), Vehicle Speed
Sensor (Manual), Transmission
Range Switch (2.2L L4 (L61))
HTD SEATS Heated Seats
COOL LO (L4)/
COOL 2 (V6)Cooling Fan Low (L4), Cooling
Fan (V6)
A/C CLUTCHA/C Clutch, Back Up Lamps
(3.5L V6 (L66))
FUEL PUMP Fuel Pump
AUX 1
OUTLETFront Auxiliary Power Outlet
PREM AUD Premium Radio Amplier
ABS ABS Ignition
PWR SEAT Power Seats
5-97
ProCarManuals.com

Relays Usage
FOG LP Fog Lamps
COOL FAN
HI (L4)Cooling Fan Motor High
ENG MAIN ECM/CAM, EMISS, INJ, ETC
REAR DEFOG Rear Defog System
HORN Horn
DRL Daytime Running Lamps
COOL
FAN 1 (V6)Cooling Fan
WIPER
SYSTEMWiper System
PRW WDOPower Window Switch, Sunroof
ModuleRelays Usage
FRT WIPER Front Wiper System
COOL FAN
LOW (L4)Cooling Fan Motor Low
A/C CLUTCH A/C Clutch
BACKUP
LAMPS (V6)Back-up Lamps (V6)
FUEL PUMP Fuel Pump System
RR WIPER Rear Wiper System
COOL
FAN 2 (V6)Cooling Fan (V6)
Misc. Usage
FUSE PULLER Fuse Puller
Diode Air Conditioning Diode
