2005 SATURN VUE length

The lever on the right side of the steering column
operates the windshield wipers. Push up or pull down
on the lever to place it in one of the following positions.
MIST or
8(Mist):Pull the lever down and release
it for a single wiping cycle. The lever will return to
its original position. For more cycles, hold the lever down
before releasing it.
OFF or
9(Off):Move the lever to this position to
turn off the wipers.
INT or
&(Intermittent):Move the lever to this
position to set a delay between wipes. Turn the band on
the lever to set the length of the delay (1, 2, or 3).
For the most frequent wipes, select 3, for the least
frequent, select 1.LO or
OO(Low):Move the lever to this position for
slow, steady wiping cycles.
HI or
OOOO(High):Move the lever to this
position for rapid wiping cycles.
Rear Window Wiper/Washer
There is a band on the wiper lever to operate the rear
wiper/washer.
9(Off):Turn the band to this position to turn off the
rear wiper.
Z(Rear Wiper):Turn the band to this position to turn
on the rear wiper. In this position the wiping cycles
will be slow and steady.
Y(Wash):Turn and hold the band in this position to
spray washer uid on the rear window. The rear
wiper will also come on. Release the band when enough
uid has been sprayed on the window. The rear wiper
will stay on until you turn the band to OFF. Canada
3-9
ProCarManuals.com

Drunken Driving
Death and injury associated with drinking and driving is
a national tragedy. It is the number one contributor
to the highway death toll, claiming thousands of victims
every year.
Alcohol affects four things that anyone needs to drive a
vehicle:
Judgment
Muscular Coordination
Vision
Attentiveness
Police records show that almost half of all motor
vehicle-related deaths involve alcohol. In most cases,
these deaths are the result of someone who was
drinking and driving. In recent years, more than
16,000 annual motor vehicle-related deaths have been
associated with the use of alcohol, with more than
300,000 people injured.
Many adults — by some estimates, nearly half the adult
population — choose never to drink alcohol, so they
never drive after drinking. For persons under 21,
it is against the law in every U.S. state to drink alcohol.
There are good medical, psychological and
developmental reasons for these laws.The obvious way to eliminate the leading highway
safety problem is for people never to drink alcohol and
then drive. But what if people do? How much is “too
much” if someone plans to drive? It is a lot less
than many might think. Although it depends on each
person and situation, here is some general information
on the problem.
The Blood Alcohol Concentration (BAC) of someone
who is drinking depends upon four things:
The amount of alcohol consumed
The drinker’s body weight
The amount of food that is consumed before and
during drinking
The length of time it has taken the drinker to
consume the alcohol
According to the American Medical Association, a 180 lb
(82 kg) person who drinks three 12 ounce (355 ml)
bottles of beer in an hour will end up with a BAC
of about 0.06 percent. The person would reach the
same BAC by drinking three 4 ounce (120 ml) glasses
of wine or three mixed drinks if each had 1-1/2 ounces
(45 ml) of liquors like whiskey, gin, or vodka.
4-4
ProCarManuals.com

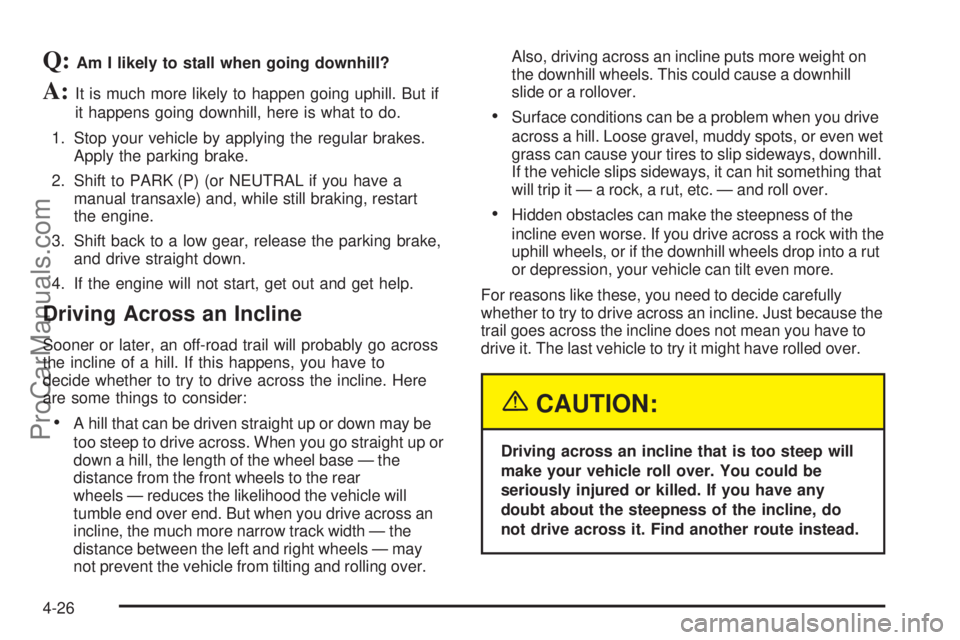

Q:Am I likely to stall when going downhill?
A:It is much more likely to happen going uphill. But if
it happens going downhill, here is what to do.
1. Stop your vehicle by applying the regular brakes.
Apply the parking brake.
2. Shift to PARK (P) (or NEUTRAL if you have a
manual transaxle) and, while still braking, restart
the engine.
3. Shift back to a low gear, release the parking brake,
and drive straight down.
4. If the engine will not start, get out and get help.
Driving Across an Incline
Sooner or later, an off-road trail will probably go across
the incline of a hill. If this happens, you have to
decide whether to try to drive across the incline. Here
are some things to consider:
A hill that can be driven straight up or down may be
too steep to drive across. When you go straight up or
down a hill, the length of the wheel base — the
distance from the front wheels to the rear
wheels — reduces the likelihood the vehicle will
tumble end over end. But when you drive across an
incline, the much more narrow track width — the
distance between the left and right wheels — may
not prevent the vehicle from tilting and rolling over.Also, driving across an incline puts more weight on
the downhill wheels. This could cause a downhill
slide or a rollover.
Surface conditions can be a problem when you drive
across a hill. Loose gravel, muddy spots, or even wet
grass can cause your tires to slip sideways, downhill.
If the vehicle slips sideways, it can hit something that
will trip it — a rock, a rut, etc. — and roll over.
Hidden obstacles can make the steepness of the
incline even worse. If you drive across a rock with the
uphill wheels, or if the downhill wheels drop into a rut
or depression, your vehicle can tilt even more.
For reasons like these, you need to decide carefully
whether to try to drive across an incline. Just because the
trail goes across the incline does not mean you have to
drive it. The last vehicle to try it might have rolled over.
{CAUTION:
Driving across an incline that is too steep will
make your vehicle roll over. You could be
seriously injured or killed. If you have any
doubt about the steepness of the incline, do
not drive across it. Find another route instead.
4-26
ProCarManuals.com

Maintenance When Trailer Towing
Your vehicle will need service more often when you’re
pulling a trailer. SeeScheduled Maintenance on
page 6-4for more information. Things that are especially
important in trailer operation are automatic transaxle
uid (don’t overll), engine oil, axle lubricant, drive belt,
cooling system and brake system. Each of these is
covered in this manual, and the Index will help you nd
them quickly. If you’re trailering, it’s a good idea to
review this information before you start your trip.
Check periodically to see that all hitch nuts and bolts
are tight.
Engine Cooling When Trailer Towing
Your cooling system may temporarily overheat during
severe operating conditions. SeeEngine Overheating on
page 5-29.
Changing a Tire When Trailer Towing
If you get a at tire while towing a trailer, be sure
to secure the trailer and disconnect it from the vehicle
before changing the tire.
Trailer Wiring
Additional wire length has been provided for connecting
trailer wiring to your vehicle. A loop of ve wires is
stored below the jack, which is located on the driver’s
side of the cargo area. The wires are fused in both
the underhood and instrument fuse block. See
Instrument Panel Fuse Block on page 5-94and
Underhood Fuse Block on page 5-96.
The wires do not have a connector and should be wired
to the trailer by a qualied electrical technician. The
technician can use the following information when
connecting a trailer wiring harness to your vehicle.
Yellow: Left Turn Signal
Brown: Parking Lamps
Light Blue: Stop Lamps
Black: Ground Wire
Dark Green: Right Turn Signal
When connecting a trailer harness, be sure you leave it
loose enough so the wiring does not bend or break,
but not so loose that it drags on the ground. Store
harness below jack in the cargo area when it is not in
use. Wrap the harness together and tie it neatly so it will
not be damaged.
4-62
ProCarManuals.com

Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected at least
twice a year for wear or cracking. See “Wiper Blade
Check” underOwner Checks and Services on page 6-11
for more information.
Replacement blades come in different types and are
removed in different ways. For proper type and length,
seeNormal Maintenance Replacement Parts on
page 6-16.
Here’s how to replace the windshield wiper blades:
1. Turn the wipers on to the lowest intermittent setting.
2. Turn off the ignition while the wipers are at the
outer positions of the wipe pattern. The blades
are more accessible for removal/replacement while
in this position.
3. Pull the windshield wiper arm away from the
windshield.4. Pull up the release clip, located at the connecting
point of the blade and the arm. Then, pull the
blade assembly down toward the glass to remove it
from the wiper arm.
5. Push the new wiper blade securely on the wiper
arm until you hear the release clip click into place.
6. Push the release clip, from Step 4, down to secure
the wiper blade into place.
5-54
