2005 SATURN ION Owners Manual

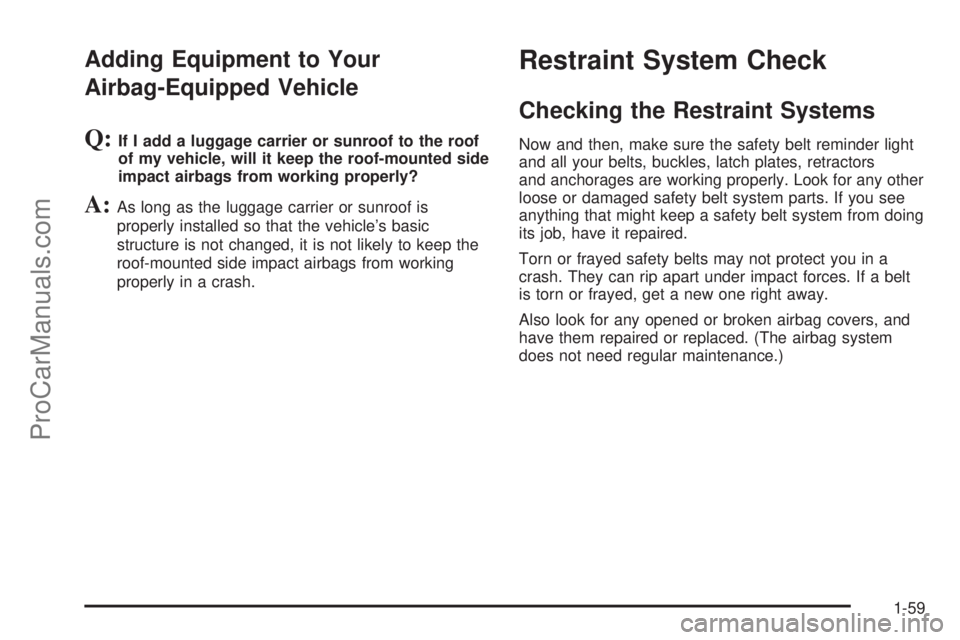

Adding Equipment to Your
Airbag-Equipped Vehicle
Q:If I add a luggage carrier or sunroof to the roof
of my vehicle, will it keep the roof-mounted side
impact airbags from working properly?
A:As long as the luggage carrier or sunroof is
properly installed so that the vehicle’s basic
structure is not changed, it is not likely to keep the
roof-mounted side impact airbags from working
properly in a crash.
Restraint System Check
Checking the Restraint Systems
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors
and anchorages are working properly. Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system from doing
its job, have it repaired.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. If a belt
is torn or frayed, get a new one right away.
Also look for any opened or broken airbag covers, and
have them repaired or replaced. (The airbag system
does not need regular maintenance.)
1-59
ProCarManuals.com

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems in
your vehicle. A damaged restraint system may
not properly protect the person using it,
resulting in serious injury or even death in a
crash. To help make sure your restraint
systems are working properly after a crash,
have them inspected and any necessary
replacements made as soon as possible.
If you have had a crash, do you need new belts or
LATCH system parts?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be if
worn during a more severe crash, then you need
new parts.
If the LATCH system was being used during a more
severe crash, you may need new LATCH system parts.If belts are cut or damaged, replace them. Collision
damage also may mean you will need to have LATCH
system, safety belt or seat parts repaired or replaced.
New parts and repairs may be necessary even if the belt
or LATCH system was not being used at the time of
the collision.
If your seat adjuster will not work after a crash, the
special part of the safety belt that goes through the seat
to the adjuster may need to be replaced.
If an airbag inates, you will need to replace airbag
system parts. See the part about the airbag system
earlier in this manual.
If the frontal airbags inate you will need to replace the
driver’s and right front passengers safety belt retractor
assembly. Be sure to do so. Then the new retractor
assembly will be there to help protect you in a collision.
After a crash you may need to replace the driver and
front passenger’s safety belt retractor assemblies, even
if the frontal airbags have not deployed. The driver
and front passenger’s safety belt retractor assemblies
contain the safety belt pretensioners. Have your
safety belt pretensioners checked if your vehicle has
been in a collision, or if your airbag readiness light stays
on after you start your vehicle or while you are driving.
SeeAirbag Readiness Light on page 3-28.
1-60
ProCarManuals.com

Keys...............................................................2-2
Remote Keyless Entry System.........................2-3
Remote Keyless Entry System Operation...........2-4
Doors and Locks.............................................2-7
Door Locks....................................................2-7
Power Door Locks..........................................2-8
Delayed Locking.............................................2-8
Programmable Automatic Door Locks................2-8
Rear Door Security Locks................................2-9
Lockout Protection..........................................2-9
Rear Doors (Coupe)......................................2-10
Trunk..........................................................2-10
Windows........................................................2-13
Manual Windows..........................................2-13
Power Windows............................................2-14
Sun Visors...................................................2-14
Theft-Deterrent Systems..................................2-15
Passlock
®....................................................2-16
Starting and Operating Your Vehicle................2-16
New Vehicle Break-In....................................2-16
Ignition Positions..........................................2-17
Retained Accessory Power (RAP)...................2-19
Starting the Engine.......................................2-19
Automatic Transaxle Operation.......................2-21
Manual Transaxle Operation...........................2-24
Parking Brake..............................................2-26Shifting Into Park (P) (Automatic Transaxle)......2-27
Shifting Out of Park (P).................................2-28
Parking Your Vehicle (Manual Transaxle).........2-29
Parking Over Things That Burn.......................2-29
Engine Exhaust............................................2-30
Running the Engine While Parked...................2-30
Mirrors...........................................................2-31
Manual Rearview Mirror.................................2-31
Manual Rearview Mirror with OnStar
®..............2-31
Automatic Dimming Rearview Mirror
with OnStar
®, Compass and
Temperature Display..................................2-32
Automatic Dimming Rearview Mirror with
Compass and Temperature Display..............2-34
Outside Remote Control Mirror.......................2-36
Outside Power Mirrors...................................2-37
Outside Convex Mirror...................................2-37
OnStar
®System.............................................2-38
Storage Areas................................................2-39
Glove Box...................................................2-39
Cupholder(s)................................................2-39
Center Console Storage Area.........................2-39
Roof Rack System........................................2-40
Convenience Net..........................................2-40
Sunroof.........................................................2-41
Section 2 Features and Controls
2-1
ProCarManuals.com

Keys
{CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. They
could operate the power windows or other
controls or even make the vehicle move. The
children or others could be badly injured or
even killed. Do not leave the keys in a vehicle
with children.
2-2
ProCarManuals.com

This key operates the
ignition and all of the lock
cylinders on the vehicle.
You may be able to obtain
a VALET key from your
retailer. The VALET
key only operates the
driver’s door and the
ignition. This a
theft-deterrent feature. The
VALET key should
always be used when valet
parking your vehicle.Notice:If you ever lock your keys in your vehicle,
you may have to damage the vehicle to get in.
Be sure you have spare keys.
If you ever lock your keys in your vehicle, you may be
able to have your doors unlocked automatically with the
OnStar system if you have an active OnStar
subscription. For more information, seeOnStar
®System
on page 2-38.
Remote Keyless Entry System
Your keyless entry system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
2-3
ProCarManuals.com

Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:
Check the distance. You may be too far from your
vehicle. You may need to stand closer during
rainy or snowy weather.
Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left or right, hold the transmitter higher, and
try again.
Check to determine if battery replacement is
necessary. See “Battery Replacement” under
Remote Keyless Entry System Operation on
page 2-4.
If you are still having trouble, see your retailer or a
qualied technician for service.
Remote Keyless Entry System
Operation
With this feature, you can lock and unlock the doors or
the trunk from about 26 feet (8 m) away using the
remote keyless entry transmitter supplied with your
vehicle.
Q(Lock):Press this
symbol on the remote
keyless entry transmitter to
lock the doors. This also
arms the theft-deterrent
system. See
Theft-Deterrent Systems
on page 2-15.
Your vehicle can be programmed so that the parking
lamps will ash and/or the horn will sound when you lock
the doors with the remote keyless entry transmitter.
See your retailer for more information on programming
this feature.
2-4
ProCarManuals.com

W(Unlock):Press this symbol on the remote keyless
entry transmitter to unlock the driver’s door. This also
disarms the theft-deterrent system. SeeTheft-Deterrent
Systems on page 2-15. Press the button again to
unlock the rest of the doors.
Your vehicle can be programmed so that the parking
lamps will ash and/or the horn will sound when
you unlock the doors with the remote keyless entry
transmitter. See your retailer for more information on
programming this feature.
L(Panic Alarm):The remote keyless entry
transmitter comes equipped with an instant panic alarm.
Press the horn symbol when the ignition is turned off.
The horn will sound and the parking lamps and
dome lamp will ash for up to two minutes. To stop the
instant panic alarm, press the symbol again.
V(Trunk):Press this button to open the trunk. If the
vehicle’s speed is faster than 2 mph (3 km/h), the
trunk will not open when this button is pressed.
The remote keyless entry transmitter is used to
arm/disarm the theft-deterrent system. The system will
arm when the lock button on the remote keyless
entry transmitter pressed. The system will disarm when
the unlock button is pressed.
Matching Transmitter(s) to Your
Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can
be purchased through your retailer. Remember to bring
any remaining transmitters with you when you go to
your retailer. When the retailer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock
your vehicle. Each vehicle can have a maximum of
four transmitters matched to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about four years.
You can tell the battery is weak if the transmitter won’t
work at the normal range in any location. If you have
to get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
Notice:When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.
2-5
ProCarManuals.com

1. Use a at thin object to pry open the transmitter. 2. Once the transmitter is separated, use a toothpick,
pen cap or similar object to remove the old battery.
Do not use a metal object.
3. Insert the new battery as the instructions under the
cover indicate.
4. Snap the transmitter back together tightly to be sure
no moisture can enter.
5. Check the operation of the transmitter.
2-6
ProCarManuals.com
