2005 Peugeot Partner VP Owner's Manual

58 -
01-02-2005
59
-
01-02-2005

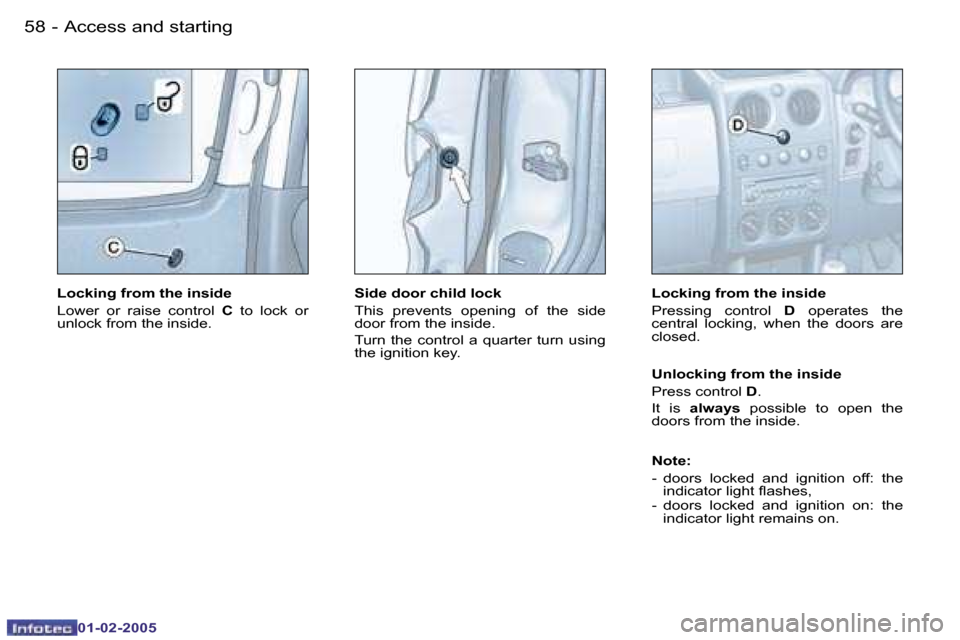

Locking from the inside
Lower or raise control C to lock or
unlock from the inside. Side door child lock
This prevents opening of the side
door from the inside.
Turn the control a quarter turn using
the ignition key.Locking from the inside
Pressing control
D operates the
central locking, when the doors are
closed.
Unlocking from the inside
Press control D.
It is always possible to open the
doors from the inside.
Note:
- doors locked and ignition off: the indicator light lashes,
- doors locked and ignition on: the indicator light remains on.
Access and starting

58 -
01-02-2005
59
-
01-02-2005
Automatic central locking
Your vehicle can lock automatically
while driving (speed greater than
6 mph (10 km/h)). You can activate
or deactivate this function.

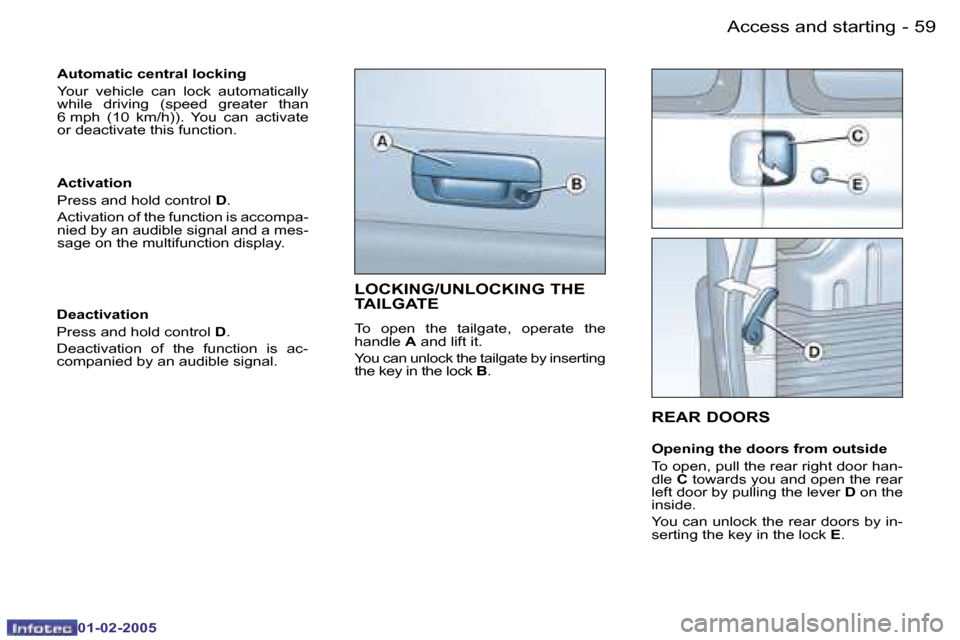

LOCKING/UNLOCKING THE
TAILGATE
To open the tailgate, operate the
handle A and lift it.
You can unlock the tailgate by inserting
the key in the lock B.
REAR DOORS
Opening the doors from outside
To open, pull the rear right door han-
dle C towards you and open the rear
left door by pulling the lever D on the
inside.
You can unlock the rear doors by in-
serting the key in the lock E.
Activation
Press and hold control
D.
Activation of the function is accompa-
nied by an audible signal and a mes-
sage on the multifunction display.
Deactivation
Press and hold control D.
Deactivation of the function is ac-
companied by an audible signal.
Access and starting

58 -
01-02-2005
59
-
01-02-2005
Automatic central locking
Your vehicle can lock automatically
while driving (speed greater than
6 mph (10 km/h)). You can activate
or deactivate this function.
LOCKING/UNLOCKING THE
TAILGATE
To open the tailgate, operate the
handle A and lift it.
You can unlock the tailgate by inserting
the key in the lock B.
REAR DOORS
Opening the doors from outside
To open, pull the rear right door han-
dle C towards you and open the rear
left door by pulling the lever D on the
inside.
You can unlock the rear doors by in-
serting the key in the lock E.
Activation
Press and hold control
D.
Activation of the function is accompa-
nied by an audible signal and a mes-
sage on the multifunction display.
Deactivation
Press and hold control D.
Deactivation of the function is ac-
companied by an audible signal.
Access and starting

60 -
01-02-2005
61
-
01-02-2005

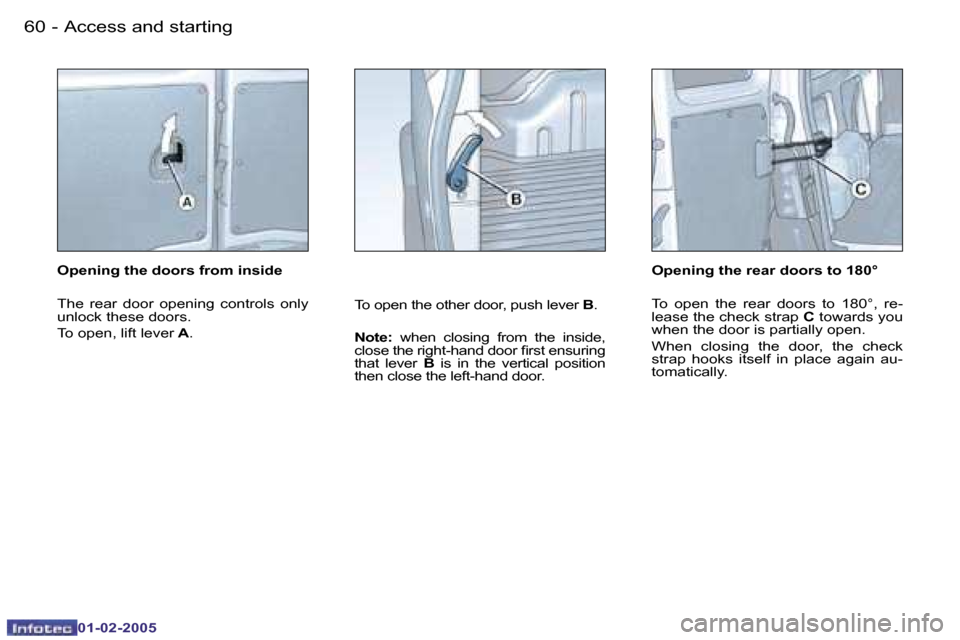

Opening the doors from inside
The rear door opening controls only
unlock these doors.
To open, lift lever A. To open the other door, push lever
B.
Note: when closing from the inside,
close the right-hand door irst ensuring
that lever B is in the vertical position
then close the left-hand door. Opening the rear doors to 180°
To open the rear doors to 180°, re-
lease the check strap
C towards you
when the door is partially open.
When closing the door, the check
strap hooks itself in place again au-
tomatically.
Access and starting

60 -
01-02-2005
61
-
01-02-2005
REAR ROOF FLAP
To open the rear lap:
- pull the lever A,
- lift the rear lap,
- pass the point of resistance to se- cure it using the support struts B.
To close the rear lap:
- check that the support bar is se- cured correctly,
- lower the rear lap to lock it.
LONG LOAD SUPPORT BAR
A support bar is provided for trans-
porting long loads, after opening the
rear roof lap.
Fold back the support bar by lifting
the lever C.
Support it to the door pillar.
Support the long loads to be trans-
ported.
Reposition the support bar with one
hand.
Ensure that it is secured correctly. Notes:
- The side openings
D can be used
as hooking points.
- The rear bumper has been strengthened to serve as a footrest
on entering the vehicle.
Never drive without the sup-
port bar in place.
The rear doors only lock when
the support bar is installed.
When the rear roof lap is open, take
care when driving where height is
restricted.
Use a regulation device when a load
protrudes from your vehicle by more
than one metre.
Never rest a load directly on the rear
doors.
Access and starting

62 -
01-02-2005
63
-
01-02-2005

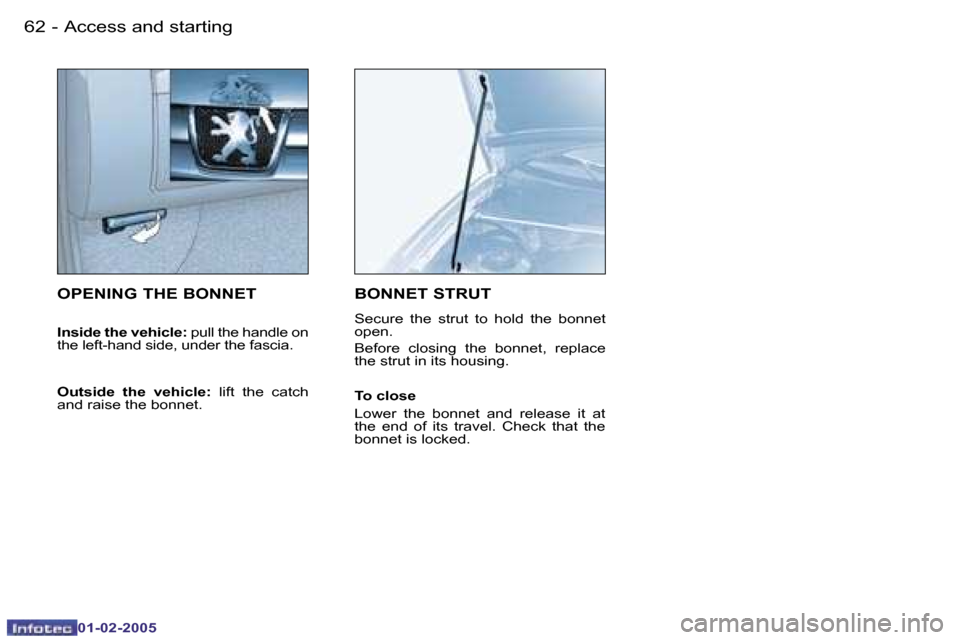

OPENING THE BONNET
Inside the vehicle: pull the handle on
the left-hand side, under the fascia.
Outside the vehicle: lift the catch
and raise the bonnet.
BONNET STRUT
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace
the strut in its housing.
To close
Lower the bonnet and release it at
the end of its travel. Check that the
bonnet is locked.
Access and starting

62 -
01-02-2005
63
-
01-02-2005
FILLING WITH FUEL
Low fuel level
An indication reminds you which type
of fuel to use.
When you ill your tank, do not con-
tinue after the third cut-off of the
pump. This could cause your vehicle
to malfunction.
The capacity of the tank is approx-
imately 55 litres for petrol engines
and 60 litres for Diesel engines.
F After illing the tank, lock the cap.
When the cap is removed,
the right-hand sliding side
door cannot be opened.
The key cannot be removed
from the lock until the cap has been
replaced on the fuel tank.
When the minimum
fuel level in the tank is
reached, this warning
light comes on.
You have enough fuel remaining
to drive for approximately 30 miles
(50 km).
The engine must be switched off
when illing with fuel.
F Insert the key then turn it to the left.
F Remove the cap.
Access and starting

64 -
01-02-2005
65
-
01-02-2005
Direction indicators (lashers)
Left: downwards.
Right: upwards.
"Follow-me-home" lighting
In poor light, or at night, if you leave
your vehicle, the side lights and
dipped headlamps may remain on
for approximately one minute.
To activate this function:
- place the key in the
STOP posi-
tion,
- place the lights stalk in position 0,
- lash the headlamps,
- exit the vehicle and lock it.
Vehicles itted with a rear fog
lamp only (ring B)
Rotate the ring forwards.
This only operates with the dipped/
main beam headlamps.
Dipped/Main beam change
Pull the stalk towards you.
Note: with the ignition off, when the
driver's door is opened, a buzzer
sounds if you have left your lights
on.
THE LIGHTS STALK
Front and rear lights
Selection is by turning ring A.
Lights off
Side lights Dipped/main beam
headlamps
Front fog lamps and
rear fog lamp
Rotate the ring forwards to switch on
and backwards to switch off. The sta-
tus is conirmed by the indicator light
on the instrument panel.
In good or rainy weather,
both day and night, the front
fog lamps and the rear fog
lamp are dazzling and are
prohibited.
Do not forget to switch them off when
they are no longer needed.
Vehicles itted with front fog
lamps and a rear fog lamp (ring B)
Front fog lamps (irst rotation of the
ring forwards).
Front and rear fog lamps (2nd rota-
tion of the ring forwards).
Note:
to switch off the rear fog lamp
and the front fog lamps, turn the ring
backwards twice in succession.
Visibility
