CHECKS
Battery
At the start of winter, have your bat-
tery checked by a PEUGEOT dealer.
Oil filter
Change the ilter regularly, in accord-
ance with the servicing schedule.Only use products recom-
mended by PEUGEOT.
To ensure best performance
from components as impor-
tant as the power steering and the
braking system, PEUGEOT selects
and offers quite speciic products.
To prevent damage to the electrical
units, avoid washing the engine.
Fuel supply cut-off
In a serious collision, a system pre-
vents fuel from reaching the engine.
To re-establish the fuel supply, press
the switch on the angle of the front
left-hand suspension assembly, under
the bonnet.
Air filter and passenger
compartment filter
Have the ilter elements replaced
regularly. If you drive in dusty
conditions, change them twice as
often.
Brake pads
Brake pad wear depends on the style
of driving, in particular for vehicles
which are used in town, over short
distances.
It may be necessary to check the
thickness of the pads, even between
services.
Handbrake
Where the handbrake travel is too
great or there is a reduction in the
performance of the system, the
handbrake should be adjusted, even
between services.
Have the system checked by a
PEUGEOT dealer.
Manual gearbox
This does not require an oil change.
Check the level in accordance with the
manufacturer's servicing schedule.
To check the main levels and cer-
tain components, in accordance
with the manufacturer's servicing
schedule, refer to the pages of
the servicing booklet which corre-
spond to your vehicle's engine.
PRACTICAL INFORMATION

82
01-01-2005
83
01-01-2005

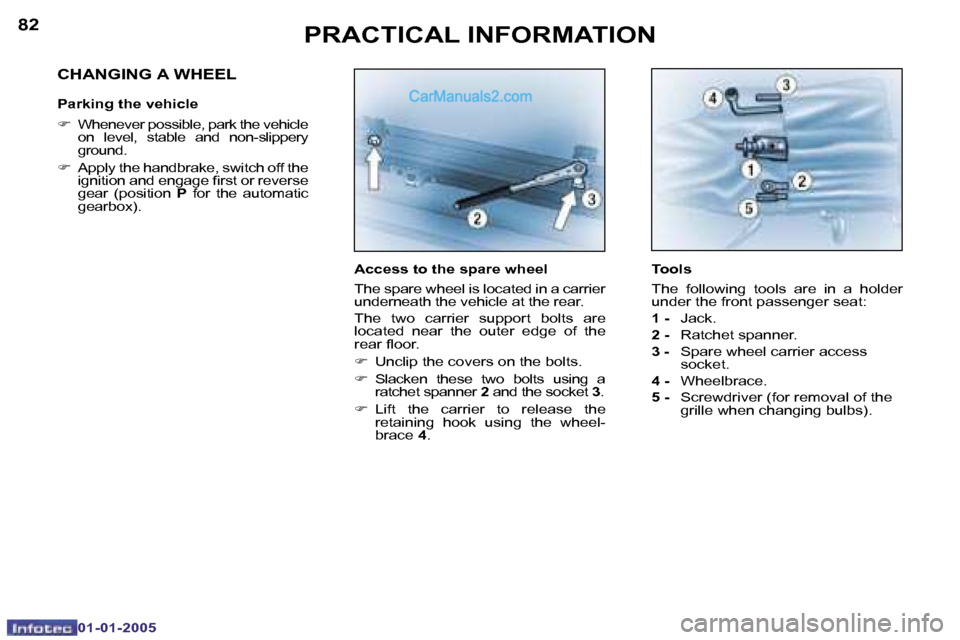

Access to the spare wheel
The spare wheel is located in a carrier
underneath the vehicle at the rear.
The two carrier support bolts are
located near the outer edge of the
rear loor.
F Unclip the covers on the bolts.
F Slacken these two bolts using a
ratchet spanner 2 and the socket 3.
F Lift the carrier to release the
retaining hook using the wheel-
brace 4. Tools
The following tools are in a holder
under the front passenger seat:
1 -
Jack.
2 - Ratchet spanner.
3 - Spare wheel carrier access
socket.
4 - Wheelbrace.
5 - Screwdriver (for removal of the
grille when changing bulbs).
CHANGING A WHEEL
Parking the vehicle
F Whenever possible, park the vehicle
on level, stable and non-slippery
ground.
F Apply the handbrake, switch off the
ignition and engage irst or reverse
gear (position P for the automatic
gearbox).
PRACTICAL INFORMATION

82
01-01-2005
83
01-01-2005

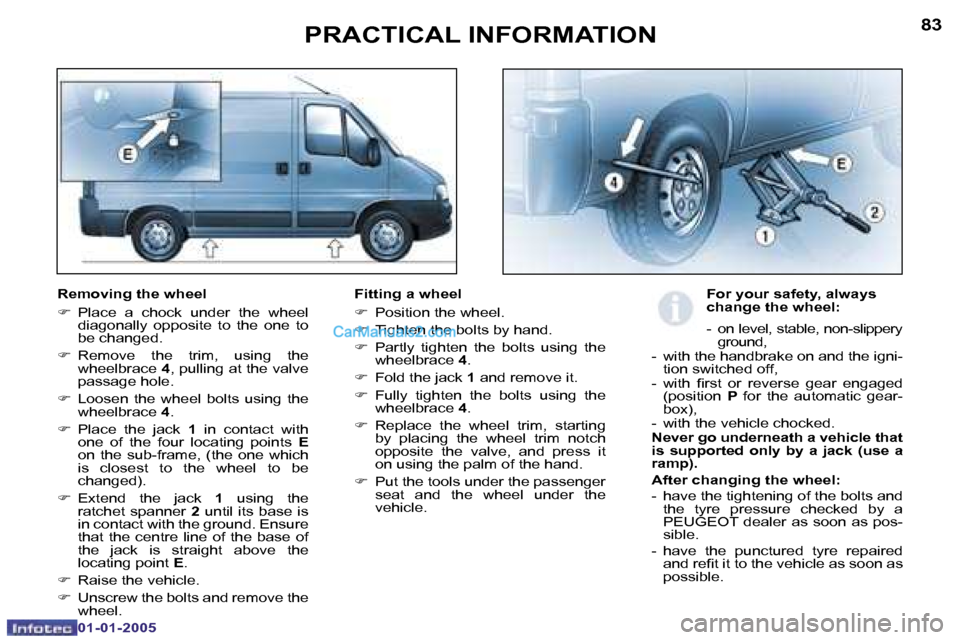

Removing the wheel
F Place a chock under the wheel
diagonally opposite to the one to
be changed.
F Remove the trim, using the
wheelbrace 4, pulling at the valve
passage hole.
F Loosen the wheel bolts using the
wheelbrace 4.
F Place the jack 1 in contact with
one of the four locating points E
on the sub-frame, (the one which
is closest to the wheel to be
changed).
F Extend the jack 1 using the
ratchet spanner 2 until its base is
in contact with the ground. Ensure
that the centre line of the base of
the jack is straight above the
locating point E.
F Raise the vehicle.
F Unscrew the bolts and remove the
wheel. Fitting a wheel
F
Position the wheel.
F Tighten the bolts by hand.
F Partly tighten the bolts using the
wheelbrace 4.
F Fold the jack 1 and remove it.
F Fully tighten the bolts using the
wheelbrace 4.
F Replace the wheel trim, starting
by placing the wheel trim notch
opposite the valve, and press it
on using the palm of the hand.
F Put the tools under the passenger
seat and the wheel under the
vehicle. For your safety, always
change the wheel:
- on level, stable, non-slippery
ground,
- with the handbrake on and the igni- tion switched off,
- with irst or reverse gear engaged (position P for the automatic gear-
box),
- with the vehicle chocked.
Never go underneath a vehicle that
is supported only by a jack (use a
ramp).
After changing the wheel:
- have the tightening of the bolts and the tyre pressure checked by a
PEUGEOT dealer as soon as pos-
sible.
- have the punctured tyre repaired and reit it to the vehicle as soon as
possible.
PRACTICAL INFORMATION

84
01-01-2005
85
01-01-2005

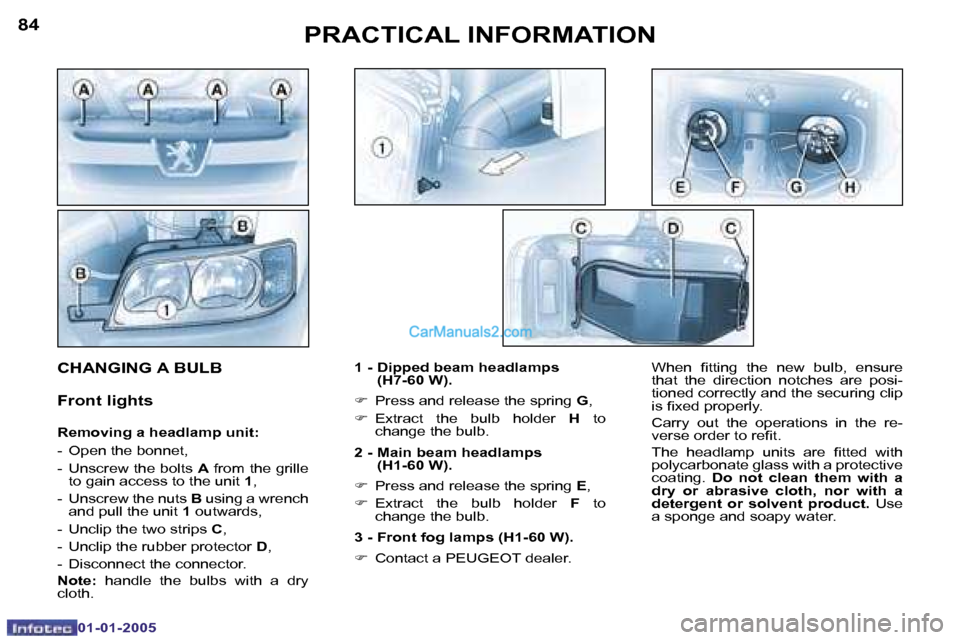

1 - Dipped beam headlamps (H7-60 W).
F Press and release the spring G,
F Extract the bulb holder H to
change the bulb.
2 - Main beam headlamps (H1-60 W).
F Press and release the spring E,
F Extract the bulb holder F to
change the bulb.
3 - Front fog lamps (H1-60 W).
F Contact a PEUGEOT dealer. When itting the new bulb, ensure
that the direction notches are posi-
tioned correctly and the securing clip
is ixed properly.
Carry out the operations in the re-
verse order to reit.
The headlamp units are itted with
polycarbonate glass with a protective
coating.
Do not clean them with a
dry or abrasive cloth, nor with a
detergent or solvent product. Use
a sponge and soapy water.CHANGING A BULB
Front lights
Removing a headlamp unit:
- Open the bonnet,
- Unscrew the bolts A from the grille
to gain access to the unit 1,
- Unscrew the nuts B using a wrench
and pull the unit 1 outwards,
- Unclip the two strips C,
- Unclip the rubber protector D,
- Disconnect the connector.
Note: handle the bulbs with a dry
cloth.
PRACTICAL INFORMATION

84
01-01-2005
85
01-01-2005
4 - Direction indicators (P 21 W) and side lights
(R 5 W).
F Remove the protective casing B
by pressing the two springs A.
F Turn the bulb holder D a quarter
turn and remove it.
F Change the bulb (P 21 W).
F Pull the bulb holder C, remove the
bulb (R 5 W) and change it.
F Carry out the operations in the
reverse order to reit. Note:
in certain climatic conditions
(low temperature, humidity), con-
densation inside the headlamp
glass is normal ; it disappears a few
minutes after the lights are switched
on. Direction indicator side repeaters
(W 5 W).
F
Push the repeater rearwards and
release the assembly,
F Pull the bulb holder to gain access
to the bulb,
F Change the bulb.
PRACTICAL INFORMATION

86
01-01-2005
87
01-01-2005
Third brake light (W 5 W)
F Unscrew the 2 ixing screws.
F Release the lamp unit by pushing
it outwards.
F Disconnect the connector.
F Squeeze the two tabs to release
the bulb holder.
F Change the faulty bulb.
F When reitting, ensure that the
lamp unit seal has been put back
in place correctly.

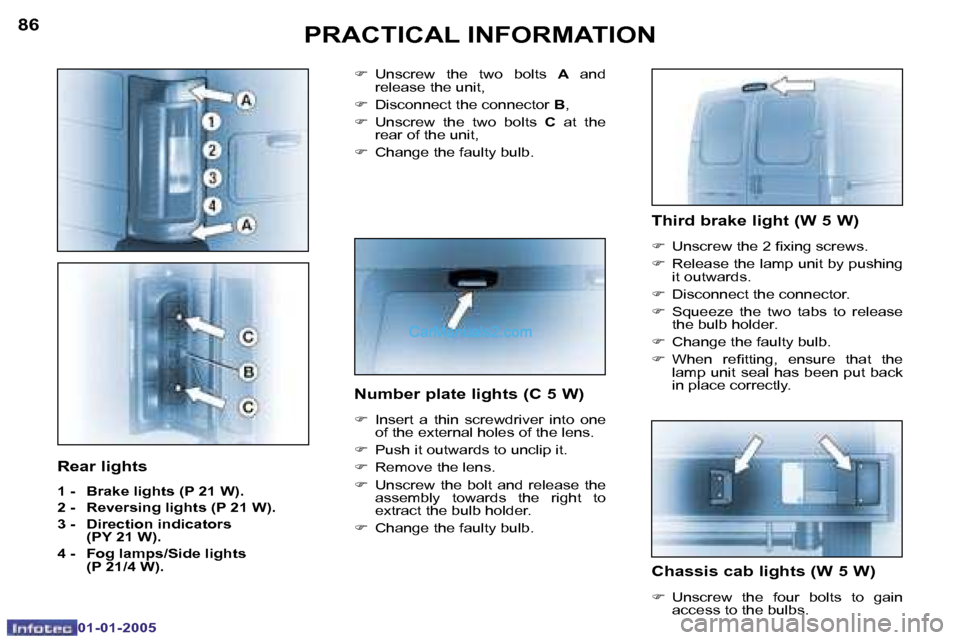

Rear lights
1 - Brake lights (P 21 W).
2 - Reversing lights (P 21 W).
3 - Direction indicators (PY 21 W).
4 - Fog lamps/Side lights (P 21/4 W). F
Unscrew the two bolts A and
release the unit,
F Disconnect the connector B,
F Unscrew the two bolts C at the
rear of the unit,
F Change the faulty bulb.
Number plate lights (C 5 W)
F Insert a thin screwdriver into one
of the external holes of the lens.
F Push it outwards to unclip it.
F Remove the lens.
F
Unscrew the bolt and release the
assembly towards the right to
extract the bulb holder.
F Change the faulty bulb.
Chassis cab lights (W 5 W)
F Unscrew the four bolts to gain
access to the bulbs.
PRACTICAL INFORMATION

86
01-01-2005
87
01-01-2005
CHANGING A FUSE
The fuse boxes are located in the
lower part of the fascia (left and right
hand side) and in the engine com-
partment.
The spare fuses and special pliers A
are ixed to the inside of the lids of
the fascia panel fuse boxes.
Fascia panel fuses
F Unscrew the bolts then tilt the
cover to access the fuses. Correct
Incorrect Pliers A
Removing and changing a fuse
Before changing a fuse, you must
establish the cause of the fault and
have it corrected. The fuse numbers
are indicated on the fuse boxes.
F Use the special pliers A. Always change a faulty fuse for
one of the same rating.
PRACTICAL INFORMATION

90
01-01-2005
91
01-01-2005
Engine compartment fuse box
Fuse box
To gain access to the fuses in the
engine compartment:
F unclip the cover.
Close the cover carefully when
you have inished. The electrical system of your
vehicle is designed to oper-
ate with standard or optional
equipment.
Before installing other elec-
trical equipment or accessories on
your vehicle, contact a PEUGEOT
dealer.
PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying the mal-
functions resulting from the installa-
tion of accessories not supplied and
not recommended by PEUGEOT and
not installed in accordance with its
instructions, in particular where the
equipment in question consumes
more than 10 milliamperes.
* The maxi-fuses provide additional protection for the electrical sys-
tems. All work must be carried out
by a PEUGEOT dealer.
PRACTICAL INFORMATION
