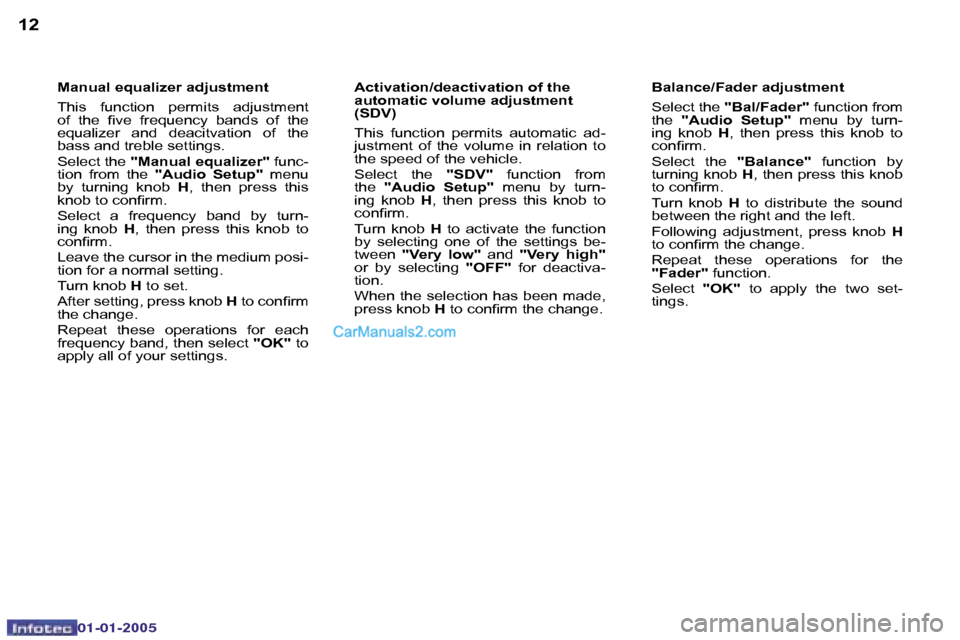

Manual equalizer adjustment
This function permits adjustment
of the ive frequency bands of the
equalizer and deacitvation of the
bass and treble settings.
Select the "Manual equalizer" func-
tion from the "Audio Setup" menu
by turning knob H, then press this
knob to conirm.
Select a frequency band by turn-
ing knob H, then press this knob to
conirm.
Leave the cursor in the medium posi-
tion for a normal setting.
Turn knob H to set.
After setting, press knob H to conirm
the change.
Repeat these operations for each
frequency band, then select "OK" to
apply all of your settings. Activation/deactivation of the
automatic volume adjustment
(SDV)
This function permits automatic ad-
justment of the volume in relation to
the speed of the vehicle.
Select the
"SDV" function from
the "Audio Setup" menu by turn-
ing knob H, then press this knob to
conirm.
Turn knob H to activate the function
by selecting one of the settings be-
tween "Very low" and "Very high"
or by selecting "OFF" for deactiva-
tion.
When the selection has been made,
press knob H to conirm the change. Balance/Fader adjustment
Select the
"Bal/Fader" function from
the "Audio Setup" menu by turn-
ing knob H, then press this knob to
conirm.
Select the "Balance" function by
turning knob H, then press this knob
to conirm.
Turn knob H to distribute the sound
between the right and the left.
Following adjustment, press knob H
to conirm the change.
Repeat these operations for the
"Fader" function.
Select "OK" to apply the two set-
tings.
01 -01 -200 5

12
02-08-2004
13

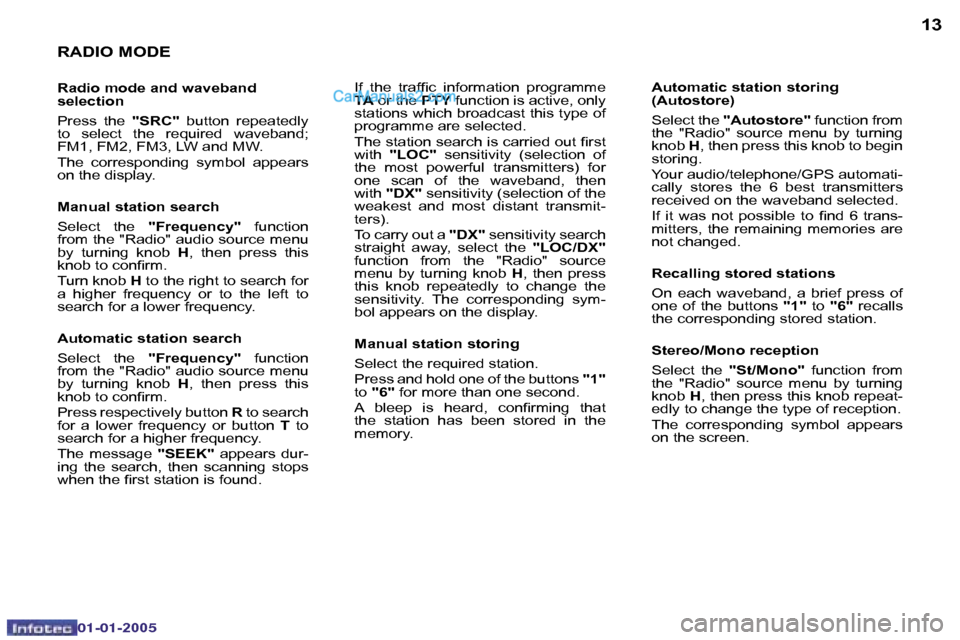

RADIO MODE
Radio mode and waveband
selection
Press the "SRC" button repeatedly
to select the required waveband;
FM1, FM2, FM3, LW and MW.
The corresponding symbol appears
on the display.
Manual station search
Select the "Frequency" function
from the "Radio" audio source menu
by turning knob H, then press this
knob to conirm.
Turn knob H to the right to search for
a higher frequency or to the left to
search for a lower frequency.
Automatic station search
Select the "Frequency" function
from the "Radio" audio source menu
by turning knob H, then press this
knob to conirm.
Press respectively button R to search
for a lower frequency or button T to
search for a higher frequency.
The message "SEEK" appears dur-
ing the search, then scanning stops
when the irst station is found. If the trafic information programme
TA
or the PTY function is active, only
stations which broadcast this type of
programme are selected.
The station search is carried out irst
with "LOC" sensitivity (selection of
the most powerful transmitters) for
one scan of the waveband, then
with "DX" sensitivity (selection of the
weakest and most distant transmit-
ters).
To carry out a "DX" sensitivity search
straight away, select the "LOC/DX"
function from the "Radio" source
menu by turning knob H, then press
this knob repeatedly to change the
sensitivity. The corresponding sym-
bol appears on the display.
Manual station storing
Select the required station.
Press and hold one of the buttons "1"
to "6" for more than one second.
A bleep is heard, conirming that
the station has been stored in the
memory. Automatic station storing
(Autostore)
Select the
"Autostore" function from
the "Radio" source menu by turning
knob H, then press this knob to begin
storing.
Your audio/telephone/GPS automati-
cally stores the 6 best transmitters
received on the waveband selected.
If it was not possible to ind 6 trans-
mitters, the remaining memories are
not changed.
Recalling stored stations
On each waveband, a brief press of
one of the buttons "1" to "6" recalls
the corresponding stored station.
Stereo/Mono reception
Select the "St/Mono" function from
the "Radio" source menu by turning
knob H, then press this knob repeat-
edly to change the type of reception.
The corresponding symbol appears
on the screen.
01 -01 -200 5

1415
02-08-2004

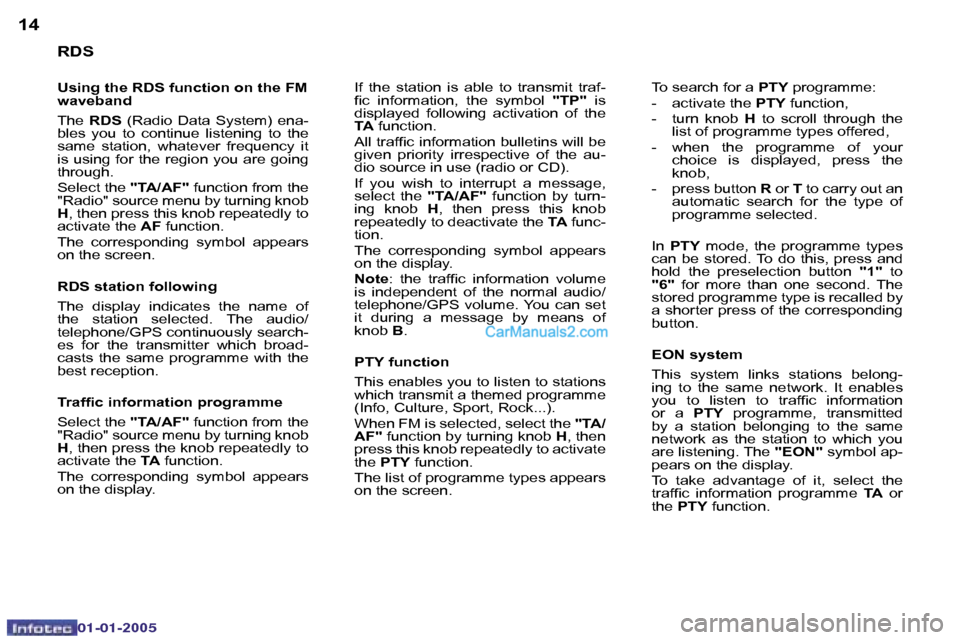

RDS
Using the RDS function on the FM
waveband
The RDS (Radio Data System) ena-
bles you to continue listening to the
same station, whatever frequency it
is using for the region you are going
through.
Select the "TA/AF" function from the
"Radio" source menu by turning knob
H , then press this knob repeatedly to
activate the AF function.
The corresponding symbol appears
on the screen.
RDS station following
The display indicates the name of
the station selected. The audio/
telephone/GPS continuously search-
es for the transmitter which broad-
casts the same programme with the
best reception.
Trafic information programme
Select the "TA/AF" function from the
"Radio" source menu by turning knob
H , then press the knob repeatedly to
activate the TA function.
The corresponding symbol appears
on the display. If the station is able to transmit traf-
ic information, the symbol
"TP" is
displayed following activation of the
TA function.
All trafic information bulletins will be
given priority irrespective of the au-
dio source in use (radio or CD).
If you wish to interrupt a message,
select the "TA/AF" function by turn-
ing knob H, then press this knob
repeatedly to deactivate the TA func-
tion.
The corresponding symbol appears
on the display.
Note : the trafic information volume
is independent of the normal audio/
telephone/GPS volume. You can set
it during a message by means of
knob B.
PTY function
This enables you to listen to stations
which transmit a themed programme
(Info, Culture, Sport, Rock...).
When FM is selected, select the "TA/
AF" function by turning knob H, then
press this knob repeatedly to activate
the PTY function.
The list of programme types appears
on the screen. To search for a
PTY programme:
- activate the PTY function,
- turn knob H to scroll through the
list of programme types offered,
- when the programme of your choice is displayed, press the
knob,
- press button R or T to carry out an
automatic search for the type of
programme selected.
In PTY mode, the programme types
can be stored. To do this, press and
hold the preselection button "1" to
"6" for more than one second. The
stored programme type is recalled by
a shorter press of the corresponding
button.
EON system
This system links stations belong-
ing to the same network. It enables
you to listen to trafic information
or a PTY programme, transmitted
by a station belonging to the same
network as the station to which you
are listening. The "EON" symbol ap-
pears on the display.
To take advantage of it, select the
trafic information programme TA or
the PTY function.
01-01 -200 5

14
02-08-2004
15

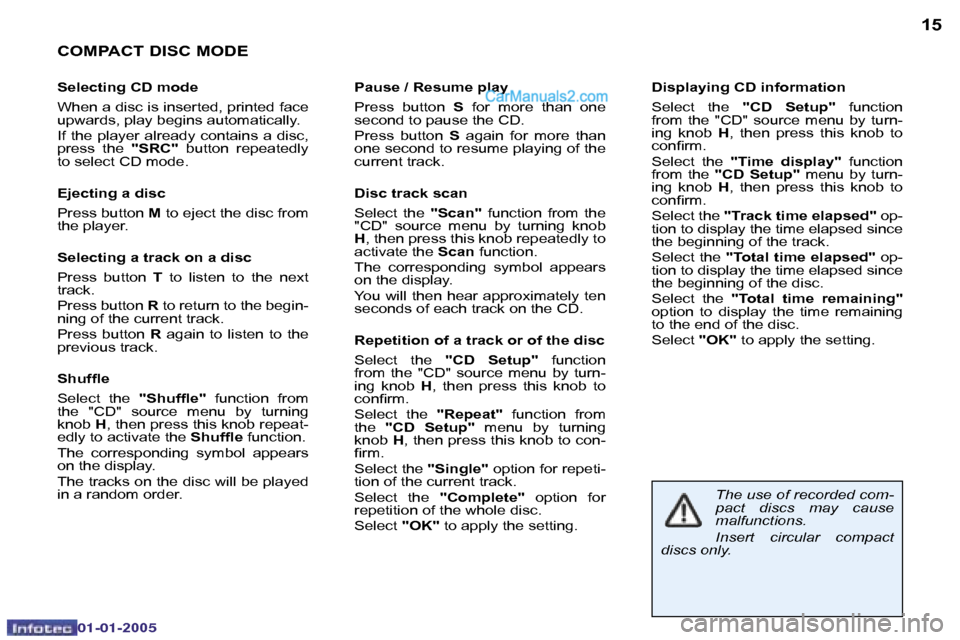

COMPACT DISC MODE
Selecting CD mode
When a disc is inserted, printed face
upwards, play begins automatically.
If the player already contains a disc,
press the "SRC" button repeatedly
to select CD mode.
Ejecting a disc
Press button M to eject the disc from
the player.
Selecting a track on a disc
Press button T to listen to the next
track.
Press button R to return to the begin-
ning of the current track.
Press button R again to listen to the
previous track.
Shufle
Select the "Shufle" function from
the "CD" source menu by turning
knob H, then press this knob repeat-
edly to activate the Shufle function.
The corresponding symbol appears
on the display.
The tracks on the disc will be played
in a random order. Pause / Resume play
Press button
S for more than one
second to pause the CD.
Press button S again for more than
one second to resume playing of the
current track.
Disc track scan
Select the "Scan" function from the
"CD" source menu by turning knob
H , then press this knob repeatedly to
activate the Scan function.
The corresponding symbol appears
on the display.
You will then hear approximately ten
seconds of each track on the CD.
Repetition of a track or of the disc
Select the "CD Setup" function
from the "CD" source menu by turn-
ing knob H, then press this knob to
conirm.
Select the "Repeat" function from
the "CD Setup" menu by turning
knob H, then press this knob to con-
irm.
Select the "Single" option for repeti-
tion of the current track.
Select the "Complete" option for
repetition of the whole disc.
Select "OK" to apply the setting. Displaying CD information
Select the
"CD Setup" function
from the "CD" source menu by turn-
ing knob H, then press this knob to
conirm.
Select the "Time display" function
from the "CD Setup" menu by turn-
ing knob H, then press this knob to
conirm.
Select the "Track time elapsed" op-
tion to display the time elapsed since
the beginning of the track.
Select the "Total time elapsed" op-
tion to display the time elapsed since
the beginning of the disc.
Select the "Total time remaining"
option to display the time remaining
to the end of the disc.
Select "OK" to apply the setting.
The use of recorded com-
pact discs may cause
malfunctions.
Insert circular compact
discs only.
01 -01 -200 5

1617
02-08-2004

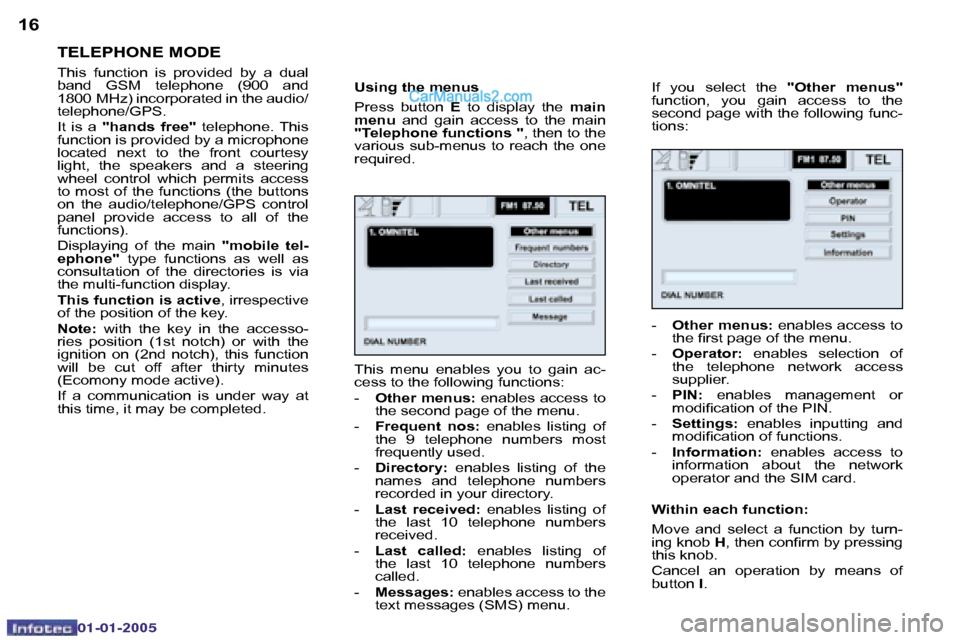

TELEPHONE MODE
This function is provided by a dual
band GSM telephone (900 and
1800 MHz) incorporated in the audio/
telephone/GPS.
It is a "hands free" telephone. This
function is provided by a microphone
located next to the front courtesy
light, the speakers and a steering
wheel control which permits access
to most of the functions (the buttons
on the audio/telephone/GPS control
panel provide access to all of the
functions).
Displaying of the main "mobile tel-
ephone" type functions as well as
consultation of the directories is via
the multi-function display.
This function is active , irrespective
of the position of the key.
Note: with the key in the accesso-
ries position (1st notch) or with the
ignition on (2nd notch), this function
will be cut off after thirty minutes
(Ecomony mode active).
If a communication is under way at
this time, it may be completed. Using the menus
Press button
E to display the main
menu and gain access to the main
"Telephone functions " , then to the
various sub-menus to reach the one
required. If you select the
"Other menus"
function, you gain access to the
second page with the following func-
tions:
This menu enables you to gain ac-
cess to the following functions:
- Other menus: enables access to
the second page of the menu.
- Frequent nos: enables listing of
the 9 telephone numbers most
frequently used.
- Directory: enables listing of the
names and telephone numbers
recorded in your directory.
- Last received: enables listing of
the last 10 telephone numbers
received.
- Last called: enables listing of
the last 10 telephone numbers
called.
- Messages: enables access to the
text messages (SMS) menu. -
Other menus: enables access to
the irst page of the menu.
- Operator: enables selection of
the telephone network access
supplier.
- PIN: enables management or
modiication of the PIN.
- Settings: enables inputting and
modiication of functions.
- Information: enables access to
information about the network
operator and the SIM card.
Within each function:
Move and select a function by turn-
ing knob H, then conirm by pressing
this knob.
Cancel an operation by means of
button I.
01 -01 -200 5

16
02-08-2004
17

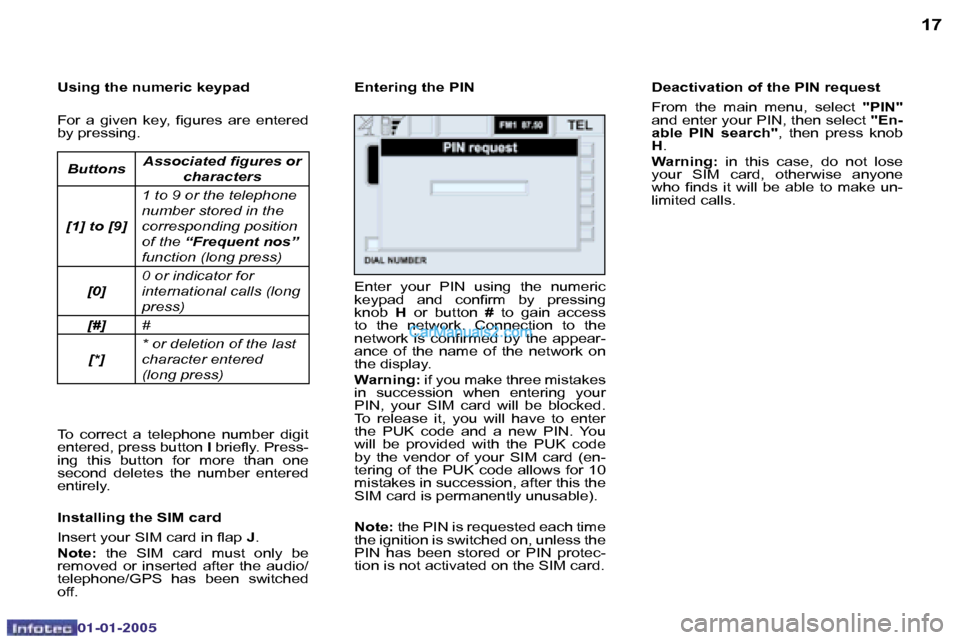

Using the numeric keypad
For a given key, igures are entered
by pressing.Entering the PIN Deactivation of the PIN request
From the main menu, select "PIN"
and enter your PIN, then select "En-
able PIN search" , then press knob
H .
Warning: in this case, do not lose
your SIM card, otherwise anyone
who inds it will be able to make un-
limited calls.
Enter your PIN using the numeric
keypad and conirm by pressing
knob H or button # to gain access
to the network. Connection to the
network is conirmed by the appear-
ance of the name of the network on
the display.
Warning: if you make three mistakes
in succession when entering your
PIN, your SIM card will be blocked.
To release it, you will have to enter
the PUK code and a new PIN. You
will be provided with the PUK code
by the vendor of your SIM card (en-
tering of the PUK code allows for 10
mistakes in succession, after this the
SIM card is permanently unusable).
Note: the PIN is requested each time
the ignition is switched on, unless the
PIN has been stored or PIN protec-
tion is not activated on the SIM card.
To correct a telephone number digit
entered, press button
I briely. Press-
ing this button for more than one
second deletes the number entered
entirely.
Installing the SIM card
Insert your SIM card in lap J.
Note: the SIM card must only be
removed or inserted after the audio/
telephone/GPS has been switched
off.
Buttons Associated igures or
characters
[1] to [9] 1 to 9 or the telephone
number stored in the
corresponding position
of the
“Frequent nos”
function (long press)
[0] 0 or indicator for
international calls (long
press)
[#] #
[*] * or deletion of the last
character entered
(long press)
01
-01 -200 5

1819
02-08-2004

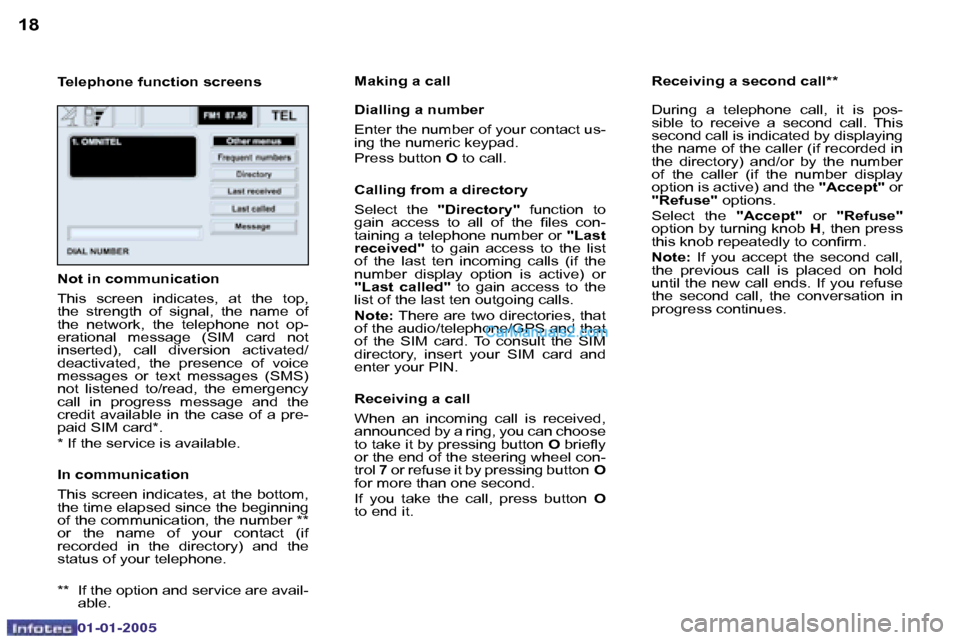

Telephone function screensMaking a call
Dialling a number
Enter the number of your contact us-
ing the numeric keypad.
Press button
O to call.
Calling from a directory
Select the "Directory" function to
gain access to all of the iles con-
taining a telephone number or "Last
received" to gain access to the list
of the last ten incoming calls (if the
number display option is active) or
"Last called" to gain access to the
list of the last ten outgoing calls.
Note: There are two directories, that
of the audio/telephone/GPS and that
of the SIM card. To consult the SIM
directory, insert your SIM card and
enter your PIN.
Receiving a call
When an incoming call is received,
announced by a ring, you can choose
to take it by pressing button O briely
or the end of the steering wheel con-
trol 7 or refuse it by pressing button O
for more than one second.
If you take the call, press button O
to end it. Receiving a second call**
During a telephone call, it is pos-
sible to receive a second call. This
second call is indicated by displaying
the name of the caller (if recorded in
the directory) and/or by the number
of the caller (if the number display
option is active) and the
"Accept" or
"Refuse" options.
Select the "Accept" or "Refuse"
option by turning knob H, then press
this knob repeatedly to conirm.
Note: If you accept the second call,
the previous call is placed on hold
until the new call ends. If you refuse
the second call, the conversation in
progress continues.
Not in communication
This screen indicates, at the top,
the strength of signal, the name of
the network, the telephone not op-
erational message (SIM card not
inserted), call diversion activated/
deactivated, the presence of voice
messages or text messages (SMS)
not listened to/read, the emergency
call in progress message and the
credit available in the case of a pre-
paid SIM card*.
* If the service is available.
In communication
This screen indicates, at the bottom,
the time elapsed since the beginning
of the communication, the number
**
or the name of your contact (if
recorded in the directory) and the
status of your telephone.
** If the option and service are avail- able.
01-01 -200 5

18
02-08-2004
19

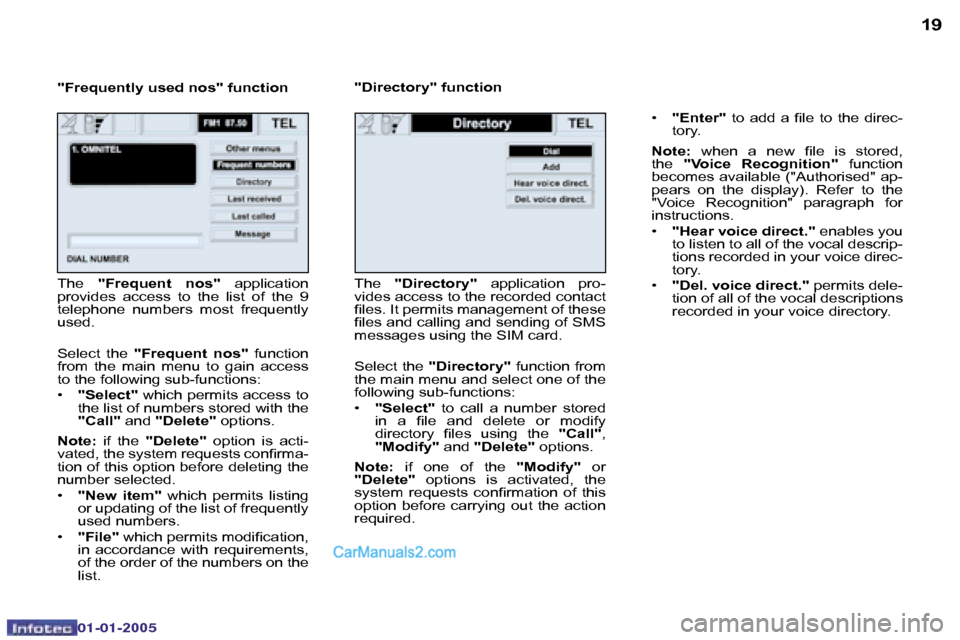

"Frequently used nos" function"Directory" function
• "Enter" to add a ile to the direc-
tory.
Note: when a new ile is stored,
the "Voice Recognition" function
becomes available ("Authorised" ap-
pears on the display). Refer to the
"Voice Recognition" paragraph for
instructions.
• "Hear voice direct." enables you
to listen to all of the vocal descrip-
tions recorded in your voice direc-
tory.
• "Del. voice direct." permits dele-
tion of all of the vocal descriptions
recorded in your voice directory.
The
"Frequent nos" application
provides access to the list of the 9
telephone numbers most frequently
used.
Select the "Frequent nos" function
from the main menu to gain access
to the following sub-functions:
• "Select" which permits access to
the list of numbers stored with the
"Call" and "Delete" options.
Note: if the "Delete" option is acti-
vated, the system requests conirma-
tion of this option before deleting the
number selected.
• "New item" which permits listing
or updating of the list of frequently
used numbers.
• "File" which permits modiication,
in accordance with requirements,
of the order of the numbers on the
list. The
"Directory" application pro-
vides access to the recorded contact
iles. It permits management of these
iles and calling and sending of SMS
messages using the SIM card.
Select the "Directory" function from
the main menu and select one of the
following sub-functions:
• "Select" to call a number stored
in a ile and delete or modify
directory iles using the "Call",
"Modify" and "Delete" options.
Note: if one of the "Modify" or
"Delete" options is activated, the
system requests conirmation of this
option before carrying out the action
required.
01 -01 -200 5
