2005 Peugeot 307 Dag Owner's Manual

124 -
01-06-2005
125
-
01-06-2005

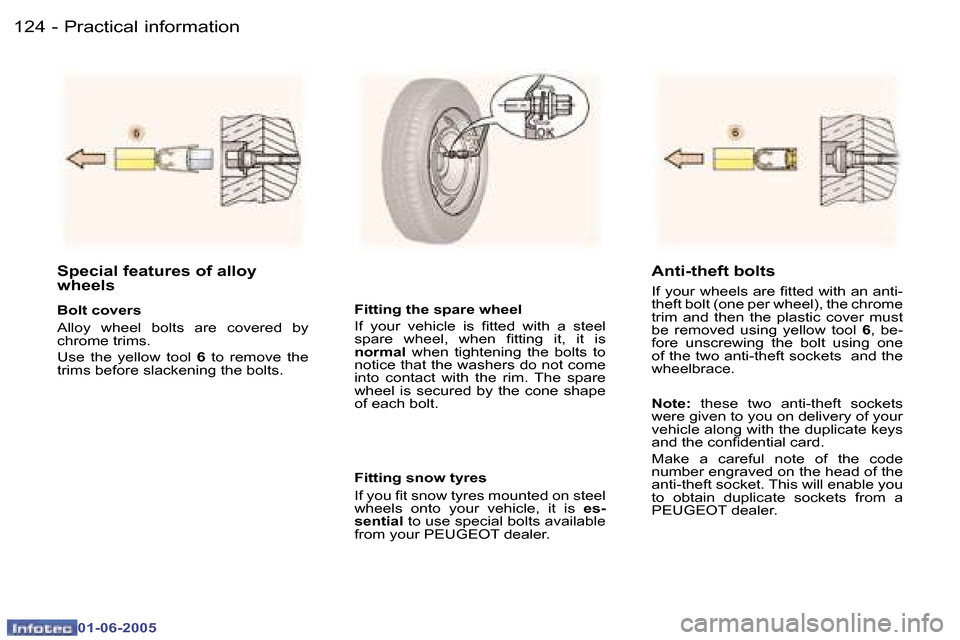

Special features of alloy
wheels
Bolt covers
Alloy wheel bolts are covered by
chrome trims.
Use the yellow tool
6 to remove the
trims before slackening the bolts. Fitting the spare wheel
If your vehicle is itted with a steel
spare wheel, when itting it, it is
normal
when tightening the bolts to
notice that the washers do not come
into contact with the rim. The spare
wheel is secured by the cone shape
of each bolt.
Anti-theft bolts
If your wheels are itted with an anti-
theft bolt (one per wheel), the chrome
trim and then the plastic cover must
be removed using yellow tool 6, be-
fore unscrewing the bolt using one
of the two anti-theft sockets and the
wheelbrace.
Note: these two anti-theft sockets
were given to you on delivery of your
vehicle along with the duplicate keys
and the conidential card.
Make a careful note of the code
number engraved on the head of the
anti-theft socket. This will enable you
to obtain duplicate sockets from a
PEUGEOT dealer.
Fitting snow tyres
If you it snow tyres mounted on steel
wheels onto your vehicle, it is
es-
sential to use special bolts available
from your PEUGEOT dealer.
Practical information

124 -
01-06-2005
125
-
01-06-2005

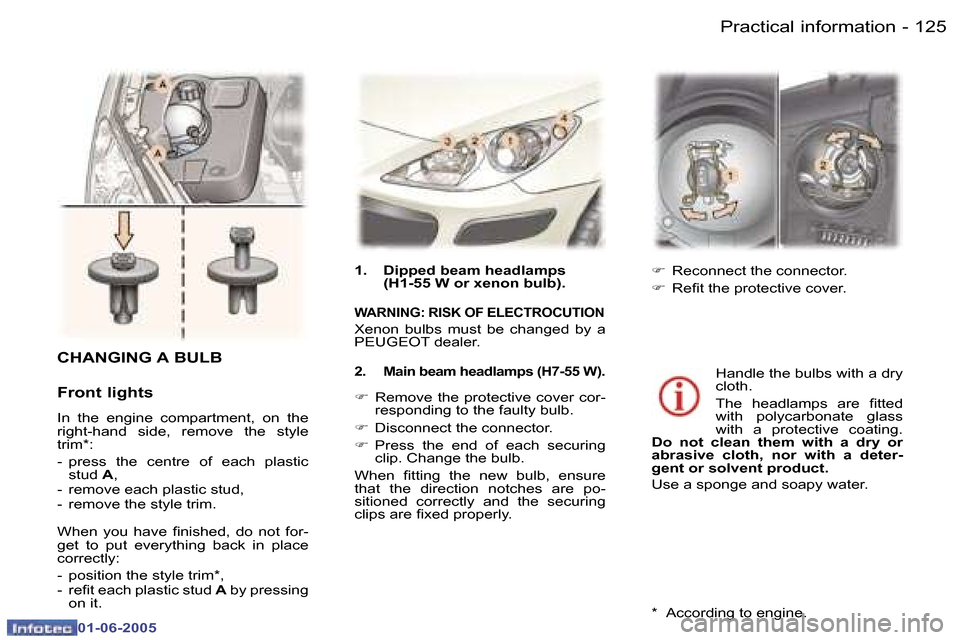

CHANGING A BULB
Front lights
In the engine compartment, on the
right-hand side, remove the style
trim*:
- press the centre of each plastic
stud A,
- remove each plastic stud,
- remove the style trim.
When you have inished, do not for-
get to put everything back in place
correctly:
- position the style trim*,
- reit each plastic stud A by pressing
on it.
Handle the bulbs with a dry
cloth.
The headlamps are itted
with polycarbonate glass
with a protective coating.
Do not clean them with a dry or
abrasive cloth, nor with a deter-
gent or solvent product.
Use a sponge and soapy water.
* According to engine.
1. Dipped beam headlamps
(H1-55 W or xenon bulb).
WARNING: RISK OF ELECTROCUTION
Xenon bulbs must be changed by a
PEUGEOT dealer.
2. Main beam headlamps (H7-55 W).
F Remove the protective cover cor-
responding to the faulty bulb.
F Disconnect the connector.
F Press the end of each securing
clip. Change the bulb.
When itting the new bulb, ensure
that the direction notches are po-
sitioned correctly and the securing
clips are ixed properly. F
Reconnect the connector.
F Reit the protective cover.
Practical information

126 -
01-06-2005
127
-
01-06-2005

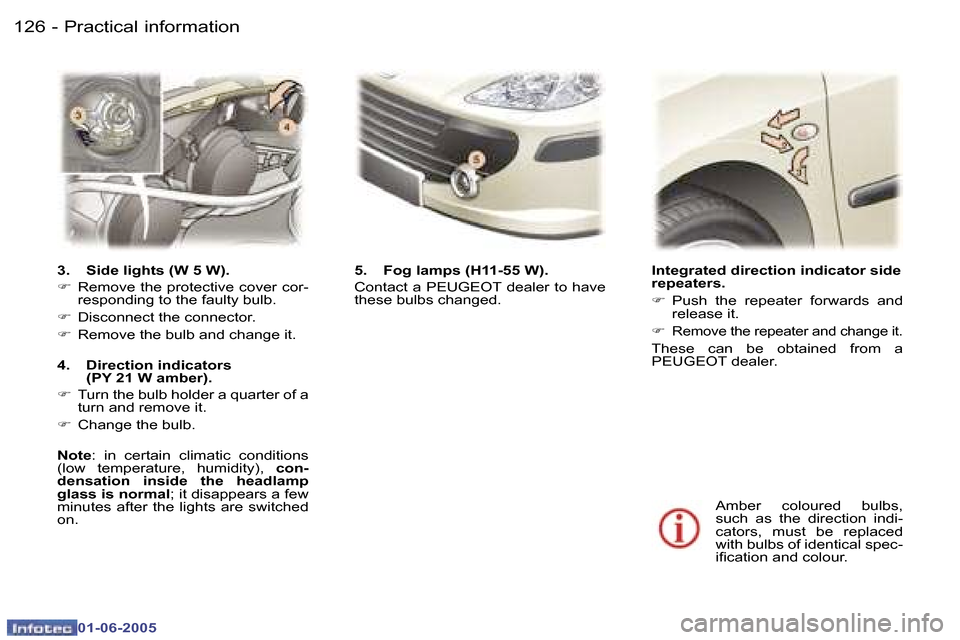

Integrated direction indicator side
repeaters.
F
Push the repeater forwards and
release it.
F Remove the repeater and change it.
These can be obtained from a
PEUGEOT dealer.
Amber coloured bulbs,
such as the direction indi-
cators, must be replaced
with bulbs of identical spec-
iication and colour.
3. Side lights (W 5 W).
F
Remove the protective cover cor-
responding to the faulty bulb.
F Disconnect the connector.
F Remove the bulb and change it.
4. Direction indicators (PY 21 W amber).
F Turn the bulb holder a quarter of a
turn and remove it.
F Change the bulb.
Note : in certain climatic conditions
(low temperature, humidity), con-
densation inside the headlamp
glass is normal ; it disappears a few
minutes after the lights are switched
on. 5. Fog lamps (H11-55 W).
Contact a PEUGEOT dealer to have
these bulbs changed.
Practical information

126 -
01-06-2005
127
-
01-06-2005

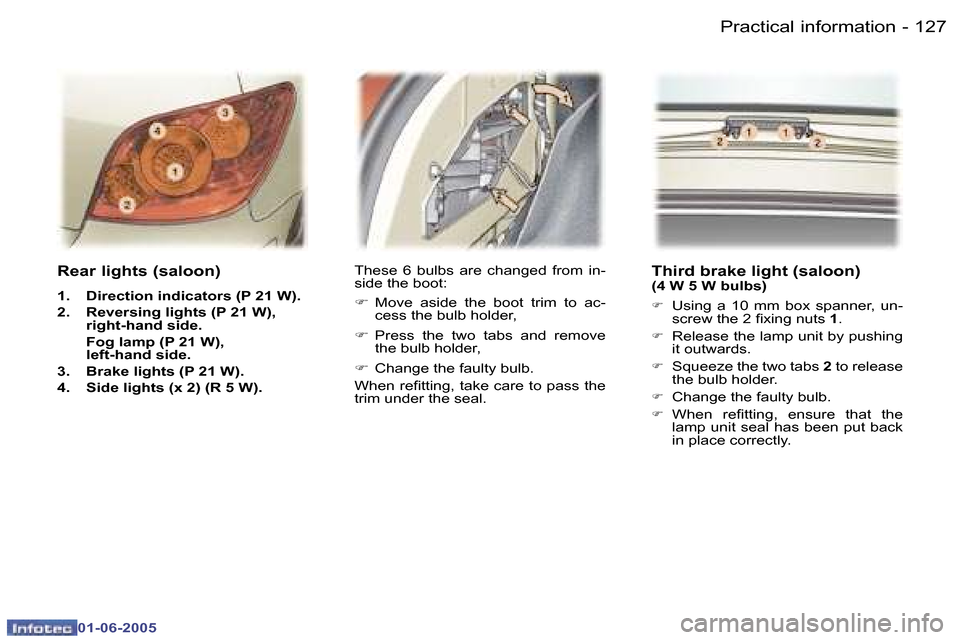

Rear lights (saloon)
1. Direction indicators (P 21 W).
2. Reversing lights (P 21 W),
right-hand side.
Fog lamp (P 21 W), left-hand side.
3. Brake lights (P 21 W).
4. Side lights (x 2) (R 5 W).
Third brake light (saloon)(4 W 5 W bulbs)
F Using a 10 mm box spanner, un- screw the 2 ixing nuts 1.
F Release the lamp unit by pushing
it outwards.
F Squeeze the two tabs 2 to release
the bulb holder.
F Change the faulty bulb.
F When reitting, ensure that the lamp unit seal has been put back
in place correctly.
These 6 bulbs are changed from in-
side the boot:
F Move aside the boot trim to ac-
cess the bulb holder,
F Press the two tabs and remove
the bulb holder,
F Change the faulty bulb.
When reitting, take care to pass the
trim under the seal.
Practical information

128 -
01-06-2005
129
-
01-06-2005

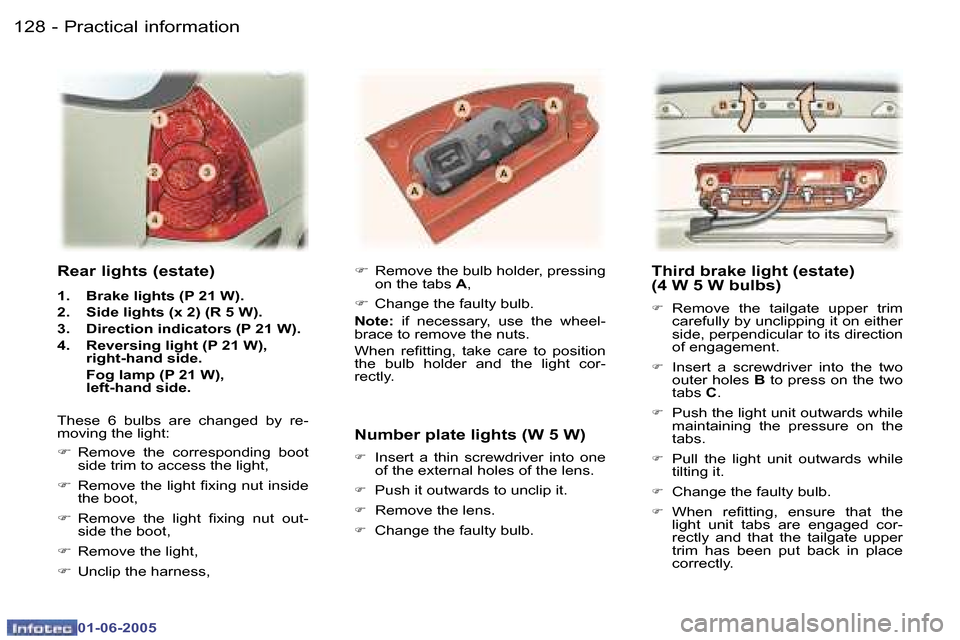

Third brake light (estate)
(4 W 5 W bulbs)
F
Remove the tailgate upper trim
carefully by unclipping it on either
side, perpendicular to its direction
of engagement.
F Insert a screwdriver into the two
outer holes B to press on the two
tabs C.
F Push the light unit outwards while
maintaining the pressure on the
tabs.
F Pull the light unit outwards while tilting it.
F Change the faulty bulb.
F When reitting, ensure that the light unit tabs are engaged cor-
rectly and that the tailgate upper
trim has been put back in place
correctly.
Rear lights (estate)
1. Brake lights (P 21 W).
2. Side lights (x 2) (R 5 W).
3. Direction indicators (P 21 W).
4. Reversing light (P 21 W), right-hand side.
Fog lamp (P 21 W), left-hand side.
These 6 bulbs are changed by re-
moving the light:
F Remove the corresponding boot
side trim to access the light,
F Remove the light ixing nut inside
the boot,
F Remove the light ixing nut out-
side the boot,
F Remove the light,
F Unclip the harness, F
Remove the bulb holder, pressing
on the tabs A,
F Change the faulty bulb.
Note: if necessary, use the wheel-
brace to remove the nuts.
When reitting, take care to position
the bulb holder and the light cor-
rectly.
Number plate lights (W 5 W)
F Insert a thin screwdriver into one of the external holes of the lens.
F Push it outwards to unclip it.
F Remove the lens.
F Change the faulty bulb.
Practical information

128 -
01-06-2005
129
-
01-06-2005

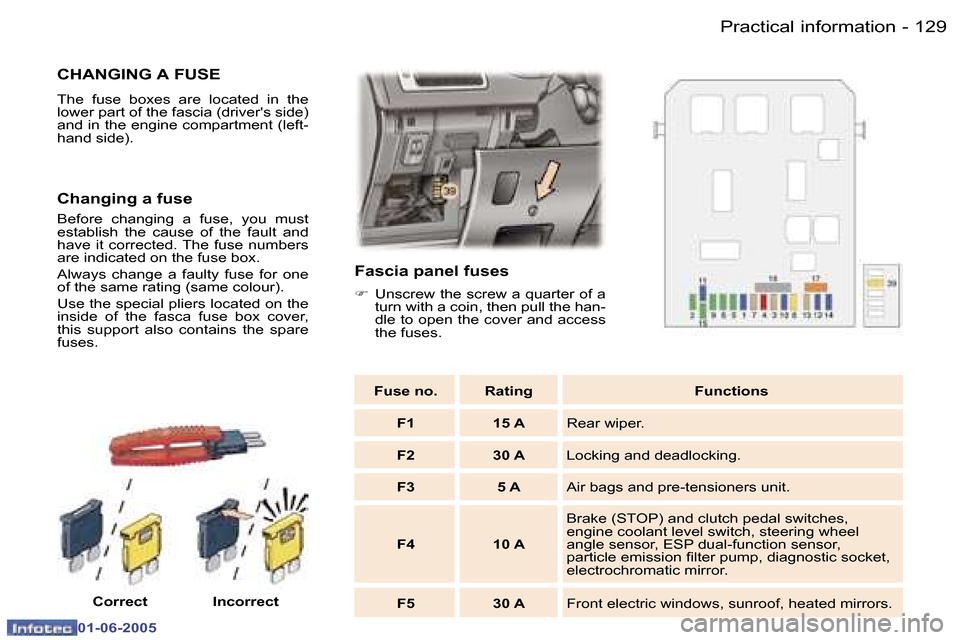

CHANGING A FUSE
The fuse boxes are located in the
lower part of the fascia (driver's side)
and in the engine compartment (left-
hand side).
Correct Incorrect
Fascia panel fuses
F Unscrew the screw a quarter of a
turn with a coin, then pull the han-
dle to open the cover and access
the fuses.
Fuse no. Rating Functions F1 15 A Rear wiper.
F2 30 A Locking and deadlocking.
F3 5 A Air bags and pre-tensioners unit.
F4 10 A Brake (STOP) and clutch pedal switches,
engine coolant level switch, steering wheel
angle sensor, ESP dual-function sensor,
particle emission ilter pump, diagnostic socket,
electrochromatic mirror.
F5 30 A Front electric windows, sunroof, heated mirrors.
Changing a fuse
Before changing a fuse, you must
establish the cause of the fault and
have it corrected. The fuse numbers
are indicated on the fuse box.
Always change a faulty fuse for one
of the same rating (same colour).
Use the special pliers located on the
inside of the fasca fuse box cover,
this support also contains the spare
fuses.
Practical information

130 -
01-06-2005
131
-
01-06-2005

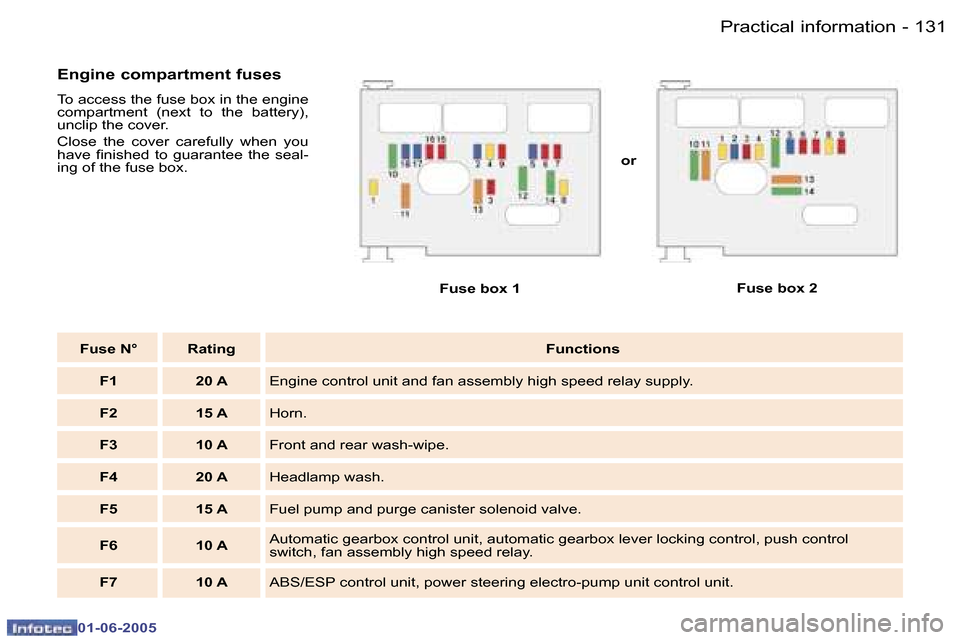

Engine compartment fuses
To access the fuse box in the engine
compartment (next to the battery),
unclip the cover.
Close the cover carefully when you
have inished to guarantee the seal-
ing of the fuse box.
Fuse box 2
Fuse N° RatingFunctions
F1 20 A Engine control unit and fan assembly high speed relay supply.
F2 15 A Horn.
F3 10 A Front and rear wash-wipe.
F4 20 A Headlamp wash.
F5 15 A Fuel pump and purge canister solenoid valve.
F6 10 A Automatic gearbox control unit, automatic gearbox lever locking con
trol, push control
switch, fan assembly high speed relay.
F7 10 A ABS/ESP control unit, power steering electro-pump unit control unit .
or
Fuse box 1
Practical information

132 -
01-06-2005
133
-
01-06-2005

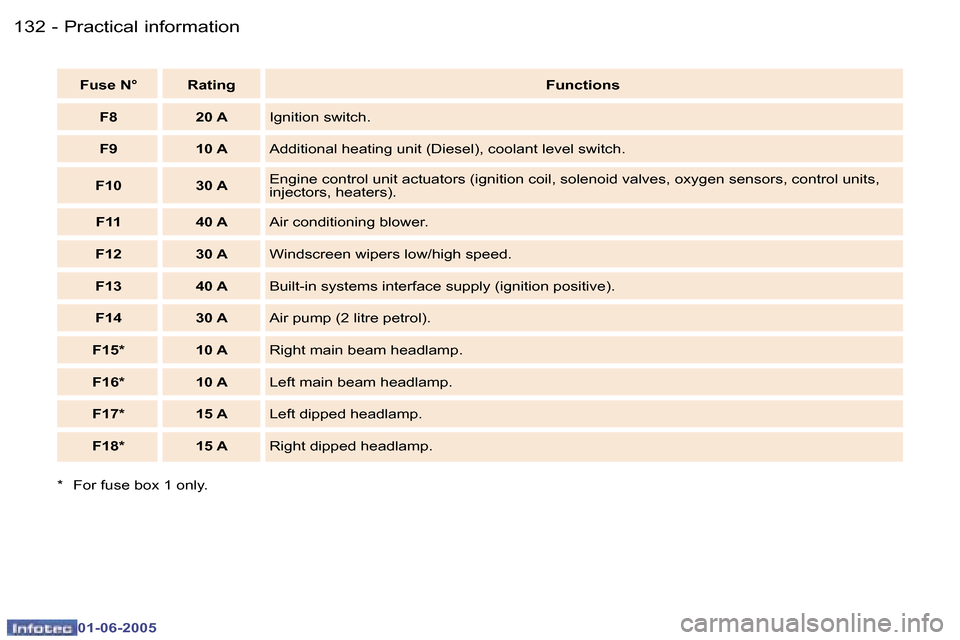

Fuse N° Rating
Functions
F8 20 A Ignition switch.
F9 10 A Additional heating unit (Diesel), coolant level switch.
F10 30 A Engine control unit actuators (ignition coil, solenoid valves,
oxygen sensors, control units,
injectors, heaters).
F11 40 A Air conditioning blower.
F12 30 A Windscreen wipers low/high speed.
F13 40 A Built-in systems interface supply (ignition positive).
F14 30 A Air pump (2 litre petrol).
F15* 10 A Right main beam headlamp.
F16* 10 A Left main beam headlamp.
F17* 15 A Left dipped headlamp.
F18* 15 A Right dipped headlamp.
* For fuse box 1 only.
Practical information
