2005 Peugeot 307 Break Owner's Manual

901-06-200501-06-2005

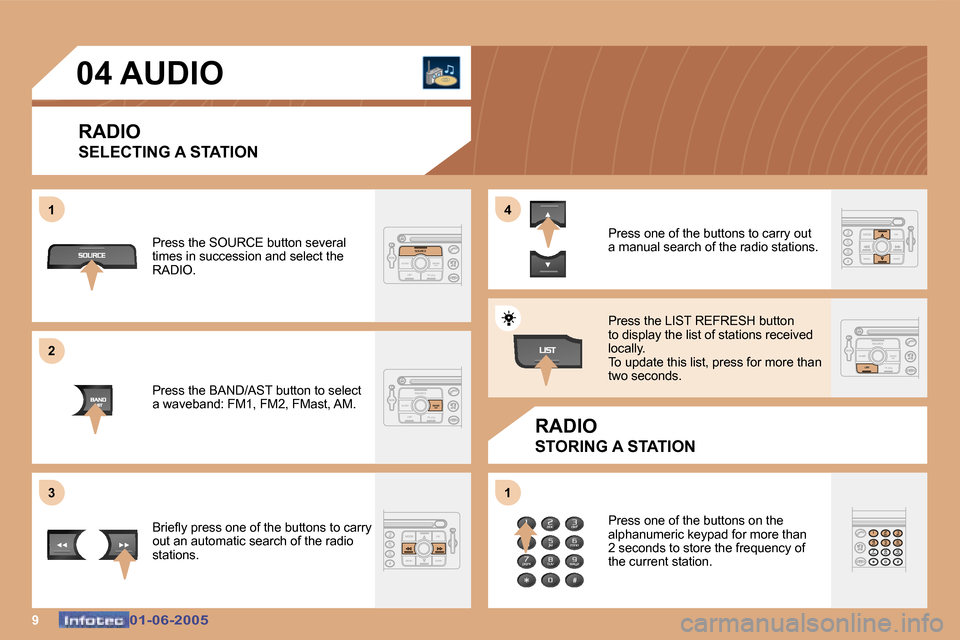

04 AUDIORADIO
SELECTING A STATION
RADIO
STORING A STATION
Press the SOURCE button several
times in succession and select the
RADIO.
Press the BAND/AST button to select
a waveband: FM1, FM2, FMast, AM.
Briely press one of the buttons to carry
out an automatic search of the radio
stations.
Press one of the buttons on the
alphanumeric keypad for more than
2 seconds to store the frequency of
the current station.
1
2
3
4
1
Press one of the buttons to carry out
a manual search of the radio stations.
Press the LIST REFRESH button
to display the list of stations received
locally.
To update this list, press for more than
two seconds.

1001-06-200501-06-2005

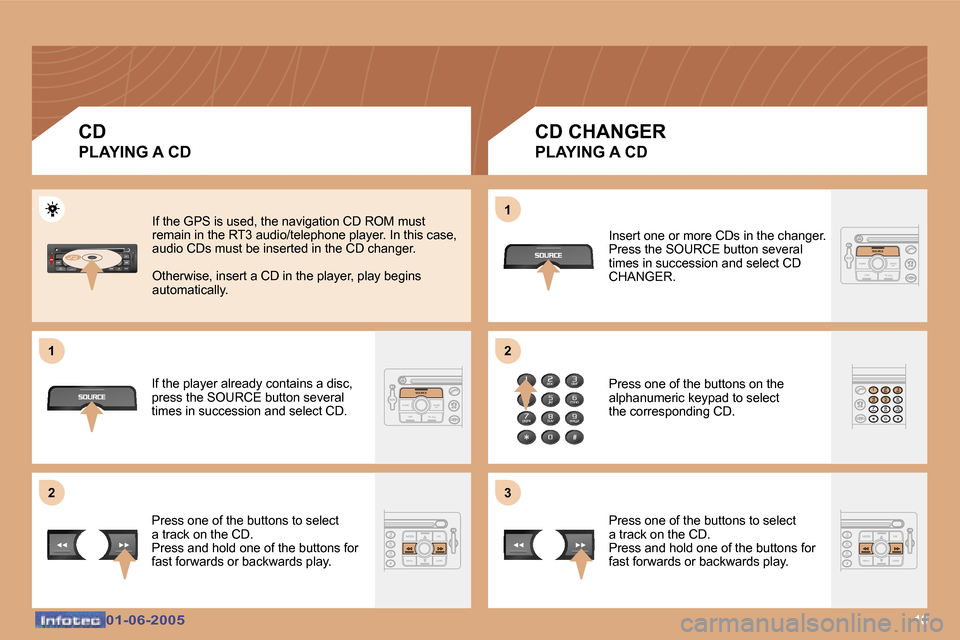

CD
PLAYING A CDCD CHANGER
PLAYING A CD
If the GPS is used, the navigation CD ROM must
remain in the RT3 audio/telephone player. In this c ase,
audio CDs must be inserted in the CD changer.
Otherwise, insert a CD in the player, play begins
automatically.
If the player already contains a disc,
press the SOURCE button several
times in succession and select CD.
Press one of the buttons to select
a track on the CD.
Press and hold one of the buttons for
fast forwards or backwards play. Insert one or more CDs in the changer.
Press the SOURCE button several
times in succession and select CD
CHANGER.
Press one of the buttons on the
alphanumeric keypad to select
the corresponding CD.
Press one of the buttons to select
a track on the CD.
Press and hold one of the buttons for
fast forwards or backwards play.
1
2 1
2
3

1101-06-200501-06-2005

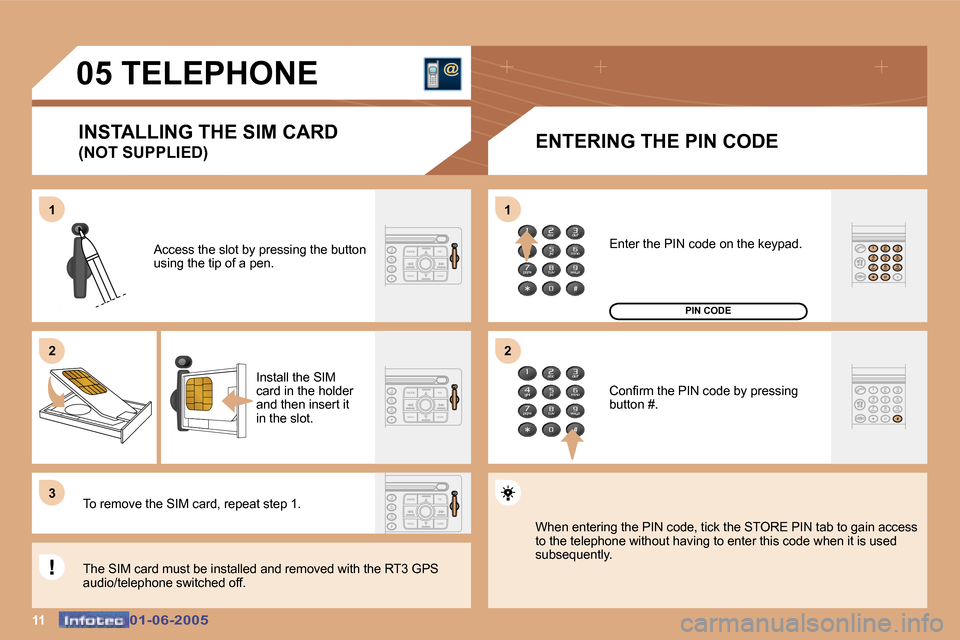

05 TELEPHONEINSTALLING THE SIM CARD
(NOT SUPPLIED) ENTERING THE PIN CODE
Access the slot by pressing the button
using the tip of a pen.
Install the SIM
card in the holder
and then insert it
in the slot.
To remove the SIM card, repeat step 1.
The SIM card must be installed and removed with the RT3 GPS
audio/telephone switched off. Enter the PIN code on the keypad.
Conirm the PIN code by pressing
button #.
PIN CODE
1
2
3 1
2
When entering the PIN code, tick the STORE PIN tab to gain access
to the telephone without having to enter this code when it is used
subsequently.

1201-06-200501-06-2005
Press the menu button.Turn the dial and select TELEMATICS.
Then TELEPHONE FUNCTIONS.
Press the dial to conirm the selection.
Press the dial to conirm the selection.
1
2
3
4 7Turn the dial and select the MANAGE
PIN CODE function.
Then conirm the selection.
MANAGE PIN CODE
Turn the dial and select ACTIVATE or
DEACTIVATE.
DEACTIVATE

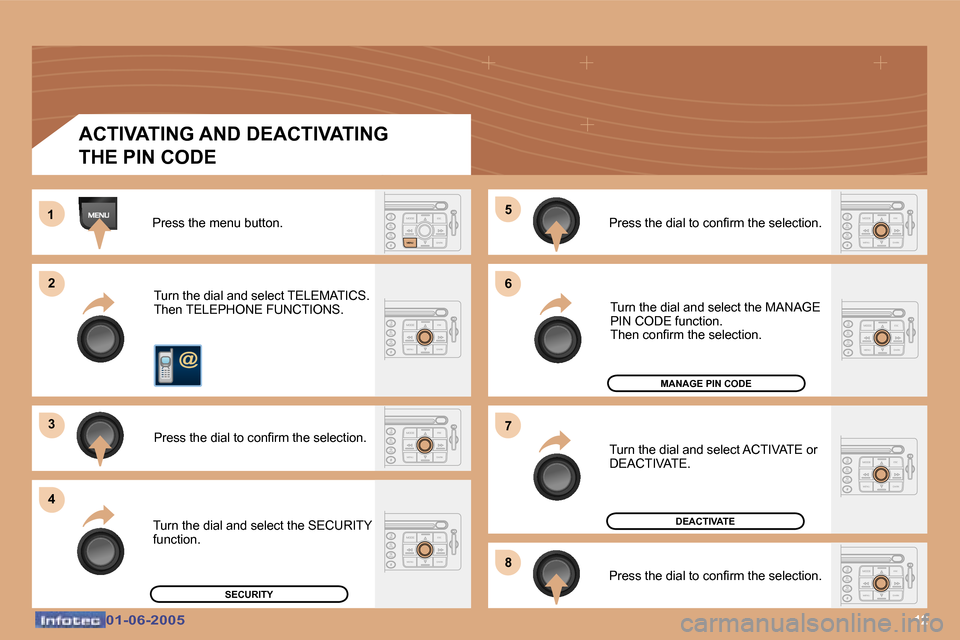

ACTIVATING AND DEACTIVATING
THE PIN CODE
Press the dial to conirm the selection.
5
6
Turn the dial and select the SECURITY
function.
SECURITY 8

5
6
1
1
1301-06-200501-06-2005

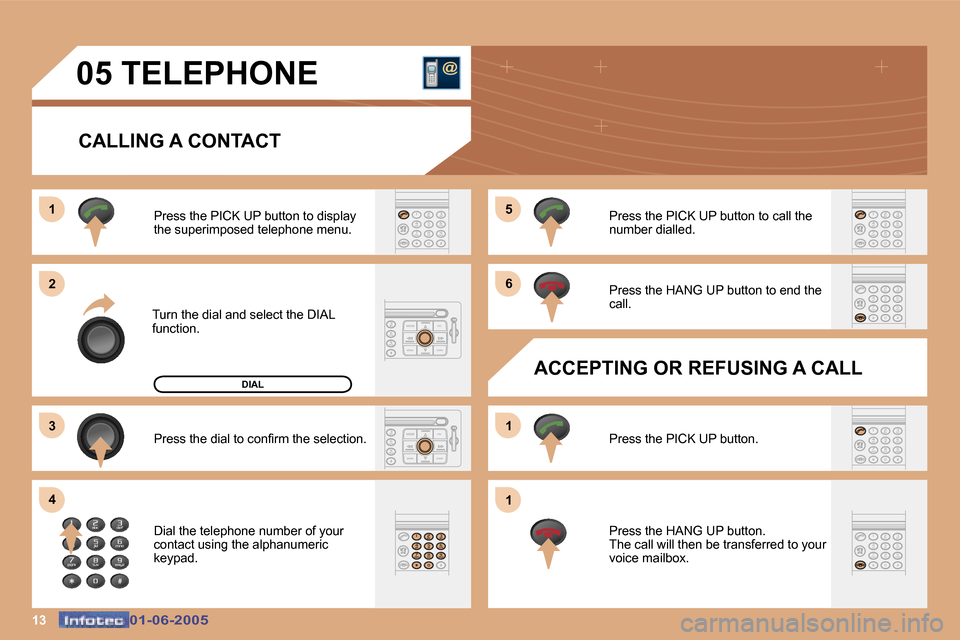

05 TELEPHONECALLING A CONTACT
Turn the dial and select the DIAL
function.Press the PICK UP button to display
the superimposed telephone menu.
Press the dial to conirm the selection.
Dial the telephone number of your
contact using the alphanumeric
keypad. Press the PICK UP button to call the
number dialled.
Press the HANG UP button to end the
call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button.
Press the HANG UP button.
The call will then be transferred to your
voice mailbox.
DIAL
1
2
3
4

1401-06-200501-06-2005
Turn the dial and select the
MAILBOX function.Press the PICK UP button.
Press the dial to conirm the selection.

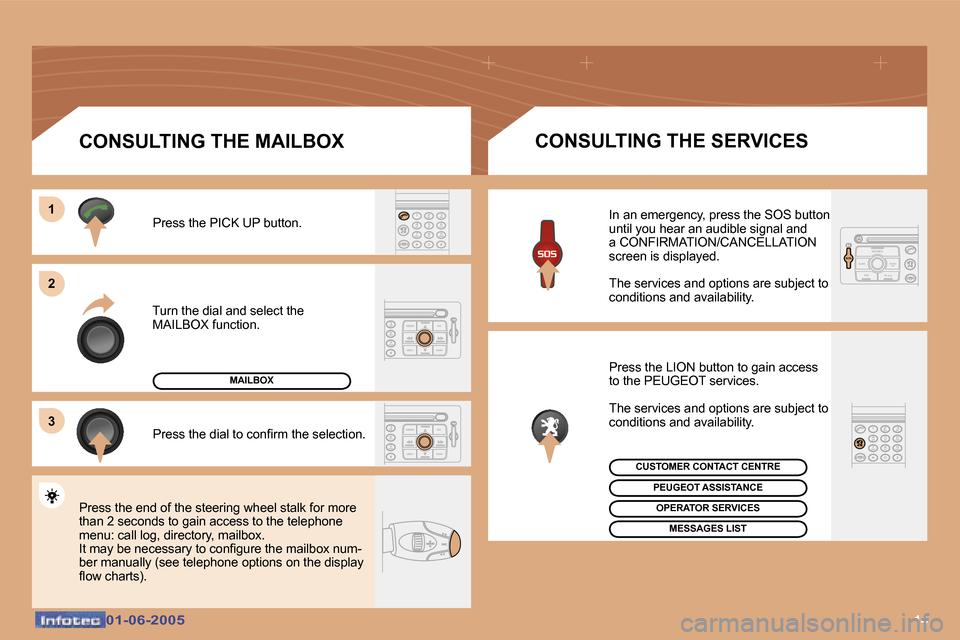

CONSULTING THE MAILBOX
CONSULTING THE SERVICES
Press the LION button to gain access
to the PEUGEOT services.
The services and options are subject to
conditions and availability.
In an emergency, press the SOS button
until you hear an audible signal and
a CONFIRMATION/CANCELLATION
screen is displayed.
The services and options are subject to
conditions and availability.
MAILBOX
OPERATOR SERVICES
PEUGEOT ASSISTANCE
CUSTOMER CONTACT CENTRE
1
2
3
Press the end of the steering wheel stalk for more
than 2 seconds to gain access to the telephone
menu: call log, directory, mailbox.
It may be necessary to conigure the mailbox num-
ber manually (see telephone options on the display
low charts).
MESSAGES LIST

1501-06-200501-06-2005
RADIO: selection of a higher stored station.
CD CHANGER: selection of the next CD.
Selection of the next item on a menu.
RADIO: selection of a lower stored station.
CD CHANGER: selection of the previous CD.
Selection of the previous item on a menu.RADIO: automatic search for a higher frequency.
CD/CD CHANGER: selection of the next track
Continuous press: fast forwards play.
RADIO: automatic search for a lower frequency.
CD/CD CHANGER: selection of the previous track.
Continuous press: fast backwards play. - Change of sound source.
- Conirmation of a selection.
- Pick up/Hang up the telephone.
- Press for more than 2 seconds:
access to the telephone menu.
Volume increase.
Volume decrease.

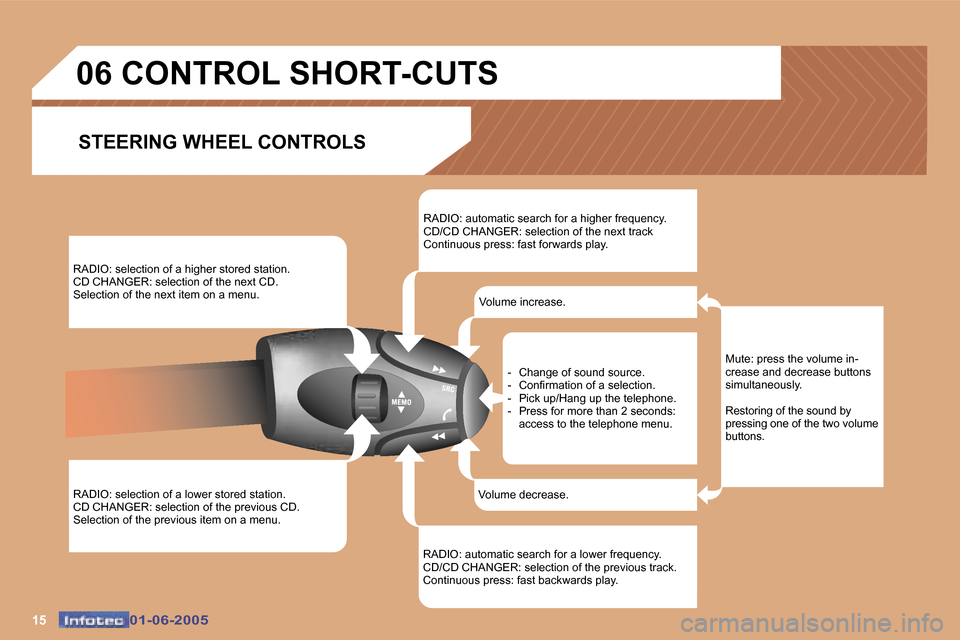

06 CONTROL SHORT-CUTS
STEERING WHEEL CONTROLS
Mute: press the volume in-
crease and decrease buttons
simultaneously.
Restoring of the sound by
pressing one of the two volume
buttons.

1601-06-200501-06-2005
Press the end of the lights stalk to start the voice
recognition.
Say the words one by one and wait for the audible
conirmation signal between each word.
The list which follows is not exhaustive. AUDIO
- RADIO then NEXT
- CD PLAYER then NEXT TRACK
- CD CHANGER then NEXT DISK
TELEPHONE
- TELEPHONE then REDIAL
- TELEPHONE then ADDRESS BOOK then WORDING
- TELEPHONE then SOUND BOX
GPS
- NAVIGATION (or GUIDANCE) then SHOW then DESTINATI
ON
- NAVIGATION (or GUIDANCE) then STOP
- NAVIGATION (or GUIDANCE) then ZOOM IN

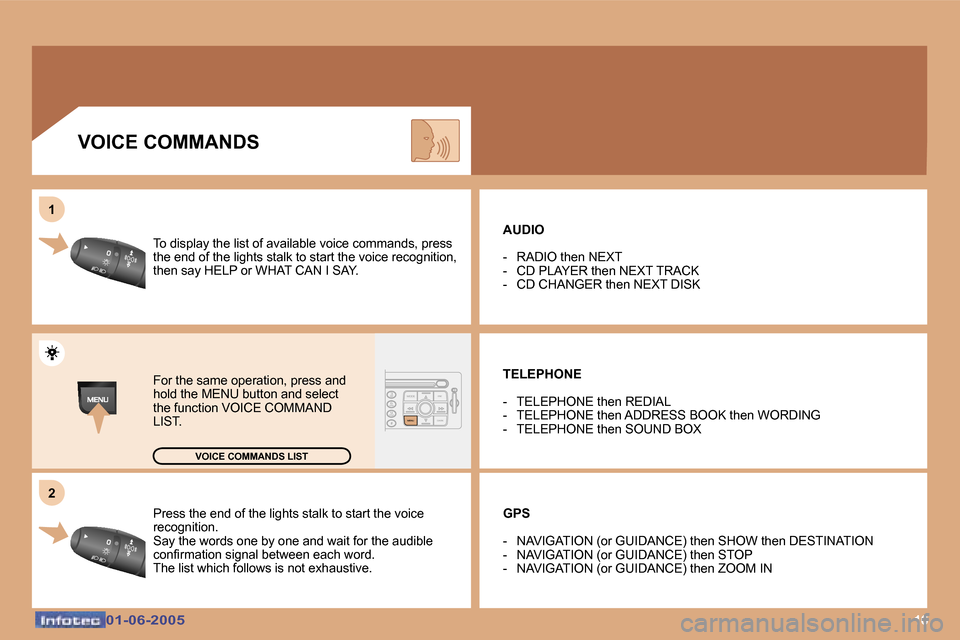

VOICE COMMANDS
2 To display the list of available voice commands, pr
ess
the end of the lights stalk to start the voice reco gnition,
then say HELP or WHAT CAN I SAY.
1
For the same operation, press and
hold the MENU button and select
the function VOICE COMMAND
LIST.
VOICE COMMANDS LIST
