2005 Peugeot 307 Break Dag Owner's Manual

101-06-200501-06-2005

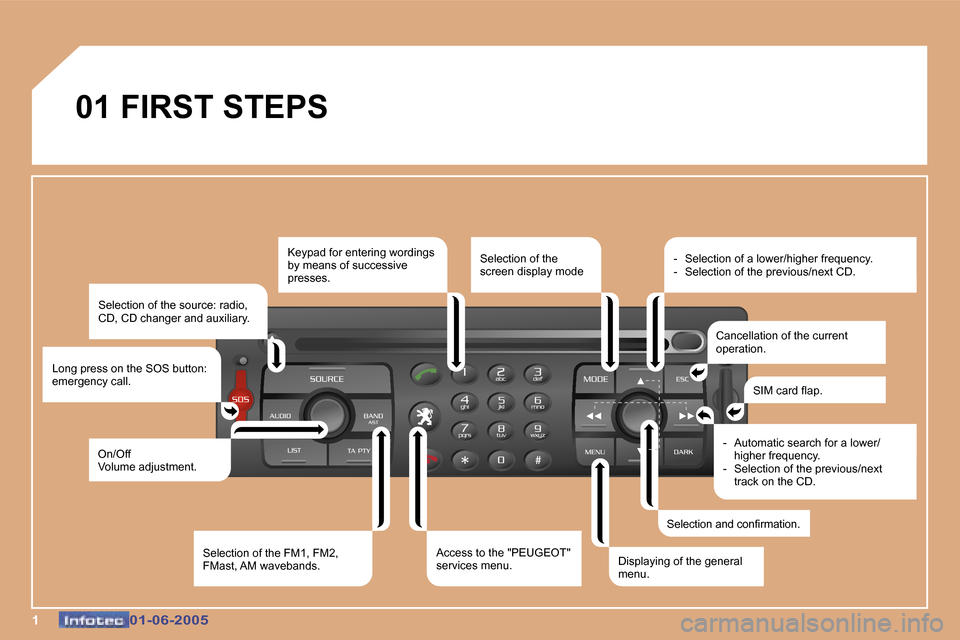

01 FIRST STEPSSelection of the source: radio,
CD, CD changer and auxiliary.
Long press on the SOS button:
emergency call.
On/Off
Volume adjustment.
Selection of the FM1, FM2,
FMast, AM wavebands.Keypad for entering wordings
by means of successive
presses.
Access to the "PEUGEOT"
services menu. Displaying of the general
menu.SIM card lap.
Cancellation of the current
operation.
- Selection of a lower/higher frequency.
- Selection of the previous/next CD.
- Automatic search for a lower/higher frequency.
- Selection of the previous/next track on the CD.
Selection and conirmation.
Selection of the
screen display mode

201-06-200501-06-2005

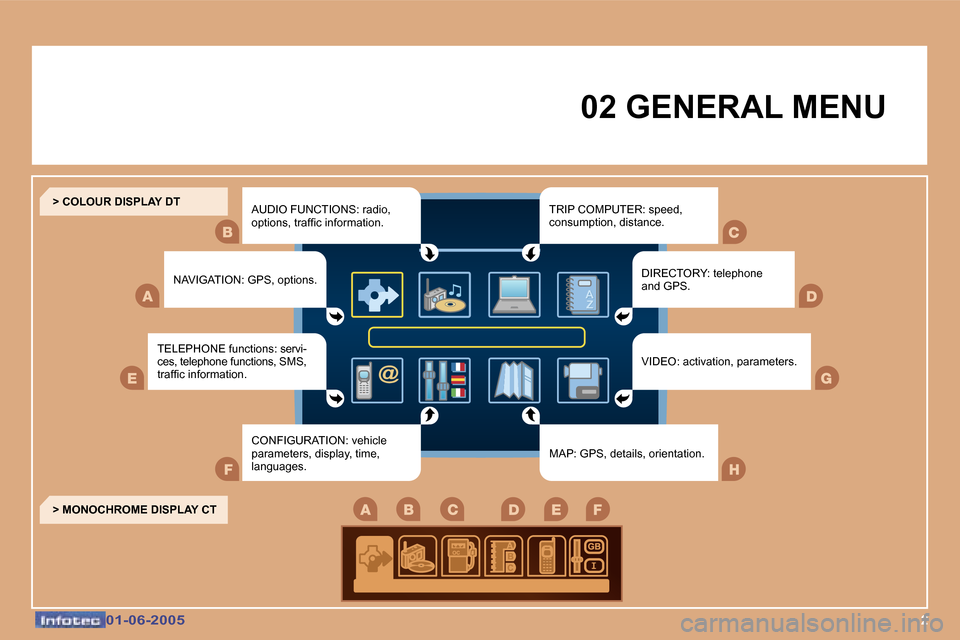

02 GENERAL MENU
AUDIO FUNCTIONS: radio,
options, trafic information.
TELEPHONE functions: servi-
ces, telephone functions, SMS,
trafic information. CONFIGURATION: vehicle
parameters, display, time,
languages. MAP: GPS, details, orientation.VIDEO: activation, parameters.
DIRECTORY: telephone
and GPS.
NAVIGATION: GPS, options.
> COLOUR DISPLAY DT
> MONOCHROME DISPLAY CT TRIP COMPUTER: speed,
consumption, distance.

301-06-200501-06-2005

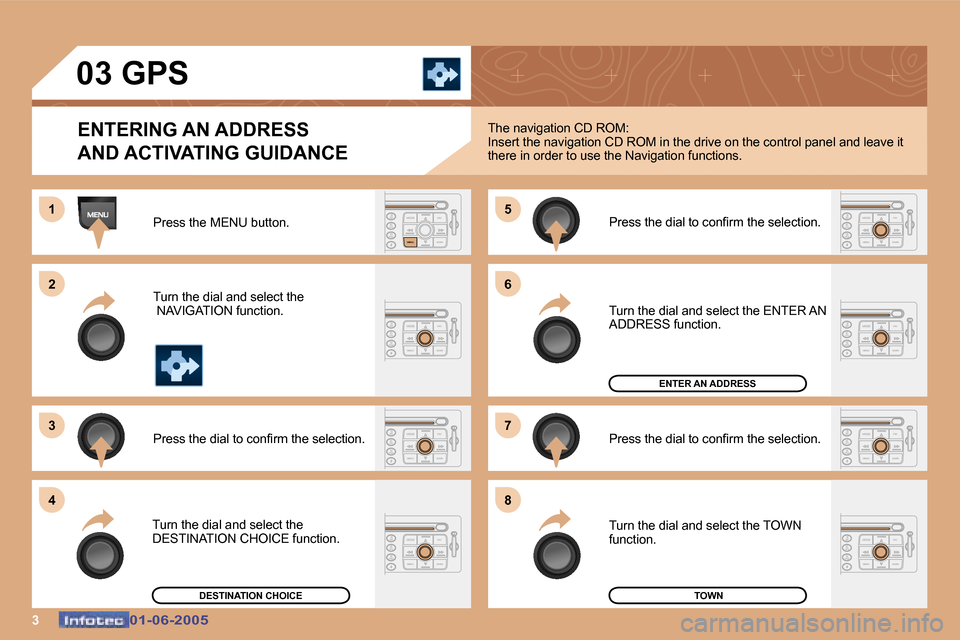

03 GPSENTERING AN ADDRESS
AND ACTIVATING GUIDANCE
Press the MENU button.
Turn the dial and select the
NAVIGATION function.
Press the dial to conirm the selection.
Turn the dial and select the
DESTINATION CHOICE function. Press the dial to conirm the selection.
Press the dial to conirm the selection.
Turn the dial and select the ENTER AN
ADDRESS function.
Turn the dial and select the TOWN
function.
TOWN
ENTER AN ADDRESS
1
2
3 5
7
The navigation CD ROM:
Insert the navigation CD ROM in the drive on the co
ntrol panel and leave it
there in order to use the Navigation functions.
4 6
8
DESTINATION CHOICE

401-06-200501-06-2005

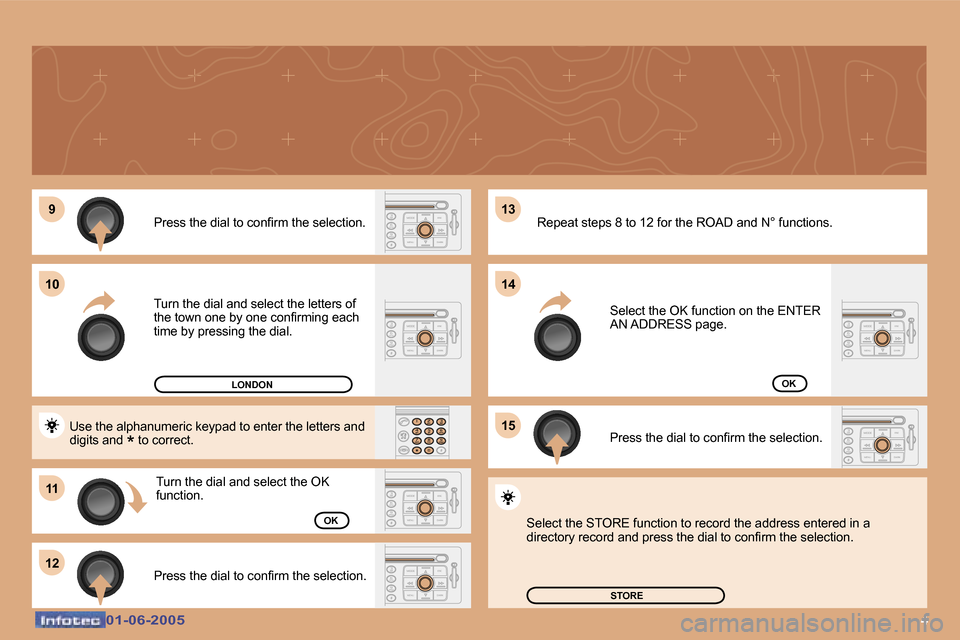

Press the dial to conirm the selection.
Turn the dial and select the letters of
the town one by one conirming each
time by pressing the dial.Turn the dial and select the OK
function.
Press the dial to conirm the selection.
Use the alphanumeric keypad to enter the letters an
d
digits and * to correct.
Press the dial to conirm the selection.Select the OK function on the ENTER
AN ADDRESS page.
Repeat steps 8 to 12 for the ROAD and N° functions.
LONDON
OK
STORE
OK Select the STORE function to record the address ent ered in a
directory record and press the dial to conirm the s election.
9
11
12 13
15
10
14

501-06-200501-06-2005

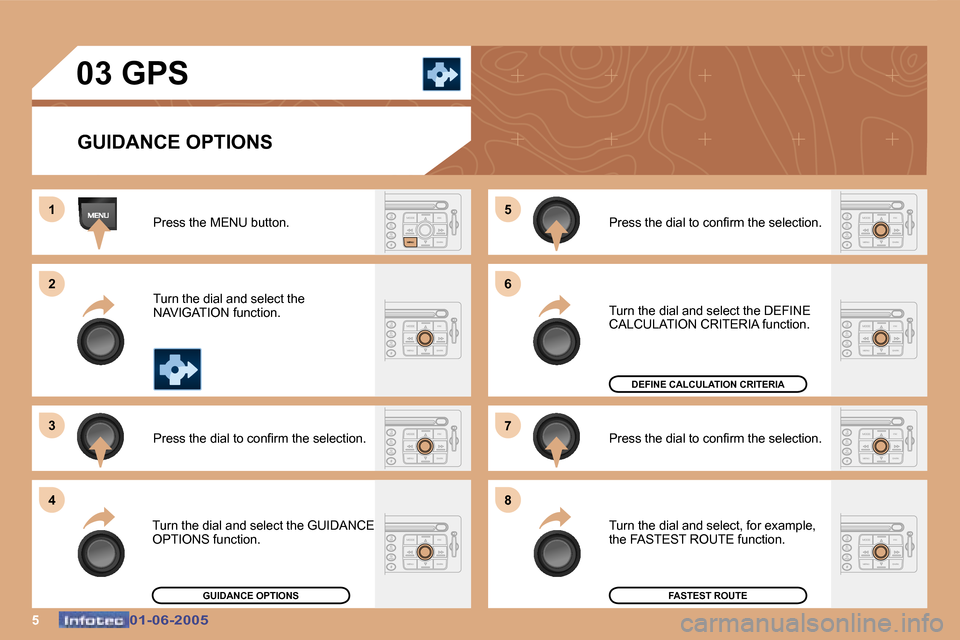

03 GPSGUIDANCE OPTIONS
Press the MENU button.
Turn the dial and select the
NAVIGATION function.
Press the dial to conirm the selection.
Turn the dial and select the GUIDANCE
OPTIONS function. Press the dial to conirm the selection.
Press the dial to conirm the selection.
Turn the dial and select the DEFINE
CALCULATION CRITERIA function.
Turn the dial and select, for example,
the FASTEST ROUTE function.
GUIDANCE OPTIONSFASTEST ROUTE
DEFINE CALCULATION CRITERIA
1
2
3
4 5
6
7
8

601-06-200501-06-2005

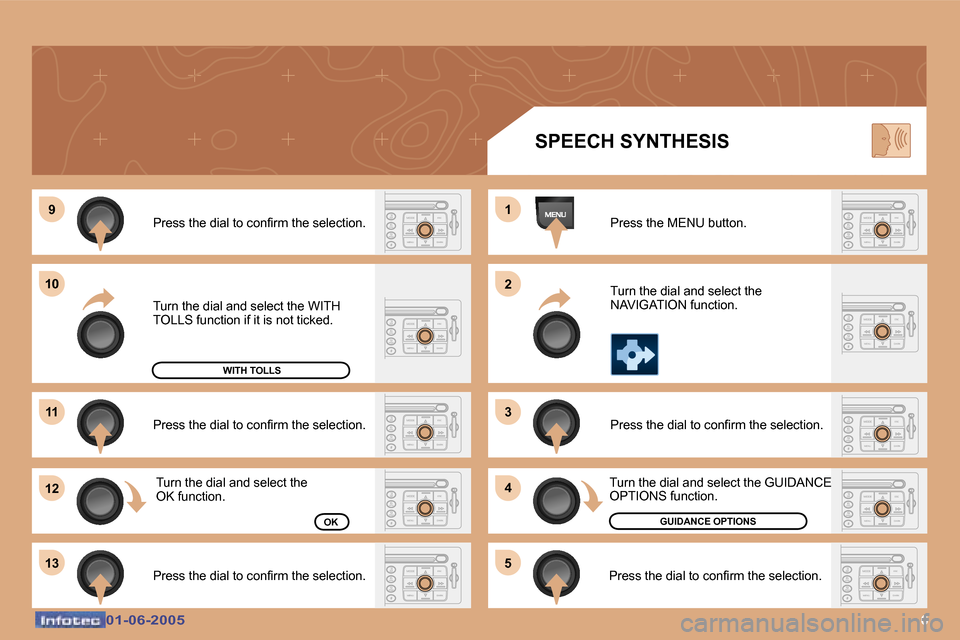

Press the dial to conirm the selection.
Press the dial to conirm the selection.
Turn the dial and select the WITH
TOLLS function if it is not ticked. SPEECH SYNTHESIS
Press the MENU button.
Turn the dial and select the
NAVIGATION function.
Press the dial to conirm the selection.
Turn the dial and select the GUIDANCE
OPTIONS function.
WITH TOLLS
GUIDANCE OPTIONS
Press the dial to conirm the selection. Turn the dial and select the
OK function.
Press the dial to conirm the selection.
9
10
11
12
13 1
2
3
4
5OK

701-06-200501-06-2005

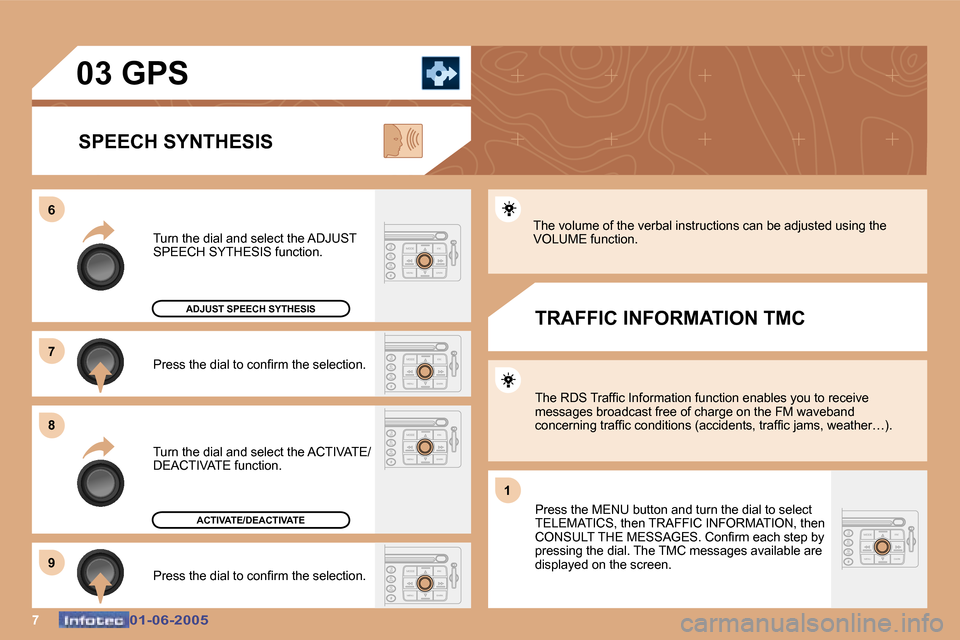

Press the dial to conirm the selection.
Turn the dial and select the ADJUST
SPEECH SYTHESIS function.
Turn the dial and select the ACTIVATE/
DEACTIVATE function.
Press the dial to conirm the selection.
03 GPS
SPEECH SYNTHESIS
ADJUST SPEECH SYTHESIS
ACTIVATE/DEACTIVATE TRAFFIC INFORMATION TMC
The RDS Trafic Information function enables you to
receive
messages broadcast free of charge on the FM waveban d
concerning trafic conditions (accidents, trafic jam s, weather…).
Press the MENU button and turn the dial to select
TELEMATICS, then TRAFFIC INFORMATION, then
CONSULT THE MESSAGES. Conirm each step by
pressing the dial. The TMC messages available are
displayed on the screen.
The volume of the verbal instructions can be adjust
ed using the
VOLUME function.
6
7
8
9 1

801-06-200501-06-2005

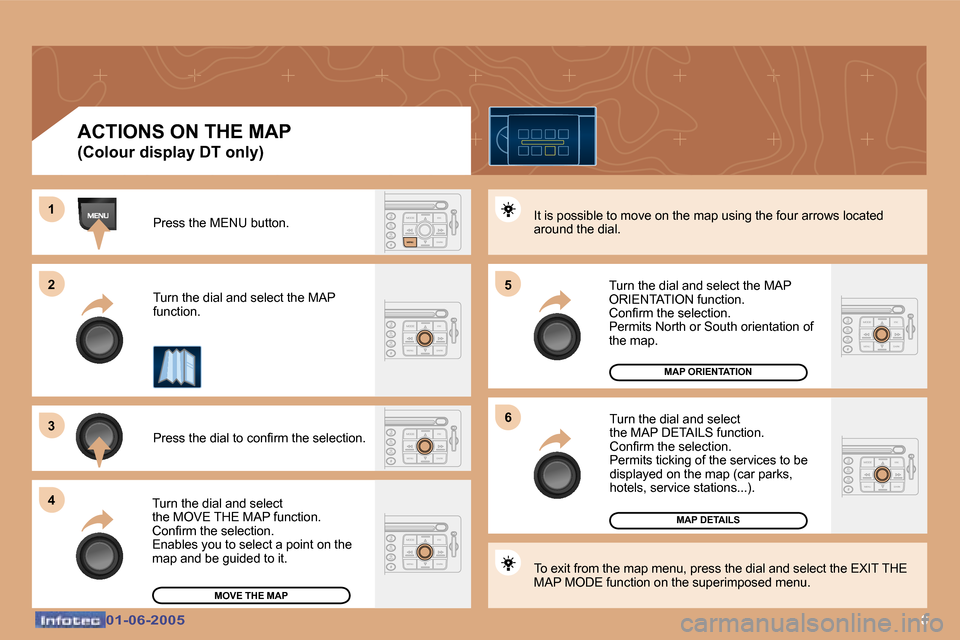

Press the MENU button.
Turn the dial and select the MAP
function.
Press the dial to conirm the selection.
Turn the dial and select
the MOVE THE MAP function.
Conirm the selection.
Enables you to select a point on the
map and be guided to it.
ACTIONS ON THE MAP
(Colour display DT only)
Turn the dial and select the MAP
ORIENTATION function.
Conirm the selection.
Permits North or South orientation of
the map.Turn the dial and select
the MAP DETAILS function.
Conirm the selection.
Permits ticking of the services to be
displayed on the map (car parks,
hotels, service stations...).
MOVE THE MAP
MAP DETAILS
MAP ORIENTATION
It is possible to move on the map using the four ar
rows located
around the dial.
To exit from the map menu, press the dial and selec t the EXIT THE
MAP MODE function on the superimposed menu.
1
2
3
4
5
6
