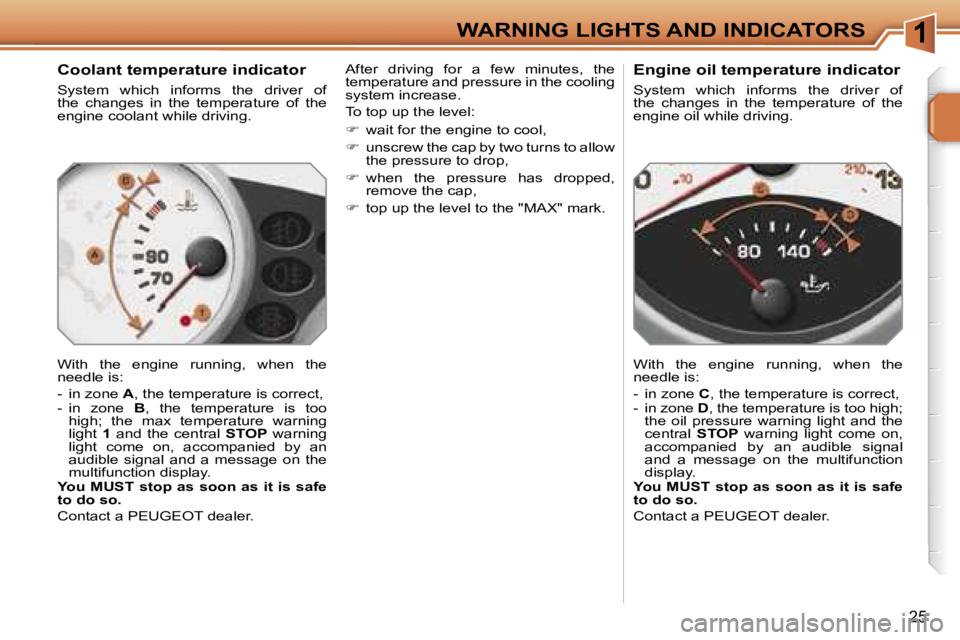

Coolant temperature indicator
System which informs the driver of
the changes in the temperature of the
engine coolant while driving.
With the engine running, when the
needle is:
- in zone A, the temperature is correct,
- in zone B, the temperature is too
high; the max temperature warning
light 1 and the central STOP warning
light come on, accompanied by an
audible signal and a message on the
multifunction display.
You MUST stop as soon as it is safe
to do so.
Contact a PEUGEOT dealer. After driving for a few minutes, the
temperature and pressure in the cooling
system increase.
To top up the level:

wait for the engine to cool,
 unscrew the cap by two turns to allow
the pressure to drop,
 when the pressure has dropped,
remove the cap,
 top up the level to the "MAX" mark.
Engine oil temperature indicator
System which informs the driver of
the changes in the temperature of the
engine oil while driving.
With the engine running, when the
needle is:
- in zone C, the temperature is correct,
- in zone D, the temperature is too high;
the oil pressure warning light and the
central STOP warning light come on,
accompanied by an audible signal
and a message on the multifunction
display.
You MUST stop as soon as it is safe
to do so.
Contact a PEUGEOT dealer.
WARNING LIGHTS AND INDICATORS

1
26

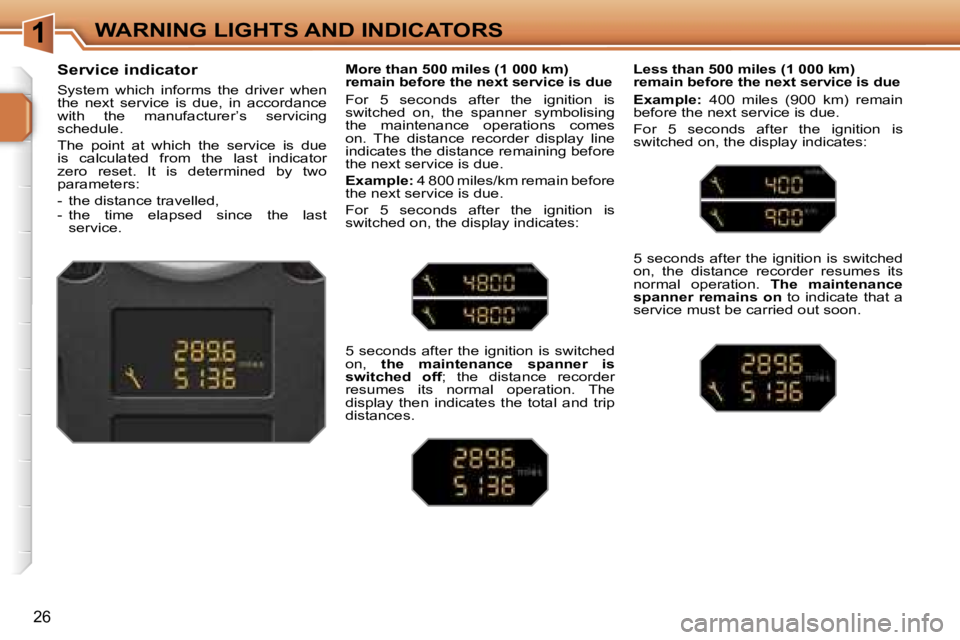

Service indicator
System which informs the driver when
the next service is due, in accordance
with the manufacturer’s servicing
schedule.
The point at which the service is due
is calculated from the last indicator
zero reset. It is determined by two
parameters:
- the distance travelled,
- the time elapsed since the last service. More than 500 miles (1 000 km)
remain before the next service is due
For 5 seconds after the ignition is
switched on, the spanner symbolising
the maintenance operations comes
on. The distance recorder display line
indicates the distance remaining before
the next service is due.
Example:
4 800 miles/km remain before
the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the maintenance spanner is
switched off ; the distance recorder
resumes its normal operation. The
display then indicates the total and trip
distances. Less than 500 miles (1 000 km)
remain before the next service is due
Example:
400 miles (900 km) remain
before the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The maintenance
spanner remains on to indicate that a
service must be carried out soon.
WARNING LIGHTS AND INDICATORS

1
i
i
27
Following this operation, if you
wish to disconnect the battery, lock
the vehicle and wait at least five
minutes for the zero reset to be
taken into account.
Service indicator zero reset
After each service, the service indicator
must be reset to zero.
To do this, carry out the following
procedure:

switch off the ignition,
 press and hold the trip distance
recorder zero reset button,
 switch on the ignition; the
distance recorder display begins a
countdown,
 when the display indicates "=0",
release the button; the service
spanner disappears.
The distance remaining may
be weighted by the time factor,
depending on the driver’s driving
habits.
Therefore, the maintenance
spanner may also come on if
you have exceeded the two year
service interval.

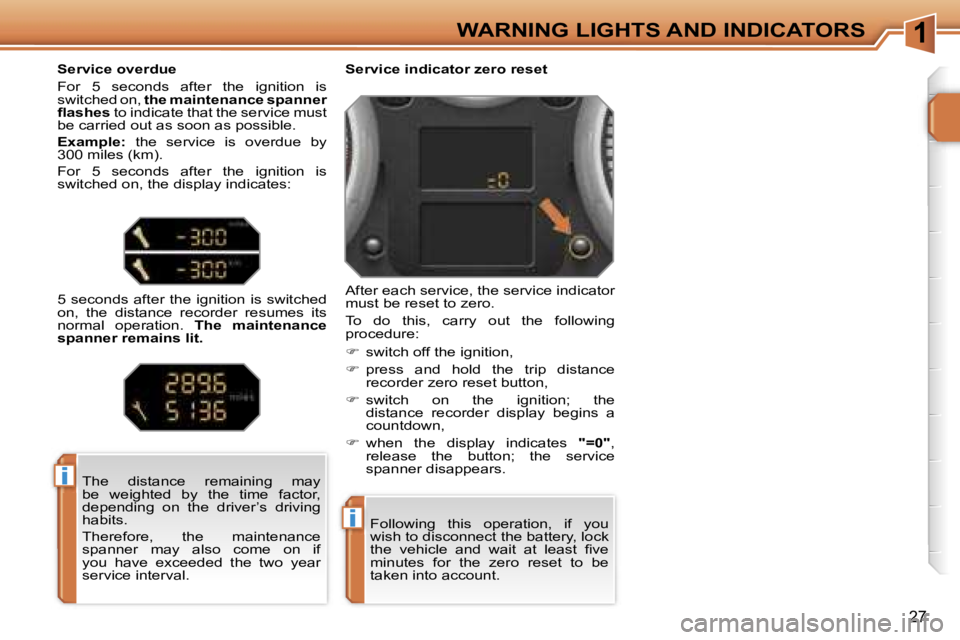

Service overdue
For 5 seconds after the ignition is
switched on,
the maintenance spanner
flashes to indicate that the service must
be carried out as soon as possible.
Example: the service is overdue by
300 miles (km).
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The maintenance
spanner remains lit.
WARNING LIGHTS AND INDICATORS

1
i
28
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.

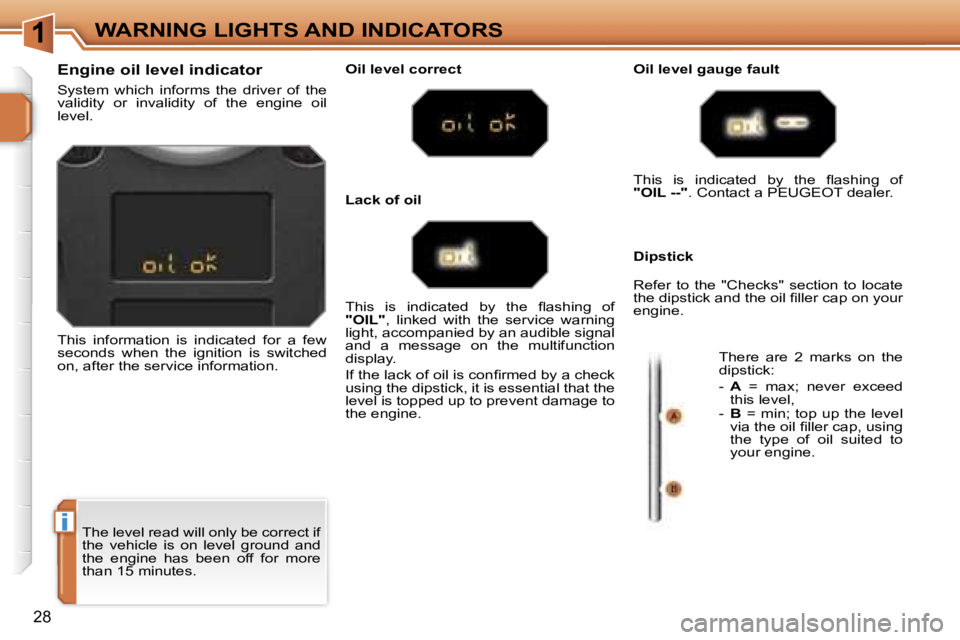

Engine oil level indicator
System which informs the driver of the
validity or invalidity of the engine oil
level.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.Oil level correct
Lack of oil
Oil level gauge fault
Dipstick
This is indicated by the flashing of
"OIL" , linked with the service warning
light, accompanied by an audible signal
and a message on the multifunction
display.
If the lack of oil is confirmed by a check
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine. This is indicated by the flashing of
"OIL --"
. Contact a PEUGEOT dealer.
Refer to the "Checks" section to locate
the dipstick and the oil filler cap on your
engine. There are 2 marks on the
dipstick:
- A = max; never exceed
this level,
- B = min; top up the level
via the oil filler cap, using
the type of oil suited to
your engine.
WARNING LIGHTS AND INDICATORS

1
29

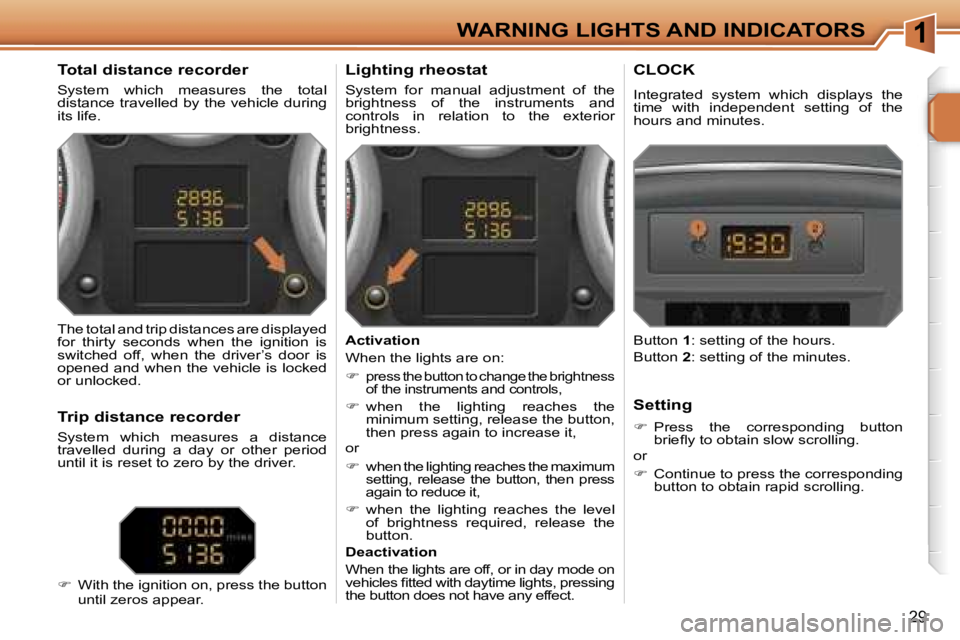

Total distance recorder
System which measures the total
distance travelled by the vehicle during
its life.
Lighting rheostat
System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior
brightness.
CLOCK
Integrated system which displays the
time with independent setting of the
hours and minutes.
The total and trip distances are displayed
for thirty seconds when the ignition is
switched off, when the driver’s door is
opened and when the vehicle is locked
or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other period
until it is reset to zero by the driver.
 With the ignition on, press the button
until zeros appear. Activation
When the lights are on:

press the button to change the brightness
of the instruments and controls,

when the lighting reaches the
minimum setting, release the button,
then press again to increase it,
or
 when the lighting reaches the maximum
setting, release the button, then press
again to reduce it,
 when the lighting reaches the level
of brightness required, release the
button. Button
1: setting of the hours.
Button 2: setting of the minutes.
Deactivation
When the lights are off, or in day mode on
vehicles fitted with daytime lights, pressing
the button does not have any effect.Setting
 Press the corresponding button
briefly to obtain slow scrolling.
or
 Continue to press the corresponding
button to obtain rapid scrolling.
WARNING LIGHTS AND INDICATORS

1
30
Displays on the screen
This displays the following information:
- the time,
- the date,
- the outside temperature* (this flashes if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may
appear temporarily. These can be
cleared by pressing the "ESC" button.

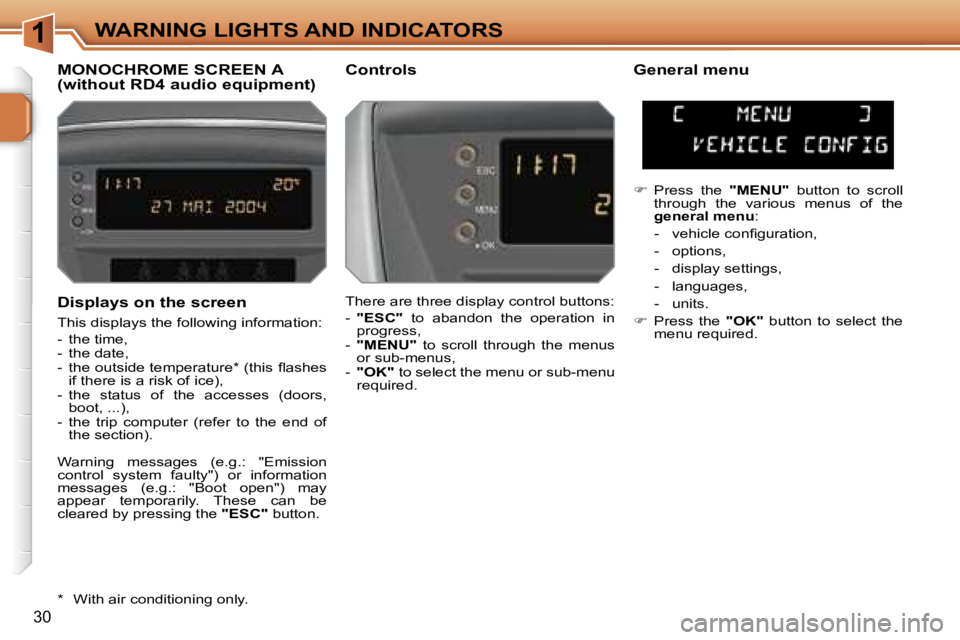

MONOCHROME SCREEN A (without RD4 audio equipment) Controls General menu
There are three display control buttons:
-
"ESC" to abandon the operation in
progress,
- "MENU" to scroll through the menus
or sub-menus,
- "OK" to select the menu or sub-menu
required. 
Press the "MENU" button to scroll
through the various menus of the
general menu :
- vehicle configuration,
- options,
- display settings,
- languages,
- units.
 Press the "OK" button to select the
menu required.
* With air conditioning only.
WARNING LIGHTS AND INDICATORS

1
!
31

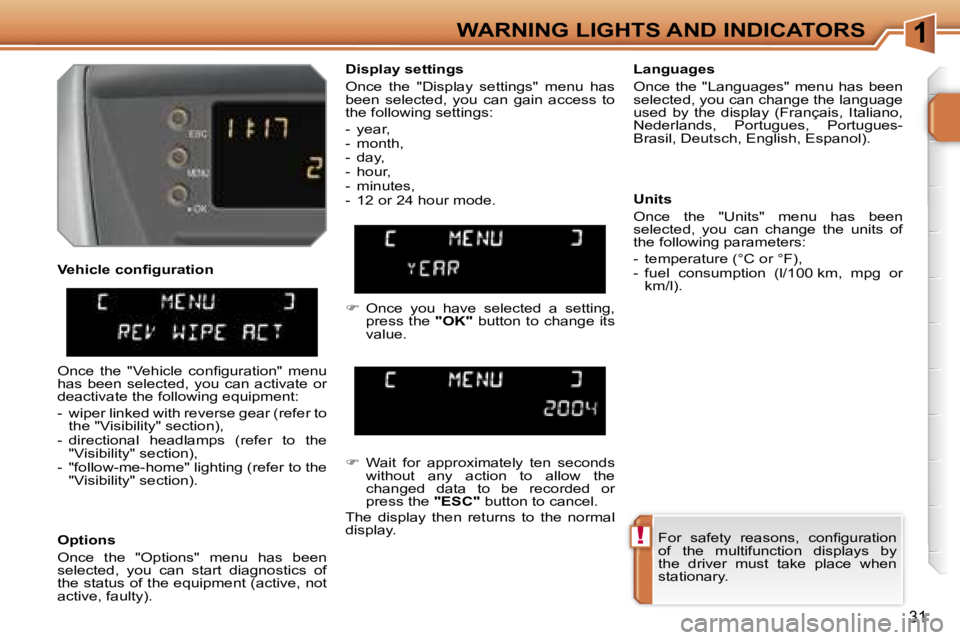

Vehicle configuration
Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty).Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Units
Once the "Units" menu has been
selected, you can change the units of
the following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
 Once you have selected a setting,
press the "OK" button to change its
value.
 Wait for approximately ten seconds
without any action to allow the
changed data to be recorded or
press the "ESC" button to cancel.
The display then returns to the normal
display.
Once the "Vehicle configuration" menu
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- "follow-me-home" lighting (refer to the "Visibility" section).
For safety reasons, configuration
of the multifunction displays by
the driver must take place when
stationary.
WARNING LIGHTS AND INDICATORS

1
34

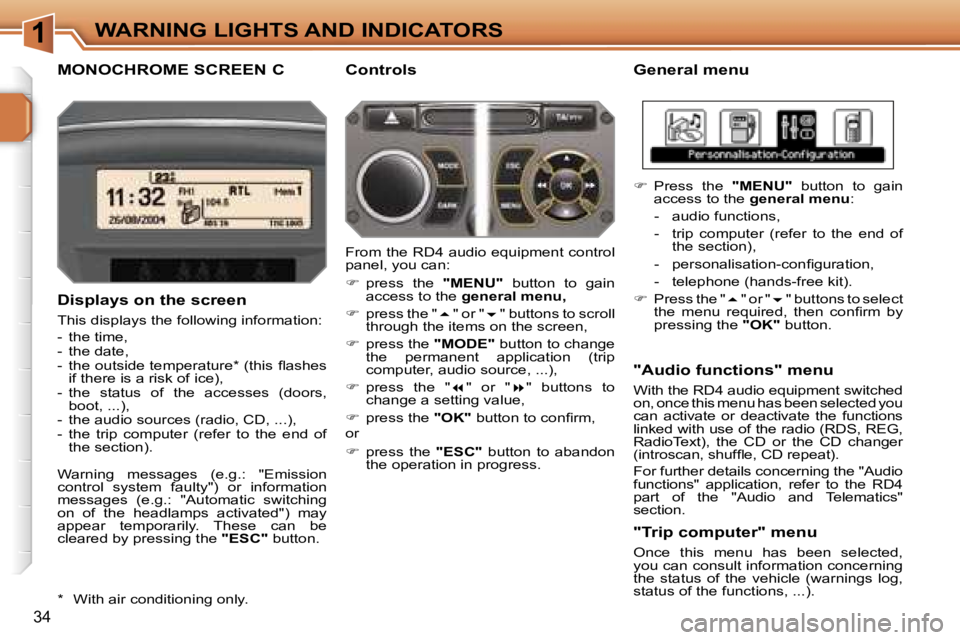

MONOCHROME SCREEN CGeneral menu
Displays on the screen
This displays the following information:
- the time,
- the date,
- the outside temperature* (this flashes if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the audio sources (radio, CD, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switching
on of the headlamps activated") may
appear temporarily. These can be
cleared by pressing the "ESC" button.
"Audio functions" menu
With the RD4 audio equipment switched
on, once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText), the CD or the CD changer
(introscan, shuffle, CD repeat).
For further details concerning the "Audio
functions" application, refer to the RD4
part of the "Audio and Telematics"
section.
Controls
From the RD4 audio equipment control
panel, you can:
 press the "MENU" button to gain
access to the general menu,
 press the " " or " " buttons to scroll
through the items on the screen,
 press the "MODE" button to change
the permanent application (trip
computer, audio source, ...),
 press the " " or " " buttons to
change a setting value,
 press the "OK" button to confirm,
or
 press the "ESC" button to abandon
the operation in progress. 
Press the "MENU" button to gain
access to the general menu :
- audio functions,
- trip computer (refer to the end of the section),
- personalisation-configuration,
- telephone (hands-free kit).
 Press the " " or " " buttons to select
the menu required, then confirm by
pressing the "OK" button.
* With air conditioning only.
"Trip computer" menu
Once this menu has been selected,
you can consult information concerning
the status of the vehicle (warnings log,
status of the functions, ...).
WARNING LIGHTS AND INDICATORS
