2005 PEUGEOT 206 Owners Manual

62 -Audio equipment and telematics
01-10-2005
63
-Audio equipment and telematics
01-10-2005
Description of a directory ile
When a description is linked to a
directory ile, you can record the
description vocally so that it can be
used subsequently for direct access
by voice commands (e.g.:
"Call"
"[Name of the voice description]"
or "Guide to" "[Name of the voice
description]" ).
Select "Consult or modify the ile"
from the "Management of directory
iles" menu to access the screen
which permits entering and recording
of the description.
TMC (Trafic Message Channel)
RDS Trafic Information
You can access information
regarding the trafic conditions from
the "Navigation - Trafic Info"
menu, then from the "TMC Trafic
Information" function (see section
"Satellite navigation system").
"File transfer"
Press the record button and follow
the instructions. Send all of the iles to the SIM card
from the current directory of your
RT3 GPS audio/telephone.
Send one ile to the SIM card from
the current directory of your RT3
GPS audio/telephone.
Receive all of the iles from the SIM
card in the current directory of the
RT3 GPS audio/telephone.
Receive one ile from the SIM card in
the current directory of the RT3 GPS
audio/telephone.
Reminder:
when transferring a ile
from the RT3 GPS audio/telephone
to the SIM card, only the irst number
entered in the ile is recorded.
Note: The SIM card represents an
independent collection of information
among which the telephone numbers
may be accessible by consulting the
current directory.
To
"Exchange by infrared" between
the RT3 GPS audio/telephone and
portable equipment (which has an
infrared port) all or some of the iles
recorded in the current directory.
Following selection of the "File
transfer" menu and of the direction
of this transfer, you must initiate
the exchange by presenting at the
same time opposite the infrared port,
the portable equipment on which
you started the transfer (consult
the instructions provided with this
equipment). A message conirms
that the exchange is progressing
correctly. To
"Exchange with the SIM card" :

62 -Audio equipment and telematics
01-10-2005
63
-Audio equipment and telematics
01-10-2005
VOICE COMMANDS
The voice commands make it
possible to use pre-recorded words
or phrases to control a certain
number of functions of the RT3 GPS
audio/telephone.
They are organised in three levels
(levels 1, 2 and 3).
When you say a level 1 command, the
system makes the level 2 commands
available; when you say a level 2
command, the system makes the
level 3 commands available.
Pressing the
"MENU" button for
more than 2 seconds permits access
to the "list of voice commands" .

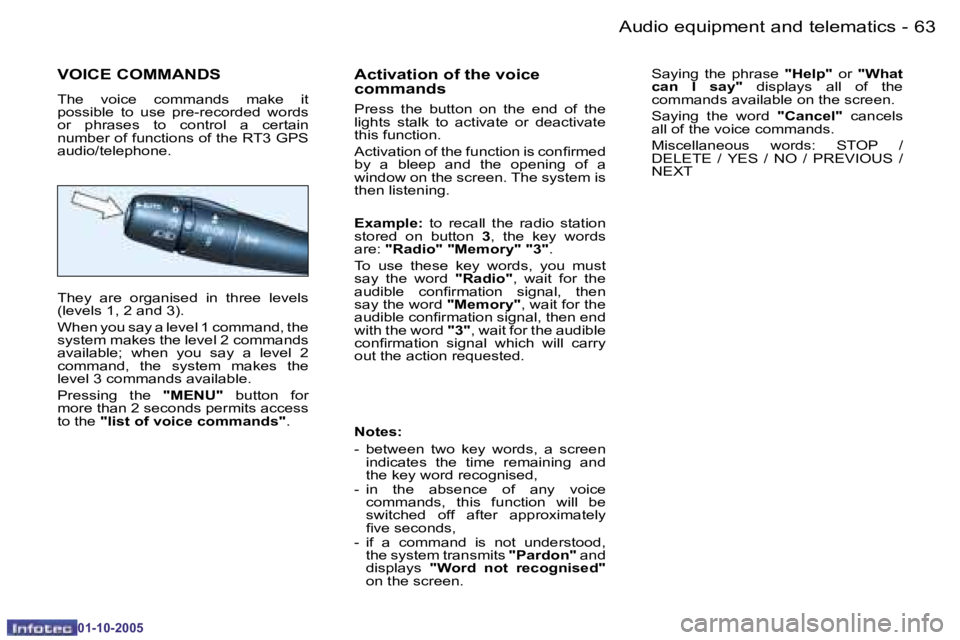

Activation of the voice
commands
Press the button on the end of the
lights stalk to activate or deactivate
this function.
Activation of the function is conirmed
by a bleep and the opening of a
window on the screen. The system is
then listening.
Example: to recall the radio station
stored on button 3, the key words
are: "Radio" "Memory" "3" .
To use these key words, you must
say the word "Radio", wait for the
audible conirmation signal, then
say the word "Memory", wait for the
audible conirmation signal, then end
with the word "3", wait for the audible
conirmation signal which will carry
out the action requested. Saying the phrase
"Help" or "What
can I say" displays all of the
commands available on the screen.
Saying the word "Cancel" cancels
all of the voice commands.
Miscellaneous words: STOP /
DELETE / YES / NO / PREVIOUS /
NEXT
Notes:
- between two key words, a screen indicates the time remaining and
the key word recognised,
- in the absence of any voice commands, this function will be
switched off after approximately
ive seconds,
- if a command is not understood, the system transmits "Pardon" and
displays "Word not recognised"
on the screen.

64 -Audio equipment and telematics
01-10-2005
65
-Audio equipment and telematics
01-10-2005
Level 1 Level 2 Level 3
RADIO
PREVIOUS
NEXT
MEMORY
1 ... 6
A
UTOSTORE
LIST
CD PLAYER
PREVIOUS TRACK
NEXT TRACK
TRACK NUMBER
1 ... 20
RANDOM
SCAN
R
EPEAT
LIST
CHANGER
PREVIOUS TRACK
NEXT TRACK
TRACK NUMBER
1 ... 20
PREVIOUS DISC
NEXT DISC
DISC NUMBER1 ... 6
RANDOM
SCAN
R
EPEAT
LIST Level 1 Level 2 Level 3
TELEPHONE
LAST NUMBER
DIRECTORY
DESCRIPTION
SERVICES
VOICE BOX
VOICE MAIL
SMS /
MESSAGE DISPLAY
READ
TRAFFIC INFO DISPLAY
READ
NAVIGATION /
GUIDANCE STOP
RESUME
DIRECTORY
DESCRIPTION
Z
OOM IN
ZOOM OUT
SHOW
DESTINATIONV
EHICLE
DISPLAY
AUDIO
T
ELEPHONE
NAVIGATION
TRIP COMPUTER
GUIDANCE
CALL DESCRIPTION
GUIDE TO DESCRIPTION
The list of voice commands available is presented in th is table:

78 -Audio equipment and telematics
01-10-2005
79
-
Audio equipment and telematics
01-10-2005

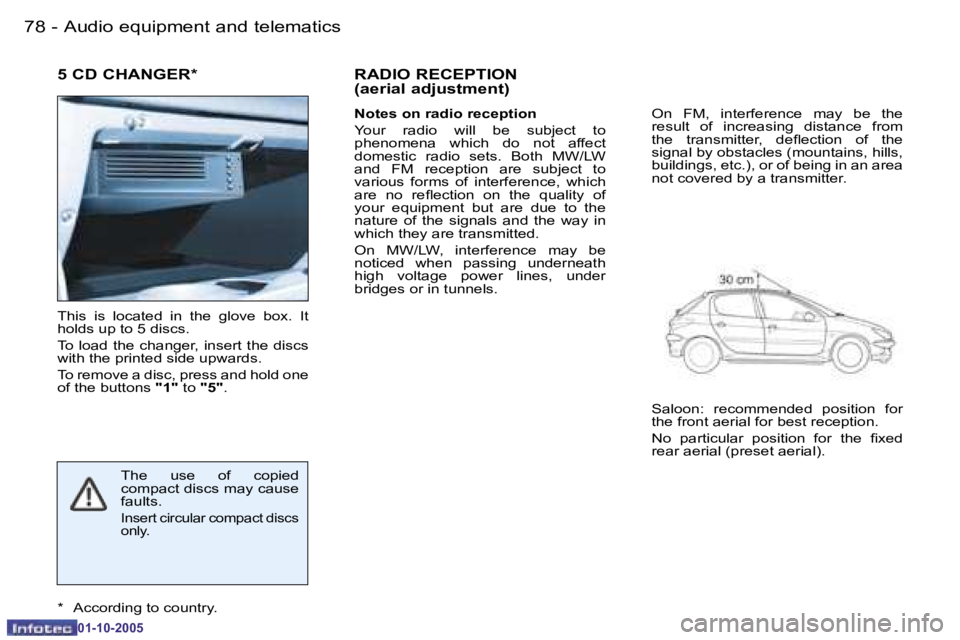

5 CD CHANGER*
This is located in the glove box. It
holds up to 5 discs.
To load the changer, insert the discs
with the printed side upwards.
To remove a disc, press and hold one
of the buttons
"1" to "5" .
The use of copied
compact discs may cause
faults.
Insert circular compact discs
only.
* According to country.
RADIO RECEPTION
(aerial adjustment)
Notes on radio reception
Your radio will be subject to
phenomena which do not affect
domestic radio sets. Both MW/LW
and FM reception are subject to
various forms of interference, which
are no relection on the quality of
your equipment but are due to the
nature of the signals and the way in
which they are transmitted.
On MW/LW, interference may be
noticed when passing underneath
high voltage power lines, under
bridges or in tunnels. On FM, interference may be the
result of increasing distance from
the transmitter, delection of the
signal by obstacles (mountains, hills,
buildings, etc.), or of being in an area
not covered by a transmitter.
Saloon: recommended position for
the front aerial for best reception.
No particular position for the ixed
rear aerial (preset aerial).

78 -Audio equipment and telematics
01-10-2005
79
-Audio equipment and telematics
01-10-2005

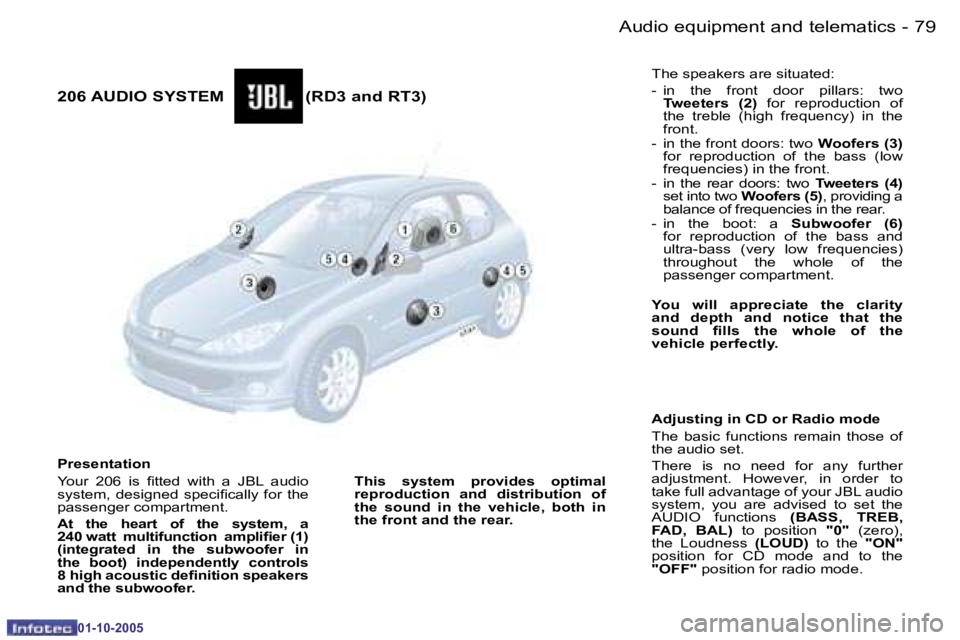

206 AUDIO SYSTEM (RD3 and RT3)
Presentation
Your 206 is itted with a JBL audio
system, designed speciically for the
passenger compartment.
At the heart of the system, a
240 watt multifunction ampliier (1)
(integrated in the subwoofer in
the boot) independently controls
8 high acoustic deinition speakers
and the subwoofer. The speakers are situated:
- in the front door pillars: two
Tweeters (2) for reproduction of
the treble (high frequency) in the
front.
- in the front doors: two Woofers (3)
for reproduction of the bass (low
frequencies) in the front.
- in the rear doors: two Tweeters (4)
set into two Woofers (5) , providing a
balance of frequencies in the rear.
- in the boot: a Subwoofer (6)
for reproduction of the bass and
ultra-bass (very low frequencies)
throughout the whole of the
passenger compartment.
You will appreciate the clarity
and depth and notice that the
sound ills the whole of the
vehicle perfectly.
This system provides optimal
reproduction and distribution of
the sound in the vehicle, both in
the front and the rear. Adjusting in CD or Radio mode
The basic functions remain those of
the audio set.
There is no need for any further
adjustment. However, in order to
take full advantage of your JBL audio
system, you are advised to set the
AUDIO functions
(BASS, TREB,
FAD, BAL) to position "0" (zero),
the Loudness (LOUD) to the "ON"
position for CD mode and to the
"OFF" position for radio mode.

64 -Audio equipment and telematics
01-10-2005
65
-Audio equipment and telematics
01-10-2005
SATELLITE NAVIGATION
SYSTEM
Initialisation
When the navigation is used for
the irst time, or if the battery is
disconnected, the navigation system
must be initialised.
To do this, park the vehicle in the
open so that it can make contact with
a satellite then turn the ignition key
to the
Running position for ifteen
minutes.
Certain functions or services
described may vary depending
on the version of CD ROM or the
country where the vehicle is sold.
For safety reasons, the
inputting of navigation
information by the driver
must be carried out when
the vehicle is stationary.The CD ROM drive
This is
part of the RT3 GPS audio/
telephone.
1. CD ROM ejection button.
2. CD ROM drive.
This contains all the map data.
It must be inserted in the drive,
printed face upwards.
Use only CD ROMs approved by
PEUGEOT.
The navigation CD ROM
The system uses the following
elements:
- A CD ROM drive.
- A last voice message recall control -
during navigation, a long press on
the end of the lights stalk repeats
the last spoken information.
- Map data in the form of a CD ROM which must be inserted in the drive
printed side up.
- A coniguration CD ROM, required in order to change the voice
synthesiser voice (female or
male) or the language used by the
system.
- A voice synthesiser which utters the manoeuvre instructions during
navigation.
- A screen.
- A GPS aerial.
- Controls on the panel and at the steering wheel.
Introduction
The satellite navigation system
guides you, by means of vocal and
visual instructions (graphics), to
your chosen destination.
The heart of the system lies in the
use of a map database and
GPS
(Global Positioning System). With
this system you can ix the position of
your vehicle by means of a satellite
network.

66 -Audio equipment and telematics
01-10-2005
67
-Audio equipment and telematics
01-10-2005

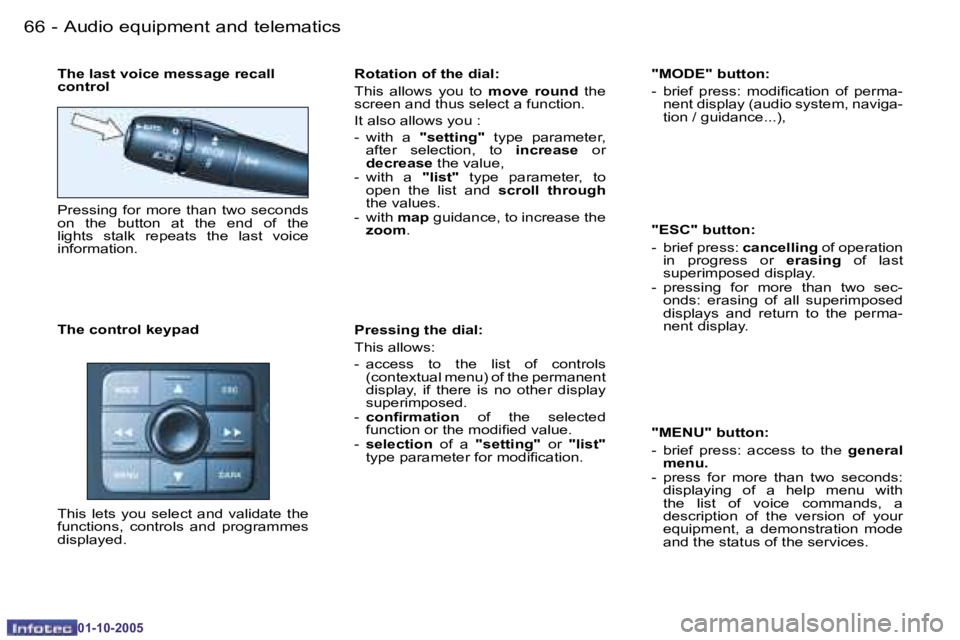

The last voice message recall
control
Pressing for more than two seconds
on the button at the end of the
lights stalk repeats the last voice
information.
The control keypad Rotation of the dial:
This allows you to
move round the
screen and thus select a function.
It also allows you :
- with a "setting" type parameter,
after selection, to increase or
decrease the value,
- with a "list" type parameter, to
open the list and scroll through
the values.
- with map guidance, to increase the
zoom .
Pressing the dial:
This allows:
- access to the list of controls (contextual menu) of the permanent
display, if there is no other display
superimposed.
- conirmation of the selected
function or the modiied value.
- selection of a "setting" or "list"
type parameter for modiication. "MENU" button:
- brief press: access to the
general
menu.
- press for more than two seconds: displaying of a help menu with
the list of voice commands, a
description of the version of your
equipment, a demonstration mode
and the status of the services.
"MODE" button:
- brief press: modiication of perma-
nent display (audio system, naviga-
tion / guidance...),
"ESC" button:
- brief press: cancelling of operation
in progress or erasing of last
superimposed display.
- pressing for more than two sec- onds: erasing of all superimposed
displays and return to the perma-
nent display.
This lets you select and validate the
functions, controls and programmes
displayed.

66 -Audio equipment and telematics
01-10-2005
67
-Audio equipment and telematics
01-10-2005
General notes on the display
During navigation, if the navigation
CD ROM is present, the screen
indicates the manoeuvres to be
carried out:
1.
During navigation: manoeuvre
to be carried out or, temporarily,
course to be followed.
2. Next manoeuvre to be carried
out.
3. Next road to be taken and name
of the town.
4. Current road and name of the
town.
5. Symbol concerning the
Trafic Information or the local
services*.
6. Estimated time of arrival at
destination (based on free-
lowing trafic).
7. Distance to inal destination.
8. Distance to next manoeuvre. General menu
Switch on the RT3 GPS audio/
telephone and insert the navigation
CD ROM.
Press the
"MENU" button to access
the general menu .
Select the Navigation/Trafic Infor-
mation icon using the dial G, then
validate by pressing the dial to ac-
cess the main "Navigation - Trafic
Info" menu.
Notes:
Depending on the situation of
the vehicle and the reception of
GPS information, this information
may disappear from the screen
temporarily.
In Navigation display mode, a
long press of the "Menu" control
permits access to the activation of
a demonstration of the Navigation
function of your RT3 GPS audio/
telephone.
Next, select a destination using the
Navigation Menu. After entering, start
the Navigation to display a simulation
of the movement of your vehicle.
The starting point will be either the
current location of the vehicle or the
last known location. It is possible to
enter an alternative starting point via
the demonstration menu.
This demonstration may enable you
to visualise a journey that you wish
to make in the near future.
*
According to screen.
