Entering a new destination
The last town entered is displayed.
To enter the name of another town,
select each letter using the direction
arrows then conirm (
"VAL" button)
for each letter.
If an error is made, the "Correct"
function enables the last letter
entered to be cleared.
The "List" function indicates, as the
name is entered, the number of towns
beginning with the same letters. If the
list contains less than 5 names, these
are displayed automatically. Select a
town then conirm ( "VAL" button).
The "Change" function enables
the town entered to be completely
cleared.
When the complete name of the town
is displayed, select the "Validate"
function then press the "VAL"
button.
Note: following conirmation of a
letter, only those letters which could
make up an existing name appear.Enter the name of the street. Select
the "Validate" function then press
the "VAL" button.
Note: the guidance can be activated
from the time the town is entered
without the name of a street or a
number. To do this, select the "City
centre" function.Enter the number on the street.
Select the "Validate" function then
press the "VAL" button.
Note: the guidance can be activated
as soon as the town and street are
entered without a number. To do this,
select the "Validate" function.

42 -Audio equipment and telematics
01-03-2005
43
-Audio equipment and telematics
01-03-2005

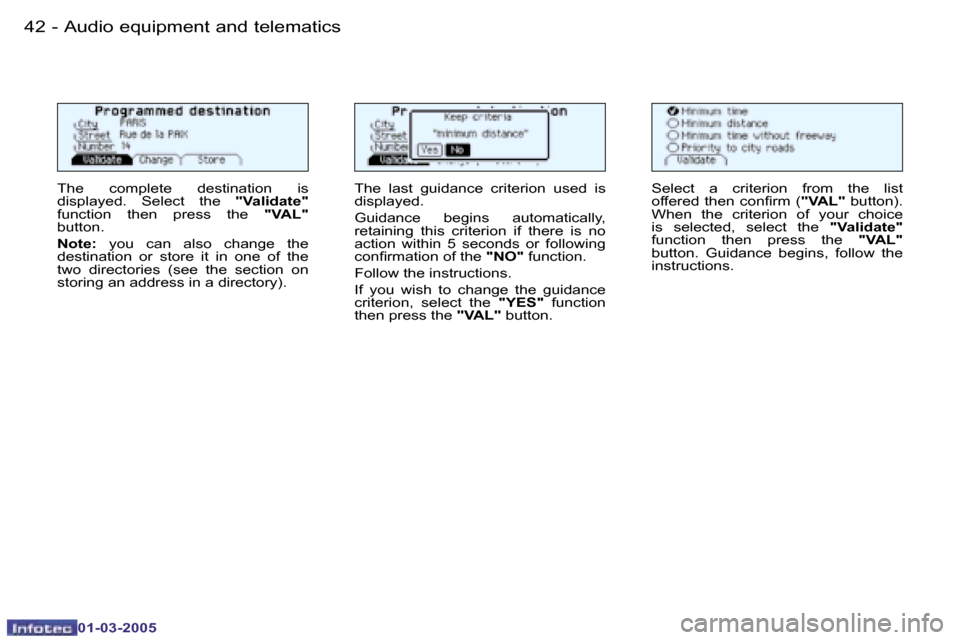

The complete destination is
displayed. Select the
"Validate"
function then press the "VAL"
button.
Note: you can also change the
destination or store it in one of the
two directories (see the section on
storing an address in a directory).The last guidance criterion used is
displayed.
Guidance begins automatically,
retaining this criterion if there is no
action within 5 seconds or following
conirmation of the "NO" function.
Follow the instructions.
If you wish to change the guidance
criterion, select the "YES" function
then press the "VAL" button.Select a criterion from the list
offered then conirm ( "VAL" button).
When the criterion of your choice
is selected, select the "Validate"
function then press the "VAL"
button. Guidance begins, follow the
instructions.

42 -Audio equipment and telematics
01-03-2005
43
-Audio equipment and telematics
01-03-2005
Selecting a service
The last address entered is
displayed.
There are 3 options for deining the
location in which you wish to obtain
a service:
- resume the last address entered by
means of the "Validate" function.
- enter the name of a new town then enter the street (or the "City
centre" function) by means of the
"Change" function.
- automatically enter your current location by using the "Current
location" function.After conirming the address, select
a service by scrolling through the list
using the direction arrows then press
the "VAL" button.
A cursor on the left-hand side of the
screen indicates your position in the
list.The address of the required service
is displayed.
An indication on the right-hand
side of the screen (e.g. 1/50)
indicates whether there are any
other establishments (50 maximum)
offering the same service within a
radius of approximately 30 miles
(50 km).
Use the "Next" or "Previous"
functions to consult the list offered.
When the establishment of your
choice is displayed, select the
"Validate" function then press the
"VAL" button. Select a guidance
criterion. Guidance begins, follow the
instructions.

44 -Audio equipment and telematics
01-03-2005
45
-Audio equipment and telematics
01-03-2005
Storing an address in a directory
When a new address is entered, you
can store it by selecting the
"Store"
function.
Enter the description of the address.
If the description already exists for a
different address, you can replace
the old address with a new one.
Select the Personal or Professional
directory, then press the "VAL"
button. The address is then stored in
the directory of your choice (directory
capacity 100 addresses). Selecting a stored destinationUsing the direction arrows, select the
directory in which the address you
are looking for is stored then press
the
"VAL" button.
The stored addresses are displayed.A cursor on the left-hand side of the
screen indicates your position in the
list. Select a description, by scrolling
through the list using the direction
arrows, then press the "VAL" button.
The complete address is displayed.
Select the "Validate" function then
press the "VAL" button. Select a
guidance criterion. Guidance begins,
follow the instructions.

44 -Audio equipment and telematics
01-03-2005
45
-
Audio equipment and telematics
01-03-2005
Display coniguration
From the general menu, the
"Conigure display"
menu gives
access to the following parameters:
- Adjustment of the display brightness;
- Adjustment of the date and time;
- Selection of the language of the display and voice information
(English, German, Spanish,
French, Italian, Dutch);
- Adjustment of formats and units. This enables you to choose
between Km/h or mph and degrees
Celsius or Fahrenheit and to modify
the format for the hours (12 or 24
hour mode). Navigation optionsFrom the navigation/guidance menu,
the
"Navigation options" menu
offers the following options:
- Management of the directories. It enables an address stored under
a description to be renamed or
deleted. To do this, select the
directory and the description to be
changed;
- Voice synthesis volume adjustment;
- Deletion of all data stored in the two directories;
- Stopping or resuming of guidance. Two messages may be displayed
depending on the previous status:
"Resume guidance" or "Stop
guidance" . Guidance toolsAccess to the
"Guidance tools"
menu is by pressing the "VAL"
button during guidance.
It enables:
- the current guidance criterion to be changed,
- the programmed destination to be displayed or changed,
- the voice synthesis volume to be adjusted,
- the current guidance to be stopped.

46 -Comfort
01-03-2005
47
-Comfort
01-03-2005

46 -Comfort
01-03-2005
47
-Comfort
01-03-2005
VENTILATION
1
. Windscreen de-icing or
demisting vents.
2 . Front door windows de-icing or
demisting vents.
3 . Side vents.
4 . Centre vents.
5 . Air outlet to front footwells.
6 . Air outlet to rear footwells. Use the performance of the system
to its fullest potential in AUTO mode,
if your model is equipped with this, as
this permits optimised control of:
- the air low,
- the temperature in the passenger
compartment,
- the air distribution,
- the air intake mode or the air recirculation,
- the temperature differences.
When the engine is cold, in order to
prevent too great a distribution of
cold air, the ventilation will increase
to its optimum level gradually.
Place the air low control at a level
suficient to ensure correct renewal of
air in the passenger compartment.
Only use the ''OFF'' position
occasionally (risk of condensation).
Close the windows to allow the air
conditioning to operate to its full
potential.
If the interior temperature remains
very high after a prolonged period
parked in the sun, do not hesitate to
ventilate the passenger compartment
for a few minutes.
Take care not to obstruct the exterior
air intake grille on the bonnet, the
vents and the air ducts under the
front seats.
Advice on operation
On entering the vehicle, the interior
temperature may be much colder
(or warmer) than the comfortable
temperature.
There is no advantage in changing
the temperature displayed in order to
reach the required comfort quickly.

48 -Comfort
01-03-2005
49
-Comfort
01-03-2005
HEATING / VENTILATION
1 . Temperature adjustment
To be adjusted according to your
requirements.
From blue (outside air temperature)
to red (hot). 3 . Air low adjustment
Windscreen and side
windows (demisting/de-
icing).
2 . Air distribution adjustment
Windscreen
, side windows
and footwells. Footwells.
These settings are recommended for
cold climates. Centre and side vents.
This setting is recommended for hot
climates.
Turn the control from
position 1 to position 4 to
give a suficient air low for
comfort.
