BLOWER UNIT

Disassembly and AssemblyEJS000UM
NOTE:
This illustration is for RHD models. The layout for LHD models is symmetrically opposite.
CAUTION:
If retaining tabs are damaged while disassembling blower unit,
use 9 screws (27111-2Y000) to assemble blower unit.

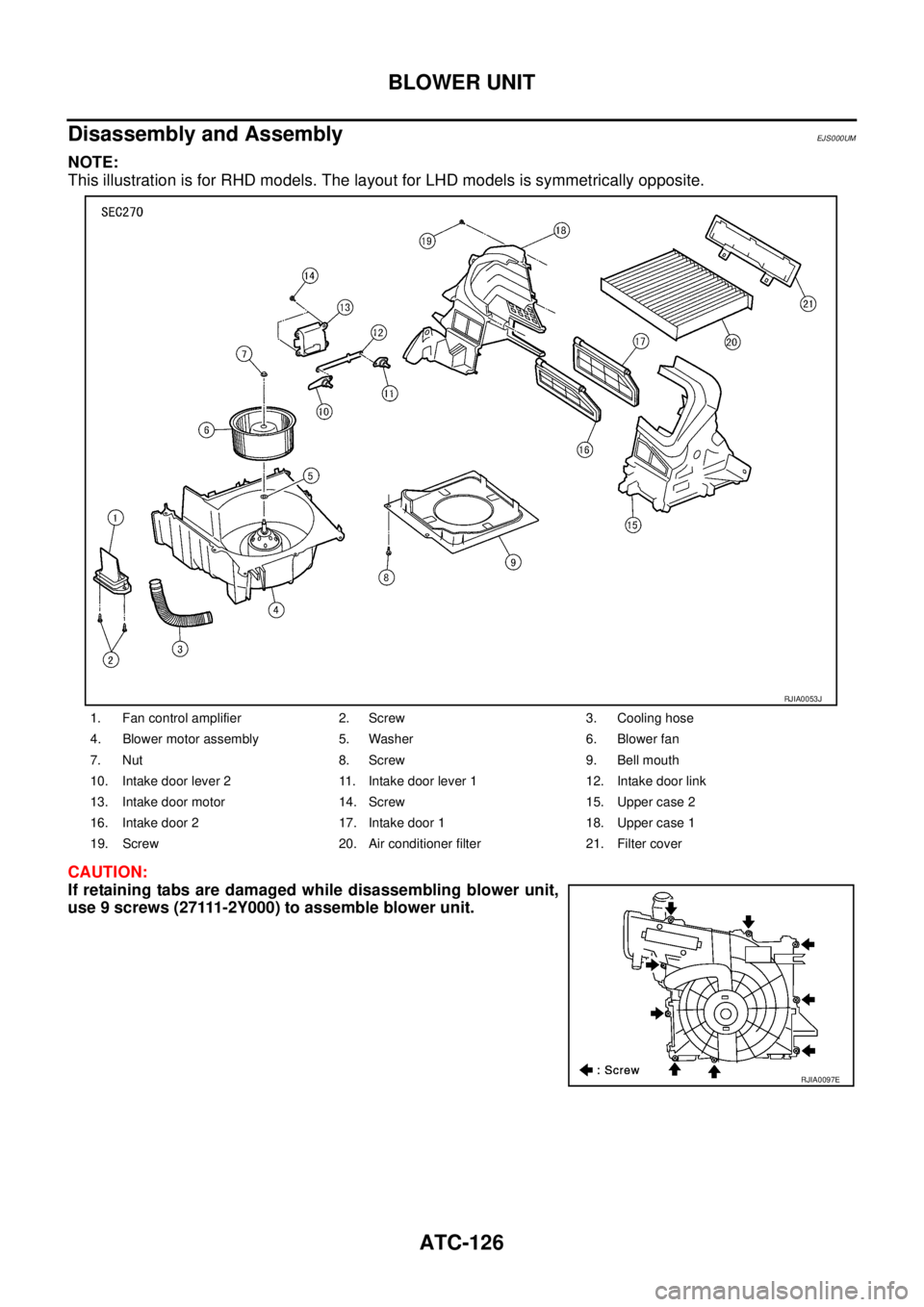

1. Fan control amplifier 2. Screw 3. Cooling hose
4. Blower motor assembly 5. Washer 6. Blower fan
7. Nut 8. Screw 9. Bell mouth
10. Intake door lever 2 11. Intake door lever 1 12. Intake door link
13. Intake door motor 14. Screw 15. Upper case 2
16. Intake door 2 17. Intake door 1 18. Upper case 1
19. Screw 20. Air conditioner filter 21. Filter cover
RJIA0053J
RJIA0097E

ATC-130
AIR CONDITIONER FILTER

AIR CONDITIONER FILTERPFP:27277
Removal and InstallationEJS005RT
FUNCTION

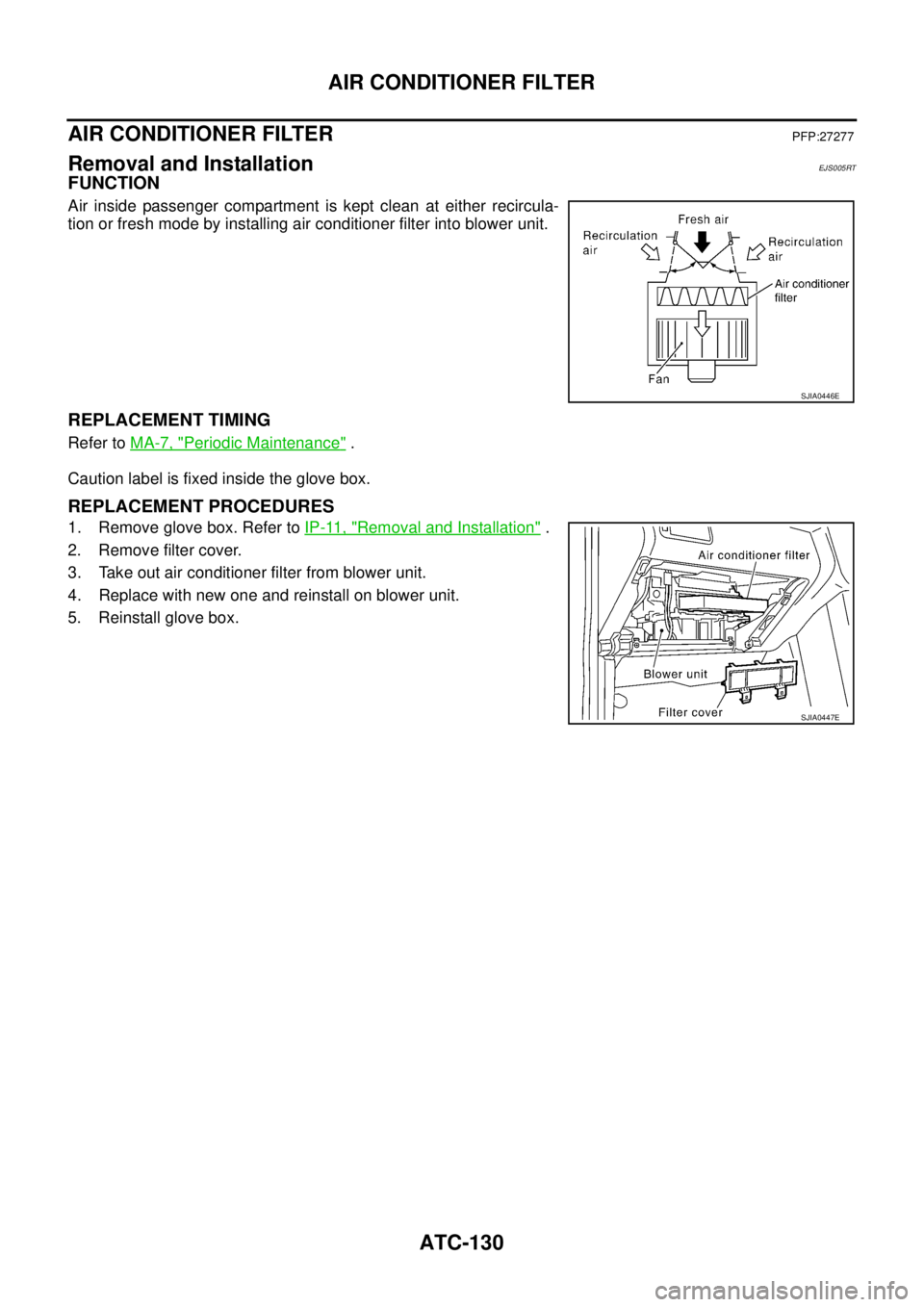

Air inside passenger compartment is kept clean at either recircula-
tion or fresh mode by installing air conditioner filter into blower unit.
REPLACEMENT TIMING
Refer to MA-7, "Periodic Maintenance" .
Caution label is fixed inside the glove box.
REPLACEMENT PROCEDURES
1. Remove glove box. Refer to IP-11, "Removal and Installation" .
2. Remove filter cover.
3. Take out air conditioner filter from blower unit.
4. Replace with new one and reinstall on blower unit.
5. Reinstall glove box.
SJIA0446E
SJIA0447E
