TROUBLE DIAGNOSIS

Basic InspectionEBS011XF
Precaution:
Perform Basic Inspection without electrical or mechanical loads applied;

Headlamp switch is OFF.

On vehicles equipped with daytime light systems, set lighting switch to the 1st position to light
only small lamps.

Air conditioner switch is OFF.

Rear defogger switch is OFF.

Steering wheel is in the straight-ahead position, etc.
Priority Detected items (DTC)
1

U1000 CAN communication line

P0016 Crankshaft position - camshaft position correlation

P0102 P0103 Mass air flow sensor

P0112 P0113 Intake air temperature sensor

P0117 P0118 Engine coolant temperature sensor

P0122 P0123 P0222 P0223 P2135 Accelerator pedal position sensor

P0182 P0183 Fuel pump temperature sensor

P0192 P0193 Fuel rail pressure sensor

P0237 P0238 Turbocharger boost sensor

P0335 P0336 Crankshaft position sensor

P0340 P0341 Camshaft position sensor

P0563 Battery voltage

P0605 P0606 ECM

P0642 P0643 P0652 P0653 Sensor power supply

P1260 - P1267 Fuel injector adjustment resistor

P1610 - P1617 NATS

P2228 P2229 Barometric pressure sensor
2

P0089 P0628 P0629 P1272 - P1275 Fuel pump

P0200 - P0204 P1268 - P1271 P2146 - P2149 Fuel injector

P0686 ECM relay

P1212 TCS communication line
3

P0088 P0093 Fuel system

P0217 Engine over temperature (OVERHEAT)

P0234 Turbocharger system

P0501 P0502 P0503 ASCD vehicle speed sensor

P0504 ASCD brake switch

P0580 P0581 ASCD steering switch

P1211 TCS control unit

DTC P0122, P0123 APP SENSOR
EC-1455
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P0122, P0123 APP SENSORPFP:18002
DescriptionEBS011Z3
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensors detect the accelera-
tor pedal position and sends a signal to the ECM. The ECM uses the
signal to determine the amount of fuel to be injected.
CONSULT-II Reference Value in Data Monitor ModeEBS011Z4
Specification data are reference values.
*: These signals are converted by ECM internally. Thus, these differ from ECM terminals voltage.
On Board Diagnosis LogicEBS011Z6
The MI will not light up for these self-diagnoses.
NOTE:

If DTC P0122 or P0123 is displayed with DTC P0642 or P0643, first perform trouble diagnosis for
DTC P0642 or P0643. Refer to EC-1575, "
DTC P0642, P0643 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureEBS011Z7
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If DTC is detected, go to EC-1459, "
Diagnostic Procedure" .
PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL POS SEN*

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.2 - 0.7V
Accelerator pedal: Fully depressed 3.9 - 4.9V
ACCEL SEN 2*

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.1 - 0.4V
Accelerator pedal: Fully depressed 1.9 - 2.4V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0122
0122Accelerator pedal position
sensor 1 circuit low inputAn excessively low voltage from the APP sensor
1 is sent to ECM.

Harness or connectors
(The APP sensor 1 circuit is open or
shorted.)

Accelerator pedal position sensor
(Accelerator pedal position sensor 1) P0123
0123Accelerator pedal position
sensor 1 circuit high inputAn excessively high voltage from the APP sensor
1 is sent to ECM.
SEF817Y

EC-1456
[YD (WITHOUT EURO-OBD)]
DTC P0122, P0123 APP SENSOR

WITHOUT CONSULT-II
1. Turn ignition switch ON and wait at least 5 seconds.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If DTC is detected, go to EC-1459, "
Diagnostic Procedure" .

DTC P0122, P0123 APP SENSOR
EC-1457
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

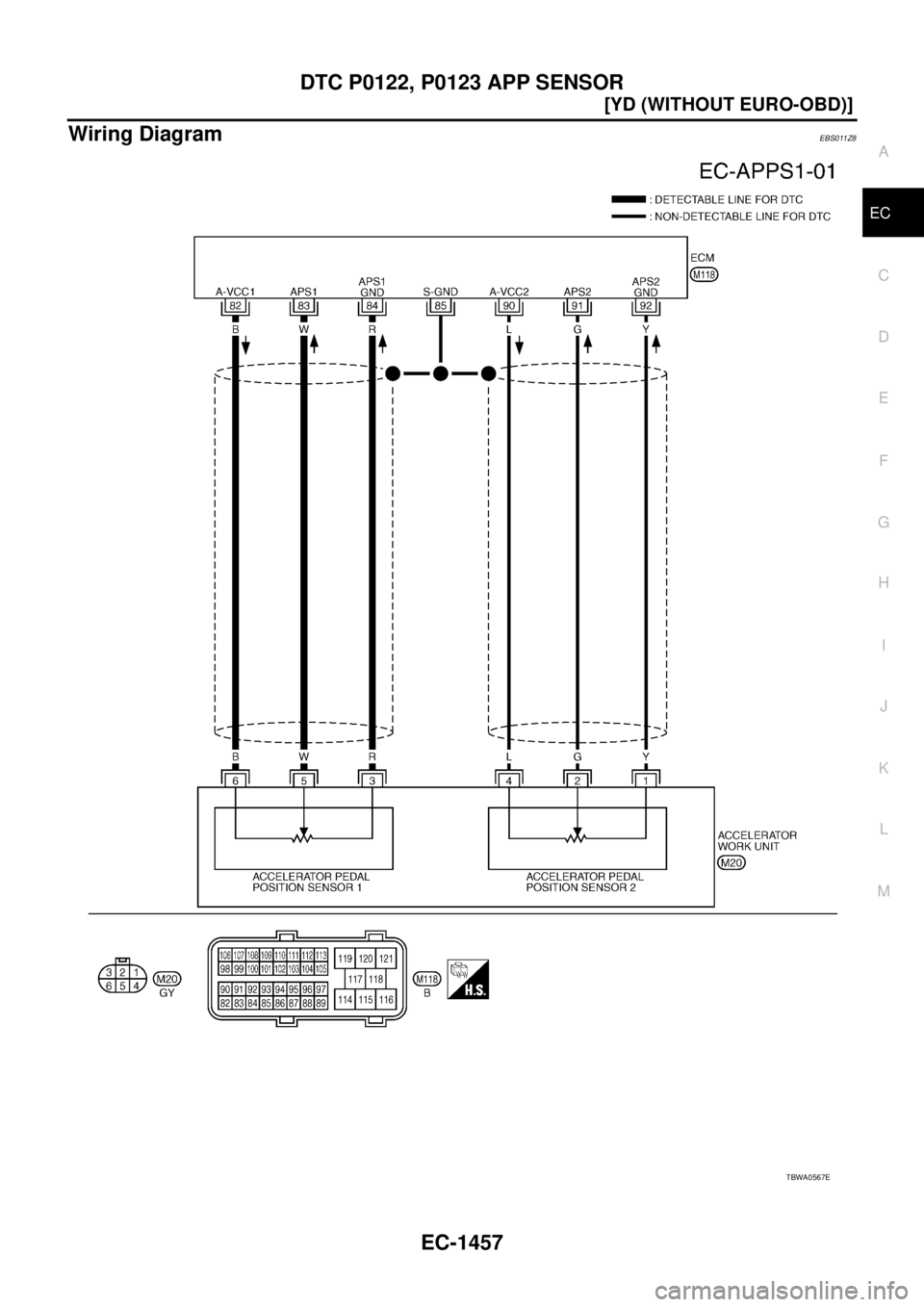

Wiring DiagramEBS011Z8
TBWA0567E

EC-1458
[YD (WITHOUT EURO-OBD)]
DTC P0122, P0123 APP SENSOR

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
82 BAccelerator pedal position
sensor 1 power supply[Ignition switch ON]Approximately 5.3V
83 WAccelerator pedal position
sensor 1[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully released0.5 - 1.0V
[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully depressed4.2 - 5.2V
84 RAccelerator pedal position
sensor 1 ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
85 —Sensor ground
(Accelerator pedal posi-
tion sensor shield circuit)[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
90 LAccelerator pedal position
sensor 2 power supply[Ignition switch ON]Approximately 5.3V
91 GAccelerator pedal position
sensor 2[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully released0.4 - 0.7V
[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully depressed2.2 - 2.7V
92 YAccelerator pedal position
sensor 2 ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V

DTC P0122, P0123 APP SENSOR
EC-1459
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Diagnostic ProcedureEBS011Z9
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.

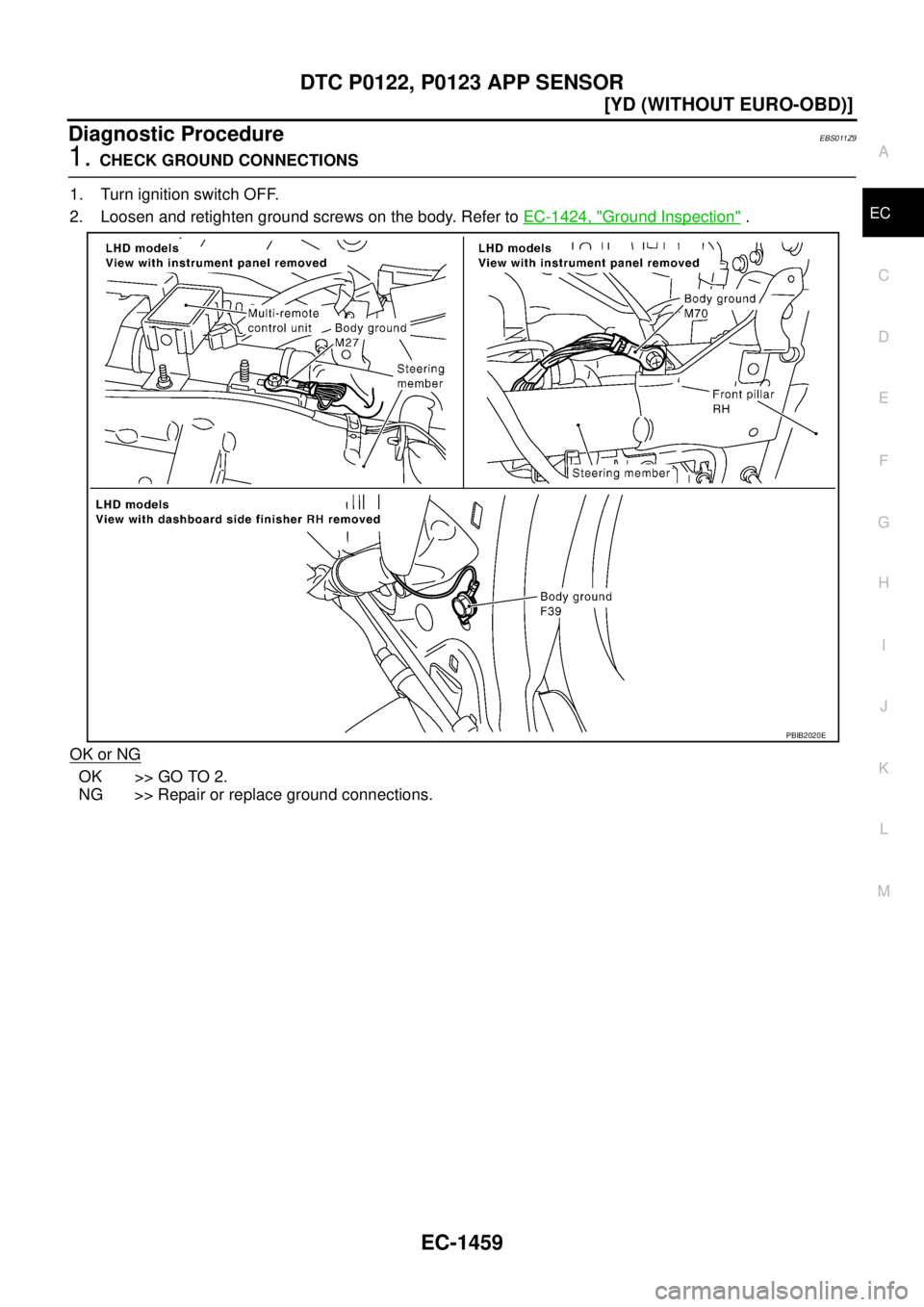

2. Loosen and retighten ground screws on the body. Refer to EC-1424, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
PBIB2020E
