2005 NISSAN X-TRAIL ECO mode

DI-4
COMBINATION METERS

COMBINATION METERSPFP:24814
System DescriptionEKS00EGZ
UNIFIED CONTROL METER

Speedometer, odo/trip meter, tachometer, fuel gauge and water temperature gauge are controlled by the
unified meter control unit, which is built into the combination meter.

Digital meter is adopted for odo/trip meter.*
*The record of the odo meter is kept even if the battery cable is disconnected. The record of the trip meter
is erased when the battery cable is disconnected.

Odo/trip meter segments can be checked in diagnosis mode.

Meter/gauge can be checked in diagnosis mode.
HOW TO CHANGE THE DISPLAY FOR ODO/TRIP METER

The vehicle speed signal and the memory signals from the meter memory circuit are processed by the
combination meter and the mileage is displayed.

Ambient temperature indicator indicates signal from ambient sensor processed by combination meter.

Depressing the odo/trip meter switch toggles the mode in the following order.

The odo/trip meter display mode toggling and trip display resetting can be identified by the amount of time
that elapses from pressing the odo/trip meter switch to releasing it.

When resetting with trip A displayed, only trip A display is reset (The same way for trip B).
POWER SUPPLY AND GROUND CIRCUIT
Power is supplied at all times

through 10A fuse [No. 28, located in the fuse block (J/B)]

to combination meter terminal 1.
With the ignition switch in the ON or START position, power is supplied

through 10A fuse [No. 11, located in the fuse block (J/B)]

to combination meter terminals 2.
Ground is supplied

to combination meter terminals 21

through grounds M27 and M70.
WATER TEMPERATURE GAUGE
The water temperature gauge indicates the engine coolant temperature.
ECM provides an engine coolant temperature signal to combination meter for water temperature gauge with
CAN communication line.
SKIA8917E

COMBINATION METERS
DI-5
C
D
E
F
G
H
I
J
L
MA
B
DI

TACHOMETER
The tachometer indicates engine speed in revolutions per minute (rpm).
ECM provides an engine speed signal to combination meter for tachometer with CAN communication line.
SPEEDOMETER
ESP/TCS/ABS control unit (with ESP) or ABS actuator and electric unit (without ESP) provides a vehicle
speed signal to the combination meter for the speedometer with CAN communication line.
FUEL GAUGE
The fuel gauge indicates the approximate fuel level in the fuel tank.
The fuel gauge is regulated by a variable ground signal supplied

from grounds B8 and B18 (LHD models)

from grounds B107 and B119 (RHD models)

through terminal 1 and 4 of the fuel level sensor unit

through terminal 3 and 1 of the sub fuel level sensor unit and

to combination meter terminal 8 for the fuel gauge.
AMBIENT TEMPERATURE INDICATOR
The ambient temperature is indicated by the signal from ambient sensor.
Combination meter inputs voltage conversed from resistance which ambient sensor detects.
Indication range is between −30 and 55 °C (−22 and 131 °F). When ambient air temperature is less than −30
°C (−22 °F) or more than 55 °C (131 °F), display shows “---°C”. When indicated temperature becomes less
than 3 °C (37 °F), ambient temperature indicator flashes as a sign of warning.
Without Auto A/C
Power is supplied

through combination meter terminal 27

to ambient sensor terminal 1.
Ground is supplied

to combination meter terminal 28

through ambient sensor terminal 2.
Signal is supplied

through ambient sensor terminal 1

to combination meter terminal 27.
With Auto A/C
Power is supplied

through auto amp terminal 9

to ambient sensor terminal 1.
Ground is supplied

to combination meter terminal 28 and auto amp terminal 24

through ambient sensor terminal 2.
And combination meter receives ambient sensor signal from ambient sensor

through ambient sensor terminal 1

to combination meter terminal 27.
NOTE:
Combination meter distinguishes whether or not the combination meter terminal 29 receives voltage (auto A/C
recognition signal) from auto amp terminal 28. If the terminal receives, combination meter discerns as auto A/
C.
Indication When Turning Ignition Switch OFF

In a case that temperature detected by ambient sensor is higher than indicated temperature before turn-
ing ignition switch OFF.
–In a case of more than 3.5 hours after turning ignition switch OFF, temperature detected by ambient sen-
sor is indicated when turning ignition switch ON.

COMBINATION METERS
DI-21
C
D
E
F
G
H
I
J
L
MA
B
DI

Terminals and Reference Value for Combination MeterEKS00EH6
NOTE:
*1: With auto A/C
Meter/Gauges Operation and Odo/Trip MeterEKS00EH7
SELF-DIAGNOSIS FUNCTION

Odo/trip meter segment operation can be checked in self-diagnosis mode.

Meters/gauges can be checked in self-diagnosis mode.
HOW TO ALTERNATE DIAGNOSIS MODE
1. Turn ignition switch ON, and switch the odo/trip meter to “trip A” or “trip B”.
NOTE:
If the diagnosis function is activated with the trip meter A displayed, the mileage on the trip meter A will
indicate 0.0 miles, but the actual trip mileage will be retained (The same way for trip B).
2. Turn ignition switch OFF.
3. While pushing the odo/trip meter switch, turn ignition switch ON again.
4. Make sure that the trip meter displays “0.0”.
5. Push the odo/trip meter switch at least 3 times (Within 7 seconds after the ignition switch is turned ON).
6. All the segments on the odo/trip meter illuminate, and simultaneously the low-fuel warning lamp indicator
illuminates. At this time, the unified meter control unit is turned to diagnosis mode.
NOTE:
If any of the segments is not displayed, replace the combination
meter.
Terminal
No.Wire
colorItemCondition
Reference value
Ignition
switchOperation or condition
1 L Battery power supply OFF — Battery voltage
2 Y/G Ignition switch (ON) ON — Battery voltage
8 G Fuel level sensor signal — —Refer to DI-32, "
FUEL LEVEL SENSOR UNIT
CHECK/GASOLINE ENGINE MODELS" or DI-
32, "FUEL LEVEL SENSOR UNIT CHECK/DIE-
SEL ENGINE MODELS" .
21 B Ground ON — Approx. 0 V
22 W CAN H — — —
23 R CAN L — — —
27 R/B Ambient sensor signal — — Refer to DI-33, "
AMBIENT SENSOR CHECK" .
28 B/Y Ambient sensor ground ON — Approx. 0 V
29
*1Y Auto A/C recognition signal ON — Approx. 5 V
SKIA8920E

MA-4
DESCRIPTION

DESCRIPTIONPFP:00000
Pre-Delivery Inspection ItemsELS000Y5
Shown below are Pre-delivery Inspection Items required for the new vehicle. It is recommended that
necessary items other than those listed here be added, paying due regard to the conditions in each
country.
Perform applicable items on each model. Consult text of this section for specifications.
Install vehicle protection kit
Fit all accessories ordered (if applicable) (e.g. towbar, audio, navigation, air conditioner, styling kit)
UNDER HOOD — engine off
Check coolant level and cooling system for leaks
Charge battery and check terminals for condition
Check drive belts tension (diesel only)
Check fuel filter for water or dust (diesel only) and fuel system for leaks
Check engine oil level and for oil leaks
Check brake and clutch fluid levels and fluid lines for leaks
Check and top up washer reservoirs
Check power steering fluid level and fluid lines for leaks (if applicable)
Check air conditioning system for gas leaks (if applicable)
ON INSIDE AND OUTSIDE
Install transit fuse if removed for vehicle storage
Check instruments, gauges, lamps, horn and accessories for operation
Check wipers and washers for operation and adjustment
Check interior and door mirrors and sun visors for operation
Set radio code and set clock
Check parking brake adjustment
Check clutch pedal adjustment
Check steering lock operation
Check seat adjusters and seat belts for operation
Check all windows for operation and alignment
Check mouldings, trim and fittings for fit and alignment
Check weatherstrips for fit and adhesion
Check hood, trunk lid, door panels and fuel lid for fit and alignment
Check latches, keys, remote key, door locks and remote trunk lid and fuel lid release for operation
Check wheel nut torques
Check tyre pressure (incl. spare tyre)
Check tool kit and jack for operation
Check automatic transmission/transaxle starter inhibitor (if applicable)
Check sunroof for operation and alignment (if applicable)
UNDER BODY
Check manual transmission/transaxle, differential and transfer box for oil level and oil leaks
Tighten bolts and nuts steering linkage and gear box, axle/suspension parts, propeller and exhaust system
Check brake and clutch lines, and oil/fluid reservoirs for leaks
Remove front suspension spacer blocks (if applicable)
Check body mounting torque (if applicable)

MA-6
GENERAL MAINTENANCE

GENERAL MAINTENANCEPFP:00000
General MaintenanceELS000AL
General maintenance includes those items which should be checked during the normal day-to-day operation
of the vehicle. They are essential if the vehicle is to continue operating properly. The owners can perform the
checks and inspections themselves or they can have their NISSAN dealers do them for a nominal charge.
OUTSIDE THE VEHICLE
The maintenance items listed here should be performed from time to time, unless otherwise specified.
INSIDE THE VEHICLE
The maintenance items listed here should be checked on a regular basis, such as when performing periodic maintenance, cleaning the
vehicle, etc.
UNDER THE HOOD AND VEHICLE
The maintenance items listed here should be checked periodically e.g. each time you check the engine oil or refuel.Item Reference page
TiresCheck the pressure with a gauge periodically when at a service station, includ-
ing the spare, and adjust to the specified pressure if necessary. Check carefully
for damage, cuts or excessive wear.—
Windshield wiper
bladesCheck for cracks or wear if not functioning correctly. —
Doors and engine
hoodCheck that all doors, the engine hood, the trunk lid and back door operate prop-
erly. Also ensure that all latches lock securely. Lubricate if necessary. Make sure
that the secondary latch keeps the hood from opening when the primary latch is
released.
When driving in areas using road salt or other corrosive materials, check for
lubrication frequently.BL-12
, BL-18
Tire rotationTires should be rotated every 10,000 km (6,000 miles) for 2WD models and
every 5,000 km (3,000 miles) for 4WD models.MA-43
Item Reference page
LampsMake sure that the headlamps, stop lamps, tail lamps, turn signal lamps, and
other lamps are all operating properly and installed securely. Also check head-
lamp aim.—
Warning lamps and
chimesMake sure that all warning lamps and buzzers/chimes are operating properly. —
Steering wheelCheck that it has the specified play.
Check for changes in the steering conditions, such as excessive free play, hard
steering or strange noises.
Free play: Less than 35 mm (1.38 in)—
Seat beltsCheck that all parts of the seat belt system (e.g. buckles, anchors, adjusters and
retractors) operate properly and smoothly, and are installed securely. Check the
belt webbing for cuts, fraying, wear or damage.MA-47
Item Reference page
Windshield washer
fluidCheck that there is adequate fluid in the tank. —
Engine coolant levelCheck the coolant level when the engine is cold.MA-20
(QR20DE,
QR25DE)
MA-30
(YD22DDTi)
Engine oil levelCheck the level after parking the vehicle on a level spot and turning off the
engine.MA-24
(QR20DE,
QR25DE)
MA-35
(YD22DDTi)
Brake and clutch fluid
levelsMake sure that the brake and clutch fluid levels are between the “MAX” and
“MIN” lines on the reservoir.MA-39
, MA-44
BatteryCheck the fluid level in each cell. It should be between the “MAX” and “MIN”
lines.—

MA-18
RECOMMENDED FLUIDS AND LUBRICANTS

SAE Viscosity NumberELS000C9
GASOLINE ENGINE

5W-30 is preferable.
If 5W-30 is not available, select the viscosity, from the chart, that
is suitable for the outside temperature range.
CAUTION:

5W-20 should only be used for QR engine models.

5W-20 is not suitable for sustained high speed driving.
DIESEL ENGINE

5W-30 is preferable.
If 5W-30 is not available, select the viscosity, from the chart, that
is suitable for the outside temperature range.
SLIA0021E
SMA204D

MA-40
CHASSIS AND BODY MAINTENANCE

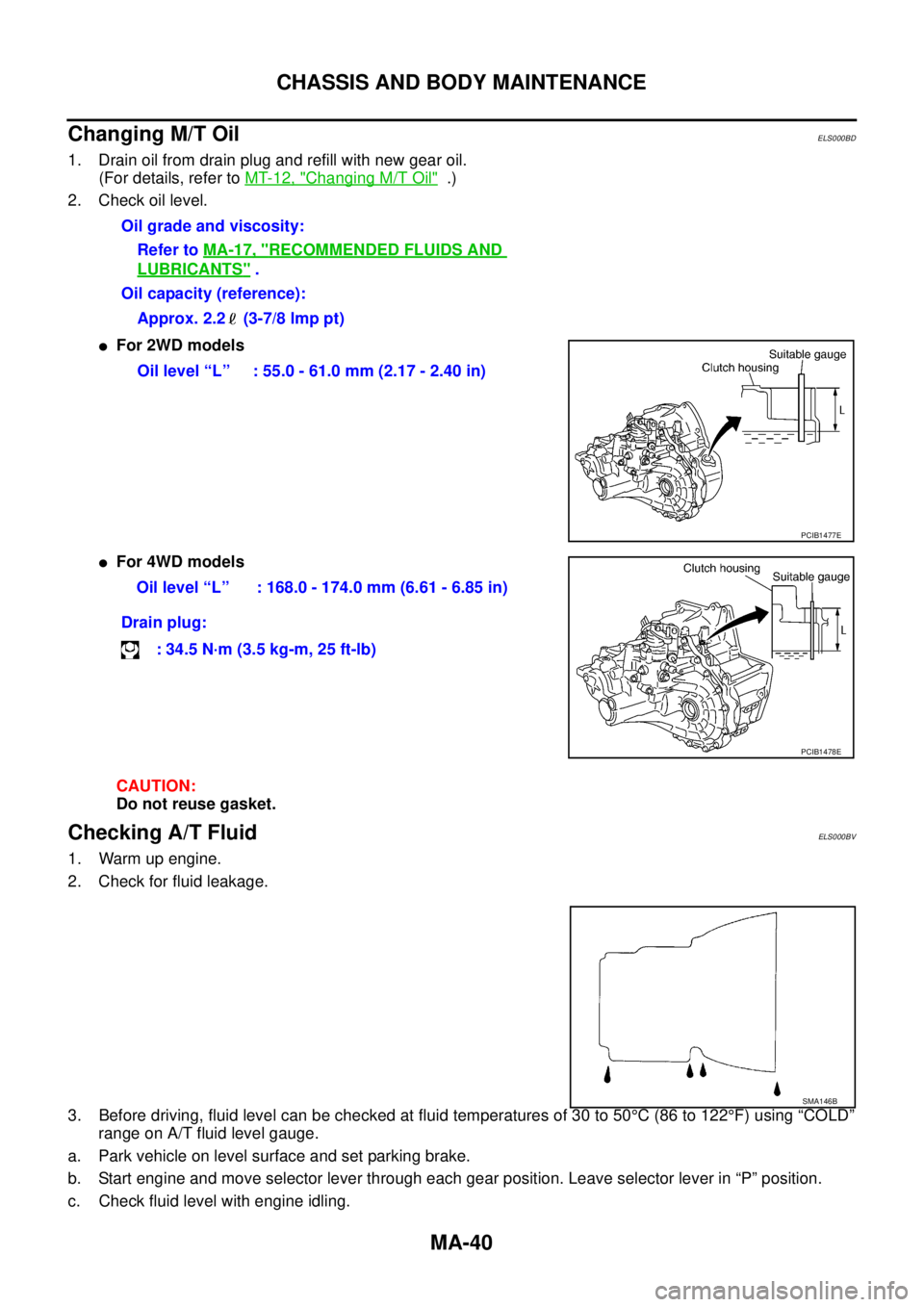

Changing M/T OilELS000BD
1. Drain oil from drain plug and refill with new gear oil.
(For details, refer to MT-12, "
Changing M/T Oil" .)
2. Check oil level.

For 2WD models

For 4WD models
CAUTION:
Do not reuse gasket.
Checking A/T FluidELS000BV
1. Warm up engine.
2. Check for fluid leakage.
3. Before driving, fluid level can be checked at fluid temperatures of 30 to 50°C (86 to 122°F) using “COLD”
range on A/T fluid level gauge.
a. Park vehicle on level surface and set parking brake.
b. Start engine and move selector lever through each gear position. Leave selector lever in “P” position.
c. Check fluid level with engine idling.Oil grade and viscosity:
Refer to MA-17, "
RECOMMENDED FLUIDS AND
LUBRICANTS" .
Oil capacity (reference):
Approx. 2.2 (3-7/8 lmp pt)
Oil level “L” : 55.0 - 61.0 mm (2.17 - 2.40 in)
PCIB1477E
Oil level “L” : 168.0 - 174.0 mm (6.61 - 6.85 in)
Drain plug:
: 34.5 N·m (3.5 kg-m, 25 ft-lb)
PCIB1478E
SMA146B

MA-44
CHASSIS AND BODY MAINTENANCE

Checking Brake Fluid Level and LeaksELS000BJ

If fluid level is extremely low, check brake system for leaks.
Checking Brake Lines and CablesELS000BK

Check brake fluid lines and parking brake cables for improper
attachment, leaks, chafing, abrasions, deterioration, etc.
Changing Brake FluidELS000BL
1. Drain brake fluid from each bleed valve.
2. Refill until new brake fluid comes out from each bleed valve.
Use same procedure as in bleeding hydraulic system to refill
brake fluid.
Refer to BR-8, "
Changing Brake Fluid" .

Refill with recommended brake fluid “DOT 3” or “DO4”.
Refer to MA-17, "
RECOMMENDED FLUIDS AND LUBRI-
CANTS" .

Never reuse drained brake fluid.

Be careful not to splash brake fluid on painted areas.
Checking Disc BrakeELS000BM
ROTOR
Check condition, wear, and damage.
SFIA0066J
SBR389C
SBR419C
Applied Front Rear
Brake model AD31VD AD9VA
Standard thickness 28.0 mm (1.102 in) 16.0 mm (0.630 in)
Maximum runout 0.04 mm (0.0016 in) 0.07 mm (0.0028 in)
Minimum thickness (Wear limit) 26.0 mm (1.024 in) 14.0 mm (0.551 in)
