SECTION AT
A
B
AT

AUTOMATIC TRANSAXLE
TROUBLE DIAGNOSIS — INDEX ............................. 6
Alphabetical & P No. Index for DTC ......................... 6
PRECAUTIONS .......................................................... 8
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 8
Precautions for On Board Diagnostic (EURO-OBD)
System of A/T and Engine — Euro-OBD — ............. 8
Precautions for Trouble Diagnosis ........................... 8
Precautions for Harness Repair ............................... 8
Precautions .............................................................. 9
Service Notice or Precautions ................................ 10
Wiring Diagrams and Trouble Diagnosis ................. 11
PREPARATION ......................................................... 12
Special Service Tools ............................................. 12
Commercial Service Tools ...................................... 15
A/T FLUID ................................................................. 16
Checking A/T Fluid ................................................. 16
Changing A/T Fluid ................................................ 17
OVERALL SYSTEM ................................................. 18
Cross-Sectional View ............................................. 18
Hydraulic Control Circuit ........................................ 19
A/T Electrical Parts Location .................................. 20
Circuit Diagram ...................................................... 21
Shift Mechanism ..................................................... 22
TCM Function ......................................................... 31
CAN Communication .............................................. 32
Input/Output Signal of TCM .................................... 34
Line Pressure Control ............................................ 34
Shift Control ........................................................... 35
Lock-Up Control ..................................................... 36
Engine Brake Control (Overrun Clutch Control) ..... 37
Control Valve .......................................................... 39
EURO-OBD
ON BOARD DIAGNOSTIC SYSTEM DESCRIP-
TION .......................................................................... 40
Introduction ............................................................ 40
EURO-OBD Function for A/T System .................... 40One or Two Trip Detection Logic of EURO-OBD .... 40
EURO-OBD Diagnostic Trouble Code (DTC) ......... 40
Malfunction Indicator (MI) ....................................... 44
CONSULT-II ............................................................ 44
Diagnostic Procedure Without CONSULT-II ........... 52
TROUBLE DIAGNOSIS — INTRODUCTION ........... 57
Introduction ............................................................. 57
Work Flow ............................................................... 61
TROUBLE DIAGNOSIS — BASIC INSPECTION .... 64
A/T Fluid Check ...................................................... 64
Stall Test ................................................................. 65
Line Pressure Test .................................................. 68
Road Test ............................................................... 70
TROUBLE DIAGNOSIS — GENERAL DESCRIP-
TION .......................................................................... 85
Symptom Chart ....................................................... 85
TCM Terminals and Reference Value ..................... 94
DTC U1000 CAN COMMUNICATION LINE .............. 97
Description .............................................................. 97
On Board Diagnosis Logic ...................................... 97
Possible Cause ....................................................... 97
DTC Confirmation Procedure ................................. 97
Wiring Diagram — AT — CAN ................................ 98
Diagnostic Procedure ............................................. 99
DTC P0705 PARK/NEUTRAL POSITION (PNP)
SWITCH ..................................................................100
Description ............................................................100
On Board Diagnosis Logic ....................................100
Possible Cause .....................................................100
DTC Confirmation Procedure ...............................100
Wiring Diagram — AT — PNP/SW .......................102
Diagnostic Procedure ...........................................103
DTC P0710 A/T FLUID TEMPERATURE SENSOR
CIRCUIT ..................................................................106
Description ............................................................106
On Board Diagnosis Logic ....................................106
Possible Cause .....................................................106
DTC Confirmation Procedure ...............................106
Wiring Diagram — AT — FTS ..............................108

AT-36
OVERALL SYSTEM

CONTROL OF SHIFT SOLENOID VALVES A AND B
The TCM activates shift solenoid valves A and B according to sig-
nals from the throttle position sensor and revolution sensor to select
the optimum gear position on the basis of the shift schedule memo-
rized in the TCM.
The shift solenoid valve performs simple ON-OFF operation. When
set to “ON”, the drain circuit closes and pilot pressure is applied to
the shift valve.
RELATION BETWEEN SHIFT SOLENOID VALVES A AND B GEAR POSITIONS

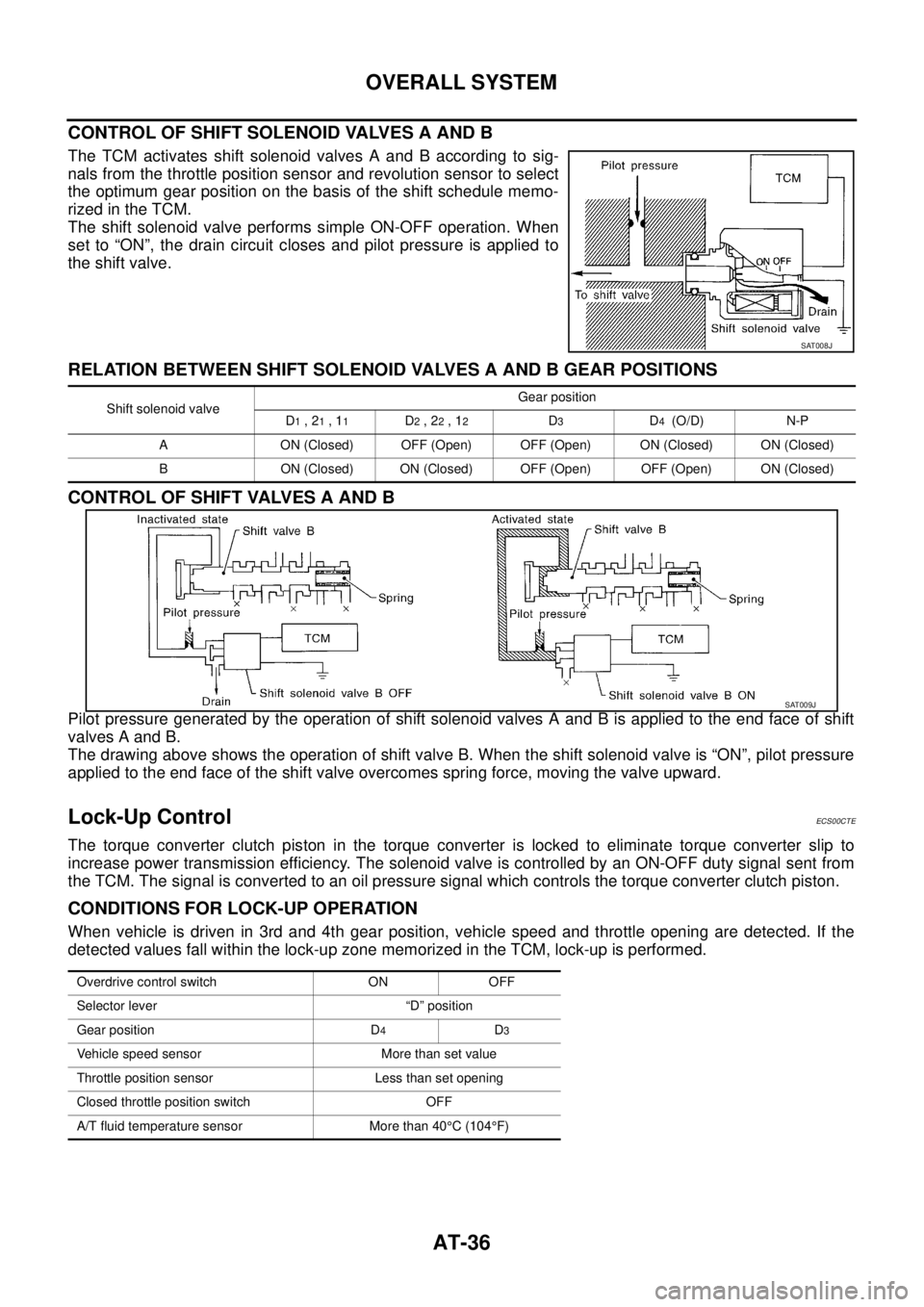

CONTROL OF SHIFT VALVES A AND B
Pilot pressure generated by the operation of shift solenoid valves A and B is applied to the end face of shift
valves A and B.
The drawing above shows the operation of shift valve B. When the shift solenoid valve is “ON”, pilot pressure
applied to the end face of the shift valve overcomes spring force, moving the valve upward.
Lock-Up ControlECS00CTE
The torque converter clutch piston in the torque converter is locked to eliminate torque converter slip to
increase power transmission efficiency. The solenoid valve is controlled by an ON-OFF duty signal sent from
the TCM. The signal is converted to an oil pressure signal which controls the torque converter clutch piston.
CONDITIONS FOR LOCK-UP OPERATION
When vehicle is driven in 3rd and 4th gear position, vehicle speed and throttle opening are detected. If the
detected values fall within the lock-up zone memorized in the TCM, lock-up is performed.
SAT008J
Shift solenoid valveGear position
D1 , 21 , 11D2 , 22 , 12D3D4 (O/D) N-P
A ON (Closed) OFF (Open) OFF (Open) ON (Closed) ON (Closed)
B ON (Closed) ON (Closed) OFF (Open) OFF (Open) ON (Closed)
SAT009J
Overdrive control switch ON OFF
Selector lever “D” position
Gear position D
4D3
Vehicle speed sensor More than set value
Throttle position sensor Less than set opening
Closed throttle position switch OFF
A/T fluid temperature sensor More than 40°C (104°F)

REMOVAL AND INSTALLATION
AT-413
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

REMOVAL AND INSTALLATIONPFP:00000
RemovalECS004NC

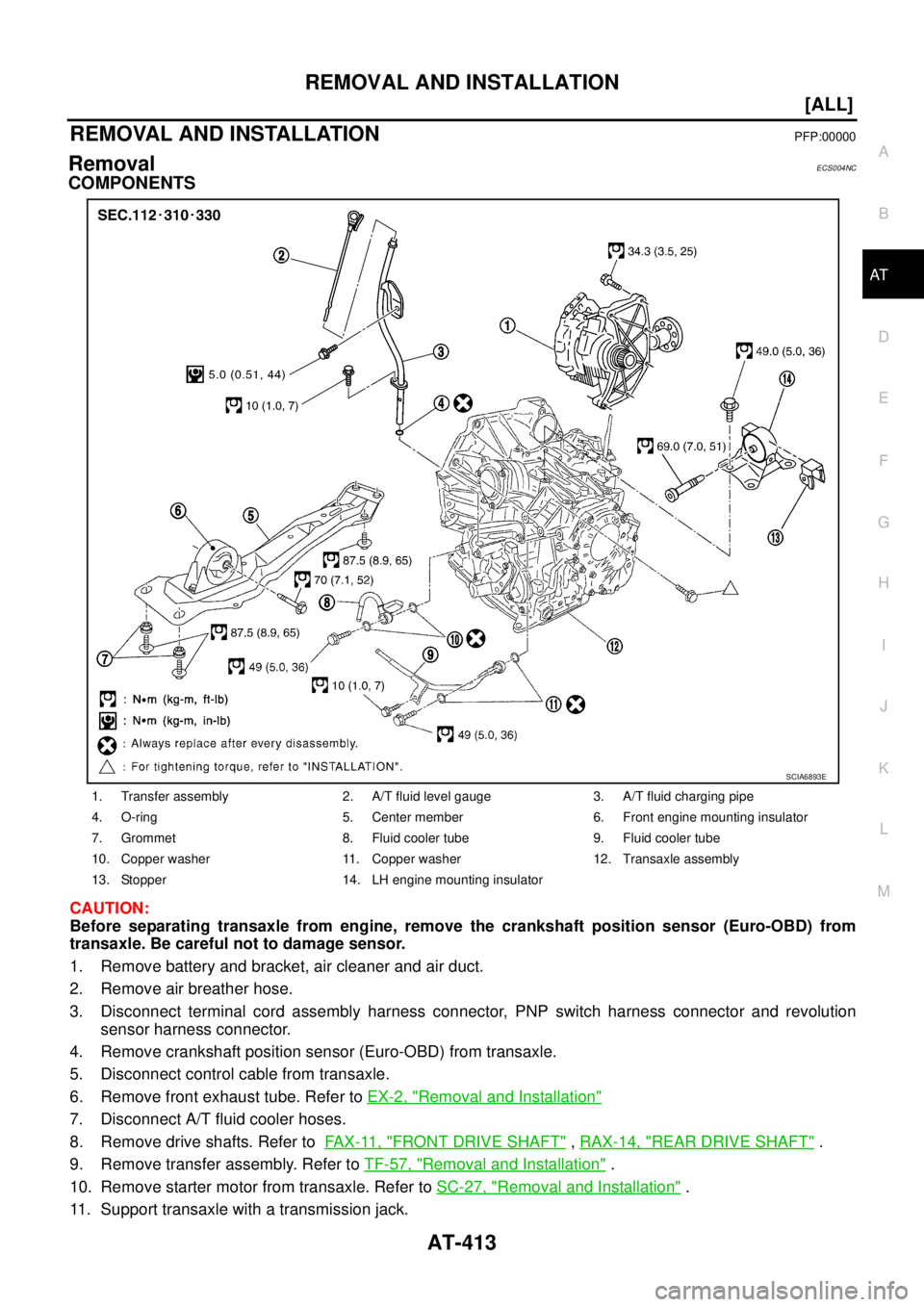

COMPONENTS
CAUTION:
Before separating transaxle from engine, remove the crankshaft position sensor (Euro-OBD) from
transaxle. Be careful not to damage sensor.
1. Remove battery and bracket, air cleaner and air duct.
2. Remove air breather hose.
3. Disconnect terminal cord assembly harness connector, PNP switch harness connector and revolution
sensor harness connector.
4. Remove crankshaft position sensor (Euro-OBD) from transaxle.
5. Disconnect control cable from transaxle.
6. Remove front exhaust tube. Refer to EX-2, "
Removal and Installation"
7. Disconnect A/T fluid cooler hoses.
8. Remove drive shafts. Refer to FAX-11, "
FRONT DRIVE SHAFT" , RAX-14, "REAR DRIVE SHAFT" .
9. Remove transfer assembly. Refer to TF-57, "
Removal and Installation" .
10. Remove starter motor from transaxle. Refer to SC-27, "
Removal and Installation" .
11. Support transaxle with a transmission jack.
1. Transfer assembly 2. A/T fluid level gauge 3. A/T fluid charging pipe
4. O-ring 5. Center member 6. Front engine mounting insulator
7. Grommet 8. Fluid cooler tube 9. Fluid cooler tube
10. Copper washer 11. Copper washer 12. Transaxle assembly
13. Stopper 14. LH engine mounting insulator
SCIA6893E

AT-414
[ALL]
REMOVAL AND INSTALLATION

12. Remove center member, engine insulator and engine mounting
bracket.

Center member fixing bolts to specified torque, Refer to AT-
413, "COMPONENTS" .
13. Remove suspension member. Refer to FSU-12, "
FRONT SUS-
PENSION MEMBER" .
14. Remove dust cover from converter housing part.
15. Turn crankshaft, and remove the four tightening bolts for drive
plate and torque converter.
CAUTION:
The crankshaft should be rotated clockwise, viewed from
the front of engine.
16. Support engine with a transmission jack.
17. Remove bolts fixing transaxle to engine.
18. Lower transaxle while supporting it with a transmission jack.
19. Disconnect harness connector and wire harness.
20. Remove A/T fluid charging pipe.
SCIA0794E
AAT259A
ATM0479D
SCIA5885E

MA-4
DESCRIPTION

DESCRIPTIONPFP:00000
Pre-Delivery Inspection ItemsELS000Y5
Shown below are Pre-delivery Inspection Items required for the new vehicle. It is recommended that
necessary items other than those listed here be added, paying due regard to the conditions in each
country.
Perform applicable items on each model. Consult text of this section for specifications.
Install vehicle protection kit
Fit all accessories ordered (if applicable) (e.g. towbar, audio, navigation, air conditioner, styling kit)
UNDER HOOD — engine off
Check coolant level and cooling system for leaks
Charge battery and check terminals for condition
Check drive belts tension (diesel only)
Check fuel filter for water or dust (diesel only) and fuel system for leaks
Check engine oil level and for oil leaks
Check brake and clutch fluid levels and fluid lines for leaks
Check and top up washer reservoirs
Check power steering fluid level and fluid lines for leaks (if applicable)
Check air conditioning system for gas leaks (if applicable)
ON INSIDE AND OUTSIDE
Install transit fuse if removed for vehicle storage
Check instruments, gauges, lamps, horn and accessories for operation
Check wipers and washers for operation and adjustment
Check interior and door mirrors and sun visors for operation
Set radio code and set clock
Check parking brake adjustment
Check clutch pedal adjustment
Check steering lock operation
Check seat adjusters and seat belts for operation
Check all windows for operation and alignment
Check mouldings, trim and fittings for fit and alignment
Check weatherstrips for fit and adhesion
Check hood, trunk lid, door panels and fuel lid for fit and alignment
Check latches, keys, remote key, door locks and remote trunk lid and fuel lid release for operation
Check wheel nut torques
Check tyre pressure (incl. spare tyre)
Check tool kit and jack for operation
Check automatic transmission/transaxle starter inhibitor (if applicable)
Check sunroof for operation and alignment (if applicable)
UNDER BODY
Check manual transmission/transaxle, differential and transfer box for oil level and oil leaks
Tighten bolts and nuts steering linkage and gear box, axle/suspension parts, propeller and exhaust system
Check brake and clutch lines, and oil/fluid reservoirs for leaks
Remove front suspension spacer blocks (if applicable)
Check body mounting torque (if applicable)

RECOMMENDED FLUIDS AND LUBRICANTSMA-17
C
DE
F
G H
I
J
K
M A
B
MA

RECOMMENDED FLUIDS AND LUBRICANTSPFP:00000
Fluids and LubricantsELS000C8
*1: For further details, see “SAE Viscosity Number”.
*2: Never use API CG-4.
*3: Use Genuine NISSAN Anti-freeze Coolant (L250) or equivalent in its quality, in order to avoid possible aluminum corrosion w ithin the
engine cooling system caused by the use of non-genuine engine coolant.
Note that any repairs for the incidents within the engine cooling system while using non-genuine engine coolant may not be
covered by the warranty even if such incidents occurred during the warranty period.
*4: Contact a NISSAN dealership for more information regarding suitable fluids, including recommended brand(s) of DEXRON
TM III/
MERCONTM Automatic Transmission Fluid.
*5: Never mix different types of fluids (DOT 3 and DOT 4). Capacity (Approximate)
Recommended Fluids/Lubricants
Liter Imp measure
Engine oil
Drain and refill With oil filter
change
QR20DE,
QR25DE
4.1 3-5/8 qt

Gasoline engine
API SG, SH, SJ or SL *1
ILSAC grade GF-I, GF-II or GF-III *1
ACEA A2

Diesel engine
API CF-4*1, *2
ACEA B1, B3, B4, B5 *1, *2
YD22DDTi 5.2 4-5/8 qt
Without oil filter
change QR20DE,
QR25DE
3.7 3-1/4 qt
YD22DDTi 4.9 4-3/8 qt
Dry engine (engine overhaul) QR20DE,
QR25DE
4.7 4-1/8 qt
YD22DDTi 6.3 5-1/2 qt
Cooling system (with reservoir) QR20DE,
QR25DE
7.1 6-1/4 qt

Genuine NISSAN Anti-freeze Coolant (L250)
or equivalent in its quality*3
YD22DDTi 9.5 8-3/8 qt
Reservoir tank QR20DE,
QR25DE
0.7 5/8 qt
YD22DDTi 0.7 5/8 qt
Manual transaxle gear oil
2.2 3-7/8 pt

Genuine NISSAN gear oil or API GL-4, Vis-
cosity SAE 75W-85
Transfer gear oil 0.31 1/2 pt

API GL-5, Viscosity SAE 80W-90
Differential gear oil 0.55 1 pt

API GL-5, Viscosity SAE 80W-90
Automatic transaxle fluid 8.5 7-1/2 qt Genuine NISSAN ATF or equivalent*4
Power steering fluid — — DEXRON
TM III type ATF or equivalent
Brake and clutch fluid — —

DOT 3 or DOT 4 (US FMVSS No. 116)*5
Multi-purpose grease — — NLGI No. 2 (Lithium soap base)

IDX-2
ALPHABETICAL INDEX
Numerics
4WD - Wiring diagram ....................................... TF-23
4WD control unit inspection table ...................... TF-30
A
A/C air flow ......................................... ATC-32
, MTC-5
A/C component layout ..................................... ATC-23
A/C compressor clutch removal and installation ...........
ATC-146
A/C compressor precaution ............................. ATC-10
A/C compressor special service tool ................ ATC-14
A/C diagnostic work flow (auto A/C) ................ ATC-34
A/C HFC134a (R134a) system precaution ........ ATC-4
A/C HFC134a (R134a) system service procedure .......
ATC-141
A/C HFC134a (R134a) system service tools ... ATC-15
A/C HFC134a system service equipment precaution ...
ATC-10
A/C lubricant (R134a) ...................................... ATC-24
A/C operational check ......................... ATC-65, MTC-7
A/C performance test diagnoses ..................... ATC-98
A/C reray .......................................................... ATC-94
A/C self-diagnoses (auto A/C) ......................... ATC-57
A/C system description (auto A/C) ................... ATC-27
A/C trouble diagnoses (auto A/C) ....... ATC-34, MTC-3
A/C, A - Wiring diagram ................................... ATC-39
A/T fluid checking .................................. AT-16, MA-40
A/T fluid replacement ............................. AT-17, MA-41
A/T fluid temperature sensor ........................... AT-111
A/T IND - Wiring diagram .................................... DI-53
A/T indicator ........................................................ DI-53
A/T shift lock system ........................................ AT-398
A/T shift lock system - Wiring diagram ............ AT-399
A/T trouble diagnoses .......................... AT-57, AT-251
A/T Wiring diagram AT - 1ST ........................... AT-127
A/T Wiring diagram AT - 2ND .......................... AT-132
A/T Wiring diagram AT - 3RD .......................... AT-137
A/T Wiring diagram AT - 4TH .......................... AT-143
A/T Wiring diagram AT - BA/FTS ..................... AT-376
A/T Wiring diagram AT - CAN .............. AT-98, AT-330
A/T Wiring diagram AT - ENG SS ...... AT-121, AT-383
A/T Wiring diagram AT - FTS .......................... AT-108
A/T Wiring diagram AT - LPSV .......... AT-156, AT-389
A/T Wiring diagram AT - MAIN ........................ AT-395
A/T Wiring diagram AT - OVRCSV .... AT-180, AT-364
A/T Wiring diagram AT - PNP/SW ................... AT-102
A/T Wiring diagram AT - SSV/A ......... AT-163, AT-352
A/T Wiring diagram AT - SSV/B ......... AT-169, AT-358
A/T Wiring diagram AT - TCV ............ AT-150, AT-370
A/T Wiring diagram AT - TPS ............ AT-175, AT-347
A/T Wiring diagram AT - VSS A/T ..... AT-114, AT-334
A/T Wiring diagram AT - VSSMTR .... AT-194, AT-341
Accelerator control system ............................... ACC-2
Accelerator pedal position (APP) sensor ........ EC-409,
EC-416
, EC-432, EC-815, EC-822, EC-838, EC-1099,
EC-1138
, EC-1285, EC-1455, EC-1493, EC-1624
Accelerator pedal released position learning .... EC-46, EC-559
Air bag .............................................................. SRS-3
Air bag disposal .............................................. SRS-42
Air bleeding (hydraulic clutch) .............................. CL-8
Air bleeding for brake system .............................. BR-9
Air cleaner and air duct(QR20DE-QR25DE) ..... EM-16
Air cleaner and air duct(YD22DDTi) ............... EM-142
Air cleaner filter replacement(QR20DE-QR25DE) ........
MA-24
Air cleaner filter replacement(YD22DDTi) ......... MA-35
Air cleaner filter(QR20DE-QR25DE) ................. EM-16
Air cleaner filter(YD22DDTi) ........................... EM-142
Air conditioner cut control .... EC-38, EC-551, EC-988,
EC-1364
Air flow meter - See Mass air flow sensor ....... EC-151,
EC-644
Air mix door control linkage adjustment ......... ATC-78,
ATC-135
, MTC-10, MTC-32
Air mix. door motor ......................... ATC-76, ATC-135
Air spoiler, rear ................................................... EI-30
Alternator ........................................................... SC-13
Ambient sensor ............. ATC-109, ATC-111, ATC-121
Angular tightening application(QR20DE-QR25DE) ......
EM-5
Angular tightening application(YD22DDTi) ..... EM-130
Antenna - See Power antenna ........................... AV-37
APP2PW - Wiring diagram ........... EC-1241, EC-1580
APPS - Wiring diagram . EC-1101, EC-1457, EC-1626
APPS1 - Wiring diagram ................... EC-411, EC-817
APPS2 - Wiring diagram .. EC-418, EC-824, EC-1140,
EC-1495
APPS3 - Wiring diagram ... EC-434, EC-840, EC-1287
ASC/BS - Wiring diagram ............. EC-1208, EC-1547
ASC/SW - Wiring diagram EC-379, EC-782, EC-1220,
EC-1559
ASCBOF - Wiring diagram ................ EC-507, EC-947
ASCD ................................................ EC-529, EC-969
ASCD brake switch EC-387, EC-506, EC-790, EC-946
ASCD indicator lamp ........................ EC-514, EC-954
ASCD steering switch ....................... EC-377, EC-780
ASCIND - Wiring diagram EC-515, EC-955, EC-1342,
EC-1693
Ashtray illumination .......................................... LT-121
Audio .................................................................... AV-4
Auto air conditioner - Wiring diagram ............. ATC-39
Automatic amplifier ........................... ATC-55, ATC-67
Automatic transmission fluid replacement ....... MA-40,
MA-42
Axle ................................................................... MA-46
B
Back door ........................................................... BL-99
Back door window ............................................ GW-15
Back window .................................................... GW-15
BACK/L - Wiring diagram ................................. LT-100
Back-up lamp ...................................... LT-100, LT-118
Back-up lamp switch (M/T) ............................... MT-15
Barometric pressure (BARO) sensor ............ EC-1303,
