SPECIFICATIONS
EXTERIOR51-31
SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONSM1511015300279
SERVICE SPECIFICATIONSM1511000300358
ADHESIVEM1511000500448
ITEM SPECIFICATION
Front bumper
License plate screw 0.9
0.1 Nm (8 1 in-lb)
Windshield wiper and washer
Wiper arm and blade assembly nut 37
3.0 Nm (27 1 ft-lb)
Wiper link assembly to Body bolt 8.0
2.0 Nm
Wiper motor to link assembly screw 7.5
1.0 Nm (66 13 in-lb)
Washer tank bolt 12
1.0 Nm (102 15 in-lb)
Door mirror
Remote controlled mirror assembly bolt 5.0
1.0 Nm (44 9 in-lb)
ITEM STANDARD VALUE
Windshield wiper blade (RH) park position 38
5 mm (1.50 0.20 inches)
Windshield wiper blade (LH) park position 38
5 mm (1.50 0.20 inches)
ITEM SPECIFICATION
Door side protector molding Adhesive tape: Double-sided tape
8.0 mm (0.32 inch) width and 1.2 mm (0.05 inch)
thickness
Roof drip molding Adhesive tape: Double-sided tape
10.0 mm (0.39 inch) width and 1.52 mm (0.06 inch)
thickness

FENDER
BODY42-10
FENDER
REMOVAL AND INSTALLATIONM1421001900313
Pre-removal and Post-installation Operation
Front Bumper Assembly Removal and Installation (Refer
to GROUP 51, Front Bumper P.51-2).
Front Mud Guard Removal and Installation (Refer to
GROUP 51, Mud Guard P.51-12).
Headlight Removal and Installation (Refer to GROUP
54A, Headlight and Front Combination Light P.54A-153).
REMOVAL STEPS
1. SPLASH SHIELD MOUNTING CLIP

2. SPLASH SHIELD MOUNTING BOLT

3. SPLASH SHIELD
DOOR MIRROR COVER (REFER TO
GROUP 51, DOOR MIRROR
P.51-28).
FRONT DELTA GARNISH (REFER
TO GROUP 51, GARNISHES AND
MOLDING P.51-8).
4. FENDERREMOVAL STEPS (Continued)

WINDOW GLASS
BODY42-15
WINDSHIELD

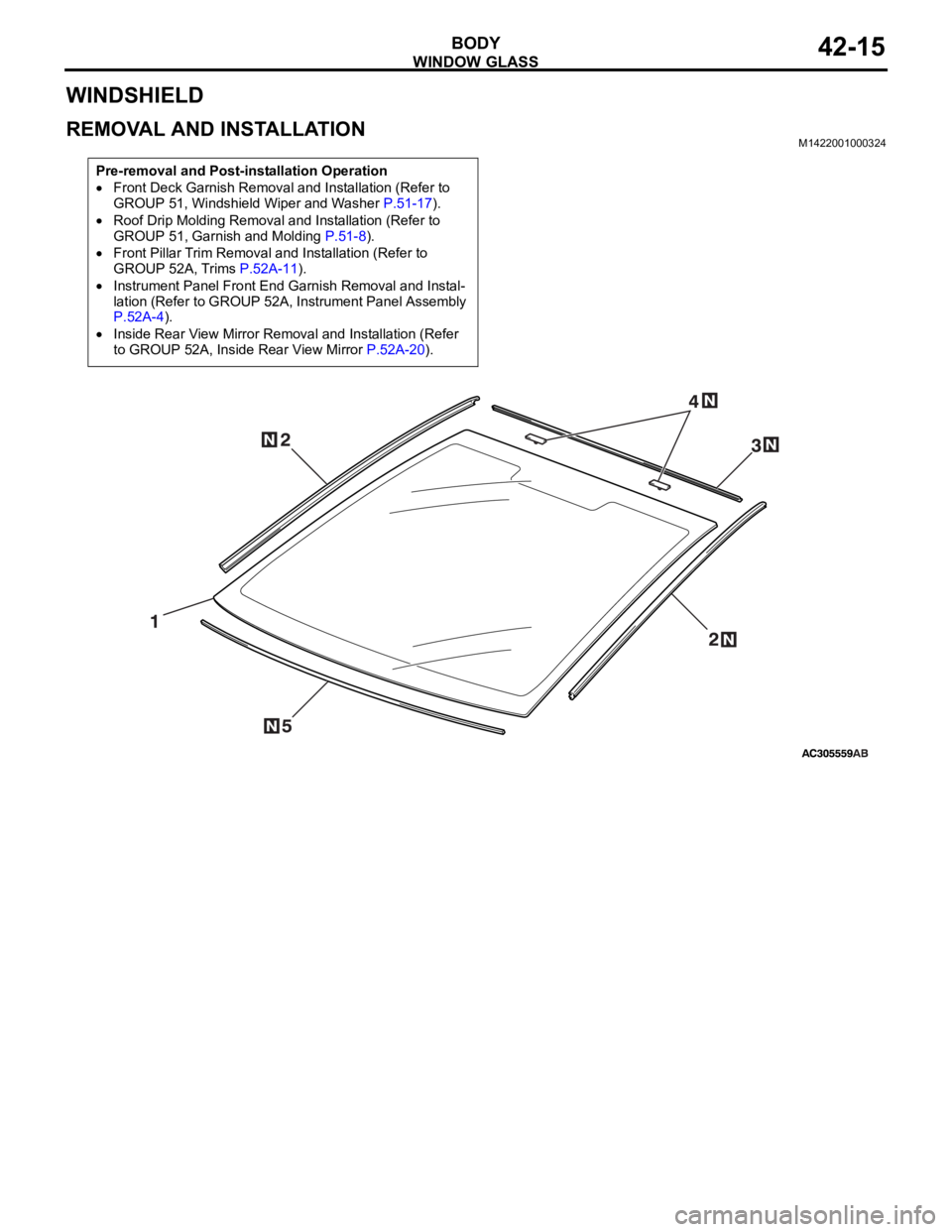

REMOVAL AND INSTALLATIONM1422001000324
Pre-removal and Post-installation Operation
Front Deck Garnish Removal and Installation (Refer to
GROUP 51, Windshield Wiper and Washer P.51-17).
Roof Drip Molding Removal and Installation (Refer to
GROUP 51, Garnish and Molding P.51-8).
Front Pillar Trim Removal and Installation (Refer to
GROUP 52A, Trims P.52A-11).
Instrument Panel Front End Garnish Removal and Instal-
lation (Refer to GROUP 52A, Instrument Panel Assembly
P.52A-4).
Inside Rear View Mirror Removal and Installation (Refer
to GROUP 52A, Inside Rear View Mirror P.52A-20).

DOOR
BODY42-53
REMOVAL

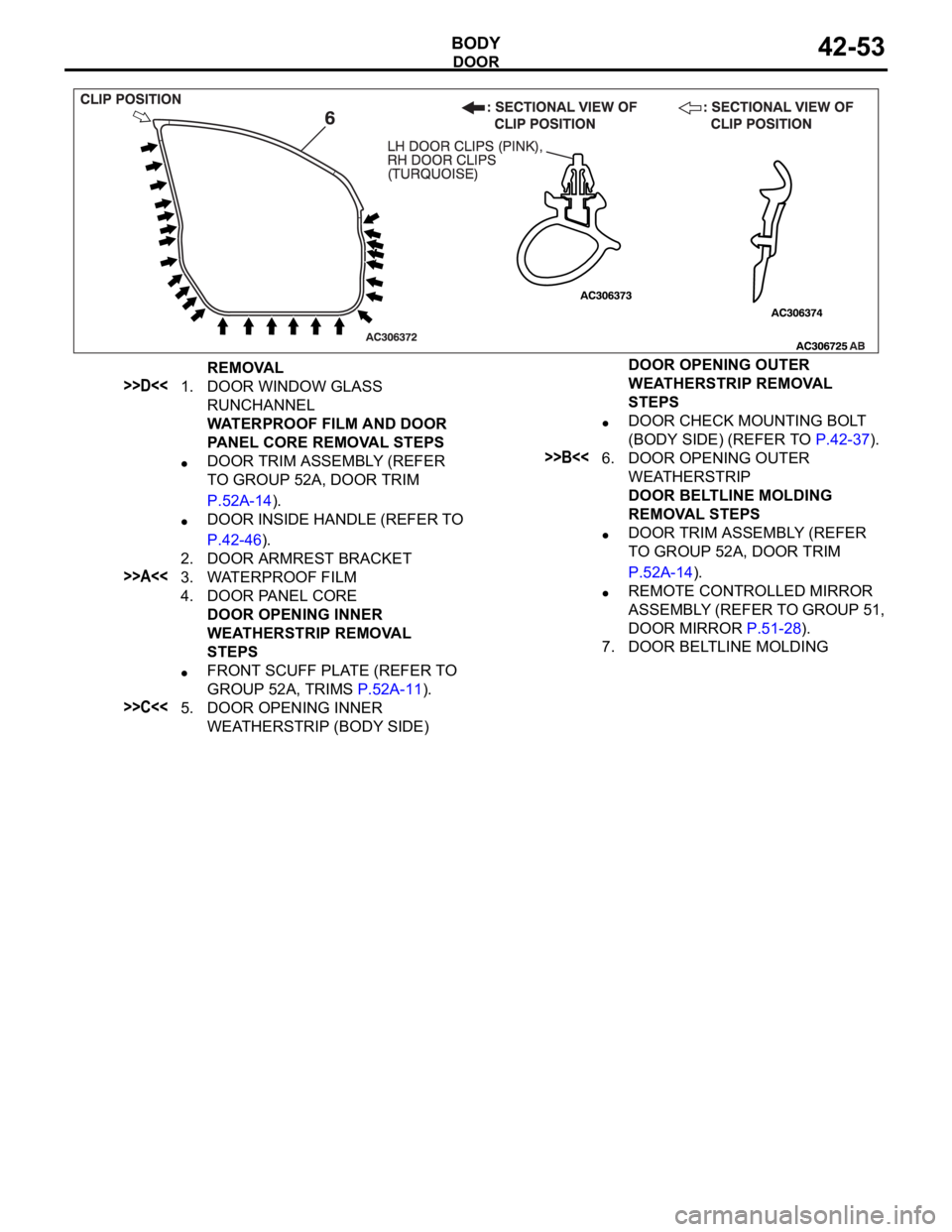

>>D<<1. DOOR WINDOW GLASS
RUNCHANNEL
WATERPROOF FILM AND DOOR
PANEL CORE REMOVAL STEPS
DOOR TRIM ASSEMBLY (REFER
TO GROUP 52A, DOOR TRIM
P.52A-14).
DOOR INSIDE HANDLE (REFER TO
P.42-46).
2. DOOR ARMREST BRACKET
>>A<<3. WATERPROOF FILM
4. DOOR PANEL CORE
DOOR OPENING INNER
WEATHERSTRIP REMOVAL
STEPS
FRONT SCUFF PLATE (REFER TO
GROUP 52A, TRIMS P.52A-11).
>>C<<5. DOOR OPENING INNER
WEATHERSTRIP (BODY SIDE)DOOR OPENING OUTER
WEATHERSTRIP REMOVAL
STEPS
DOOR CHECK MOUNTING BOLT
(BODY SIDE) (REFER TO P.42-37).
>>B<<6. DOOR OPENING OUTER
WEATHERSTRIP
DOOR BELTLINE MOLDING
REMOVAL STEPS
DOOR TRIM ASSEMBLY (REFER
TO GROUP 52A, DOOR TRIM
P.52A-14).
REMOTE CONTROLLED MIRROR
ASSEMBLY (REFER TO GROUP 51,
DOOR MIRROR P.51-28).
7. DOOR BELTLINE MOLDING

VEHICLE IDENTIFICATION
GENERAL00-21
OPTION CODES (380 Series)
EXPORT CODES
TYRE AND LOADING INFORMATION PLACARD
The tyre and loading information placard is located on the
inside sill of the driver’s door. OPTION CODE: ITEM
G39 Sunroof
C73 Leather (380 VRX)
J40 Traction Control
W51 16" Alloy Wheels
W54 17" Alloy Wheels + Sports Suspension + Strut Tower Bar
R06 Satellite Navigation Accommodation Package
J07 LX MARK (Only in combination with G39, C78, K40, W54) on
380-LS model
G39, C73 Sunroof + Leather
J40, W51 Traction Control + 16" Alloy Wheels
C78, K40 Leather (380 LS) + Power Seats
G05, J06 ECM + Vanity Mirror Lamp
J40, W51, G39 Traction Control + 16 " Alloy Wheels + Sunroof
G39, C78, K40 Sunroof + Leather (380 LS) + Power Seats
G39, C78, K40, W54 Sunroof + Leather (380 LS) + Power Seats + 17" Alloy Wheels +
Sports Suspension + Strut Tower Bar
G39, C78, K40, W54,
J07Sunroof + Leather (380 LS) + Power Seats + 17" Alloy Wheels +
Sports Suspension + Strut Tower Bar + LX Badging
OPTION
CODE ITEM
X71 Fiji
X62 New Zealand
A18 Export Preparation (wax and brake bags)
X30 Brunei
