OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX
INTERIOR LAMPS
WASHER/WIPER SYSTEM
Switching the interior light in the MINI on and off manuallyPress button 1 briefly.Permanently turn off interior light:Keep button
1 pressed until the light goes
out.
To switch the light back on, press the but
-
ton once more.
Switching the interior light in the MINI Convertible on and off manuallyPress button 1 briefly.Permanently turn off interior light:Keep button
1 pressed until the light goes
out.
To switch the light back on, press the but
-
ton once more.Switching the reading lamps on and
off Press button
2.
0Wipers parked1 Intermittent operation or rain sensor2 Normal wiper speed3 Fast wiper speed4 Brief wipe5 Clean windshield and headlamps Intermittent operation Not on vehicles with rain sensor.The interval time for the wipers is depen
-
dent on the vehicle speed.Rain sensor* The rain sensor is located on the wind
-
shield, directly in front of the interior rear
-
view mirror.

When the rain sensor is activated, the

60
WASHER/WIPER SYSTEMwindshield wipers are automatically con
-
trolled depending on the amount of mois
-
ture, including snow, on the windshield. To activate the rain sensor:From ignition key position
1:
Lever in position 1.

The wipers move over the windshield once.To deactivate the rain sensor:Put lever in position
0.
Switch the rain sensor off when pass
-
ing through an automatic car wash.
Failure to do so could result in damage
caused by undesired wiper activation. <
Normal wiper speedWhen the vehicle is stationary, the wipers
switch automatically to intermittent wip
-
ing.
You can have this function activated/deactivated.<
Fast wiper speedWhen the vehicle is stationary, the wipers
switch automatically to normal wiper
speed.
You can have this function activated/deactivated. <
Cleaning windshield and headlamps * The system sprays washer fluid against the
windshield. The wipers are automatically
activated for a brief period.When the vehicle lighting is on, the head
-
lamps are also cleaned at appropriate inter
-
vals.
Do not use the washers if there is any danger that the fluid will freeze on
the windshield. For this reason, use an anti
-
freeze agent, refer to page
108
.
Do not use the washers when the reservoir
is empty, since this could cause damage to
the washing pump. automatically when the ignition key is in
position
2.
Rear window wiper * 6 Intermittent operation:

Turn the cap to position
6.
The rear window wiper moves across the
window a number of times before
switching to interm ittent operationCleaning the rear window * 7 Intermittent operation:

Turn the cap to position
7 and hold in
place
8 In lever position
0:
Turn the cap to position
8 and hold in
place

74

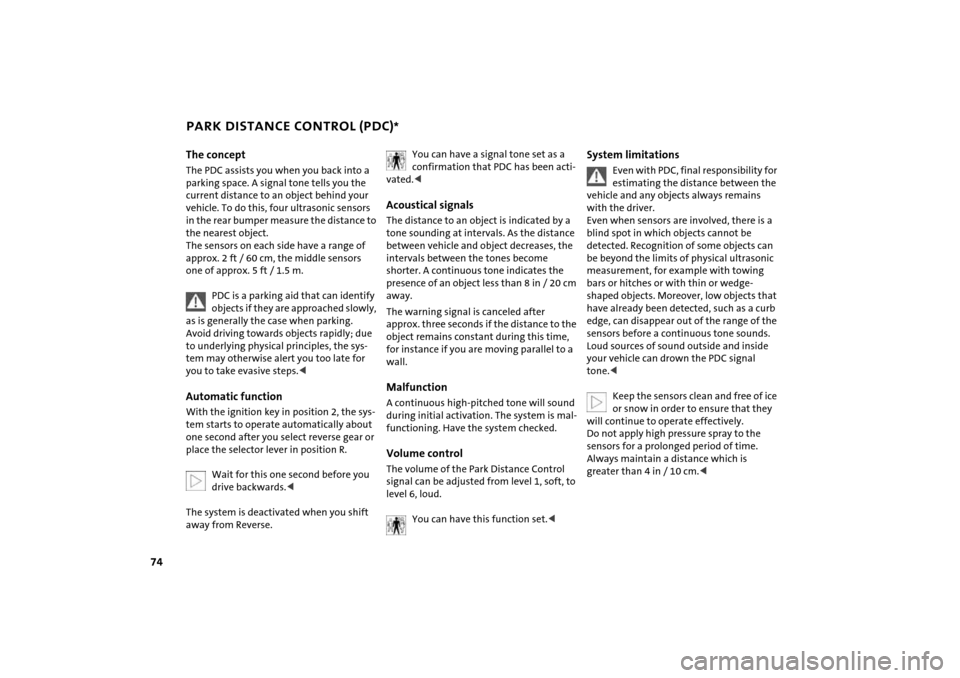

PARK DISTANCE CONTROL (PDC)
*
The conceptThe PDC assists you when you back into a
parking space. A signal tone tells you the
current distance to an object behind your
vehicle. To do this, four ultrasonic sensors
in the rear bumper measure the distance to
the nearest object.

The sensors on each side have a range of
approx. 2
ft / 60
cm, the middle sensors
one of approx. 5 ft / 1.5
m.
PDC is a parking aid that can identify objects if they are approached slowly,
as is generally the case when parking.
Avoid driving towards objects rapidly; due
to underlying physical principles, the sys
-
tem may otherwise alert you too late for
you to take evasive steps. 2, the sys
-
tem starts to operate automatically about
one second after you select reverse gear or
place the selector lever in position R.
Wait for this one second before you drive backwards.<
The system is deactivated when you shift
away from Reverse.
You can have a signal tone set as a confirmation that PDC has been acti
-
vated. tone sounding at intervals. As the distance
between vehicle and object decreases, the
intervals between the tones become
shorter. A continuous tone indicates the
presence of an object less than 8
in / 20
cm
away.
The warning signal is canceled after
approx. three seconds if the distance to the
object remains constant during this time,
for instance if you are moving parallel to a
wall.MalfunctionA continuous high-pitched tone will sound
during initial activation. The system is mal
-
functioning. Have the system checked.Volume controlThe volume of the Park Distance Control
signal can be adjusted from level
1, soft, to
level
6, loud.You can have this function set.<
System limitations
Even with PDC, final responsibility for estimating the distance between the
vehicle and any objects always remains
with the driver.

Even when sensors are involved, there is a
blind spot in which objects cannot be
detected. Recognition of some objects can
be beyond the limits of physical ultrasonic
measurement, for example with towing
bars or hitches or with thin or wedge-
shaped objects. Moreover, low objects that
have already been detected, such as a curb
edge, can disappear out of the range of the
sensors before a continuous tone sounds.

Loud sources of sound outside and inside
your vehicle can drown the PDC signal
tone.<
Keep the sensors clean and free of ice or snow in order to ensure that they
will continue to operate effectively.

Do not apply high pressure spray to the
sensors for a prolonged period of time.
Always maintain a distance which is
greater than 4
in / 10
cm.<

78
1 Air onto the windshield and onto the
side windows2 Air for the upper body area
80
3 Air for the front and rear footwells4 Rear window defroster and windshield
heating
* 79
5 Interior temperature sensor, please keep
clear and unobstructed6 Recirculated air mode
79
7 Air conditioning
76
8 Automatic air distribution and
volume
79
9 Defrosting and demisting the windshield
and side windows
80
10 Temperature
79
11 Display for air temperature and air
volume
79
12 Air volume/Blower, switching air con
-
ditioner on/off
79
13 Individual air distribution
80
AUTOMATIC CLIMATE CONTROL
*

96
BRAKE SYSTEMBrake fluid levelIf the brake fluid level is too low and brake
pedal travel has become longer, there may
be a defect in one of the brake system's
hydraulic circuits.
Proceed to the nearest MINI Dealer. Higher brake application pressure
may be necessary under these conditions,
there may be a slight pull to one side, and
brake pedal travel may be longer. Please
remember to adapt your driving style
accordingly.<
Disc brakesWhen the vehicle is driven only occasion
-
ally, during extended periods when the
vehicle is not used at all, and in operating
conditions where brake applications are
less frequent, there is an increased ten
-
dency for corrosion of the brake rotors and
accumulation of contamination on the
brake pads. This occurs because the mini
-
mal pressure that must be exerted by the
pads to clean the rotors by brake applica
-
tions is not reached. Corrosion on brake rotors is signaled by a
running or pulsation during braking; even
extended subsequent braking will not cure
this phenomenon.
It is a good idea to periodically dry the
brakes with a gentle application when driv
-
ing in rain and on wet roads.

Monitor traffic conditions to ensure that
this maneuver does not endanger other
road users. The resulting heat dries the
brake rotors and pads. Then if the braking
force is needed, it is immediately available.Driving downhill
To prevent overheating and the resulting reduced efficiency of the
brake system, drive down extended or
steep mountain gradients in the gear
which requires the least brake applications.
Otherwise, even light but consistent pedal
pressure can lead to high temperatures,
brake wear and possibly even brake fail
-
ure. -
ther utilized by downshifting, to first gear if
necessary, in the manual mode of the auto
-
matic transmission, refer to page
55. This
protects the brakes from excessive loads.
Do not coast with the clutch pedal pressed or with the transmission or
selector lever in Neutral. Do not coast with
the engine switched off. The engine pro
-
vides no braking effect when the transmis
-
sion is in Neutral, and there is no power-
assist for braking or steering when the
engine is switched off.

Make sure that there are no floor mats,
floor carpets or other objects in the vicinity
of the brake or accelerator pedal, as the
travel path of the pedals could otherwise
be impeded. the front axle and in the right brake pads of
the rear axle monitor the brake pad condi
-
tion. When the brake pads reach the wear
limit, the brake wear warning lights up,
refer to page
18.
Use brake pads which the manufac
-
turer of your MINI has approved for
your particular vehicle model. The manu
-
facturer of your MINI cannot evaluate non-
approved brake pads to determine if they
are suitable for use, and therefore cannot
ensure the operating safety of the vehicle
in the event of their use.<

113
OVERVIEW REPAIRSOPERATIONCONTROLS DATA INDEX
OBD SOCKET
CARING FOR YOUR VEHICLE
The Onboard Diagnostic (OBD) interface socket is located on the left of the driver's
side under the instrument panel and under
a cover.

The cover has the letters OBD on it.The purpose of the OBD system is to ensure
proper operation of the emission control
system for the vehicle's lifetime. The sys
-
tem monitors emission-related compo
-
nents for deterioration and malfunction.
An illuminated lamp informs you of the need for service, not of the
need to stop the vehicle.

However, the system should be checked by
your MINI Dealer at the earliest possible
opportunity.
Display of the malfunction described above in Canadian mod
-
els.
Under certain conditions, the indicator will
blink or flash. This indicates a rather severe
level of engine misfire. When this occurs,
you should reduce speed and consult the
nearest MINI Dealer as soon as possible.
Severe engine misfire over only a short
period of time can seriously damage emis
-
sion control components, especially the
catalytic converter.
When the gas cap is not properly tightened, the OBD system can
detect the vapor leak and the indicator will
light up. If the cap is subsequently tight
-
ened, the indicator lamp should go out
within a few days.<
Suitable car-care products
Use the cleaning and car-care prod
-
ucts available at your MINI Dealer.<
Washing your vehicleYou can wash your new MINI or MINI Con
-
vertible in automatic car washes from the
beginning. Preference should be for cloth
car washes. If, due to lack of availability,
brush car washes must be used, modern
systems with soft brushes should be given
preference.
When using steam cleaners or high-pressure cleaners, maintain sufficient
distance to the vehicle and do not exceed a
maximum temperature of 140
7/ 60
6. If
the jet is too close or the pressure is too
high, this can lead to damage or initial
damage that can develop into more serious
damage. Water that enters vehicle compo
-
nents can lead to damage over the long
term.

After washing the vehicle, apply the brakes
briefly to dry them, otherwise water can
reduce braking efficiency over the short
term and the brake rotors can corrode.

Switch the rain sensor off when passing
through an automatic car wash, refer to
page
59. Failure to do so could result in

115
OVERVIEW REPAIRSOPERATIONCONTROLS DATA INDEX
CARING FOR YOUR VEHICLEner, heavy-duty grease remover, fuel or
similar>Wood paneling
*:
Please clean wood paneling and other
wood parts only with a damp cloth. Dry
off with a soft cloth>Safety belts:

Only clean using mild soap, leaving the
belts fitted.

Do not dry clean, as the fabric can be
destroyed.

Always roll up safety belts only when
dry.

Dirty safety belts prevent unrolling and
thus negatively affect safety>Floor carpets and floor mats
*:
If heavily soiled, clean using interior
cleaner. Floor mats can be removed to
allow the interior to be cleaned>Wiper blades:

Clean with soapy water. Replace wiper
blades twice a year, before and after the
cold season. This is particularly impor
-
tant on vehicles fitted with a rain sensor.Caring for leather* and imitation
leather The leather and imitation leather used by
the manufacturer of your MINI are high
quality products processed using state-of-
the-art methods and will retain their qual
-
ity level for many years if cared for prop
-
erly.Regular cleaning and care are necessary, as
dust and road dirt scratch in pores and
creases and lead to heavy wear as well as
premature brittleness of the leather and
imitation leather surface.

This is why you should use a cloth or vac
-
uum cleaner to remove dust on a regular
basis.Since dirt and oil slowly destroy the protec
-
tive layer of the leather and imitation
leather, a treatment with a leather care
product is necessary twice a year. This pre
-
serves the quality of the leather and pre
-
vents electrostatic charging.
Cleaning agents can contain hazard
-
ous or health-damaging substances.
For this reason, always observe the warn
-
ings on the package. For interior cleaning,
always open the doors or windows of the
vehicle.

Do not use any products that are not
intended for cleaning the vehicle. -
vertible top largely depend on the proper
care and operation of the convertible top.
You should therefore observe the following
notes in particular:>Whenever possible, park your vehicle in
the shade to protect it from intense sun
-
light>Do not fold the convertible top when it is
wet, dirty or frozen; otherwise water
marks, moisture stains and chafing could
result>If the vehicle is parked in an enclosed
area for a longer period of time, make
sure that there is sufficient ventilation>Remove bird droppings immediately
because they have corrosive properties.
Never use spot removers, paint thin
-
ner, solvents, cleaning fuel or similar
since these products can destroy the rubber
seals and cause leaks.<

EVERYTHING FROM A TO Z
155
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
R Radiator, refer to Coolant
110

Radio, refer to separate Owner's Manual

Rain sensor
59
Range
66
Reading lamps
59
Rear backrest, foldable
85, 86
Rear fog lamp
58
bulb replacement
124

indicator lamp
58
Rear lamps, bulb
replacement
123

Rear seats, adjusting head
restraints
43
Rear shelf, refer to Luggage
compartment cover
85
Rear turn signal indicators, bulb
replacement
123

Rear window wiper
60
replacement
121

Rearview mirror
46
Recirculated air mode

air conditioning system
76
automatic climate control
79
Reclining seat, refer to Backrest
tilt
43
Refueling
94
fuel filler door
94
Remaining distance for
service
65
Remaining distance, refer to
Range
66
Remote control
25, 26
garage door opener
83
malfunction
27
Remote control key, refer to
Master keys with remote
control
24
Replacement key
24
Replacement of tires

changing tires
125

new wheels and tires
102

Reporting safety defects
9
Reserve indicator light, refer to
Fuel gauge
63, 64
Reservoir, washing
systems
108

Restraint systems

for children
48
refer to Safety belts
45
Retaining straps
88
Reverse

Continuously Variable
automatic Transmission
(CVT)
55
manual transmission
54
Roller sun blind
34
Roof load, refer to
Weights
143
, 144

Roof-mounted luggage rack
89
Rope, refer to Towing and Tow-
starting
137

RSC Runflat System
Component, refer to

Run Flat tires
101

Run Flat tires
101

tire failure
101

tire inflation pressure
98
tire replacement
102

winter tires
103

Runflat System Component
(RSC), refer to Run Flat
tires
101

Runflat Tyres, refer to Run Flat
tires
101

S Safety belt height
adjustment
45
Safety belts
45
care
115

height adjustment
45
indicator lamp
17, 45
safe seating position
41
Safety lock buttons, doors,

refer to Locking
28
Safety systems, refer to

Airbags
72
All Season traction Control
(ASC)
68
Antilock Brake System
(ABS)
70
Brake system
70
Dynamic Stability Control
(DSC)
69
Safety tires, refer to

Run Flat tires
101

Screwdriver, refer to Onboard
tool kit
120

Seat adjustment
42
Seat heating
46
Seat-belt tensioner, refer to
Safety belts
45
Seats

heating
46
safe seating position
41
Securing loads, refer to Loading
cargo
86
Securing the load
88
Securing the vehicle

from inside
28
from outside
26
Selector lever positions,
Continuously Variable
automatic Transmission
(CVT)
54
