ContentsAt the gas station............................... 240
Refueling ...................................... 240
Check regularly and before
a long trip ..................................... 241
Engine compartment.......................... 243
Hood ............................................ 243
Engine oil...................................... 246
Transmission fluid level ................ 248
Coolant......................................... 249
Trunk ................................................. 250
Batteries....................................... 250
Windshield washer system and
headlamp cleaning system ........... 251
Tires and wheels ................................ 253
Important guidelines .................... 253
Tire care and maintenance ........... 254
Direction of rotation ..................... 256
Loading the vehicle ...................... 256
Recommended tire inflation
pressure ....................................... 262
Checking tire inflation pressure ... 264
Tire labeling .................................. 268
Load identification........................ 272
DOT, Tire Identification Number
(TIN) ............................................. 273Maximum tire load ....................... 274
Maximum tire inflation pressure .. 275
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 276
Tire ply material ........................... 278
Tire and loading terminology ........ 278
Rotating tires ............................... 281
Anti-theft wheel nuts .................... 282
Winter driving .................................... 284
Winter tires* ................................ 284
Snow chains ................................. 285
Maintenance ...................................... 286
Clearing the maintenance
service indicator........................... 286
Maintenance service term
exceeded ..................................... 287
Calling up the service due date .... 287
Resetting the maintenance
service indicator........................... 288
Vehicle care ....................................... 289
Cleaning and care of the vehicle .. 289
Vehicle washing ........................... 290
Practical hints................................. 294
What to do if ... .................................. 296
Lamps in instrument cluster ........ 296
Lamp in center console................ 303
Vehicle status messages in the
multifunction display.................... 304
Symbol messages ........................ 309
Where will I find ...? ........................... 340
First aid kit ................................... 340
TIREFIT kit, electric air pump,
towing eye bolt and vehicle
literature portfolio ........................ 340
Locking/unlocking in an emergency . 342
Unlocking the vehicle................... 342
Replacing SmartKey batteries ........... 344
SmartKey ..................................... 345
Replacing bulbs ................................. 346
Front lamps.................................. 347
Rear lamps ................................... 347
Replacing the wiper blades................ 348
Removing wiper blades ................ 348
Installing wiper blades ................. 348

29 At a glance
Instrument cluster
Item
Page
1
Coolant temperature gauge
withDCoolant temperature
warning lamp
300
2
Speedometer with;Brake warning lamp,
USA only
298
3Brake warning lamp,
Canada only
298
vABS/ESP warning
lamp
296
>Gearshift indicator
lamp
301
301
LLeft turn signal indica-
tor lampKTurn signal indicator
lamp, right
Item
Page
3
Left multifunction display
with

Trip odometer
117


Main odometer
117
4
Reset button
113
5
Tachometer with
115
AHigh beam headlamp
indicator
109
?Engine malfunction in-
dicator lamp, USA only
299
±Engine malfunction in-
dicator lamp, Canada
only
299
-Antilock Brake System
(ABS) indicator lamp
297
Item
Page
1Supplemental restraint
system indicator lamp
302
302
6
Right multifunction display

Current gear selector lever
position/gear range
117,
170,
171


Outside temperature
115


Automatic transmission
shift program mode
117,
173


Clock
129
=Engine oil temperature
symbol
301
7
Fuel gauge withAFuel reserve warning
lamp
301

248 OperationEngine compartmentAdding engine oil

Using a rag, unscrew filler cap2 from
filler neck.

Add engine oil as required. Be careful
not to overfill with oil.Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw the filler cap back on filler neck.
You will find further information about en-
gine oil in the “Technical data” section
(
page 377) and (
page 375).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the transmission.
Warning!
G
The filler cap on the filler neck could be hot.
Use a rag when you unscrew the filler cap.
Otherwise you could burn yourself.
!Only use approved engine oils and oil
filters required for vehicles with
Maintenance System. For a listing of
approved engine oils and oil filters,
refer to the Factory Approved Service
Products pamphlet in your vehicle
literature portfolio, or contact an
authorized Mercedes-Benz Center.
Using engine oils and oil filters of
specification other than those
expressly required for the Maintenance
System, or changing of oil and oil filter
at change intervals longer than those
called for by the Maintenance System
will result in engine damage not cov-
ered by the Mercedes-Benz Limited
Warranty.
!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.

278 OperationTires and wheelsTire ply material
1Plies in sidewall
2Plies under tread
This marking tells you about the type of
cord and number of plies in the sidewall
and under the tread.
Tire and loading terminology
Accessory weight
The combined weight (in excess of those
standard items which may be replaced) of
automatic transmission, power steering,
power brakes, power windows, power
seats, radio, and heater, to the extent that
these items are available as
factory-installed equipment (whether
installed or not).
Air pressure
The amount of air inside the tire pressing
outward on each square inch of the tire.
Air pressure is expressed in pounds per
square inch (psi), or kilopascal (kPa) or
bars.
Aspect ratio
Dimensional relationship between tire
section height and section width
expressed in percentage.Bar
Another metric unit for air pressure. There
are 14.5038 pounds per square inch (psi)
to 1 bar; there are 100 kilopascals (kPa)
to 1 bar.
Bead
The tire bead contains steel wires wrapped
by steel cords that hold the tire onto the
rim.
Cold tire inflation pressure
Tire inflation pressure when your vehicle
has been sitting for at least three hours or
driven no more than one mile (1.6 km).
Curb weight
The weight of a motor vehicle with stan-
dard equipment including the maximum
capacity of fuel, oil, and coolant, and, if so
equipped, air conditioning and additional
optional equipment, but without passen-
gers and cargo.
iFor illustration purposes only. Actual
data on tires is specific to each vehicle
and may vary from data shown in above
illustration.

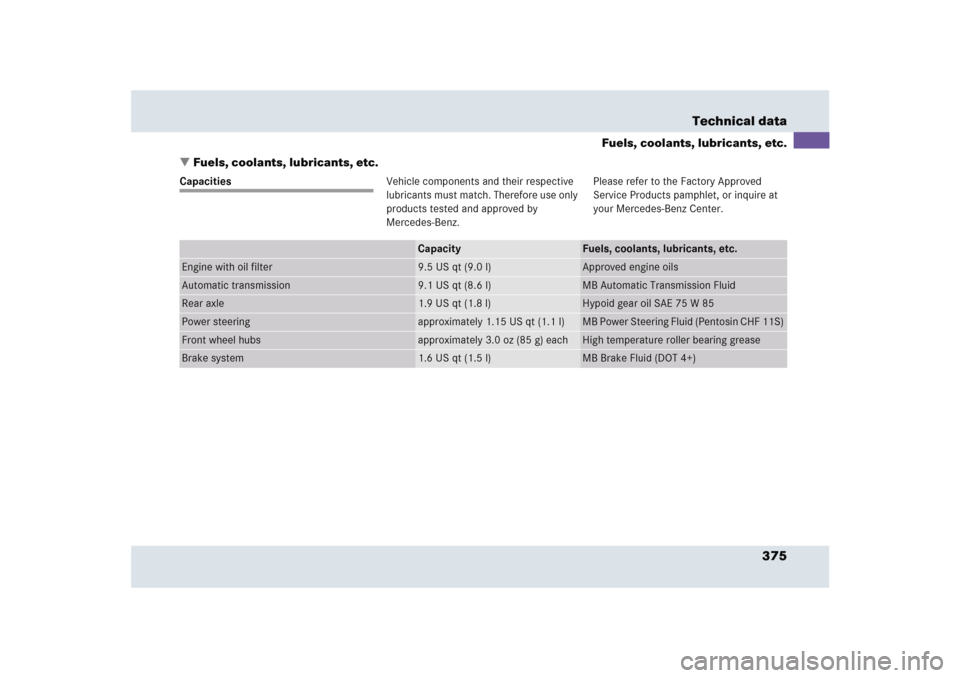

375 Technical data
Fuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.
CapacitiesVehicle components and their respective
lubricants must match. Therefore use only
products tested and approved by
Mercedes-Benz. Please refer to the Factory Approved
Service Products pamphlet, or inquire at
your Mercedes-Benz Center.
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
9.5 US qt (9.0 l)
Approved engine oils
Automatic transmission
9.1 US qt (8.6 l)
MB Automatic Transmission Fluid
Rear axle
1.9 US qt (1.8 l)
Hypoid gear oil SAE 75 W 85
Power steering
approximately 1.15 US qt (1.1 l)
MB Power Steering Fluid (Pentosin CHF 11S)
Front wheel hubs
approximately 3.0 oz (85 g) each
High temperature roller bearing grease
Brake system
1.6 US qt (1.5 l)
MB Brake Fluid (DOT 4+)

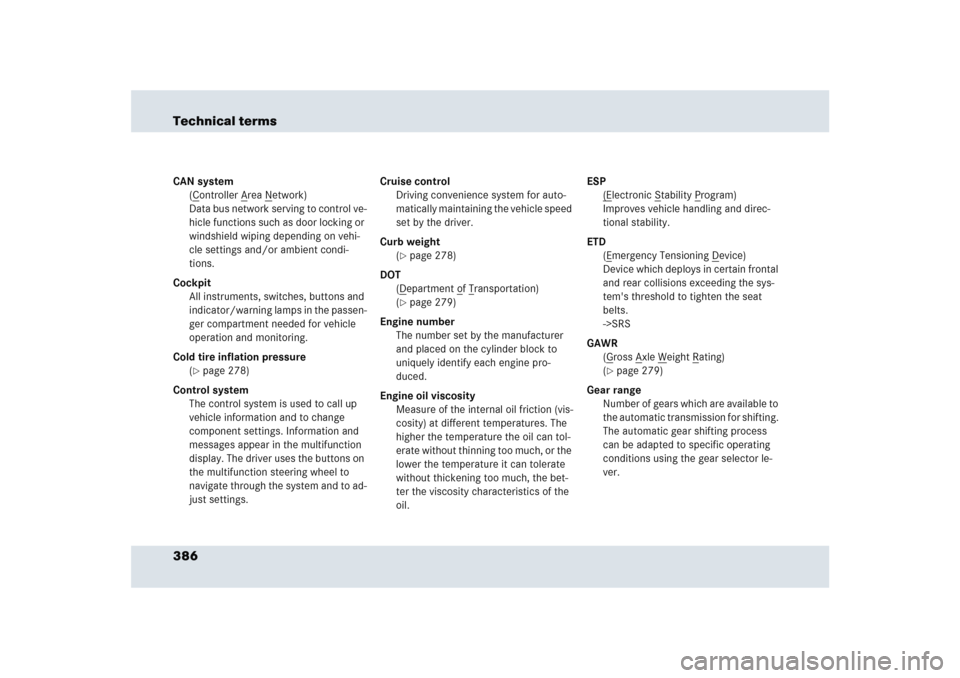

386 Technical termsCAN system
(C
ontroller A
rea N
etwork)
Data bus network serving to control ve-
hicle functions such as door locking or
windshield wiping depending on vehi-
cle settings and/or ambient condi-
tions.
Cockpit
All instruments, switches, buttons and
indicator/warning lamps in the passen-
ger compartment needed for vehicle
operation and monitoring.
Cold tire inflation pressure
(
page 278)
Control system
The control system is used to call up
vehicle information and to change
component settings. Information and
messages appear in the multifunction
display. The driver uses the buttons on
the multifunction steering wheel to
navigate through the system and to ad-
just settings.Cruise control
Driving convenience system for auto-
matically maintaining the vehicle speed
set by the driver.
Curb weight
(
page 278)
DOT
(Department o
f Transportation)
(
page 279)
Engine number
The number set by the manufacturer
and placed on the cylinder block to
uniquely identify each engine pro-
duced.
Engine oil viscosity
Measure of the internal oil friction (vis-
cosity) at different temperatures. The
higher the temperature the oil can tol-
erate without thinning too much, or the
lower the temperature it can tolerate
without thickening too much, the bet-
ter the viscosity characteristics of the
oil.ESP
(E
lectronic S
tability P
rogram)
Improves vehicle handling and direc-
tional stability.
ETD
(E
mergency Tensioning D
evice)
Device which deploys in certain frontal
and rear collisions exceeding the sys-
tem's threshold to tighten the seat
belts.
->SRS
GAWR
(G
ross A
xle W
eight R
ating)
(
page 279)
Gear range
Number of gears which are available to
the automatic transmission for shifting.
The automatic gear shifting process
can be adapted to specific operating
conditions using the gear selector le-
ver.

391 Index
A
ABS 79, 385
Indicator lamp 29, 297
Messages in the multifunction
display 306
ABS/ESP
Warning lamp 29, 296
Accelerator position, automatic
transmission 173
Accessory weight 278
Accident
In case of 55
ACL 385
Messages in the multifunction
display 308
Activating
Air circulation mode 188
Air conditioning (cooling) 192
Anti-theft alarm system 91
Central locking (control system) 135
ESP 84
Exterior headlamps 51
Exterior lamps 106
Headlamps 51
High beams 109
Immobilizer 58, 90Manual gearshift program 175
Rear window defroster 181
Residual heat 190
Tow-away alarm 92
Windshield wipers 53
Adding
Coolant 249
Engine oil 248
Additional turn signals (exterior
mirror) 347
Adjusting
Air distribution 187
Air volume 186
Mirrors 43
Seat angle 42
Seat fore and aft 42
Seat height 42
Seats 41
Steering column height 43
Steering column length 43
Steering wheel 42
Air conditioner refrigerant 377
Air conditioning (cooling)
Turning off 192
Turning on 192
Air pressure 278Air pressure see Tire inflation pressure
Air recirculation mode 188
Air volume adjustment 186
Airbags 63
Children 64
Front 68
Head-thorax 68, 69
Knee 68
Passenger 68
Airbrake 31, 87
Automatic mode 89
Emergency braking 89
Manual mode 88
Message in the multifunction
display 318
Test Mode 88
Warning lamp 29, 301
Alarm
Audible 78, 90
Canceling 91, 93
Visual 90
Anticorrosion/antifreeze 376, 381
Antiglare
Automatic 179

408 IndexSteering wheel gearshift control
Automatic transmission 174
Warning lamp 301
Storage compartment
Armrest 200
Center 201
Rear 201
Storage compartments 200
Message in the multifunction
display 339
Storing tires 255
Submenus
For settings 119
In control system 121
Instrument cluster 128
Lighting 130
Resetting functions 126
Selecting 126
Settings menus 126
Vehicle 134
Sun visors 180Switching off
Audio system 146
Automatic central locking (control
system) 135
Delayed (exterior lamps) 132
Engine 58
Hazard warning flasher 110
Headlamps 57
Switching on
Audio system 146
Automatic central locking (control
system) 135
ESP 84
Front fog lamps 108
Hazard warning flasher 110
Headlamps 51
High beams 109
Rear fog lamp 109
Windshield wipers 53
Symbol
Engine oil temperature 301
Synchronizing
Power windows 196T
Tachometer
Displaying gear range 170
Overspeed range 115
Technical data 362
Electrical system 372
Engine 368
Engine power output 368
Fuels, coolants, lubricants etc. 375
Main dimensions 373
Poly-V-belt 367
Rims and tires 369
Weights 374
Windshield and headlamp washer
system 382
Tele Aid 207, 389
Emergency call button 33
Emergency calls 209
Information 212
Initiating an emergency call
manually 210
Messages in the multifunction
display 309
Roadside Assistance 211
SOS button 210
Tele Aid system 208
